NSN 4820-00-141-9174 12862, 1286-2, 1286A2
Product Details | PLUG VALVE
4820-00-141-9174 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 12862, 1286-2, 1286A2, 1286B2, 12872, 1287-2, 1287A2, 1287B2, 4820-00-141-9174, 00-141-9174, 4820001419174, 001419174
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-141-9174 | 05490 ( VALVE, PLUG ) |
Drawings & Photos | NSN 4820-00-141-9174
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-141-9174
Related Products | NSN 4820-00-141-9174
Technical Data | NSN 4820-00-141-9174
| Characteristic | Specifications |
|---|---|

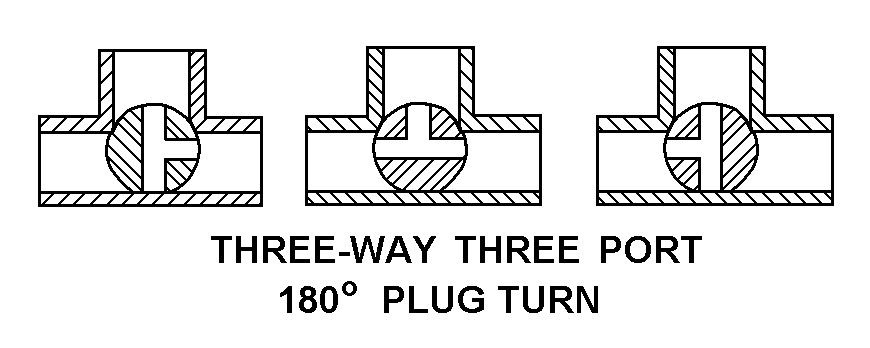

| FLOW STYLE | F20 THREE-WAY THREE PORT 180 DEGREE PLUG TURN |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| CONNECTION STYLE | G42 FLARED 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 1.312 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| MOUNTING FACILITY | THREADED FASTENER |
| FEATURES PROVIDED | ADJUSTABLE ROTATION STOP |
| MANUFACTURERS CODE | 81982 |
| DESIGN CONTROL REFERENCE | 1287B2 |
