Product Details | VALVE SEAT

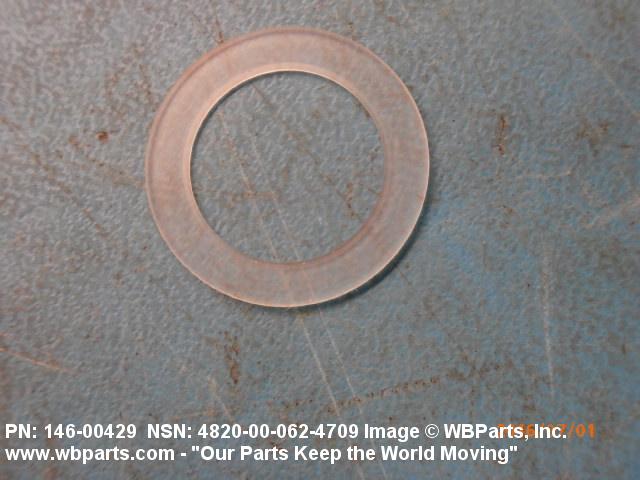

4820-00-062-4709 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: N895PC27C, 14600429, 146-00429, 4820-00-062-4709, 00-062-4709, 4820000624709, 000624709

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 17 JUN 1967 00-062-4709

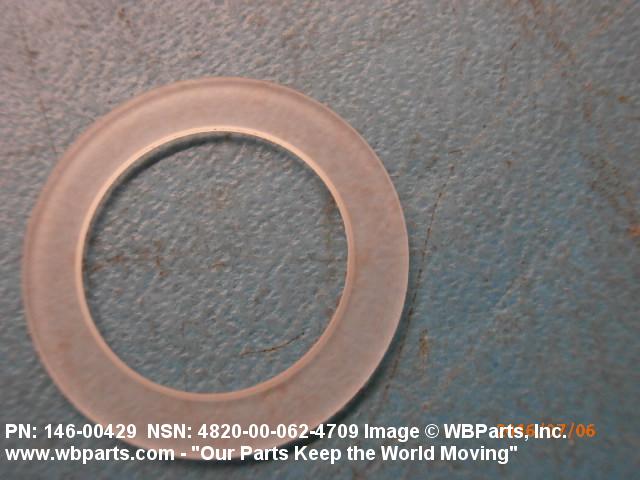

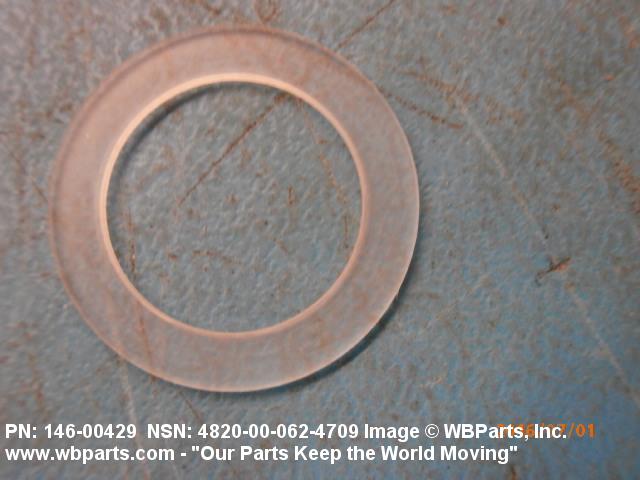

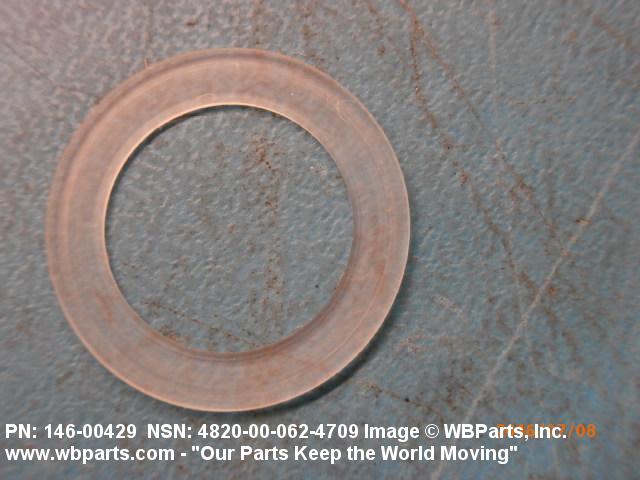

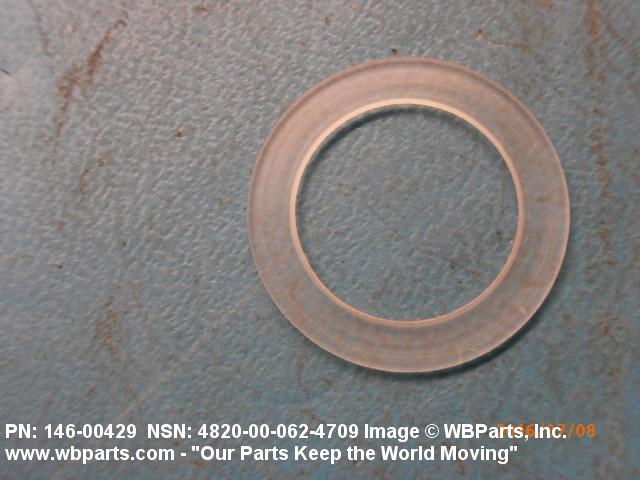

Drawings & Photos | NSN 4820-00-062-4709


Demand History | NSN 4820-00-062-4709

Part Number Request Date QTY Origin
14600429 2019-10-301 1 United States
14600429 2019-09-269 1 US
4820-00-062-4709 2018-04-116 41 DIBBS
4820-00-062-4709 2016-09-251 15 DIBBS
14600429 2016-01-21 20 United States

Cross Reference | NSN 4820-00-062-4709

Part Number Cage Code Manufacturer
146-00429 26505 GROVE VALVE OPERATIONS
N895PC27C 26505 GROVE VALVE OPERATIONS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-062-4709

Technical Data | NSN 4820-00-062-4709

Characteristic Specifications
STYLE DESIGNATOR B6 PLAIN

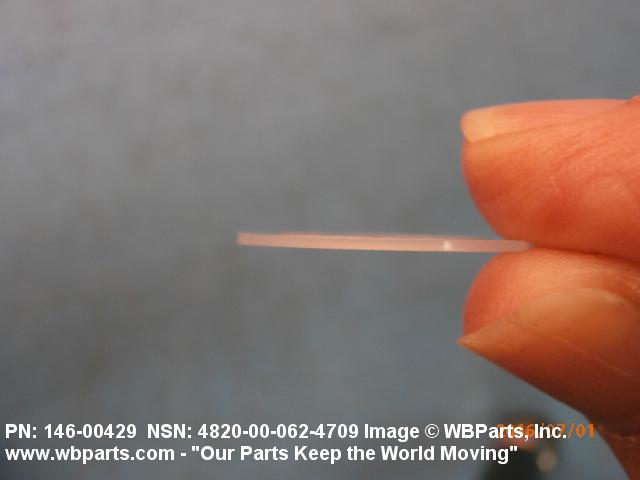

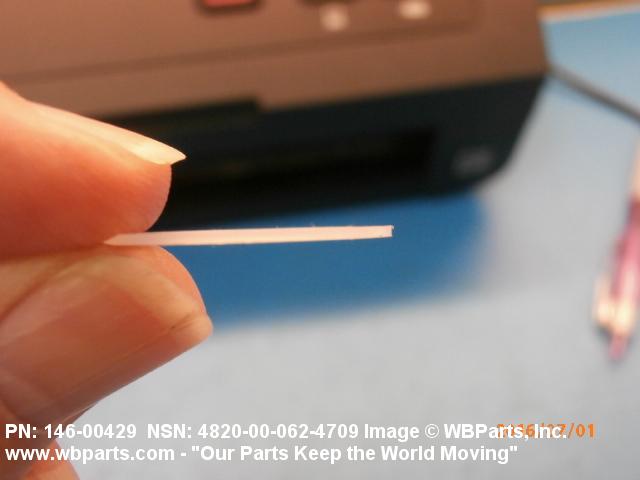

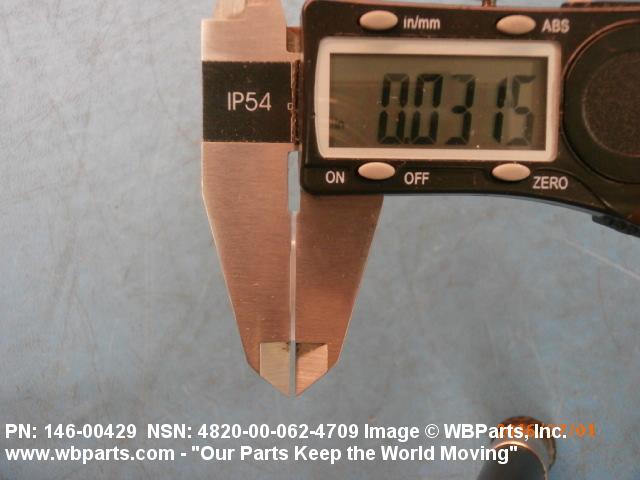

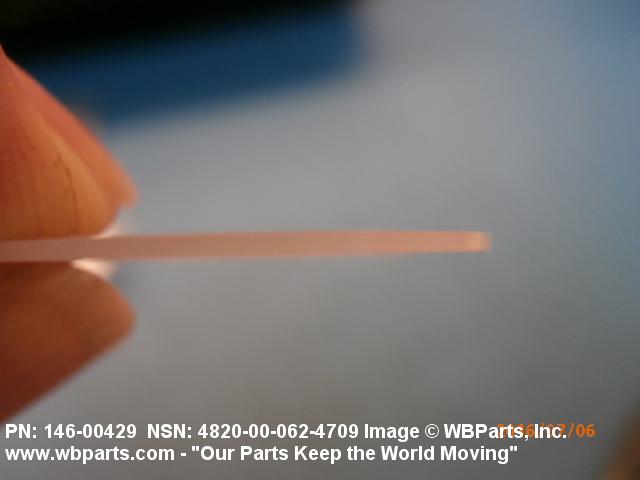

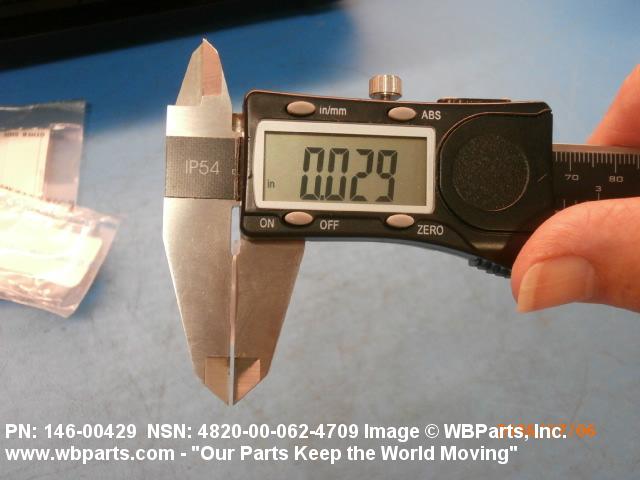

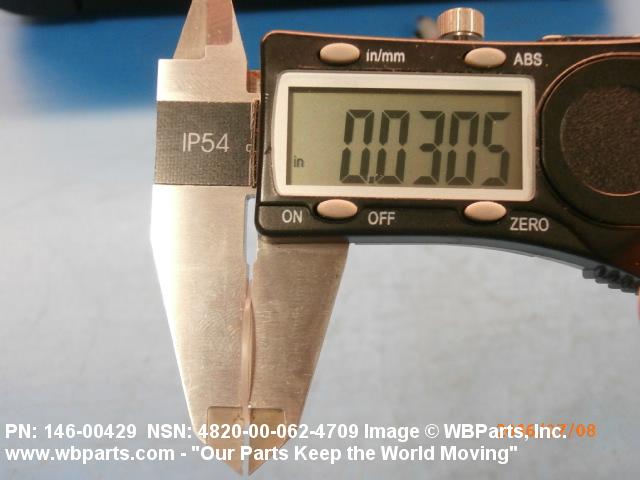

OVERALL HEIGHT 0.031 INCHES NOMINAL

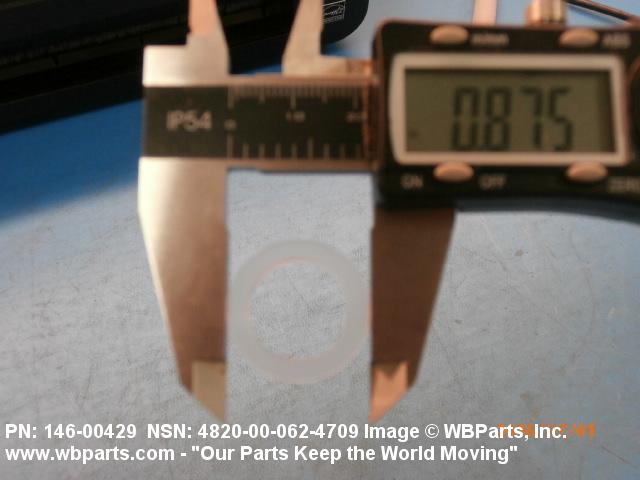

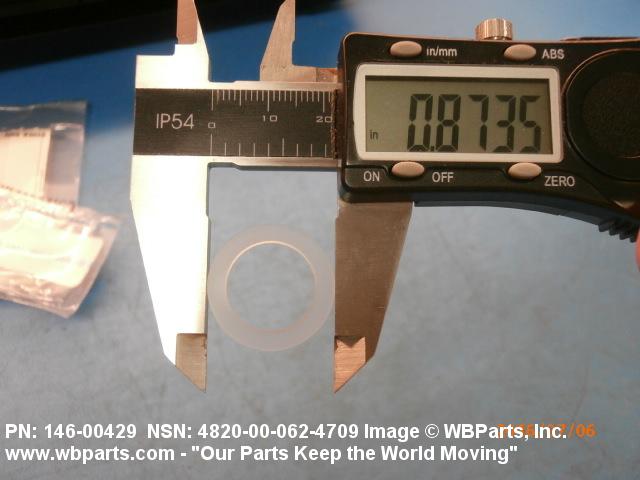

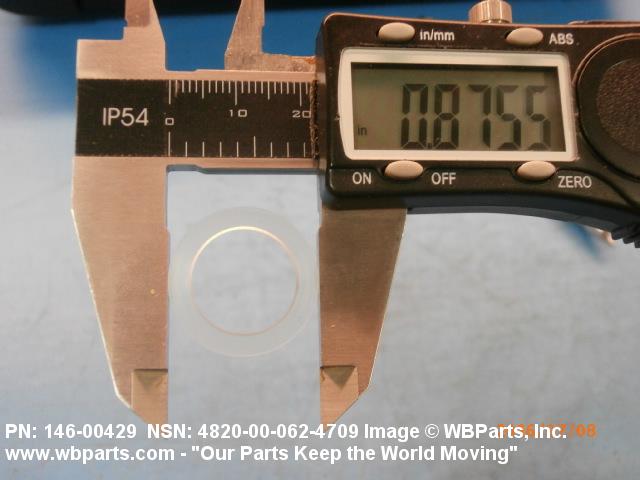

BODY OUTSIDE DIAMETER 0.878 INCHES NOMINAL

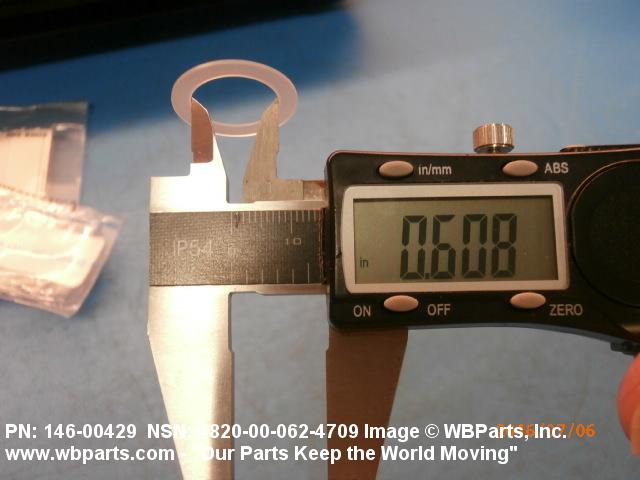

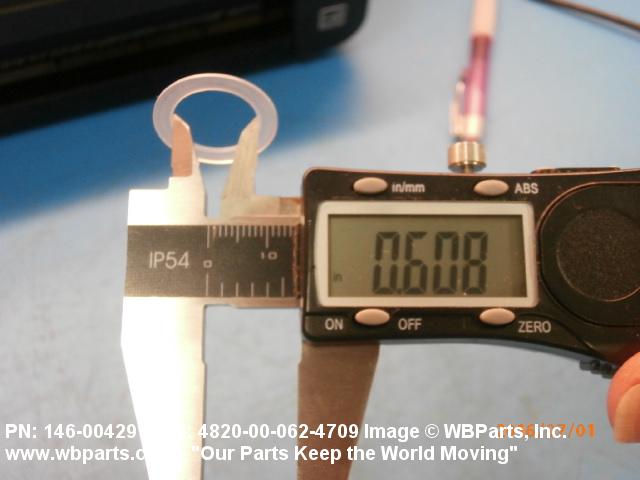

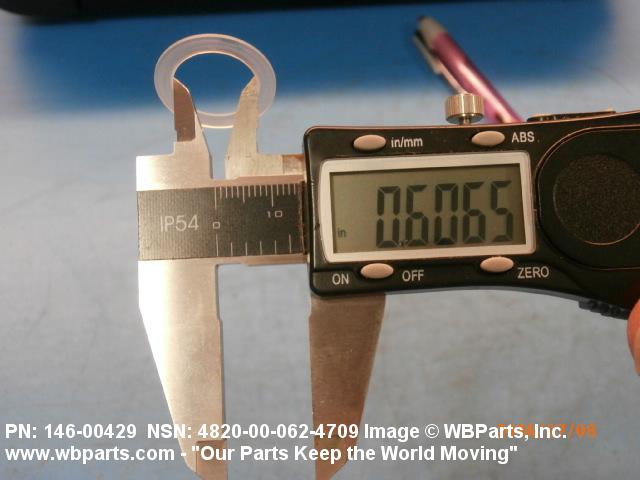

BODY INSIDE DIAMETER 0.605 INCHES NOMINAL
MATERIAL PLASTIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 3650 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING NOT RATED
SEATING SURFACE SHAPE FLAT

Restrictions/Controls & Freight Information | NSN 4820-00-062-4709

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 051080 FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 594 unknown
Originating Activity Code HD Naval Inventory Control Point
Mechanicsburg, PA 17055-0788
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4820-00-062-4709

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
