Product Details | CHECK VALVE

4820-00-061-7505 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.

Part Alternates: 2C5828, 4820-00-061-7505, 00-061-7505, 4820000617505, 000617505

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 01 JAN 1963 00-061-7505

Drawings & Photos | NSN 4820-00-061-7505


Demand History | NSN 4820-00-061-7505

Part Number Request Date QTY Origin
4820-00-061-7505 2021-05-139 3 India
4820-00-061-7505 2016-12-362 15 DIBBS
4820-00-061-7505 2016-08-242 2 DIBBS
4820-00-061-7505 2016-08-230 2 DIBBS
4820-00-061-7505 2015-05-145 15 DIBBS
4820-00-061-7505 2013-04-119 5 DIBBS
4820-00-061-7505 2009-07-186 6 DIBBS

Cross Reference | NSN 4820-00-061-7505

Part Number Cage Code Manufacturer
2C5828 99240 CRISSAIR, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-061-7505

Technical Data | NSN 4820-00-061-7505

Characteristic Specifications
MATERIAL ALUMINUM ALLOY BODY ALUMINUM ALLOY BODY LINING STEEL COMP 440A FLOW CONTROL DEVICE ALUMINUM ALLOY SEAT
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-225/6,ALLOY 2024 FED SPEC SINGLE MATERIAL RESPONSE BODY QQ-A-225/6, ALLOY 2024 FED SPEC SINGLE MATERIAL RESPONSE BODY LINING 66 FED STD SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICE
SURFACE TREATMENT ANODIZE

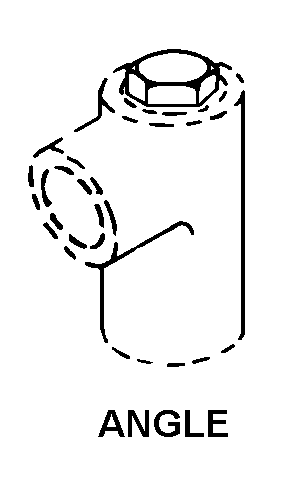

STYLE DESIGNATOR A1 ANGLE
FLOW CONTROL DEVICE POPPET
MEDIA FOR WHICH DESIGNED HYDRAULIC FLUID, PHOSPHATE-ESTER BASE SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP -65.0 DEG FAHRENHEIT 1ST RESPONSE 275.0 DEG FAHRENHEIT 2ND RESPONSE
VALVE OPERATION METHOD AUTOMATIC
CONNECTION TYPE THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE B42 FLARED ALL ENDS
SEAT ANGLE 37.0 DEGREES 2ND END
THREAD SERIES DESIGNATOR UNJF ALL ENDS
NOMINAL THREAD SIZE 0.750 INCHES ALL ENDS
THREAD CLASS 3A ALL ENDS
THREAD DIRECTION RIGHT-HAND ALL ENDS
MOUNTING POSITION HORIZONTAL OR VERTICAL
DISK LOADING METHOD SPRING
SPECIAL FEATURES SECOND END PER MS 33657-8
TEST DATA DOCUMENT 99240-2C5828 DRAWING
MANUFACTURERS CODE 99240
DESIGN CONTROL REFERENCE 2C5828
