NSN 4820-00-045-8175 12A24161, 12A2416-1, 00-045-8175
Product Details | LIQUID OXYGEN DRAIN VALVE
4820-00-045-8175 A valve designed to drain liquid oxygen from oxygen converters. It shall be a positive-position, toggle-actuating, bellows-sealed valve. It is specifically designed for oxygen systems.
Part Alternates: 12A24161, 12A2416-1, 4820-00-045-8175, 00-045-8175, 4820000458175, 000458175
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 09 MAY 1967 | 00-045-8175 | 37931 ( VALVE, LIQUID OXYGEN DRAIN ) |

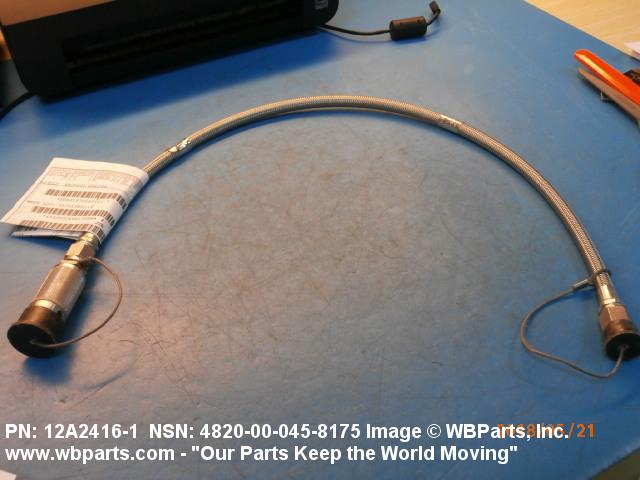

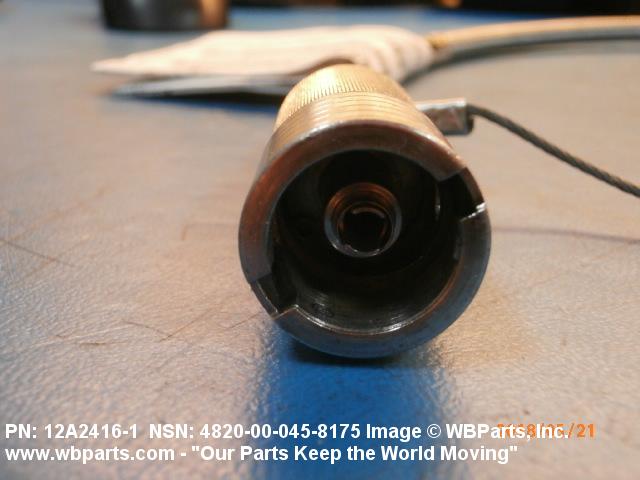

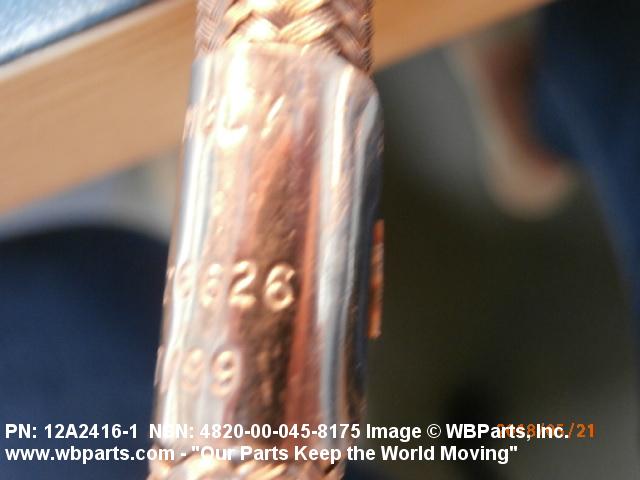

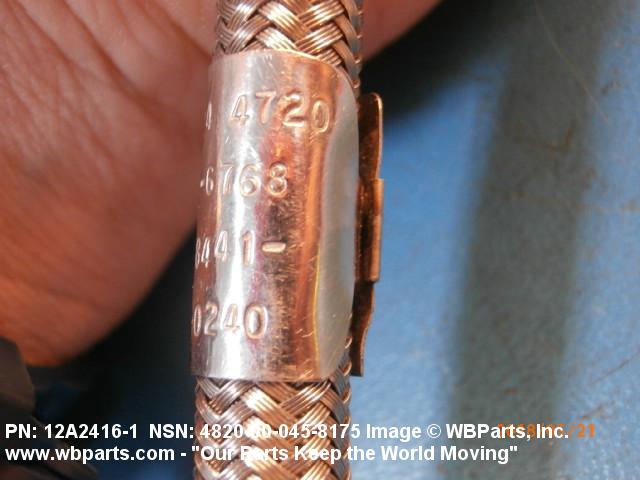

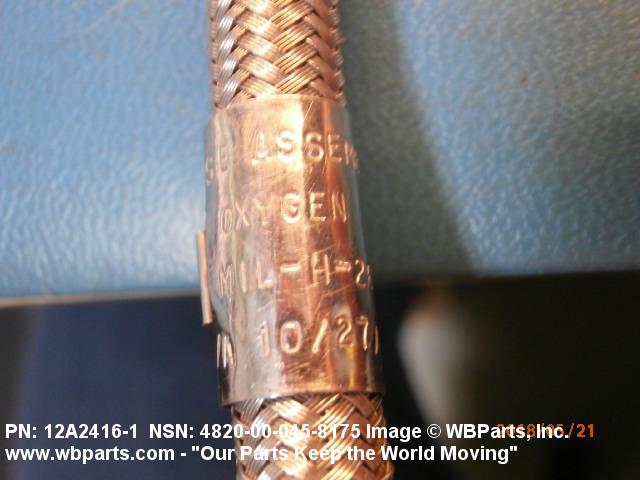

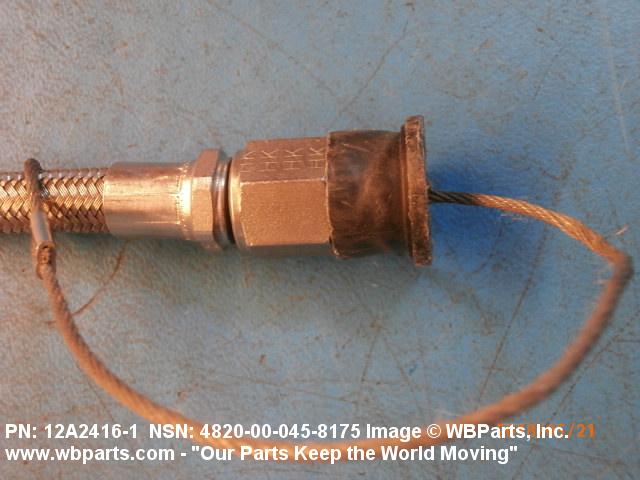

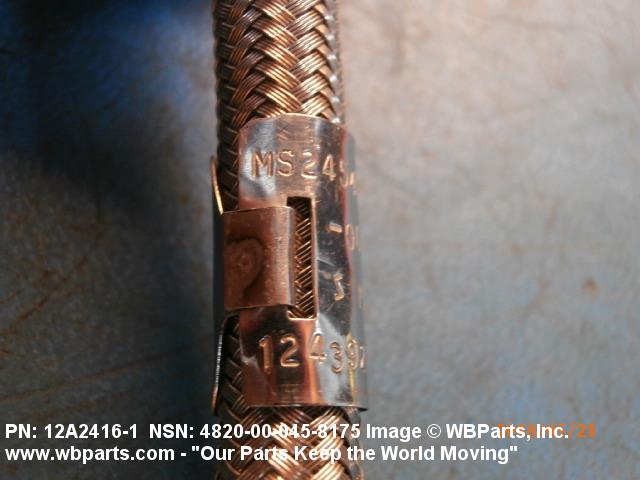

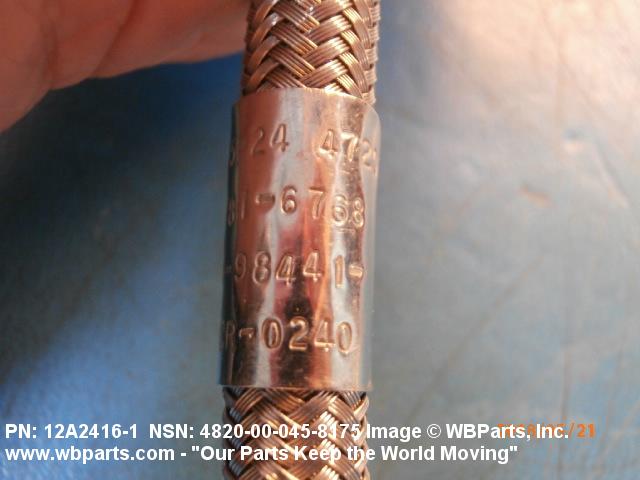

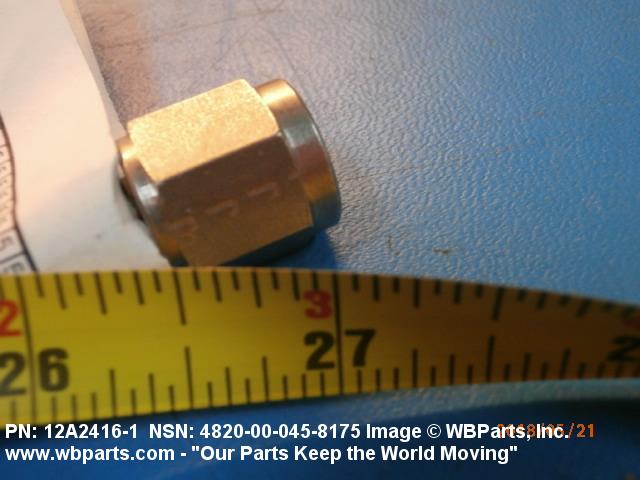

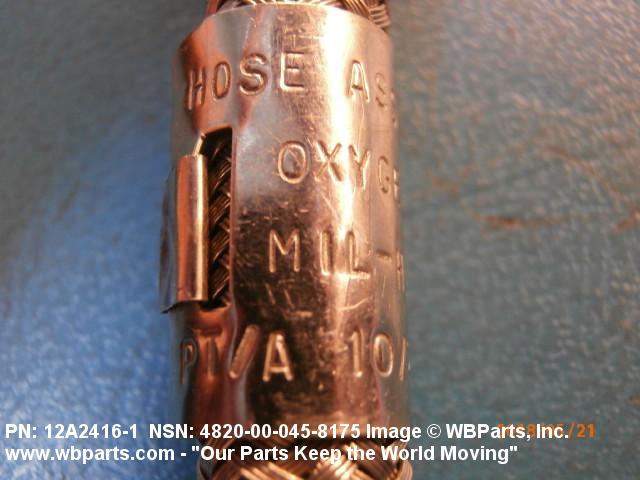

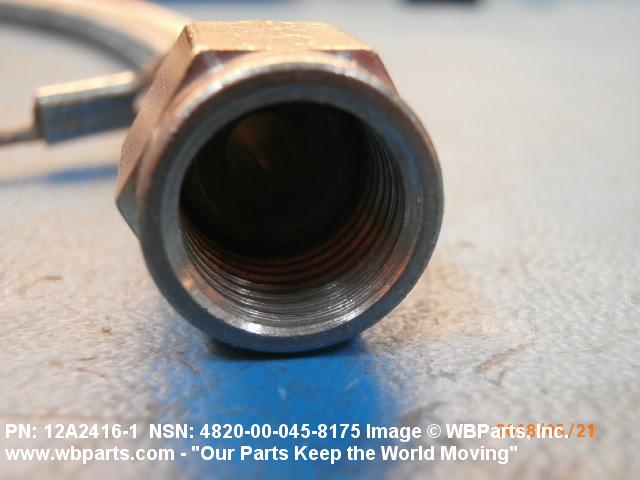

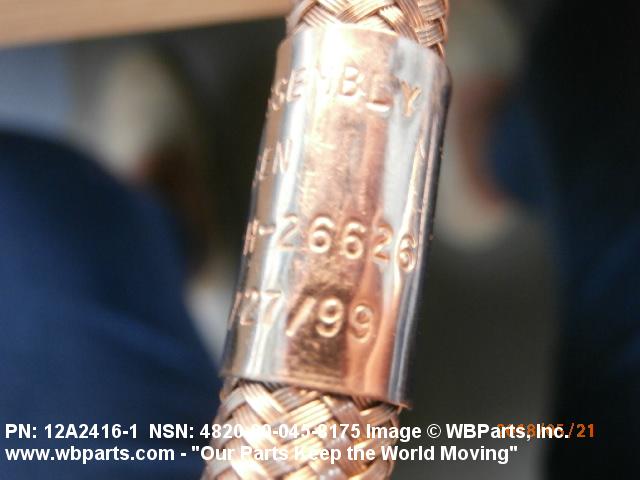

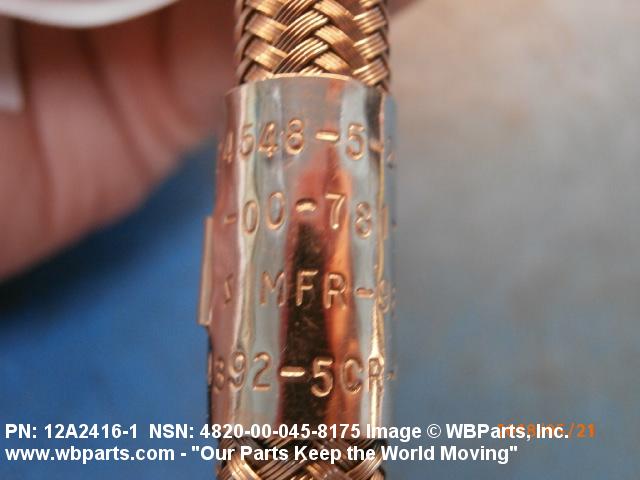

Drawings & Photos | NSN 4820-00-045-8175
Demand History | NSN 4820-00-045-8175
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-045-8175 | 2020-07-199 | 1 | US |
| 4820-00-045-8175 | 2020-05-141 | 2 | us |
| 4820-00-045-8175 | 2019-09-267 | 1 | CL |
| 4820-00-045-8175 | 2018-05-136 | 1 | United States |
| 4820-00-045-8175 | 2014-04-105 | 4 | US |
| 4820-00-045-8175 | 2006-02-40 | 1 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-045-8175
Related Products | NSN 4820-00-045-8175
Technical Data | NSN 4820-00-045-8175
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | ASSEMBLE FROM THE FOLLOWING: HOSEASSY,4720-01-050-3398; ADAPTER,4730-00142-2177; COUPLING,4730-00-287-1614; QUICK DISCONNECT COUPLING,4730-00-755-7237; DATA PLATE; WIRE ROPE, 4010-01-145-8456; SWAGGING SLEEVE, 4030-00-585-2230 |
| III END ITEM IDENTIFICATION | GROUND SUPPORT EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 4820-00-045-8175
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | S | 60 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-045-8175
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | A | 1257X3010:Common Aircraft Ground Support Equipment |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | F | FABRICATE OR ASSEMBLE # (NON-STOCKED ITEMS) National Stock Numbered items fabricated or assembled from raw materials and finished products as the normal method of support. Procurement and stockage of the items are not justified because of low usage or peculiar installation factors. Distinctions between local or centralized fabricate/assemble capability are identified by the Source of Supply Modifier in the Source of Supply Column of the Service Management Data Lists. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
