NSN 4810-01-592-2107 5202F2INCH, 01-592-2107, 015922107
Product Details | GATE VALVE
4810-01-592-2107 A valve having a flat or tapered disk (gate) which moves transversely to the axis of flow by rotating or sliding movements of the stem to open or close the orifice. It may also contain an oval or rectangular shaped slide which may be manually, motor, or pressure operated through the means of an arm or arm assembly. The body flange may be designed to accommodate tube type connectors. It may or may not contain thermal relief features. Includes valve (gate) specifically designed for the control of fluid systems in aircraft or missiles.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 5202F2INCH, 4810-01-592-2107, 01-592-2107, 4810015922107, 015922107
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 24 FEB 2011 | 01-592-2107 | 05482 ( VALVE, GATE ) |

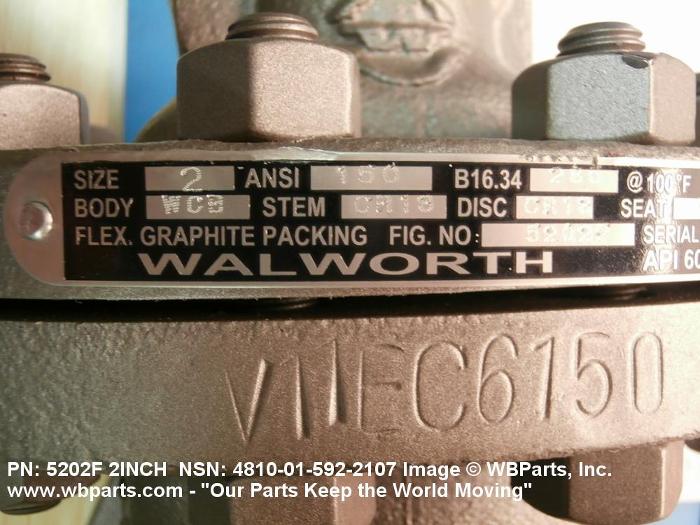

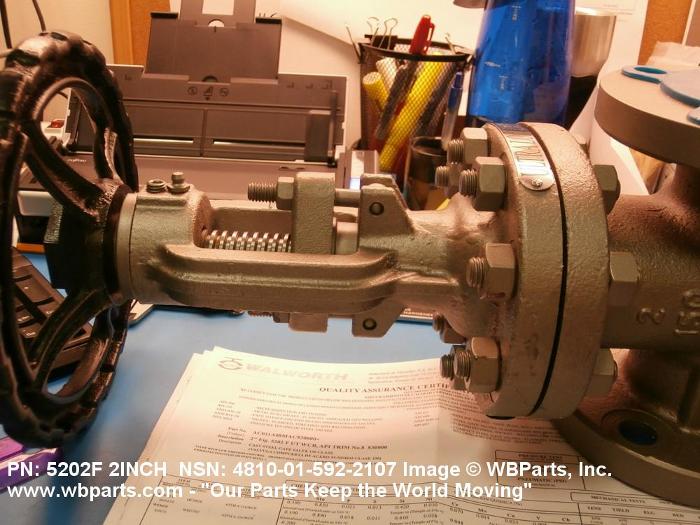

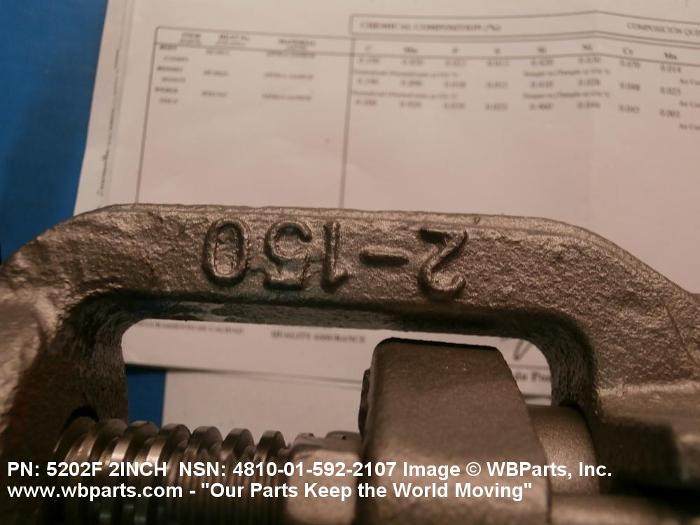

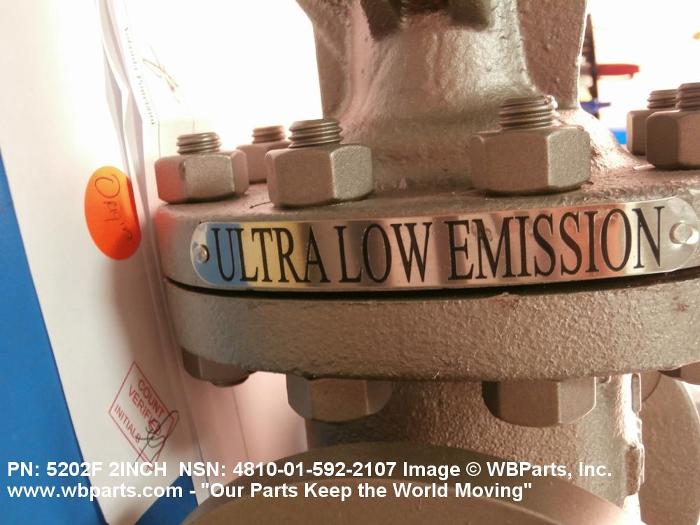

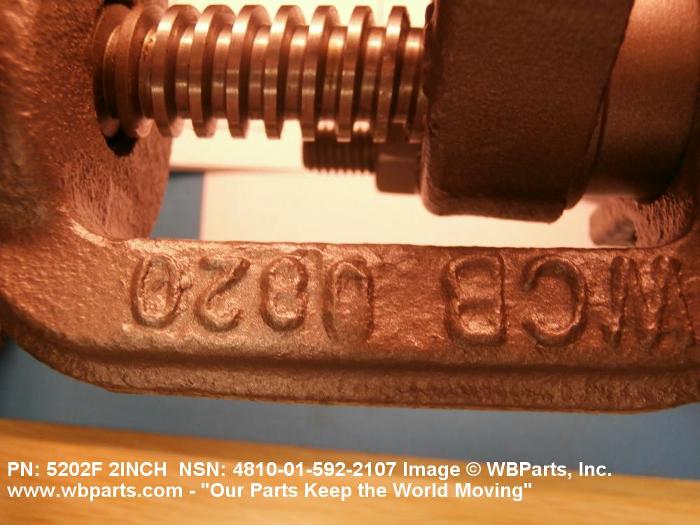

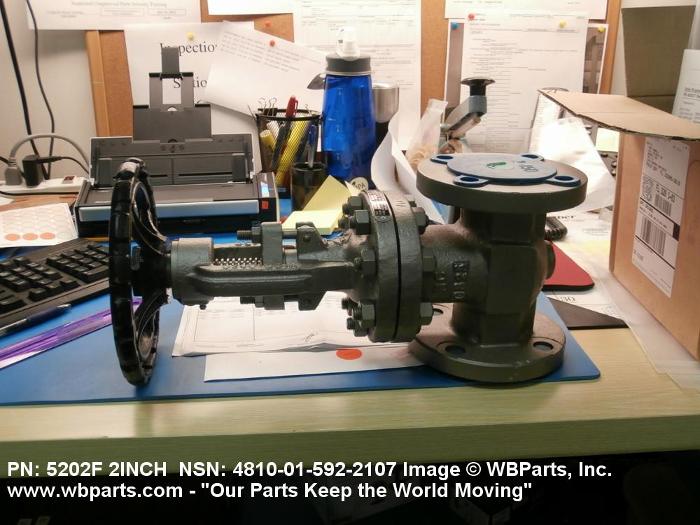

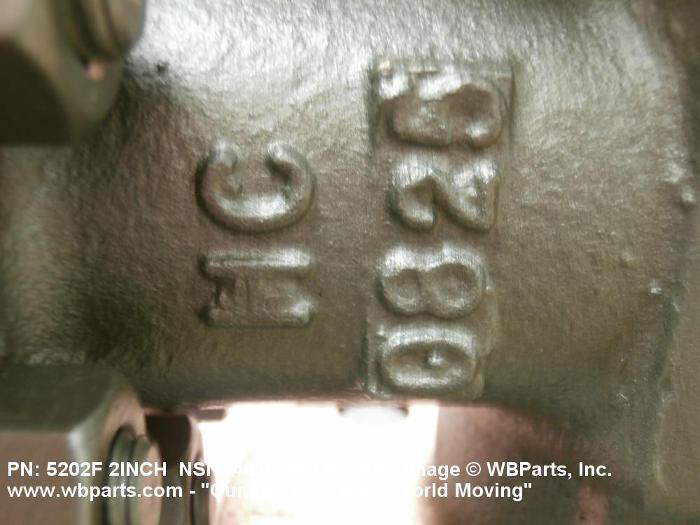

Drawings & Photos | NSN 4810-01-592-2107
Demand History | NSN 4810-01-592-2107
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-01-592-2107 | 2012-11-333 | 1 | United States |
| 5202F(2INCH) | 2012-10-302 | 1 | |
| 4810-01-592-2107 | 2012-10-300 | 1 | NECO |
| 5202F(2INCH) | 2012-10-280 | 1 | |
| 4810-01-592-2107 | 2012-10-279 | 1 | NECO |
Cross Reference | NSN 4810-01-592-2107
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5202F(2INCH) | 4Y1F4 | TWC THE VALVE COMPANY L.L.C. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-592-2107
Technical Data | NSN 4810-01-592-2107
| Characteristic | Specifications |
|---|---|
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH NAVICP ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS |
Restrictions/Controls & Freight Information | NSN 4810-01-592-2107
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-01-592-2107
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | PP | Integrated Propulsion Plant Planning Yard, Newport News (IPPPY) |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
