NSN 4810-01-569-0595 040489-216, 01-569-0595, 040489216
Product Details | FLOW CONTROL VALVE
4810-01-569-0595 An inline or cartridge type item designed to control the flow of fluids within a closed system. Excludes items actuated by a predetermined pressure and/or temperature, items designed for use with breathing gasses, or those designed to vent or calibrate fluids.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 040489-216, 4810-01-569-0595, 01-569-0595, 4810015690595, 040489216, 015690595
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 19 NOV 2008 | 01-569-0595 | 45506 ( VALVE, FLOW CONTROL ) |

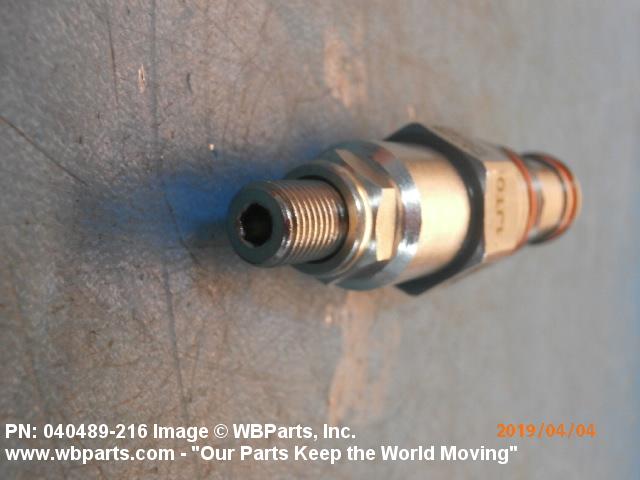

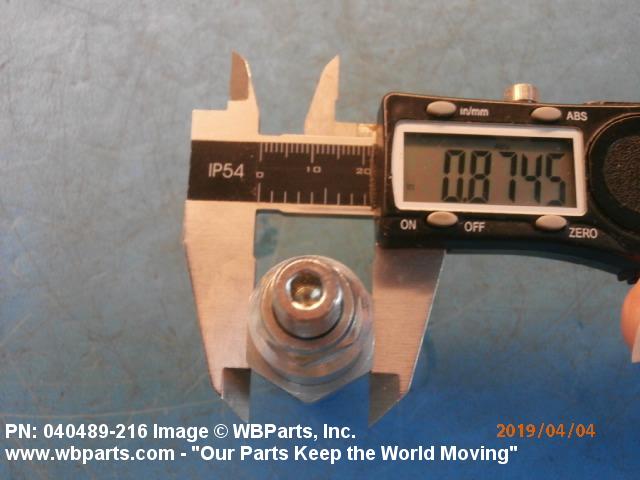

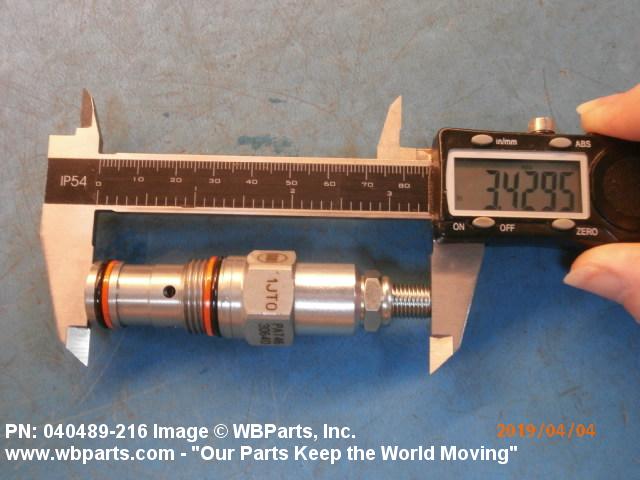

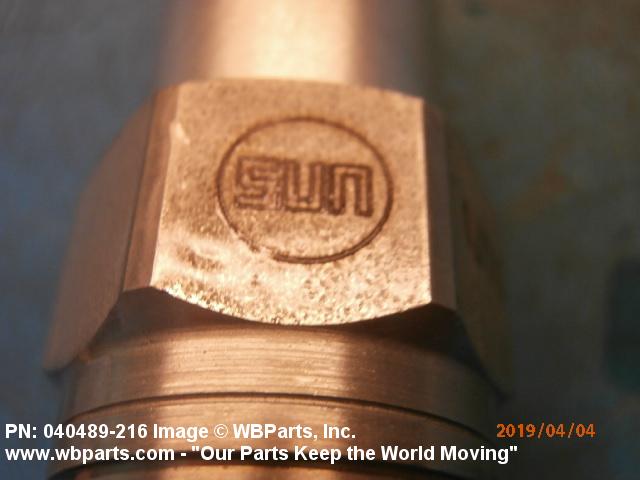

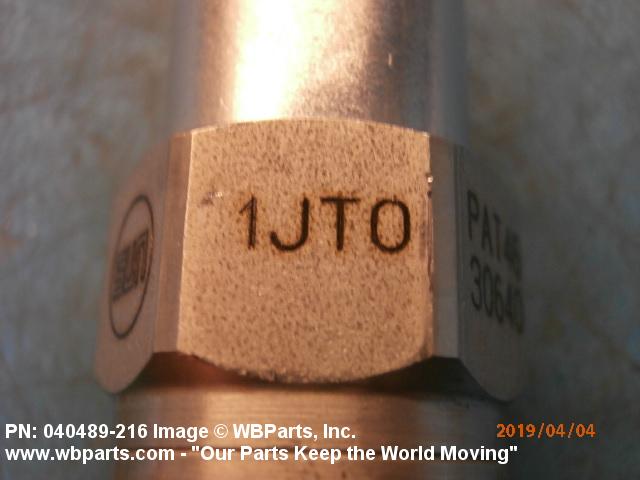

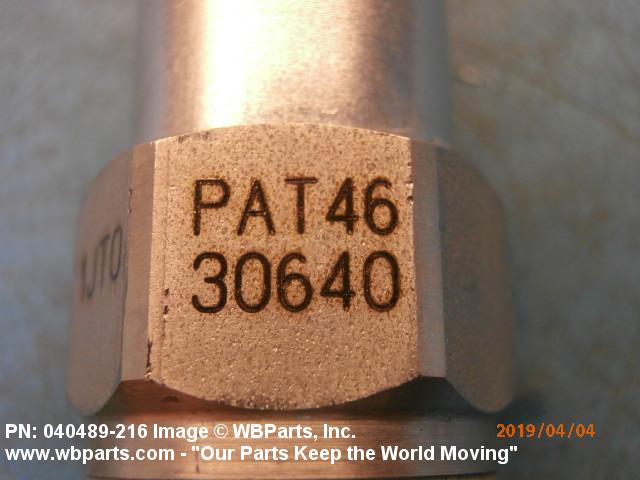

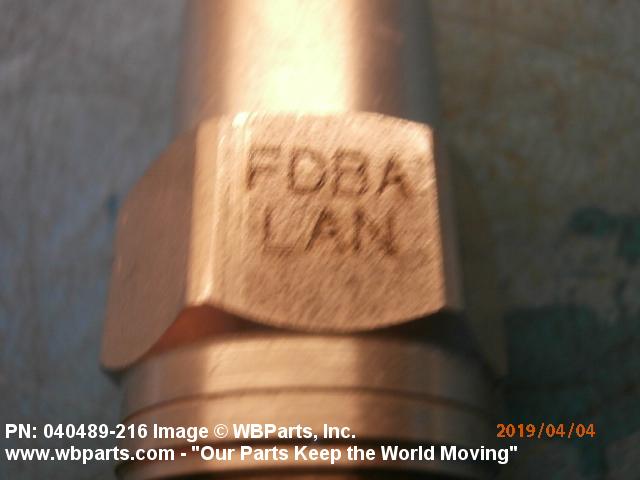

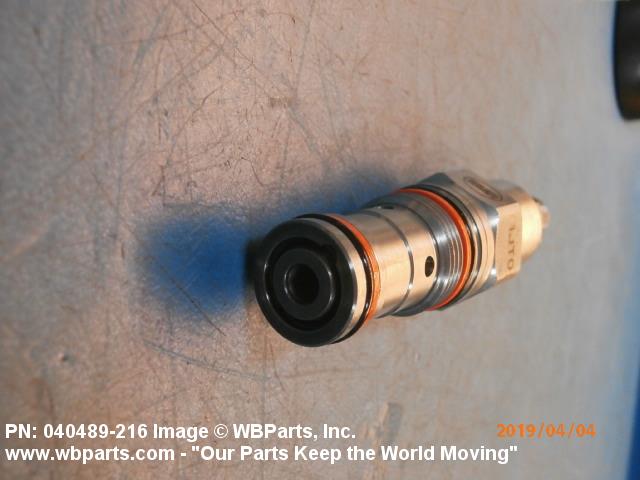

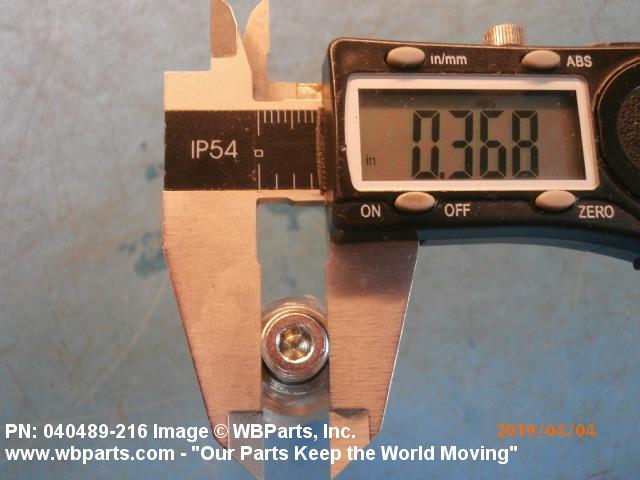

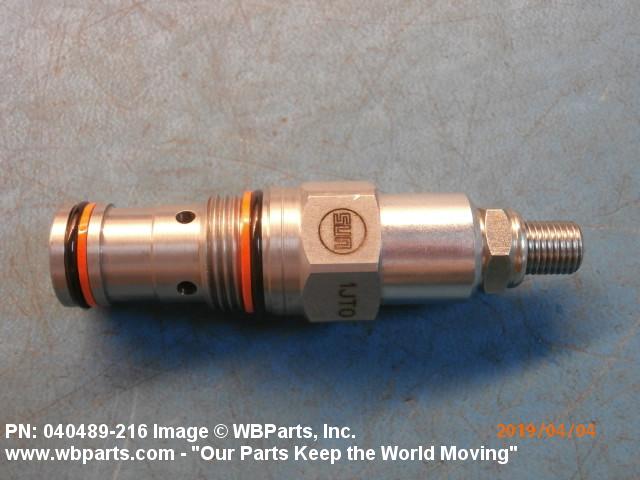

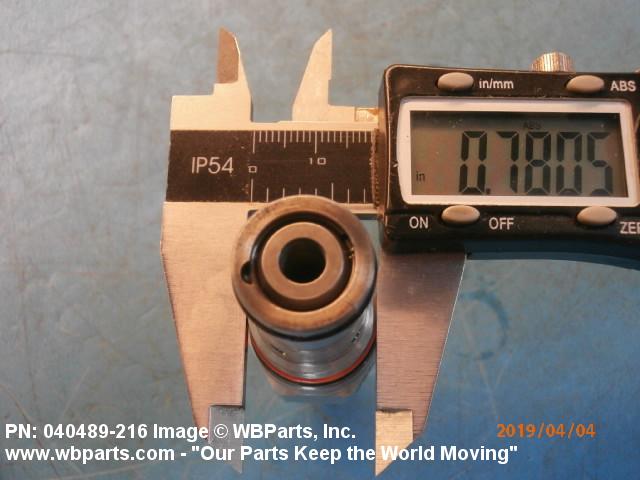

Drawings & Photos | NSN 4810-01-569-0595
Demand History | NSN 4810-01-569-0595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 040489-216 | 2024-07-186 | 4 | DIBBS |
| 040489-216 | 2024-03-88 | 3 | DIBBS |
| 040489-216 | 2023-09-264 | 5 | DIBBS |
| 040489-216 | 2023-05-131 | 5 | DIBBS |
| 040489-216 | 2022-09-250 | 3 | DIBBS |
| 040489-216 | 2022-08-234 | 3 | DIBBS |
| 040489-216 | 2022-08-223 | 3 | DIBBS |
| 040489-216 | 2022-07-194 | 1 | DIBBS |
| 040489-216 | 2022-06-166 | 1 | DIBBS |
| 040489-216 | 2022-02-54 | 1 | DIBBS |
| 040489-216 | 2022-02-39 | 1 | DIBBS |
| 040489-216 | 2022-02-32 | 1 | DIBBS |
| 040489-216 | 2021-05-140 | 1 | DIBBS |
| 040489216 | 2019-01-30 | 1 | United States |
| 4810-01-569-0595 | 2017-07-208 | 1 | DIBBS |
| 4810-01-569-0595 | 2011-03-71 | 2 | DIBBS |
Cross Reference | NSN 4810-01-569-0595
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 040489-216 | 56529 | HYDRAULICS INTERNATIONAL, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-01-569-0595
Related Products | NSN 4810-01-569-0595
Technical Data | NSN 4810-01-569-0595
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | INAVY IS VALVE, FLOW CONTR. SEAL TYPE IS BUNA-N, FLOW RATE IS 0.1-6 GPM, CAVITY IS T-13A (SUN HYDRAULIC), TYPE IS ADJUSTABLE PRESSURE-COMPENSATED FLOW CONTROL VALVE |
| END ITEM IDENTIFICATION | W/S CONSOLIDATED AUTOMATED SUPPORT SYSTEM (CASS); DHPS HYDRAULIC POWER SUPPLY, DEISEL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FILL FLOW CONTROL VALVE |
Restrictions/Controls & Freight Information | NSN 4810-01-569-0595
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-01-569-0595
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
