NSN 4810-01-439-3483 12417631, 12417631001, 12417631-001
Product Details | SOLENOID VALVE
4810-01-439-3483 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 12417631, 12417631001, 12417631-001, 4810-01-439-3483, 01-439-3483, 4810014393483, 014393483
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 05 DEC 1996 | 01-439-3483 | 10998 ( VALVE, SOLENOID ) |

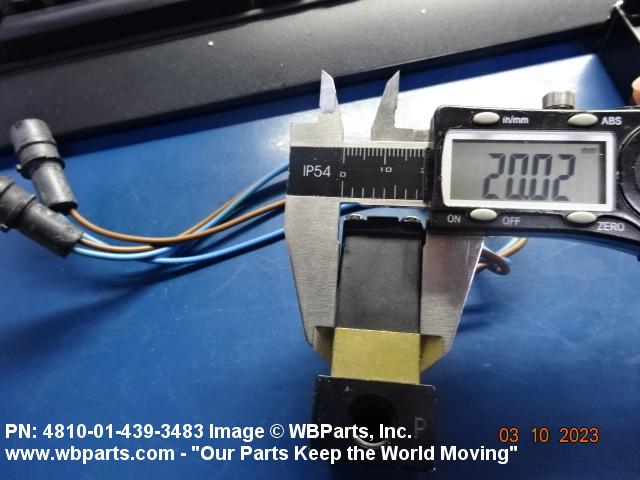

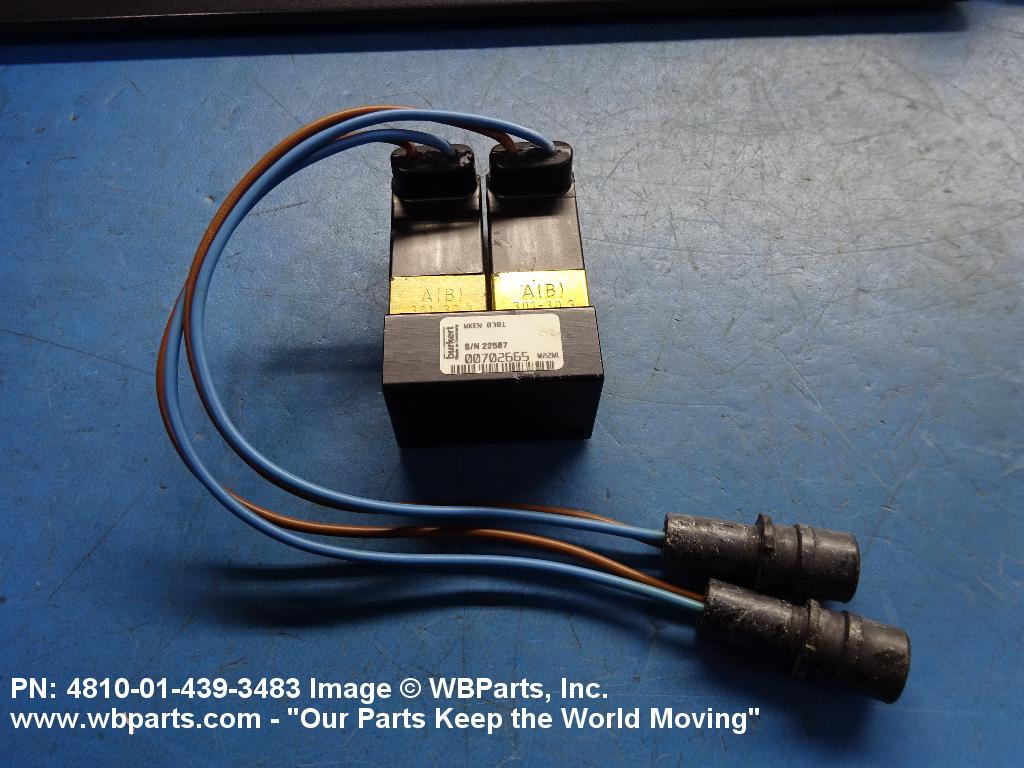

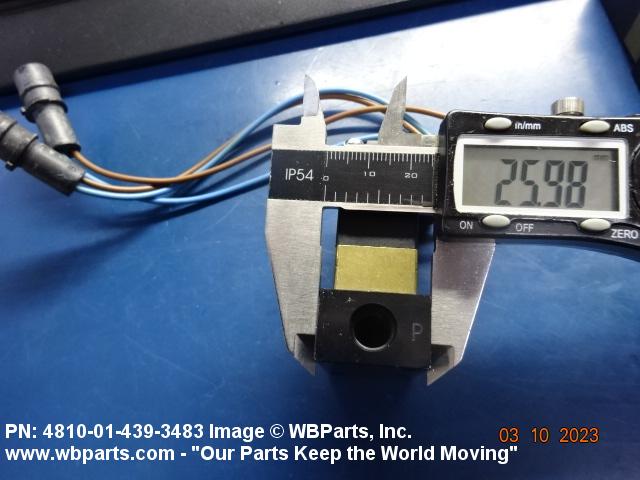

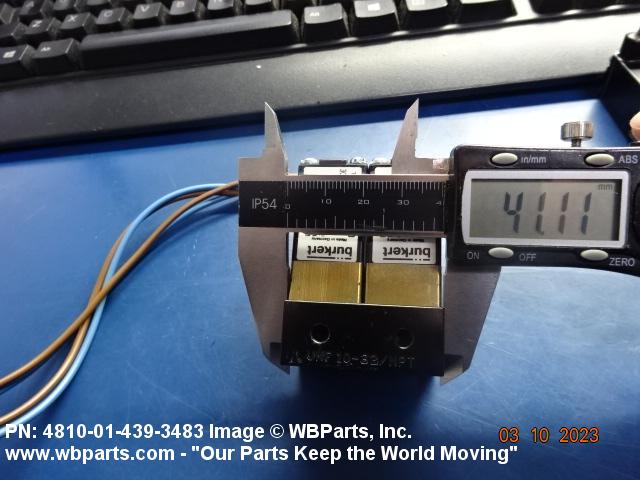

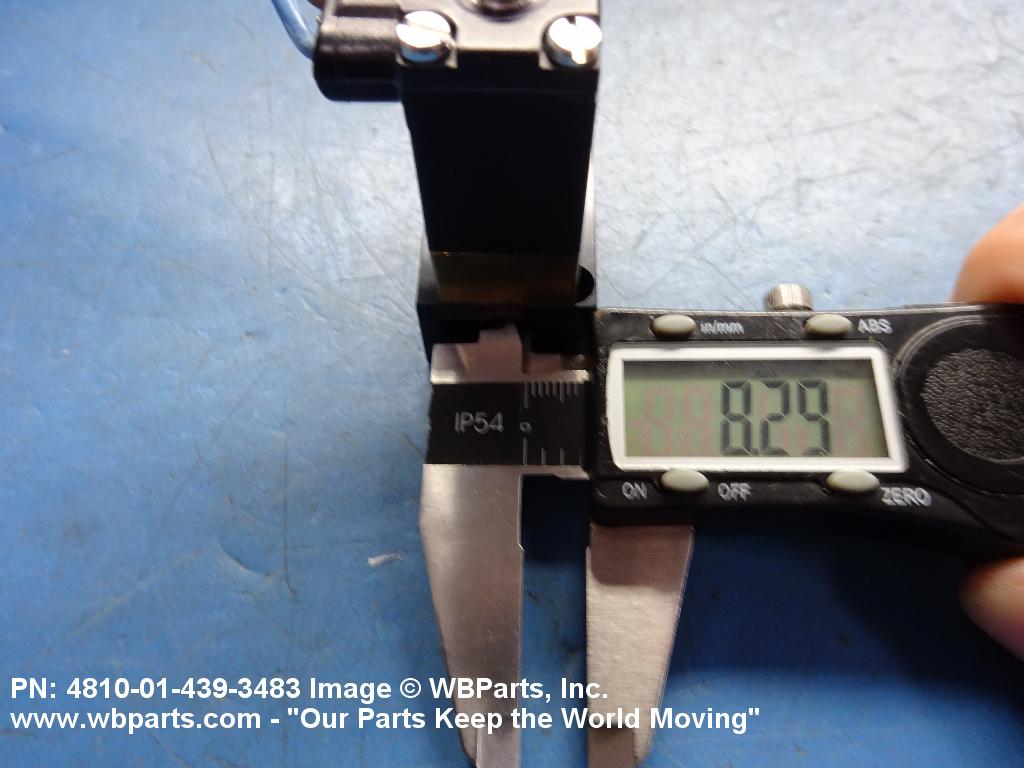

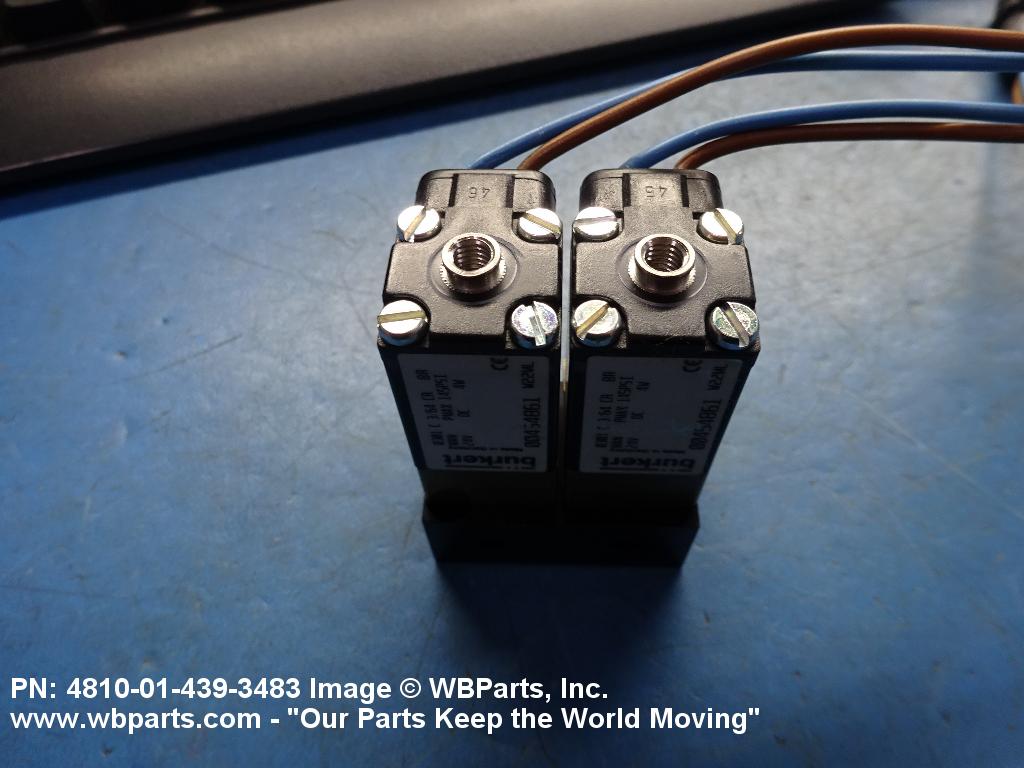

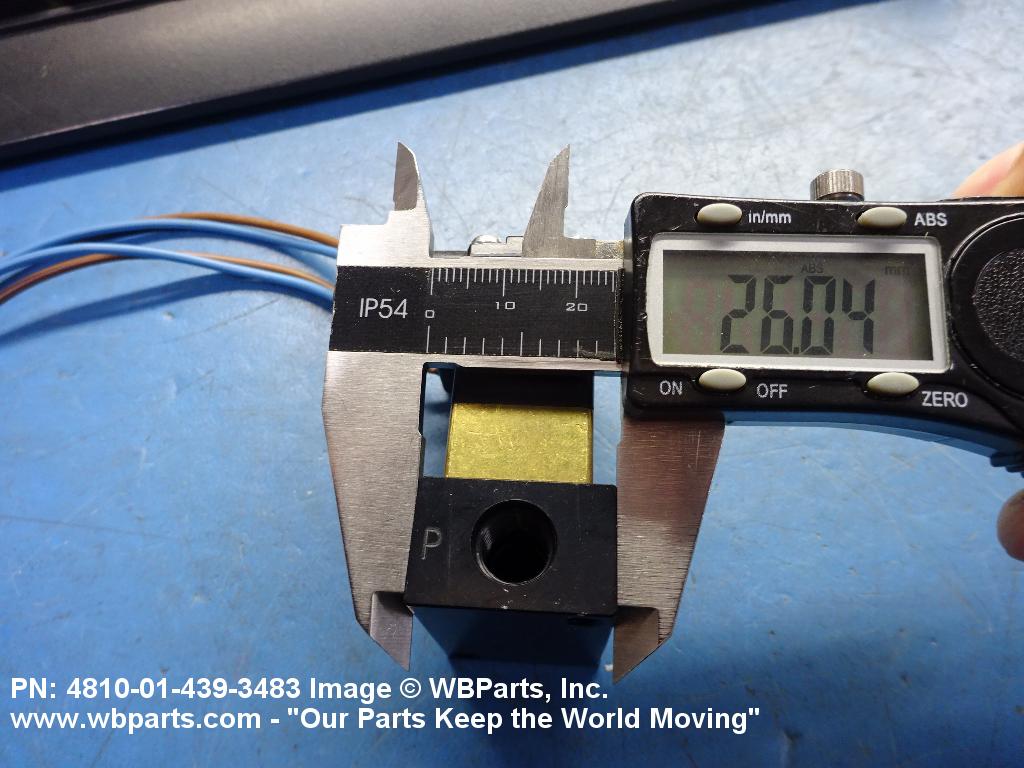

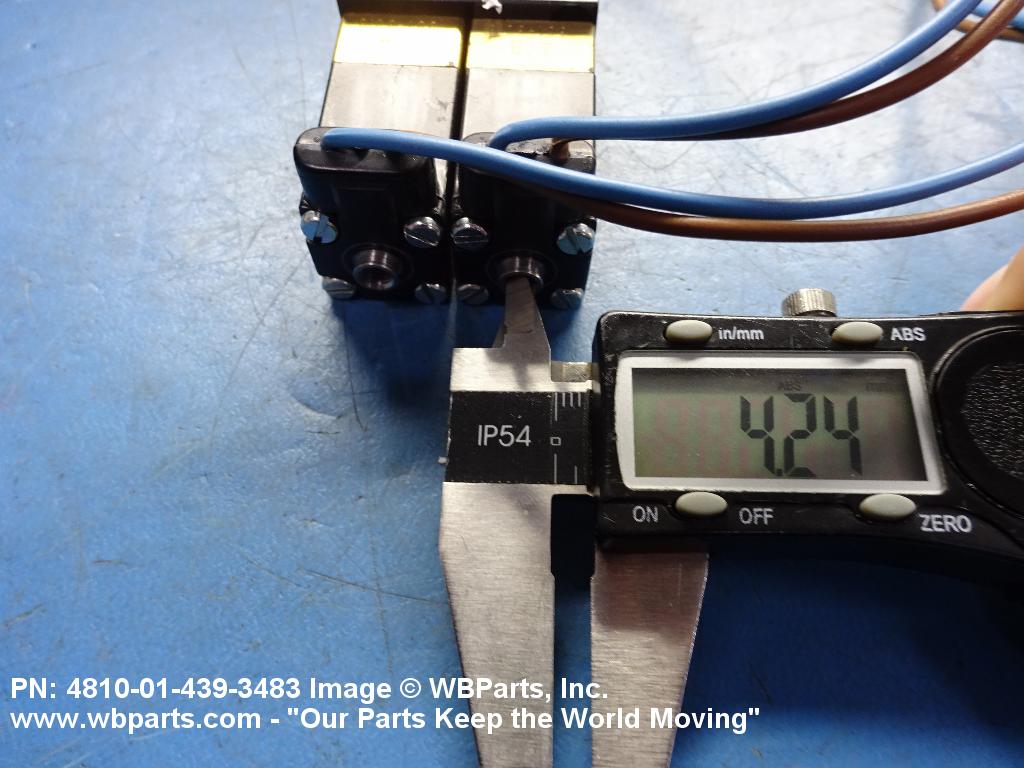

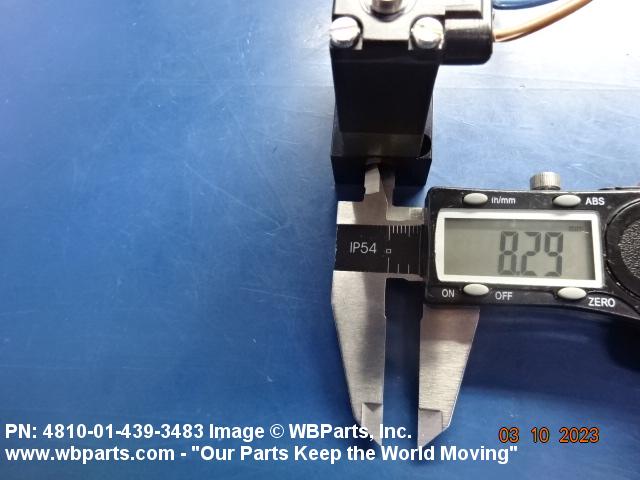

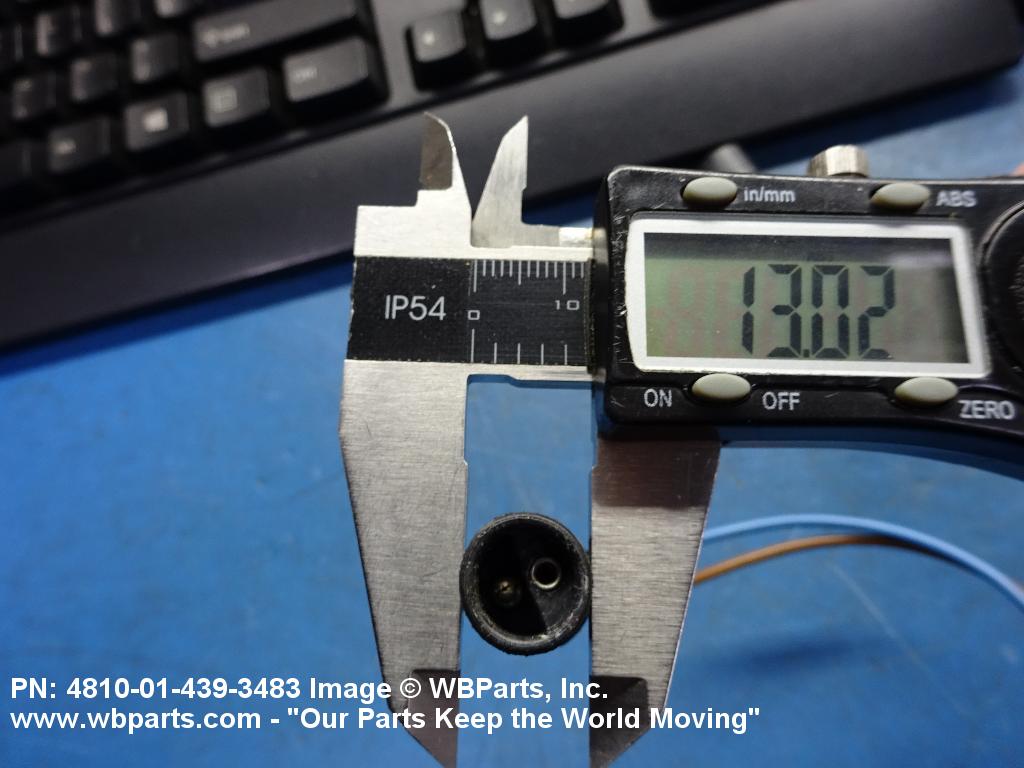

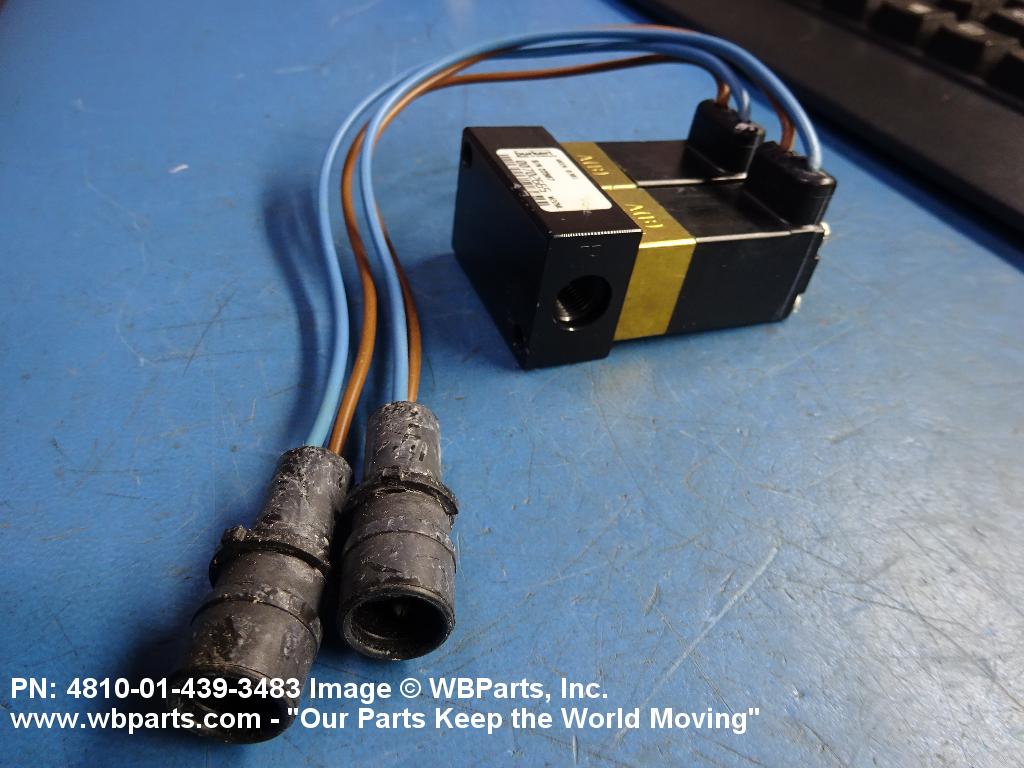

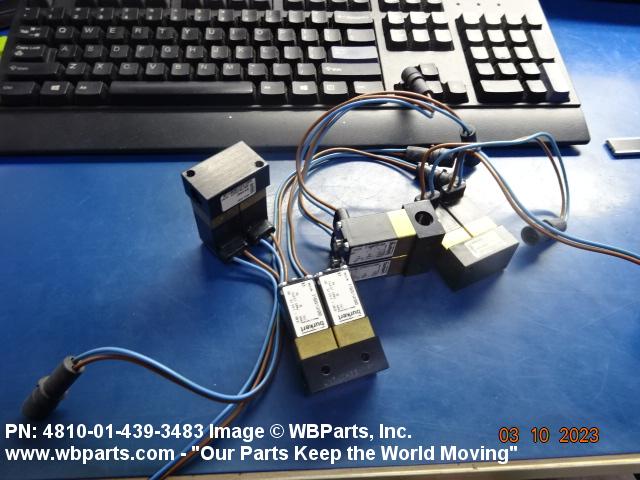

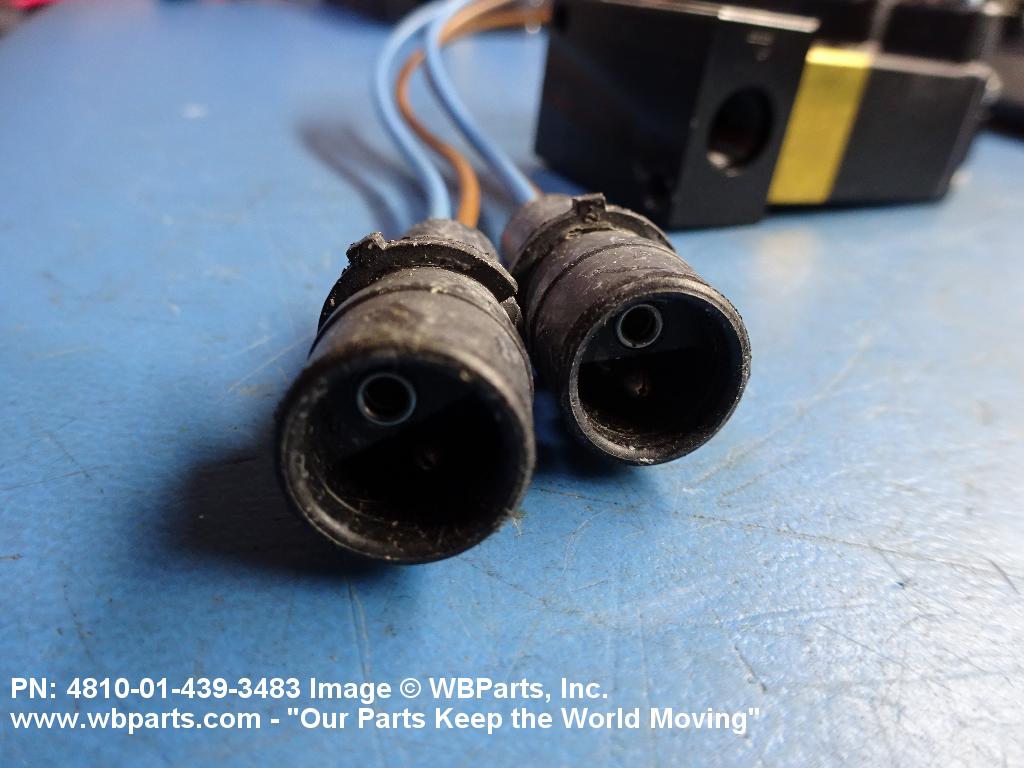

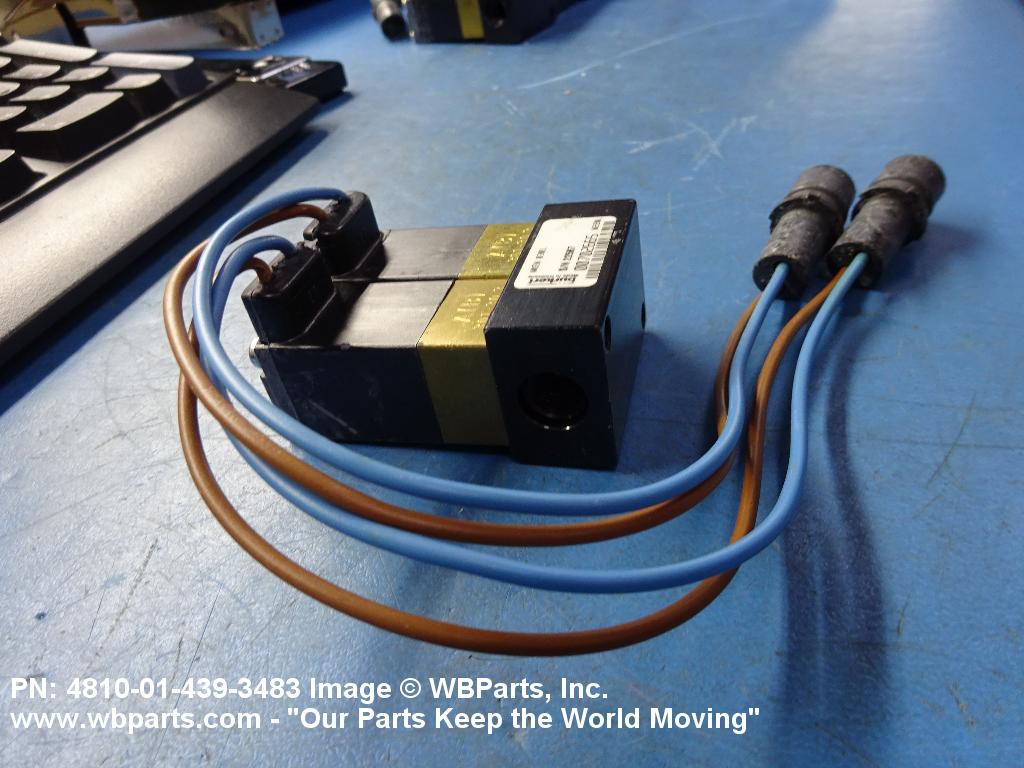

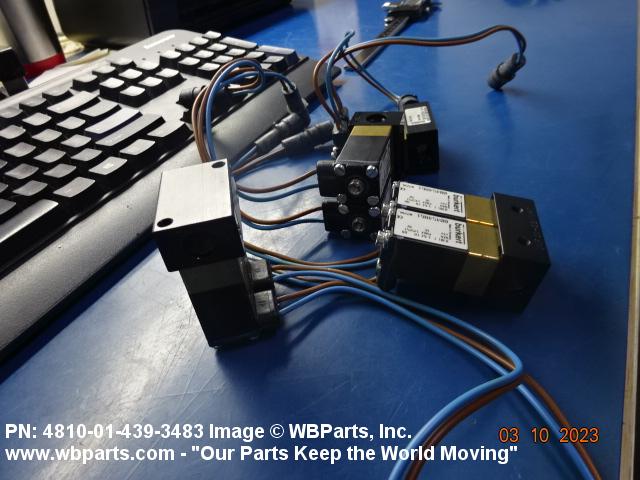

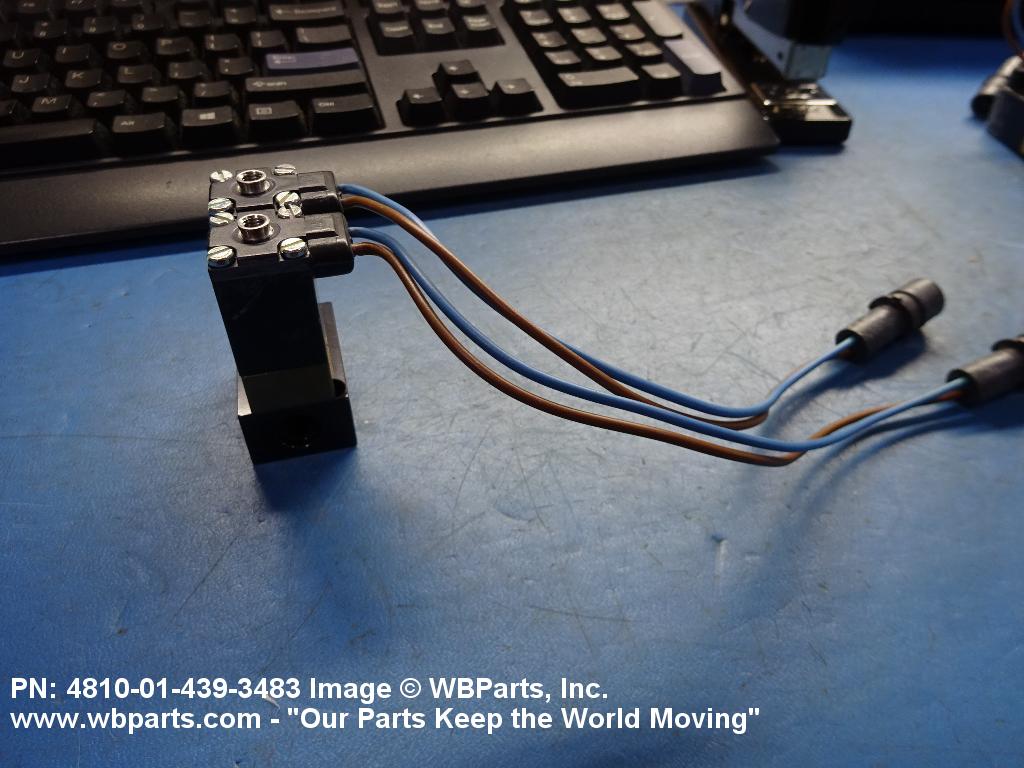

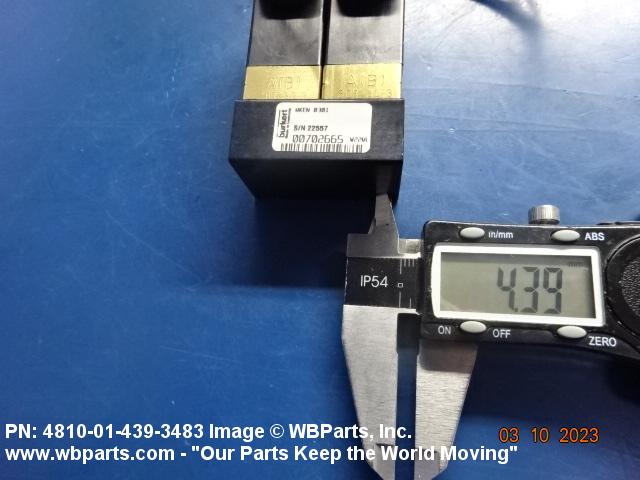

Drawings & Photos | NSN 4810-01-439-3483
Demand History | NSN 4810-01-439-3483
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-01-439-3483 | 2024-11-310 | 5 | United States |
| 4810-01-439-3483 | 2024-10-291 | 5 | United States |
| 4810-01-439-3483 | 2024-04-114 | 1 | US |
| 4810-01-439-3483 | 2024-01-09 | 1 | HN |
| 4810-01-439-3483 | 2024-01-08 | 2 | US |
| 4810-01-439-3483 | 2024-01-04 | 1 | DIBBS |
| 4810-01-439-3483 | 2023-11-321 | 2 | United States |
| 4810-01-439-3483 | 2023-08-230 | 40 | US |
| 4810-01-439-3483 | 2023-08-219 | 10 | United States |
| 4810-01-439-3483 | 2023-04-101 | 156 | DIBBS |
| 4810-01-439-3483 | 2023-02-45 | 78 | DIBBS |
| 4810-01-439-3483 | 2023-01-31 | 40 | DIBBS |
| 4810-01-439-3483 | 2022-12-348 | 4 | us |
| 4810-01-439-3483 | 2022-10-297 | 10 | Canada |
| 4810-01-439-3483 | 2022-05-122 | 331 | DIBBS |
| 4810-01-439-3483 | 2022-02-54 | 187 | DIBBS |
| 4810-01-439-3483 | 2022-02-53 | 187 | DIBBS |
| 4810-01-439-3483 | 2022-01-27 | 51 | DIBBS |
| 4810-01-439-3483 | 2020-10-296 | 137 | DIBBS |
| 4810-01-439-3483 | 2020-05-134 | 1 | US |
| 12417631-001 | 2016-04-110 | 30 | US |
| 4810-01-439-3483 | 2012-01-27 | 1 | US |
| 12417631 | 2011-12-353 | 1 | United Arab Emirates |
| 4810-01-439-3483 | 2011-12-339 | 1 | United States |
| 4810-01-439-3483 | 2011-10-292 | 80 | DIBBS |
| 4810-01-439-3483 | 2011-10-292 | 154 | DIBBS |
| 4810-01-439-3483 | 2011-10-292 | 254 | DIBBS |
| 4810-01-439-3483 | 2011-10-292 | 415 | DIBBS |
| 4810-01-439-3483 | 2011-09-263 | 254 | DIBBS |
| 4810-01-439-3483 | 2011-09-257 | 415 | DIBBS |
| 4810-01-439-3483 | 2011-07-203 | 60 | DIBBS |
| 4810-01-439-3483 | 2011-07-188 | 80 | DIBBS |
| 4810-01-439-3483 | 2011-07-188 | 155 | DIBBS |
| 4810-01-439-3483 | 2011-05-123 | 45 | DIBBS |
| 4810-01-439-3483 | 2011-05-123 | 125 | DIBBS |
| 4810-01-439-3483 | 2011-05-123 | 186 | DIBBS |
| 4810-01-439-3483 | 2011-01-25 | 22 | DIBBS |
| 4810-01-439-3483 | 2011-01-25 | 26 | DIBBS |
| 4810-01-439-3483 | 2010-12-356 | 419 | DIBBS |
| 4810-01-439-3483 | 2010-12-342 | 419 | DIBBS |
| 4810-01-439-3483 | 2010-11-319 | 419 | DIBBS |
| 4810-01-439-3483 | 2008-11-329 | 147 | DIBBS |
Cross Reference | NSN 4810-01-439-3483
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-01-439-3483
Related Products | NSN 4810-01-439-3483
Technical Data | NSN 4810-01-439-3483
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8525, TY III, CL2 MIL SPEC SINGLE TREATMENT RESPONSE |
| MAXIMUM OPERATING PRESSURE | 140.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 130.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 9.0 AC |
| CONNECTION TYPE | THREADED INTERNAL TUBE ALL ENDS |
| THREAD SERIES DESIGNATOR | ISO M ALL ENDS |
| NOMINAL THREAD SIZE | 5.00 MILLIMETERS ALL ENDS |
| MINIMUM OPERATING TEMP | 14.0 DEG FAHRENHEIT |
| III END ITEM IDENTIFICATION | TRUCK,FAMILY OF MEDIUM TACTICAL VEHICLE (FMTV)-MEDIUM; 2320-01-354-3382 |
Restrictions/Controls & Freight Information | NSN 4810-01-439-3483
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-01-439-3483
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
