NSN 4810-01-253-0564 403969-001, 4039691, 403969-1
Product Details | LINEAR HYDRAULIC-PNEUMATIC ACTUATOR
4810-01-253-0564 A self-contained power transmitting device designed to convert hydraulic or pneumatic force into controlled mechanical force in the form of linear (straight line) mechanical movement. The linear motion is limited in regards to travel distance. Excludes hydraulic and pneumatic cylinders and screwjacks.20230100036Torque Converters and Speed Changers48100015Valves, Powered
Part Alternates: 403969-001, 4039691, 403969-1, 4810-01-253-0564, 01-253-0564, 4810012530564, 403969001, 012530564
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 11 APR 1987 | 01-253-0564 | 37304 ( ACTUATOR, HYDRAULIC-PNEUMATIC, LINEAR ) |
Drawings & Photos | NSN 4810-01-253-0564
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-253-0564
Technical Data | NSN 4810-01-253-0564
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING TWIN CYLINDER |
| BODY MATERIAL | ANY ACCEPTABLE |
| FIRST PISTON ROD END STYLE | 4 FORK TYPE |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE PISTON ROD END |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 19 FOUR HOLE RECTANGULAR |
| PORT LOCATION AND QUANTITY | 2 CYLINDER HEAD END |

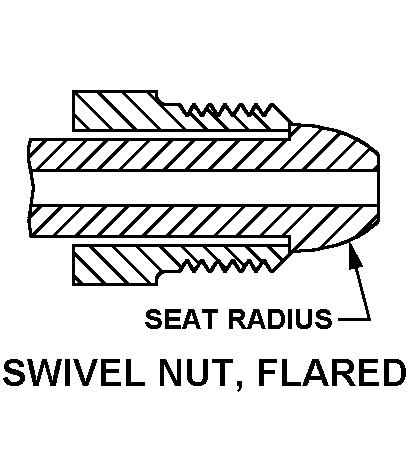

| PORT STYLE | 26 SWIVEL NUT, FLARED |
| TEMP RATING | NOT RATED |
| PRESSURE RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4810-01-253-0564
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
