NSN 4810-01-233-6080 2642-825-85 ASSYA, 264282585ASSYA, 845-4558785 ASSY A
Product Details | BALL VALVE
4810-01-233-6080 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 2642-825-85 ASSYA, 264282585ASSYA, 845-4558785 ASSY A, 8454558785ASSYA, 4810-01-233-6080, 01-233-6080, 4810012336080, 012336080
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JUN 1986 | 01-233-6080 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4810-01-233-6080
Demand History | NSN 4810-01-233-6080
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2642-825-85 ASSYA | 2024-09-19 | 3 | DIBBS |
| 2642-825-85 ASSYA | 2024-08-15 | 1 | DIBBS |
| 2642-825-85 ASSYA | 2024-07-18 | 1 | DIBBS |
| 2642-825-85 ASSYA | 2024-06-27 | 1 | DIBBS |
| 2642-825-85 ASSYA | 2024-05-21 | 2 | DIBBS |
| 2642-825-85 ASSYA | 2024-04-04 | 7 | DIBBS |
| 2642-825-85 ASSYA | 2024-04-04 | 1 | DIBBS |
| 2642-825-85 ASSYA | 2024-02-25 | 5 | DIBBS |
| 2642-825-85 ASSYA | 2023-12-06 | 2 | DIBBS |
| 2642-825-85 ASSYA | 2023-11-28 | 1 | DIBBS |
| 2642-825-85 ASSYA | 2023-10-12 | 2 | DIBBS |
| 2642-825-85 ASSYA | 2023-04-26 | 2 | DIBBS |
| 2642-825-85 ASSYA | 2021-04-12 | 3 | DIBBS |
| 2642-825-85 ASSYA | 2021-03-11 | 4 | DIBBS |
| 2642-825-85 ASSYA | 2020-11-19 | 1 | DIBBS |
| 2642-825-85 ASSYA | 2020-09-24 | 1 | DIBBS |
| 2642-825-85 ASSYA | 2019-12-10 | 5 | DIBBS |
| 4810-01-233-6080 | 2018-06-13 | 10 | NECO |
| 4810-01-233-6080 | 2016-08-12 | 5 | NECO |
| 4810-01-233-6080 | 2016-07-15 | 1 | NECO |
| 4810-01-233-6080 | 2015-04-23 | 3 | NECO |
| 4810-01-233-6080 | 2015-04-10 | 3 | NECO |
| 4810-01-233-6080 | 2014-09-10 | 3 | NECO |
| 4810-01-233-6080 | 2014-06-18 | 11 | NECO |
| 4810-01-233-6080 | 2013-10-21 | 2 | NECO |
| 4810-01-233-6080 | 2013-05-09 | 4 | NECO |
| 4810-01-233-6080 | 2013-05-07 | 8 | NECO |
| 4810-01-233-6080 | 2013-02-04 | 11 | NECO |
| 4810-01-233-6080 | 2012-08-21 | 11 | NECO |
| 4810-01-233-6080 | 2011-10-31 | 13 | NECO |
| 4810-01-233-6080 | 2011-09-28 | 5 | US |
| 4810-01-233-6080 | 2011-09-27 | 13 | NECO |
| 4810-01-233-6080 | 2010-10-30 | 8 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-01-233-6080
Related Products | NSN 4810-01-233-6080
Technical Data | NSN 4810-01-233-6080
| Characteristic | Specifications |
|---|---|

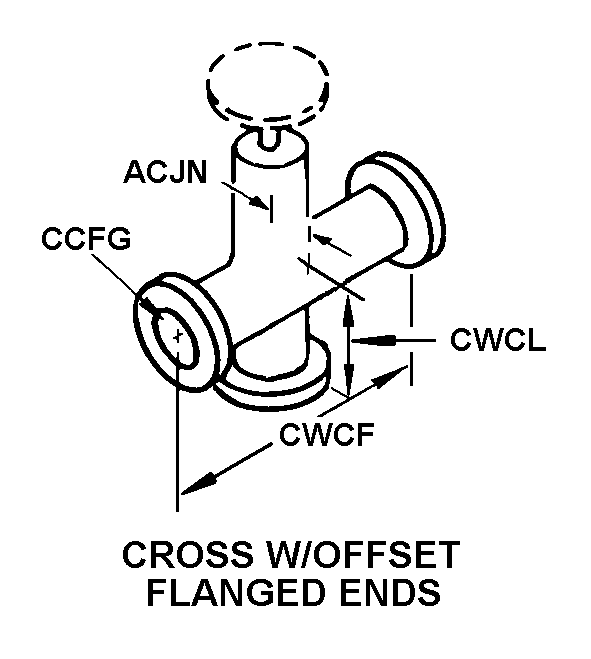

| STYLE DESIGNATOR | A17A CROSS W/OFFSET FLANGED ENDS |
| FACE TO FACE DISTANCE | 13.320 INCHES |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 6.880 INCHES |
| OFFSET DISTANCE | 20.250 INCHES |
| MAXIMUM OPERATING TEMP | 150.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | HYDRAULIC |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 845-4558785 ASSY A |
Restrictions/Controls & Freight Information | NSN 4810-01-233-6080
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-01-233-6080
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
