NSN 4810-01-190-2837 4567, 01-190-2837, 011902837
Product Details | FLUID PRESSURE REGULATING VALVE
4810-01-190-2837 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 4567, 4810-01-190-2837, 01-190-2837, 4810011902837, 011902837
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 25 SEP 1984 | 01-190-2837 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4810-01-190-2837
Cross Reference | NSN 4810-01-190-2837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4567 | 06177 | PNEUDRAULICS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-190-2837
Technical Data | NSN 4810-01-190-2837
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T4 |
| SEAT MATERIAL | STEEL, QQ-S-763, CLASS 440C |
| PACKING MATERIAL | PLASTIC, TETRAFLUOROETHYLENE |
| FLOW CONTROL DEVICE | POPPET |
| FLOW CONTROL DEVICE MATERIAL | STEEL, QQ-S-763, CLASS 440C |
| OUTSIDE SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | B11 PLAIN |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.785 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 2-1/8-12 UN |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT RADIUS | 0.062 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |

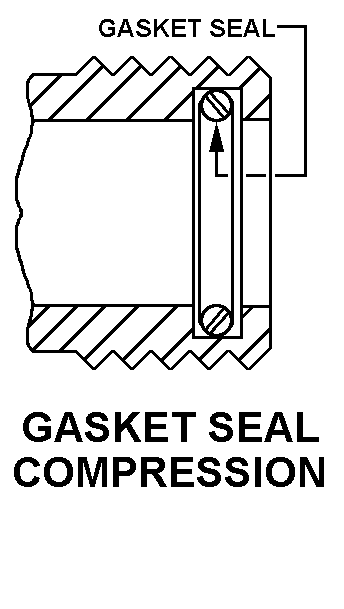

| SECOND END STYLE DESIGNATOR | D1 GASKET SEAL COMPRESSION |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9/16-18 UNJF |
| SECOND END THREAD CLASS | 3A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, MIL-H-5606 |
| RENEWABLE SEAT RING TYPE | RETAINING RING AND RETAINING SCREW |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | -40.0 DEG FAHRENHEIT MINIMUM AND 180.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 2450.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | INCLUDED |
Restrictions/Controls & Freight Information | NSN 4810-01-190-2837
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
