NSN 4810-01-116-4869 V700007, V7000-07, 1617982

Product Details | SOLENOID VALVE

4810-01-116-4869 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.

Part Alternates: V700007, V7000-07, 1617982, 161798-2, 45905 , 459052, 45905-2, 557100, 99V700007, 99-V7000-07, 4810-01-116-4869, 01-116-4869, 4810011164869, 011164869

Valves | Valves, Powered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	28 JUL 1981	01-116-4869	10998 ( VALVE, SOLENOID )

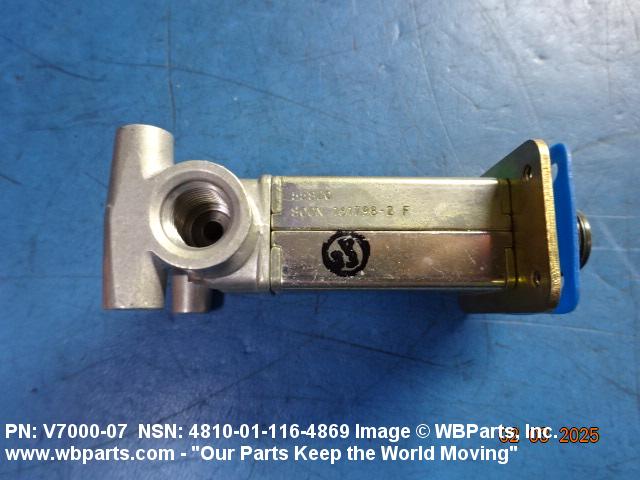

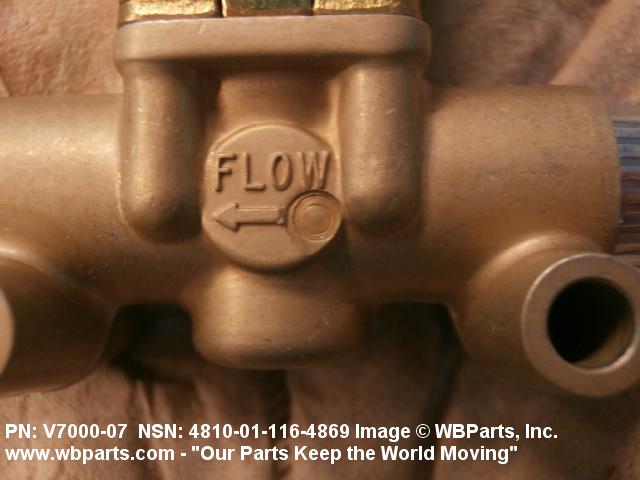

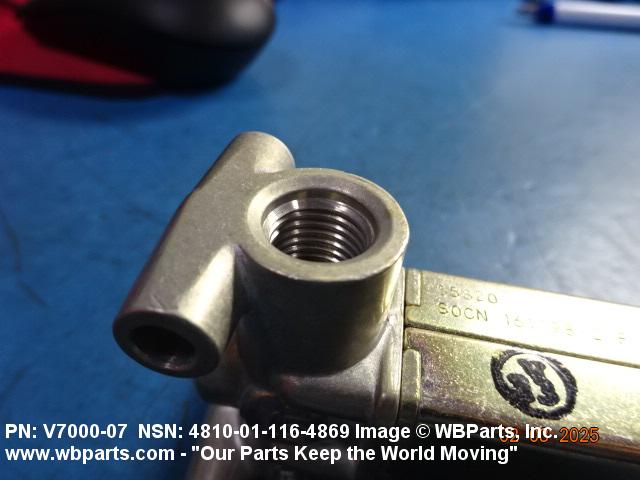

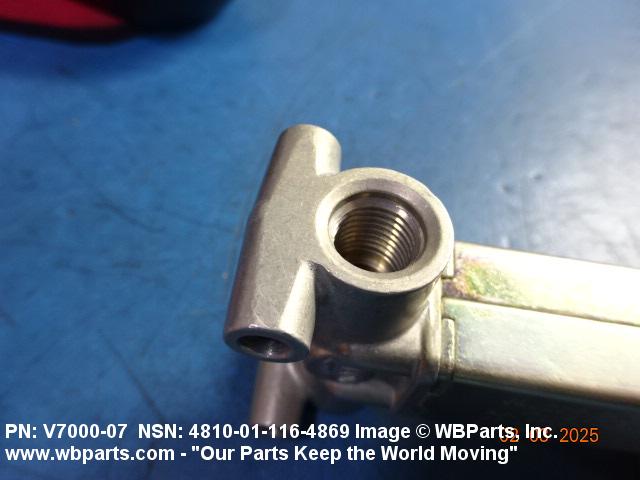

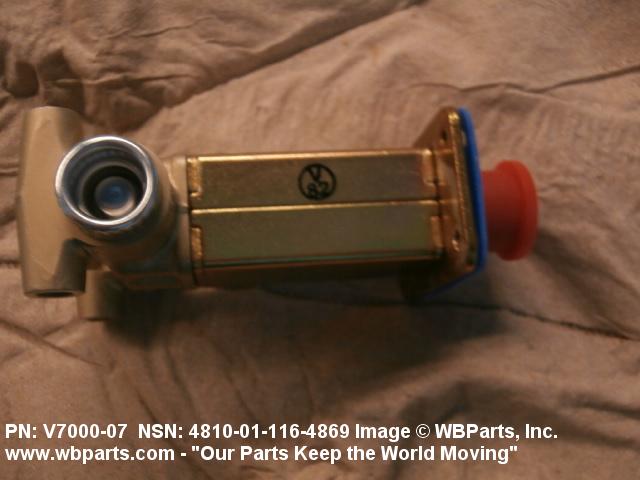

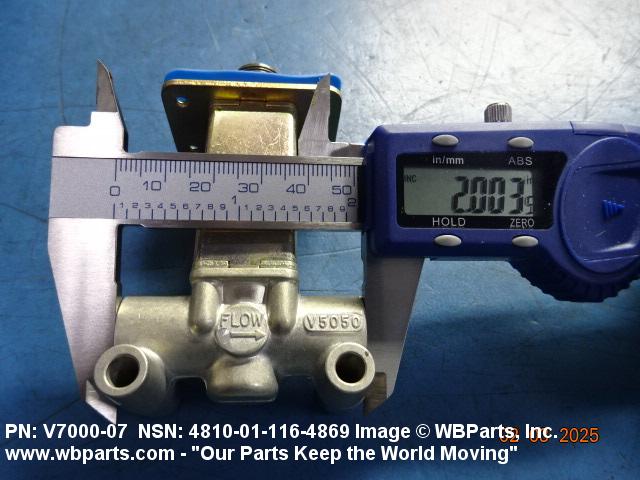

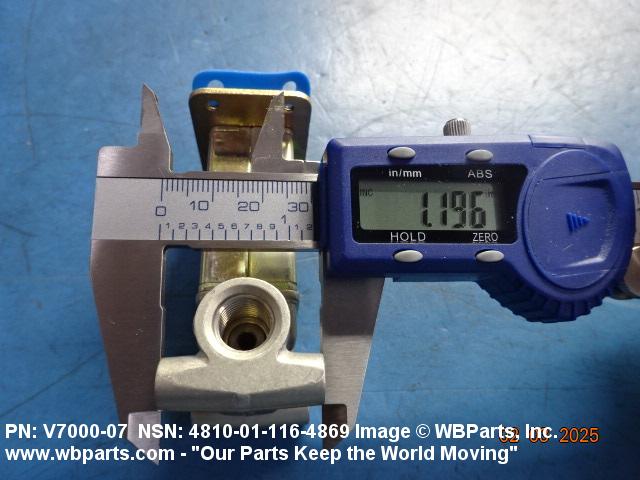

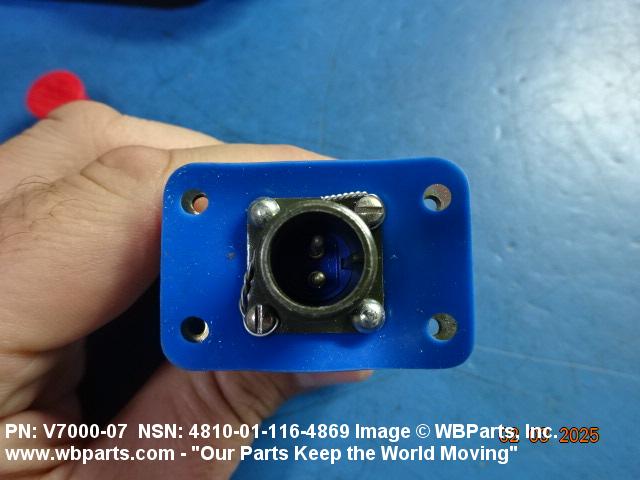

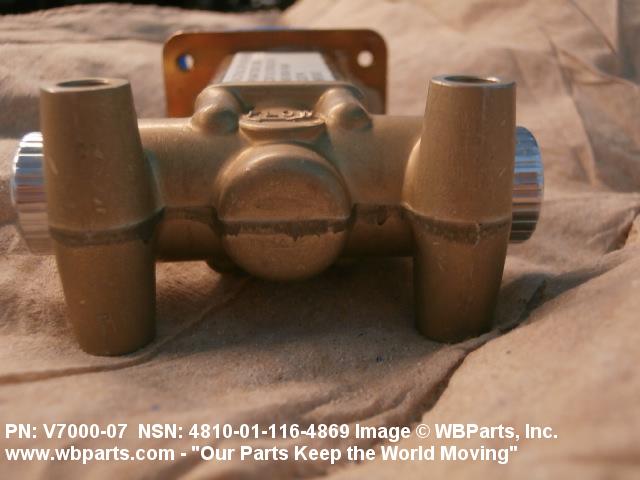

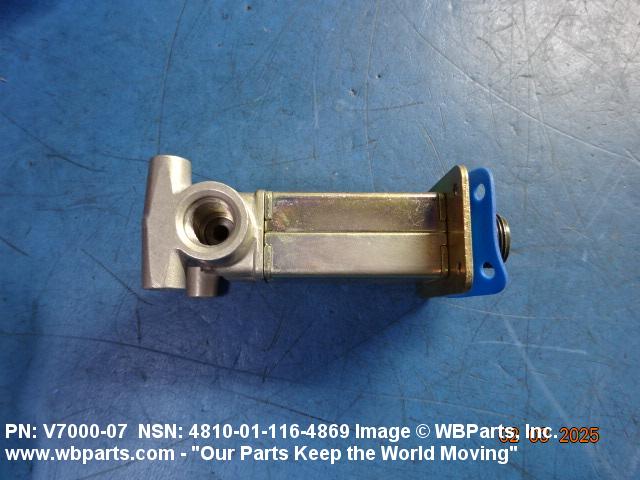

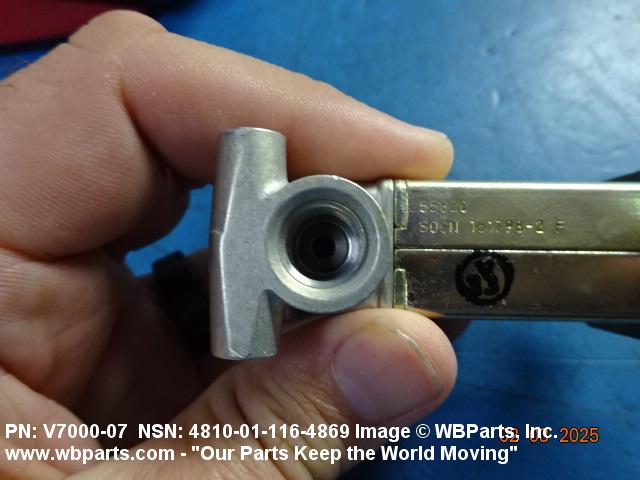

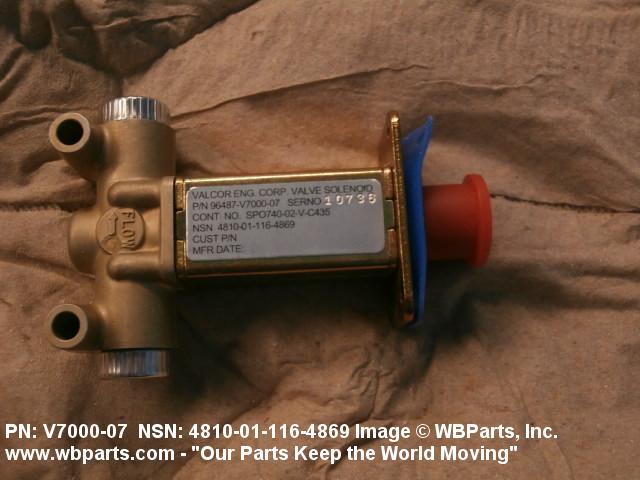

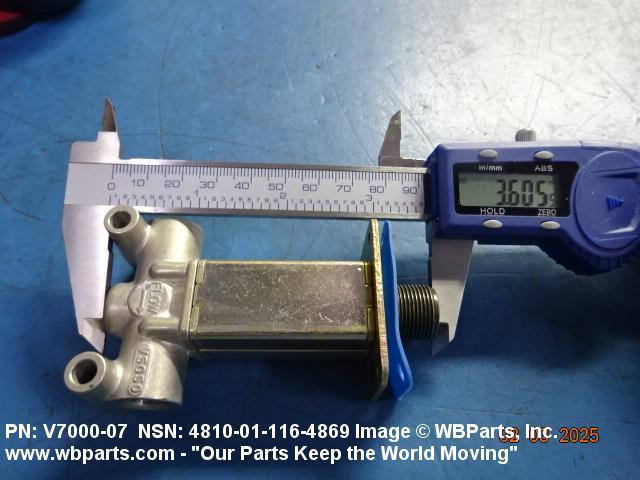

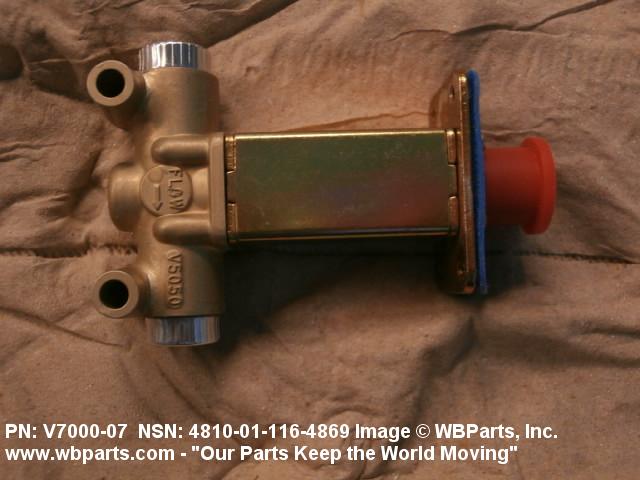

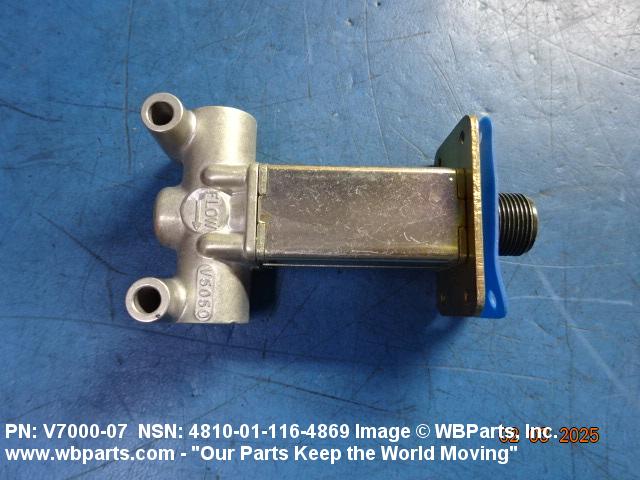

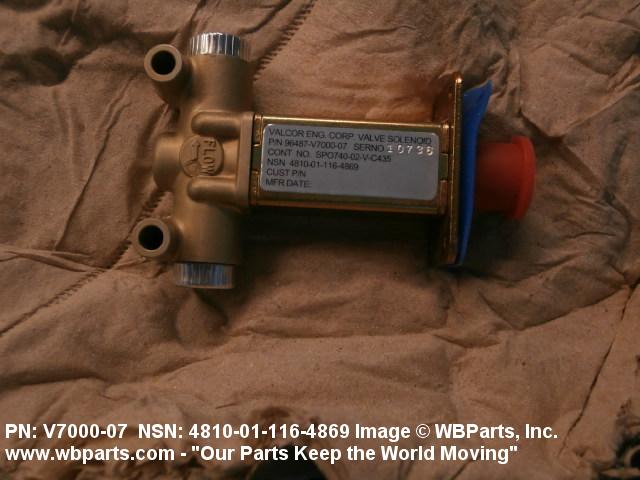

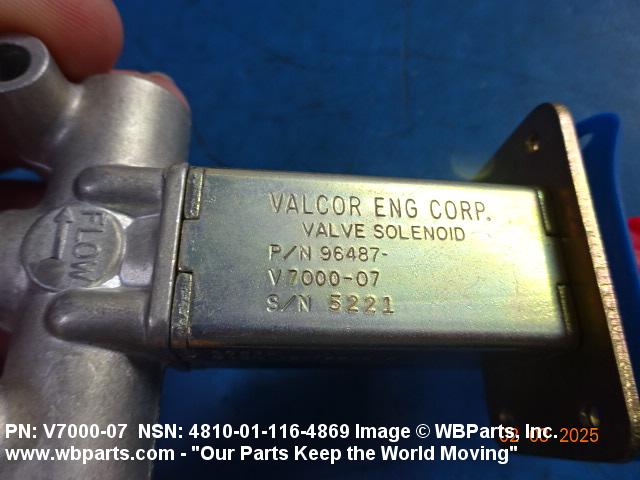

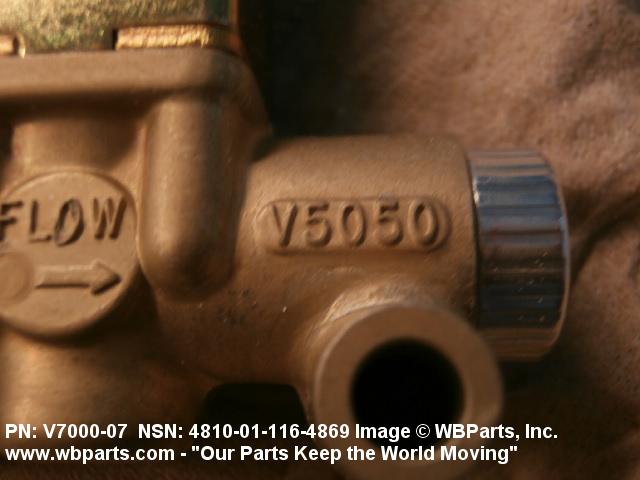

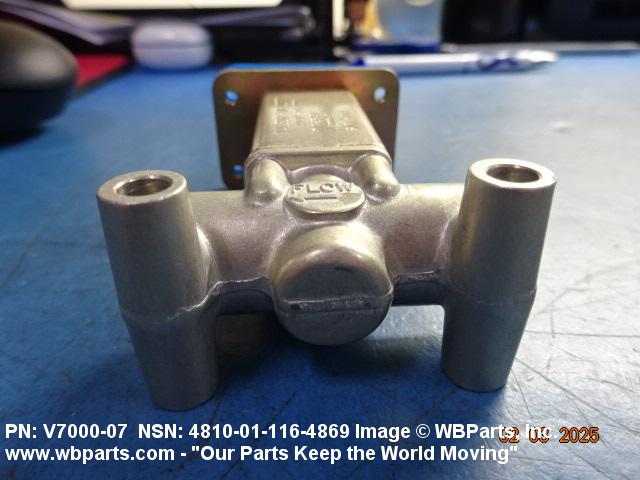

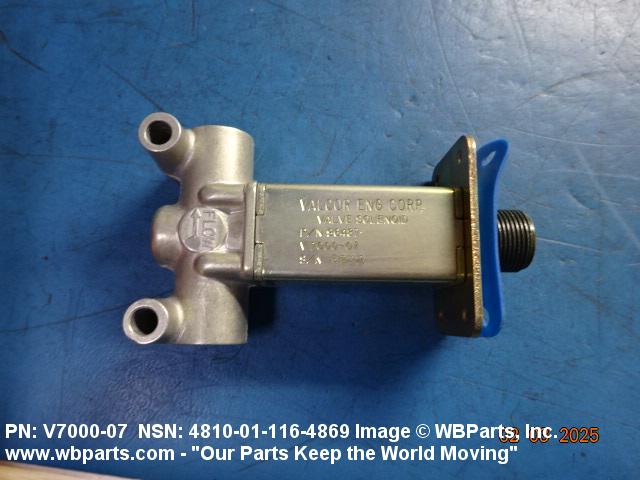

Drawings & Photos | NSN 4810-01-116-4869

Part Number	Request Date	QTY	Origin
1617982	2024-10-303	1	Japan
459052	2024-10-303	1	Japan
V700007	2024-10-303	1	Japan
V7000-07	2024-09-254	49	DIBBS
4810-01-116-4869	2024-07-199	2	United States
V7000-07	2024-01-18	305	DIBBS
V7000-07	2023-09-257	94	DIBBS
V7000-07	2023-08-234	142	DIBBS
V7000-07	2022-12-342	142	DIBBS
99-V7000-07	2022-03-89	163	DIBBS
V7000-07	2022-03-89	163	DIBBS
99-V7000-07	2022-01-05	40	DIBBS
V7000-07	2022-01-05	40	DIBBS
99-V7000-07	2021-11-312	36	DIBBS
V7000-07	2021-11-312	36	DIBBS
4810-01-116-4869	2021-07-183	2	JP
4810-01-116-4869	2021-04-96	8	us
99-V7000-07	2021-02-48	83	DIBBS
V7000-07	2021-02-48	83	DIBBS
99-V7000-07	2020-10-302	159	DIBBS
V7000-07	2020-10-302	159	DIBBS
4810-01-116-4869	2018-03-74	76	DIBBS
4810-01-116-4869	2017-11-319	150	DIBBS
4810-01-116-4869	2017-11-319	150	DIBBS
4810-01-116-4869	2017-06-163	300	DIBBS
4810-01-116-4869	2017-03-74	1	United States
4810-01-116-4869	2016-07-187	325	DIBBS
4810-01-116-4869	2016-04-115	112	DIBBS
4810-01-116-4869	2016-03-90	118	DIBBS
4810-01-116-4869	2016-03-63	119	DIBBS
4810-01-116-4869	2015-12-358	1	DIBBS-RFPs
4810-01-116-4869	2015-12-356	325	DIBBS
4810-01-116-4869	2015-04-120	216	DIBBS
4810-01-116-4869	2015-04-117	216	DIBBS
1617982	2015-04-92	2	United States
4810-01-116-4869	2015-03-90	216	DIBBS
4810-01-116-4869	2014-08-232	318	DIBBS
45905-2	2014-02-59	4	TR
4810-01-116-4869	2014-02-59	4	MANUAL
4810-01-116-4869	2013-08-234	1	DIBBS-RFPs
4810-01-116-4869	2012-10-304	258	DIBBS
4810-01-116-4869	2012-03-68	240	DIBBS
4810-01-116-4869	2010-06-179	48	DIBBS
4810-01-116-4869	2010-05-137	80	DIBBS
4810-01-116-4869	2009-04-104	148	DIBBS
4810-01-116-4869	2009-01-14	283	DIBBS
4810-01-116-4869	2008-08-227	186	DIBBS

Cross Reference | NSN 4810-01-116-4869

Part Number	Cage Code	Manufacturer
161798-2	55820	HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS
161798-2	66195	SOLAR TURBINES INCORPORATED
45905	66195	SOLAR TURBINES INCORPORATED
45905-2	55820	HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS
45905-2	66195	SOLAR TURBINES INCORPORATED
557100	53730	WESTFIELD HYDRAULICS INC
99-V7000-07	96487	VALCOR ENGINEERING CORP
V7000-07	96487	VALCOR ENGINEERING CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4810-01-116-4869

Compare

Related Products | NSN 4810-01-116-4869

4810-01-116-5916, 4810-01-116-5917, 4810-01-116-6468, 4810-01-116-6469, 4810-01-116-6694

Technical Data | NSN 4810-01-116-4869

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY BODY
STYLE DESIGNATOR	STRAIGHT THRU
FLOW CONTROL DEVICE	DISK
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
VALVE OPERATION METHOD	SOLENOID
VOLTAGE IN VOLTS AND CURRENT TYPE	24.0 DC
CURRENT RATING IN AMPS	1.000
FLOW CONTROL DEVICE NORMAL OPERATION POSITION	CLOSED
CONNECTION TYPE	THREADED INTERNAL BOSS ALL ENDS
CONNECTION STYLE	GASKET SEAL(BOSS) ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS
THREAD CLASS	3B ALL ENDS
THREAD DIRECTION	RIGHT-HAND ALL ENDS
MOUNTING POSITION	VERTICAL
MANUFACTURERS CODE	55820
MFR SOURCE CONTROLLING REFERENCE	161798-2

Restrictions/Controls & Freight Information | NSN 4810-01-116-4869

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	051080	FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	594	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4810-01-116-4869

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
