NSN 4810-01-080-0471 41-1844-005, 6847351, 01-080-0471
Product Details | SOLENOID VALVE
4810-01-080-0471 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 41-1844-005, 6847351, 4810-01-080-0471, 01-080-0471, 4810010800471, 411844005, 010800471
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 19 JUL 1979 | 01-080-0471 | 10998 ( VALVE, SOLENOID ) |
Drawings & Photos | NSN 4810-01-080-0471
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-080-0471
Technical Data | NSN 4810-01-080-0471

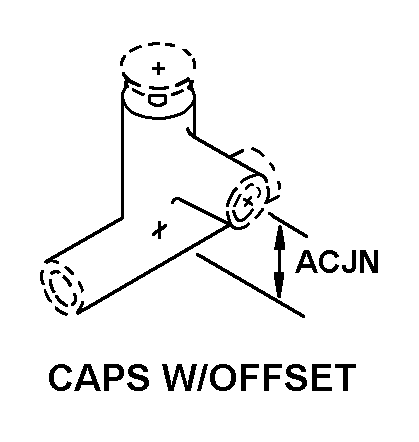

| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | PASSIVATE |
| STYLE DESIGNATOR | A29 CROSS W/OFFSET |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 14.0 DC AND 30.0 DC |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | OPEN |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| CONNECTION STYLE | G42 FLARED 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 16 1ST END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| MOUNTING POSITION | HORIZONTAL |
| SPECIAL FEATURES | MANUFACTURERS SUGGESTED NAME IS DRAIN VALVE ASSEMBLY; O/A DIMENSIONS: LENGHT 4.66 IN., WIDTH 2.69 IN., DEPTH 2.74 IN.; INLET PORTS (2) 3/4-16 EXTERNAL THREAD FOR 1/2 IN. OD TUBE; DRAIN PORT 7/16-20 EXTERNAL THREAD FOR 1/4 IN. OD TUBE |
| III END ITEM IDENTIFICATION | T56-A9 ENG,C-130 ACFT; APPLICABLE T.O. 6J15-4-28-3 |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 41-1844-005 |
Restrictions/Controls & Freight Information | NSN 4810-01-080-0471
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
