NSN 4810-01-053-8609 502758, 5027-58, 50278
Product Details | VALVE GUIDE
4810-01-053-8609
Part Alternates: 502758, 5027-58, 50278, 5027-8, 4810-01-053-8609, 01-053-8609, 4810010538609, 010538609
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 11 JAN 1978 | 01-053-8609 | 77777 ( ) |

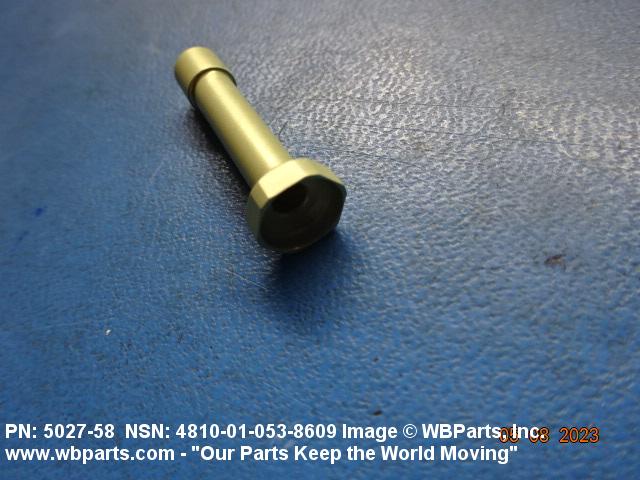

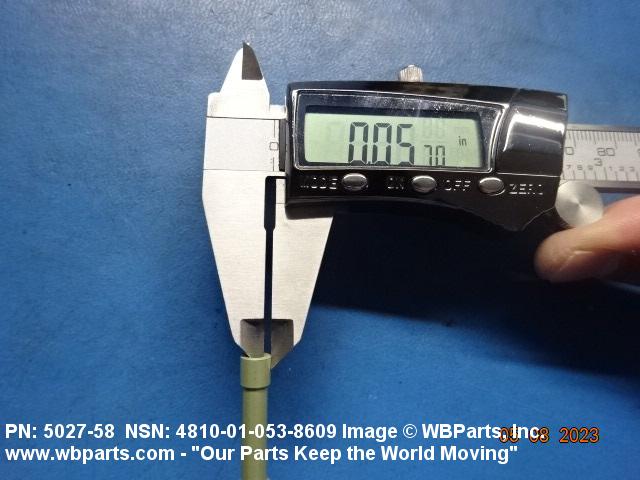

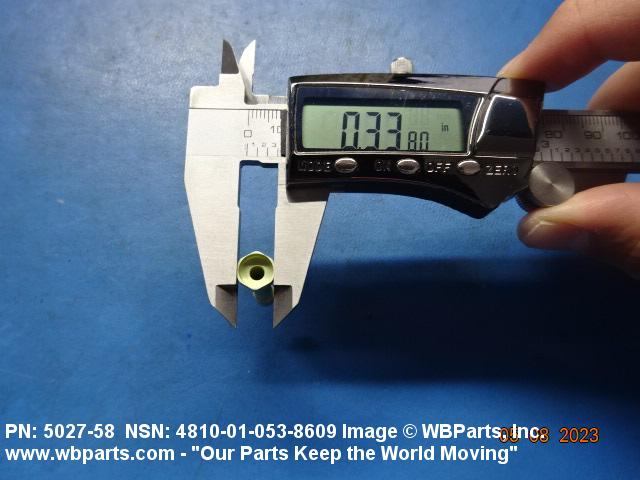

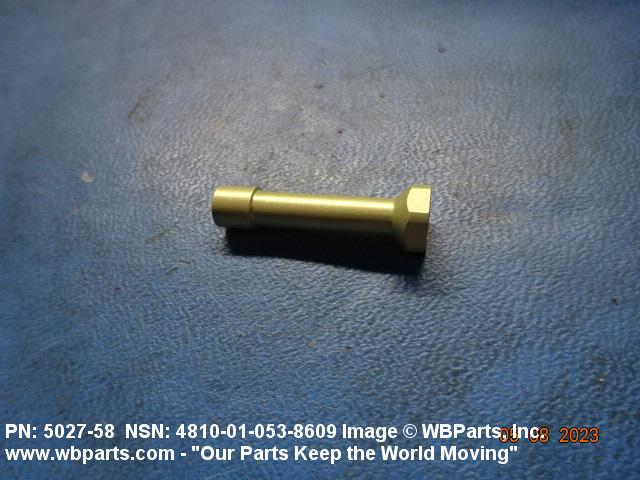

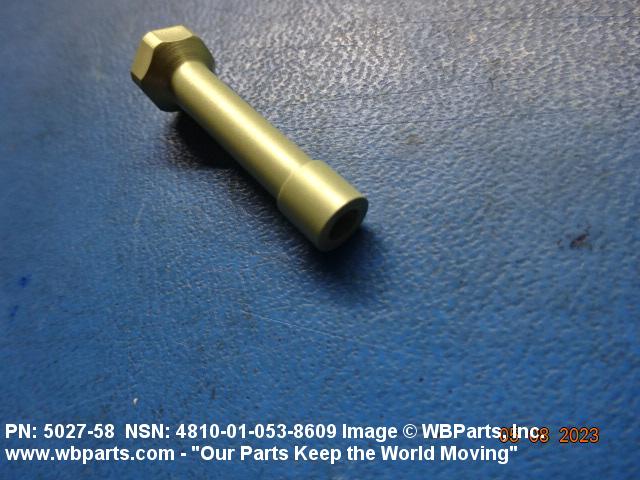

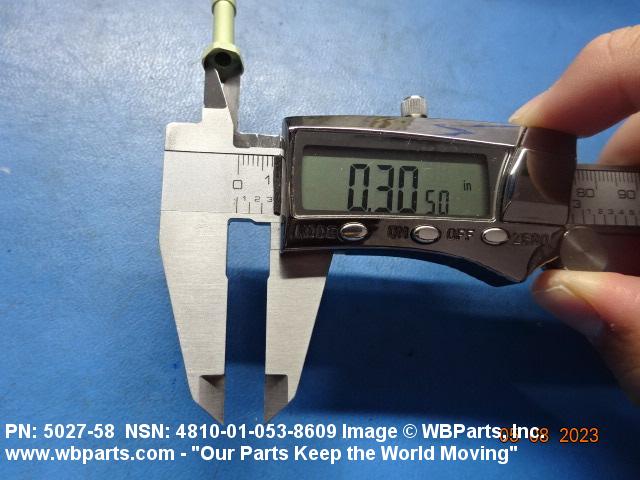

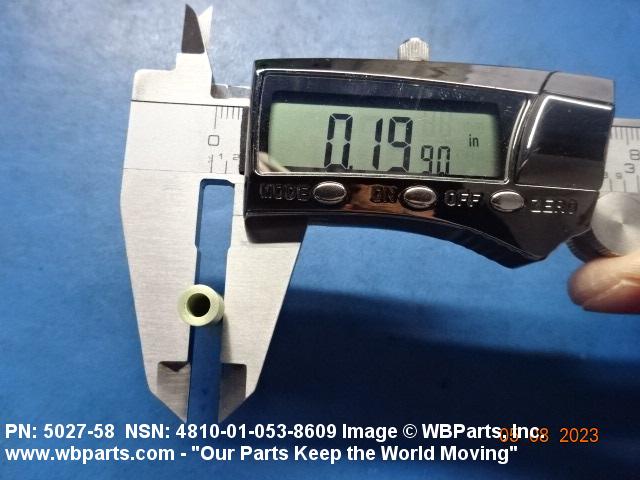

Drawings & Photos | NSN 4810-01-053-8609
Demand History | NSN 4810-01-053-8609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 502758 | 2023-04-116 | 2 | United States |
| 502758 | 2023-03-89 | 2 | United States |
| 4810-01-053-8609 | 2023-03-86 | 10 | United States |
| 5027-58 | 2019-07-185 | 3 | DIBBS |
| 5027-58 | 2019-06-178 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-01-053-8609
Related Products | NSN 4810-01-053-8609
Technical Data | NSN 4810-01-053-8609
| Characteristic | Specifications |
|---|---|

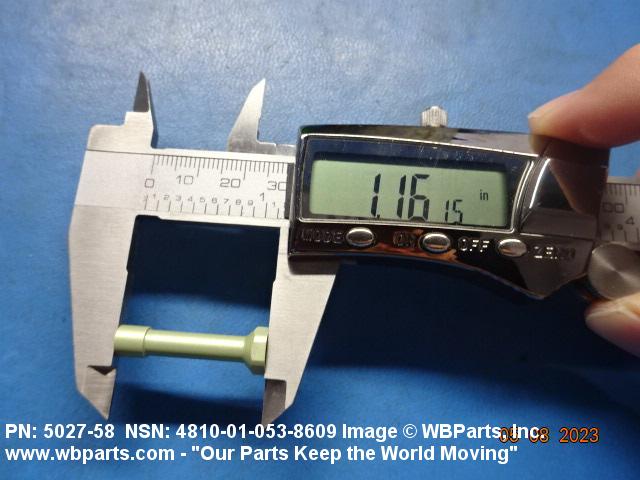

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ALUMINUM ALLOY,QQ-A-225/8,ALLOY 6061,T6; ANODIZED,MIL-A-8625,TYPE 2,CLASS 1; 1.160 IN. LG; 1 END 0.240 IN. MIN TO 0.242 IN. MAX OUTSIDE DIA,0.137 IN. MIN TO 0.139 IN. MAX INSIDE DIA THRU LG; OTHER END 0.364 IN. MIN TO 0.366 IN. MAX IN. OUTSIDE DIA HEXAGON SHAPED,INSIDE DIA 2.000 IN. |
| III END ITEM IDENTIFICATION | ACFT TYPE F16A/B;AIRCRAFT, F-16 |
| III FSC APPLICATION DATA | VALVE LINEAR,DIRECTIONAL CONTROL NSN 4810010568603 |
| MANUFACTURERS CODE | 59211 |
| DESIGN CONTROL REFERENCE | 5027-58 |
Restrictions/Controls & Freight Information | NSN 4810-01-053-8609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
