NSN 4810-01-033-9667 DHS650324V06, DH-S-6503-24V-06, 12253777
Product Details | SOLENOID VALVE
4810-01-033-9667 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: DHS650324V06, DH-S-6503-24V-06, 12253777, 4810-01-033-9667, 01-033-9667, 4810010339667, 010339667
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 15 JAN 1977 | 01-033-9667 | 10998 ( VALVE, SOLENOID ) |
Drawings & Photos | NSN 4810-01-033-9667
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-01-033-9667
Related Products | NSN 4810-01-033-9667
Technical Data | NSN 4810-01-033-9667
| Characteristic | Specifications |
|---|---|

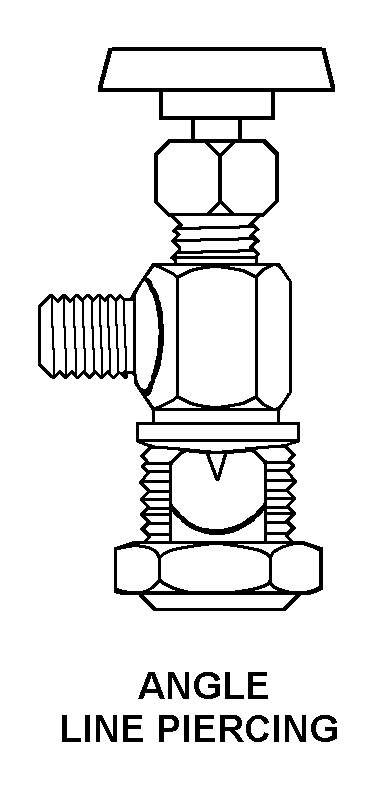

| STYLE DESIGNATOR | E4 ANGLE LINE PIERCING |
| MEDIA FOR WHICH DESIGNED | HYDROGEN 1ST RESPONSE OIL 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 2000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 170.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| POWER DRIVE OPERATING PRESSURE | 135.0 POUNDS PER SQUARE INCH MINIMUM AND 1750.0 POUNDS PER SQUARE INCH MAXIMUM |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 18.0 DC AND 30.0 DC |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | OPEN |
| SPECIAL FEATURES | MATERIALS:VALVE COMPONENT MATERIALS TO BE COMPATIBLE WITH THE SPECIFIEDTEMPERATURES,PRESSURES AND FLUID; THEMETALS SHALL POSSESS ADEQUATE CORROSION RESISTANT CHARACTERISTICS OR SHALL BE PROTECTED BY THE USE OF SUITABLE COATINGS TO RESIST CORROSION WHICH MAY RESULT FROM DISSIMILAR METAL CONTACT MOISTURE,HIGH TEMPERATURE DEGRADATION,ETC.; RATED FLOW CAPACITY: 25 GPM; PROOF PRESSURE; 3000 PSI WITH VALVE AND PACKINGS MOUNTED TO A SIMULATED MANIFOLDWITH .750 HOLES CENTERED AT INLET AND DISCHARGE PORTS,NO EXTERNAL LEAKAGE PERMITTED; BURST PRESSURE; 4500 PSI WITHOUT FAILURE,RUPTURE OR EXTERNAL LEAKAGE; THE ELECTRICAL RECEPTACLE SHALL MATE WITH SHELL ASSY-8724233 AND BE INTERCHANGEABLE WITH RECEPTACLE-7720492; THE ELECTRICAL RECEPTACLE GASKET SHALLBE INTERCHANGEABLE WITH GASKET-MS52000-5 |
| MANUFACTURERS CODE | 19200 |
| MFR SOURCE CONTROLLING REFERENCE | 12253777 |
Restrictions/Controls & Freight Information | NSN 4810-01-033-9667
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
