Product Details | SOLENOID VALVE

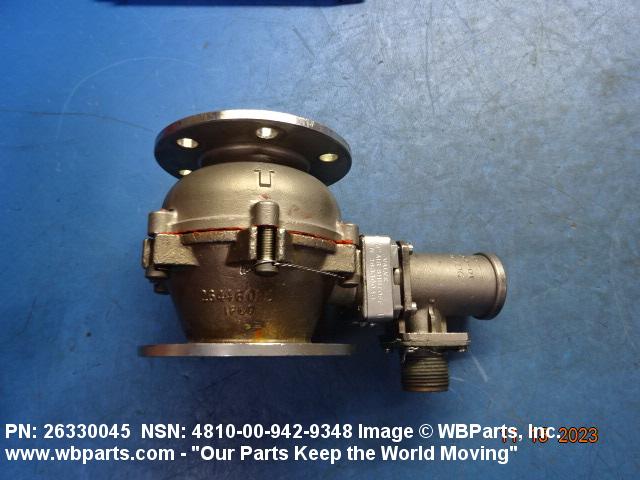

4810-00-942-9348 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 26330045, 4810-00-942-9348, 00-942-9348, 4810009429348, 009429348
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 25 DEC 1965 | 00-942-9348 | 10998 ( VALVE, SOLENOID ) |

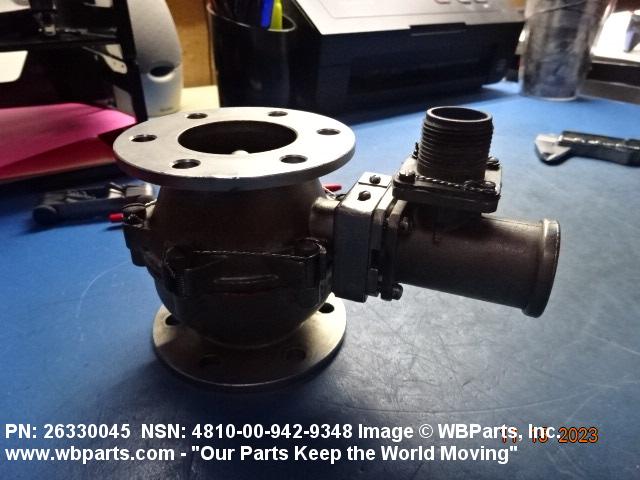

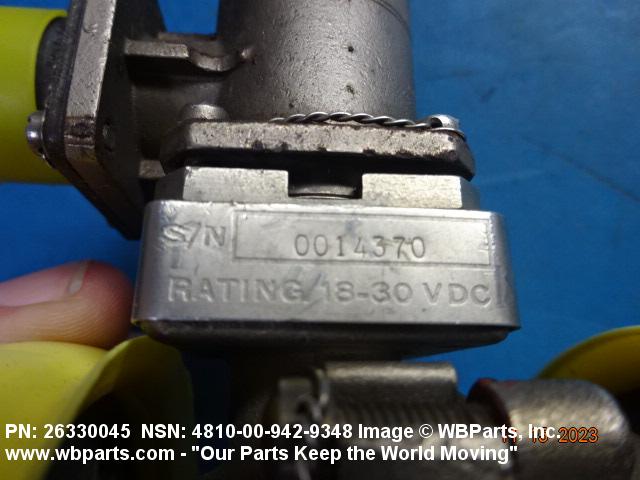

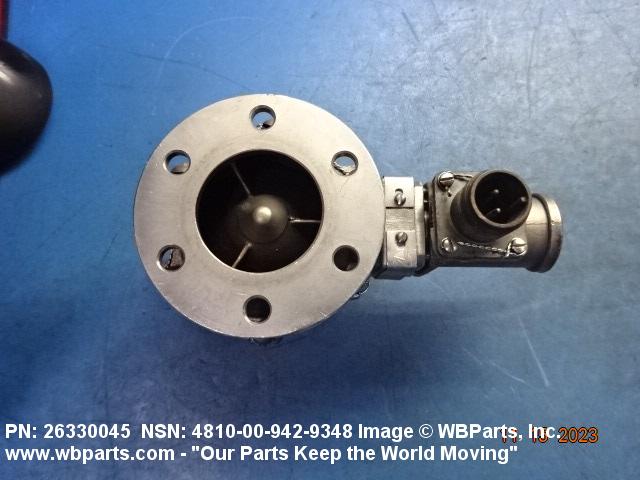

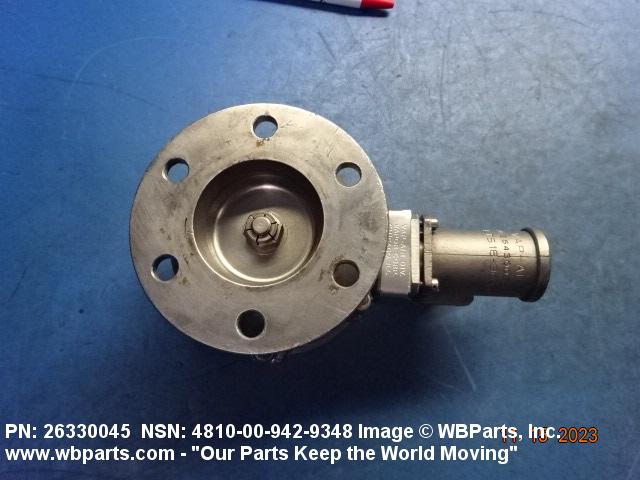

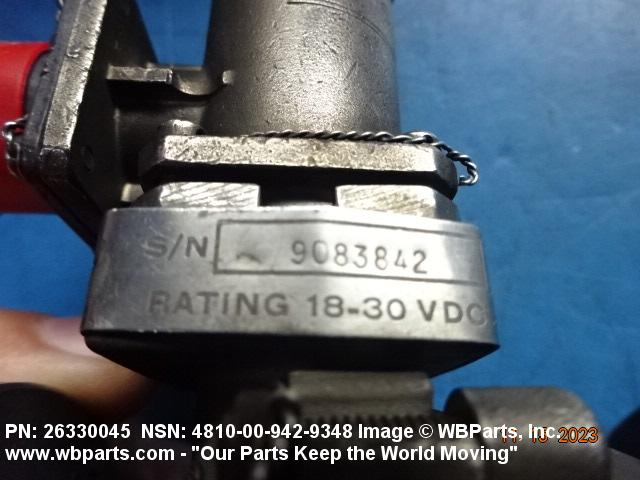

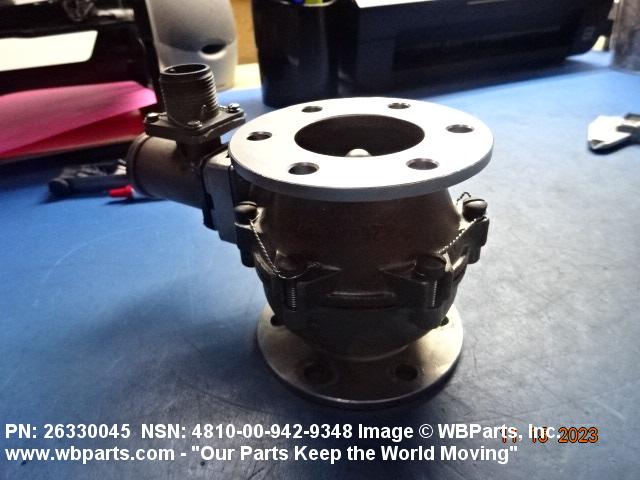

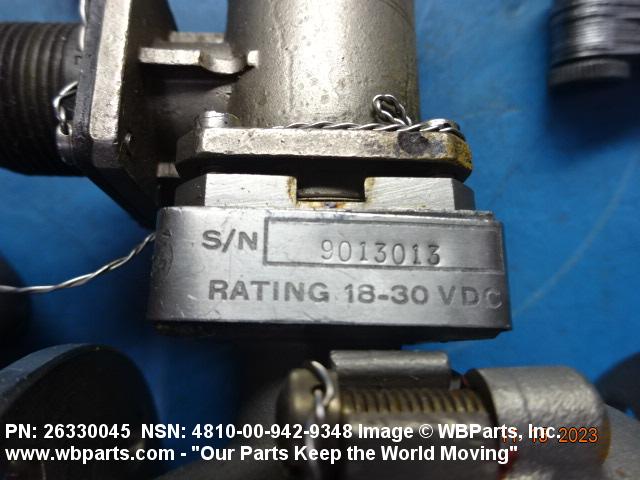

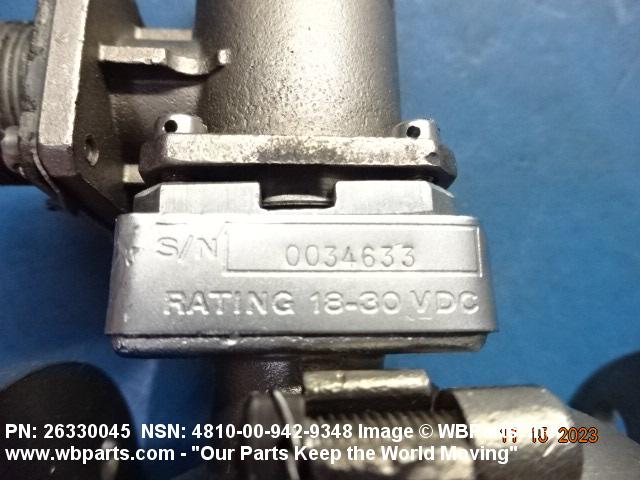

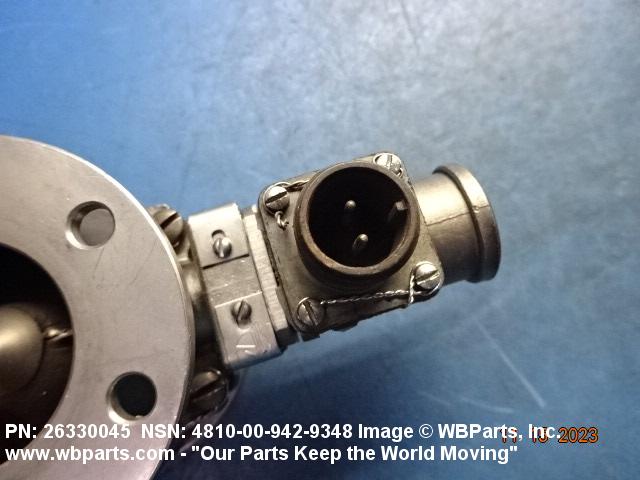

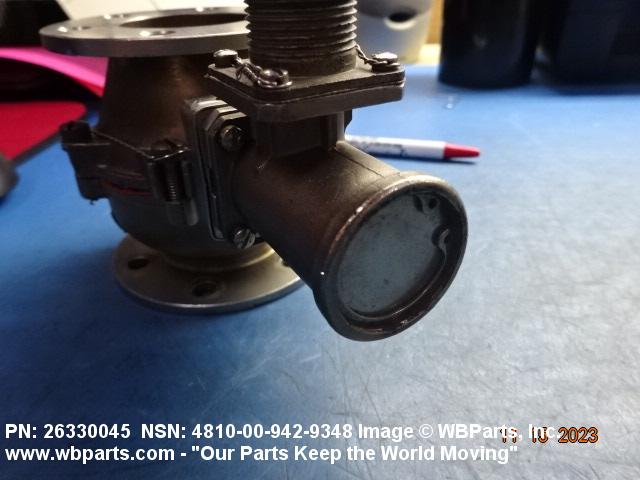

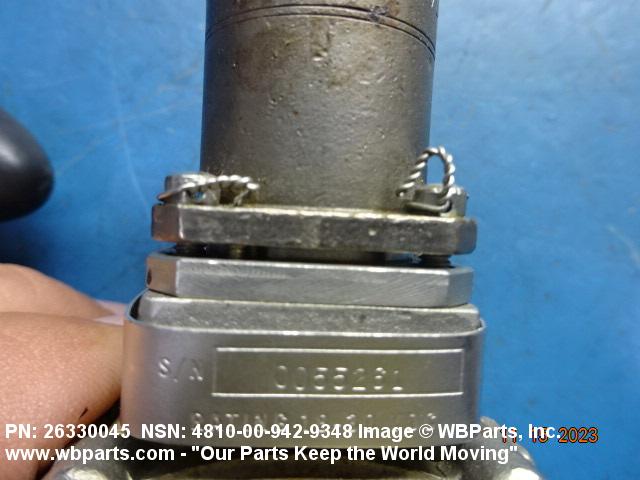

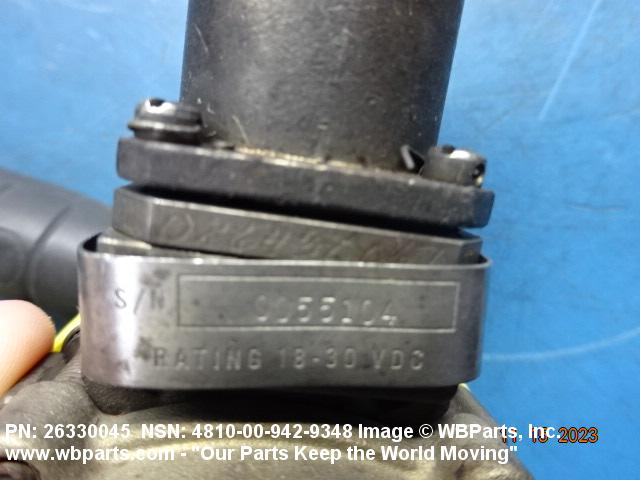

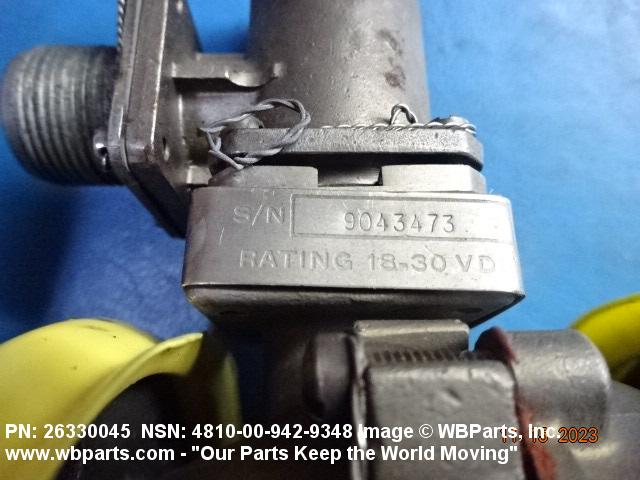

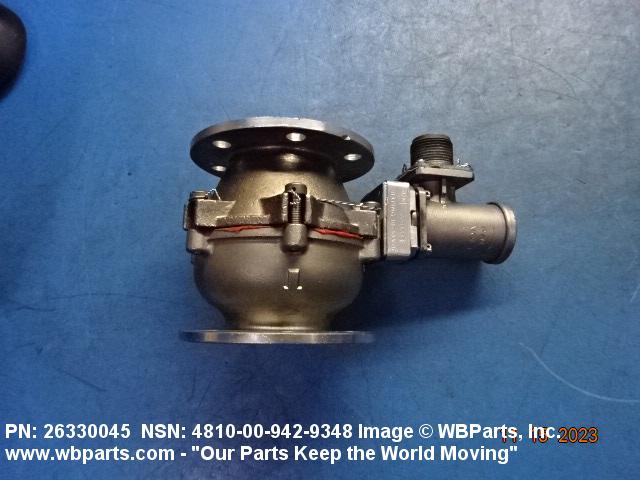

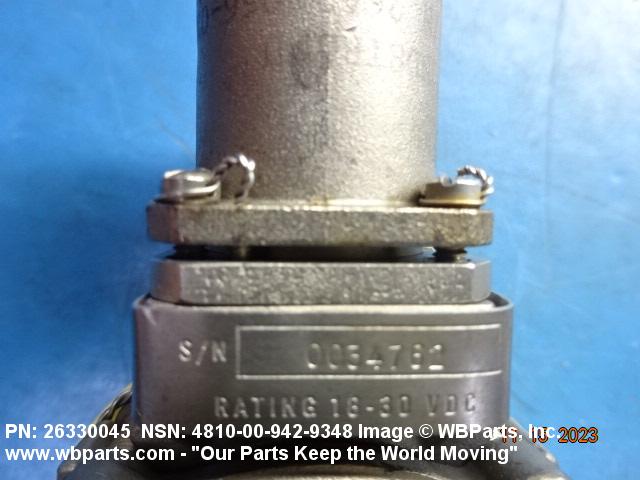

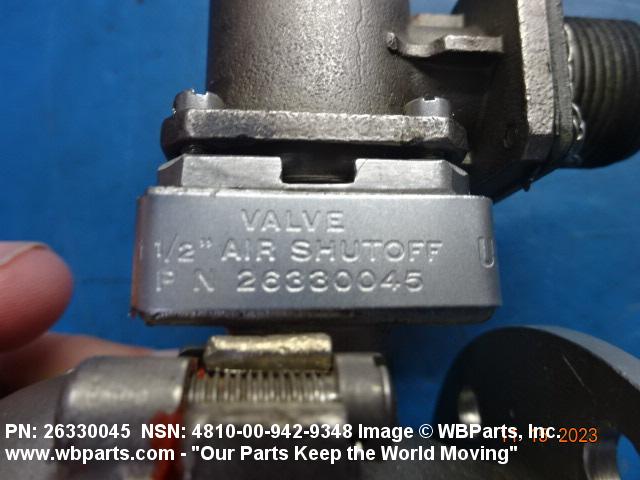

Drawings & Photos | NSN 4810-00-942-9348
Demand History | NSN 4810-00-942-9348
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 26330045 | 2023-11-310 | 9 | United States |
| 4810-00-942-9348 | 2023-09-265 | 4 | US |
| 4810-00-942-9348 | 2023-09-265 | 9 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-942-9348
Related Products | NSN 4810-00-942-9348
Technical Data | NSN 4810-00-942-9348
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| VALVE OPERATION METHOD | SOLENOID |

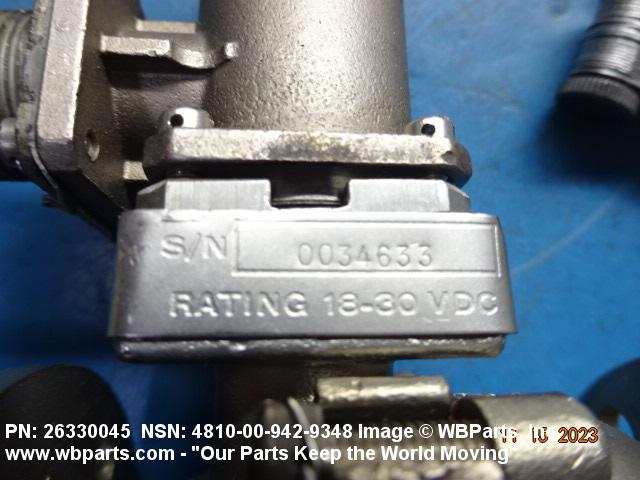

| VOLTAGE IN VOLTS AND CURRENT TYPE | 28.0 DC |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | CLOSED |
| INLET/OUTLET OPERATING PRESSURE DIFFERENTIAL | 6.9 POUNDS PER SQUARE INCH NOMINAL |

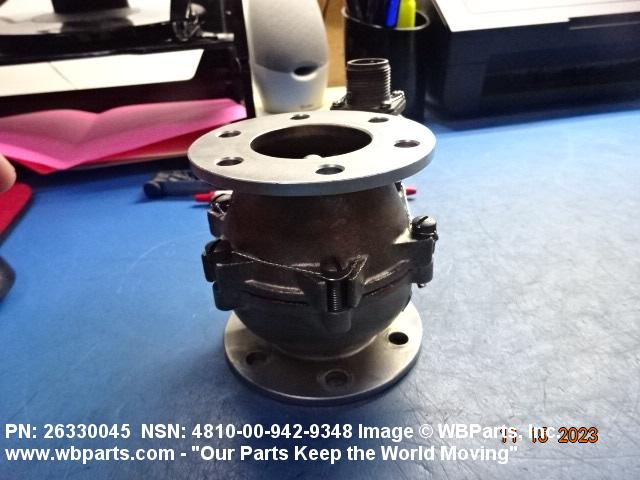

| CONNECTION TYPE | FLANGE 1ST END |
| FLANGE SHAPE | ROUND WITH HOLES 1ST END |
| NOMINAL OUTSIDE DIAMETER | 3.010 INCHES 1ST END |
| NOMINAL THICKNESS | 0.150 INCHES 1ST END |
| BOLT HOLE QUANTITY | 6 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.281 INCHES 1ST END |
| BOLT CIRCLE NOMINAL DIAMETER | 2.350 INCHES 1ST END |
| FLANGE FACE DESIGN | PLAIN 1ST END |
| MOUNTING POSITION | HORIZONTAL |
| MANUFACTURERS CODE | 79318 |
| DESIGN CONTROL REFERENCE | 26330045 |
