NSN 4810-00-928-5117 H60G1405, 00-928-5117, 009285117
Product Details | DIRECTIONAL CONTROL LINEAR VALVE SLEEVE AND SLIDE
4810-00-928-5117 An item consisting of a SLEEVE, DIRECTIONAL CONTROL LINEAR VALVE and a SLIDE DIRECTIONAL CONTROL LINEAR VALVE. It may be furnished unassembled, matched, or assembled. See also BODY AND SLIDE, DIRECTIONAL CONTROL LINEAR VALVE; PARTS KIT (1), LINEAR DIRECTIONAL CONTROL VALVE.20316500058Aircraft Hydraulic, Vacuum, and De-icing System Components48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: H60G1405, 4810-00-928-5117, 00-928-5117, 4810009285117, 009285117
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 24 AUG 1966 | 00-928-5117 | 45505 ( SLEEVE AND SLIDE, DIRECTIONAL CONTROL LINEAR VALVE ) |

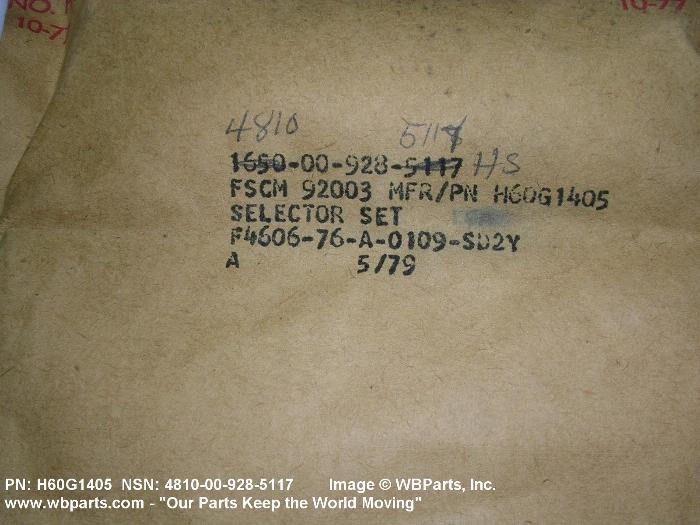

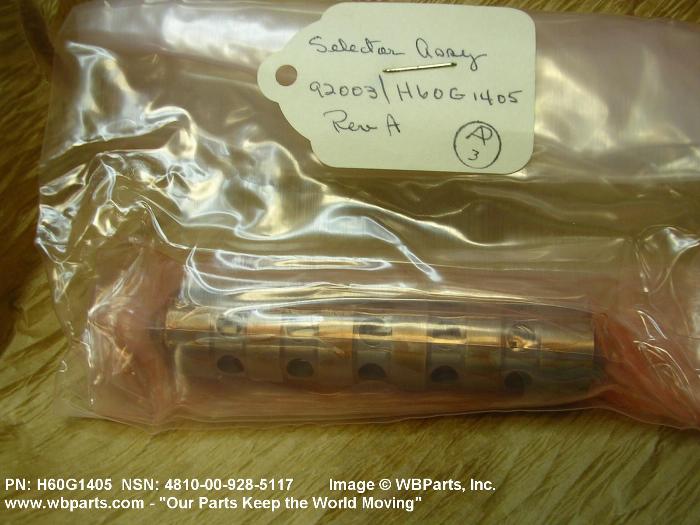

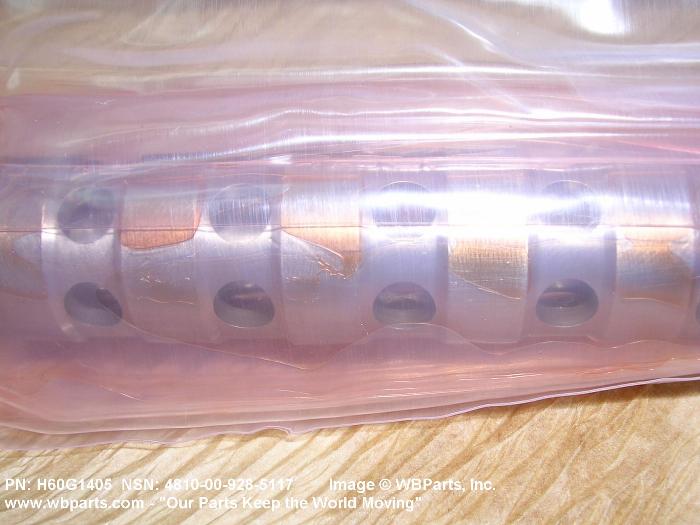

Drawings & Photos | NSN 4810-00-928-5117
Demand History | NSN 4810-00-928-5117
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-00-928-5117 | 2008-03-65 | 1 | us |
Cross Reference | NSN 4810-00-928-5117
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H60G1405 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-928-5117
Related Products | NSN 4810-00-928-5117
Technical Data | NSN 4810-00-928-5117
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | MATCHED SET; USED ON VALVE 362-0340 |
| III END ITEM IDENTIFICATION | AIRCRAFT HYDRAULIC SYSTEMS |
| MANUFACTURERS CODE | 92003 |
| DESIGN CONTROL REFERENCE | H60G1405 |
Restrictions/Controls & Freight Information | NSN 4810-00-928-5117
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-928-5117
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | HS | SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
