NSN 4810-00-898-1751 V340002, V3400-02, 00-898-1751
Product Details | SOLENOID VALVE
4810-00-898-1751 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: V340002, V3400-02, 4810-00-898-1751, 00-898-1751, 4810008981751, 5310008981751 , 008981751
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-898-1751 | 10998 ( VALVE, SOLENOID ) |

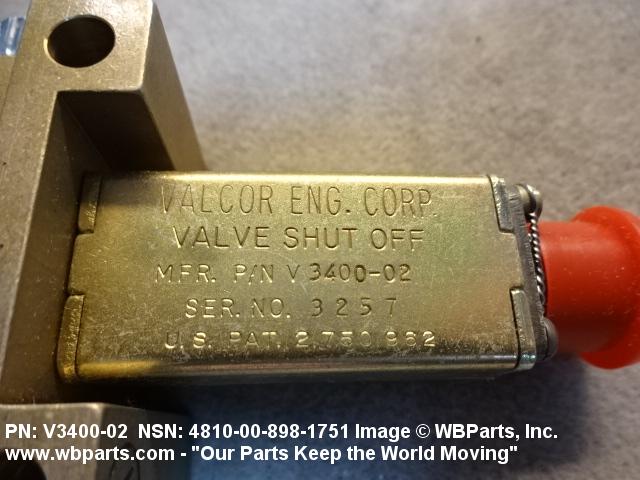

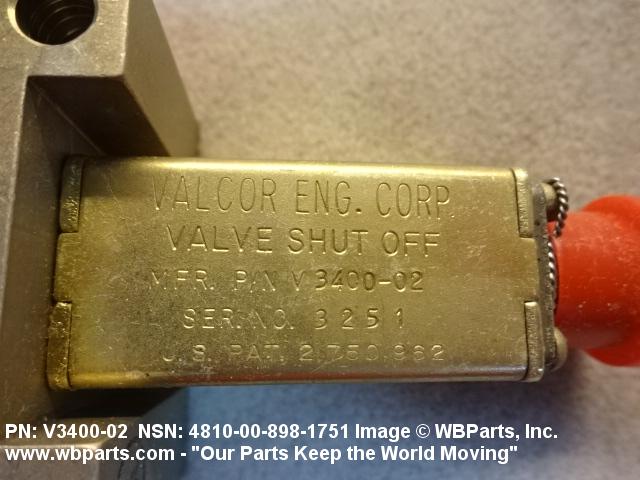

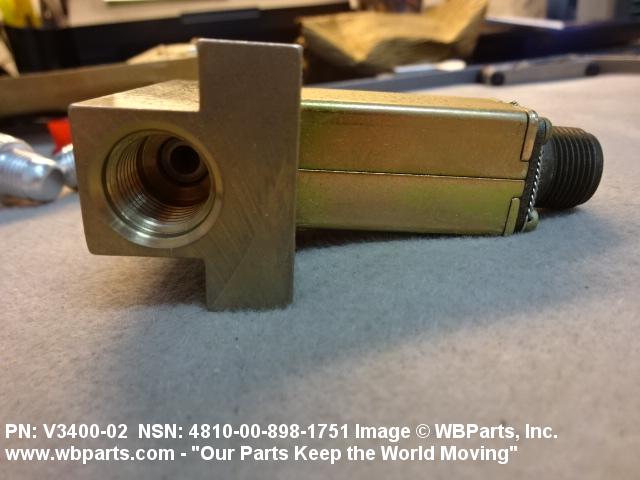

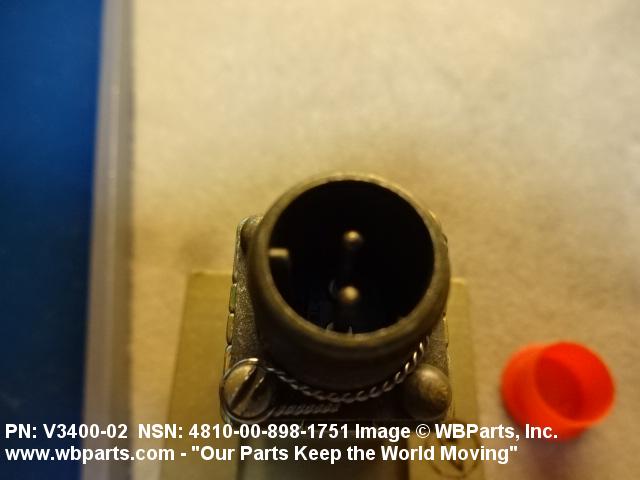

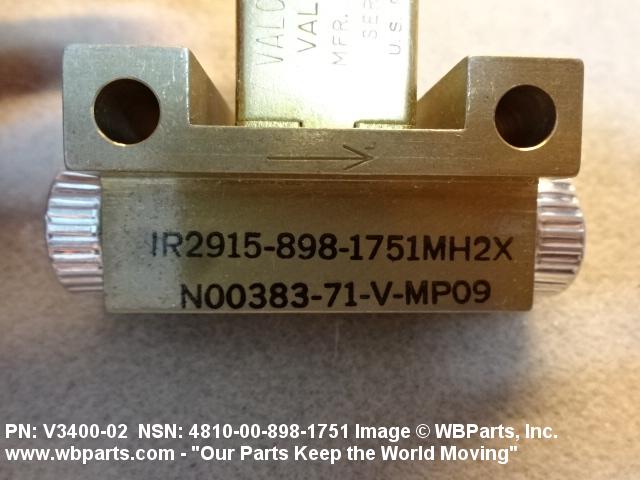

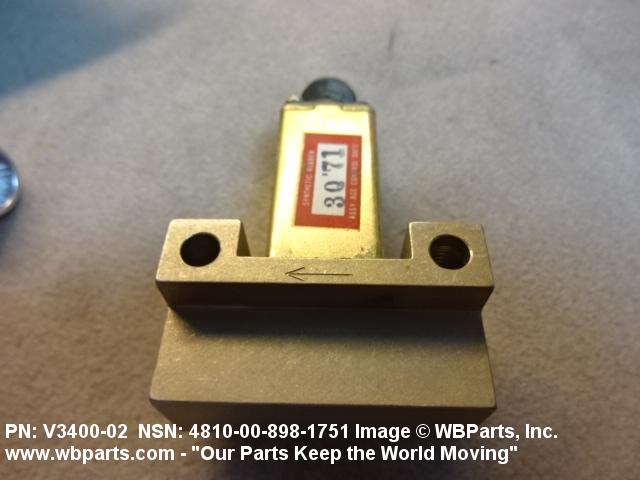

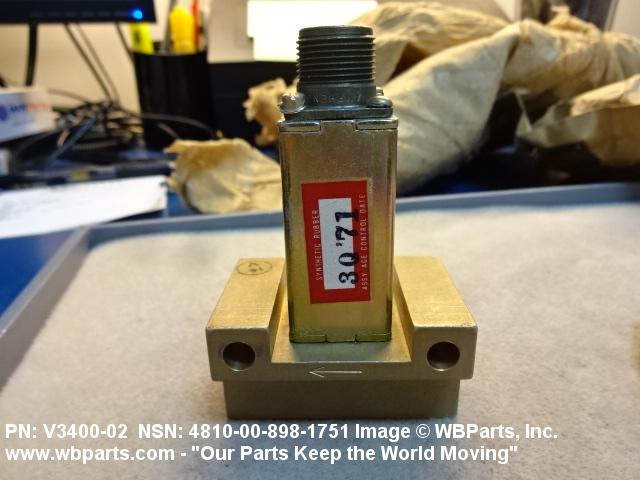

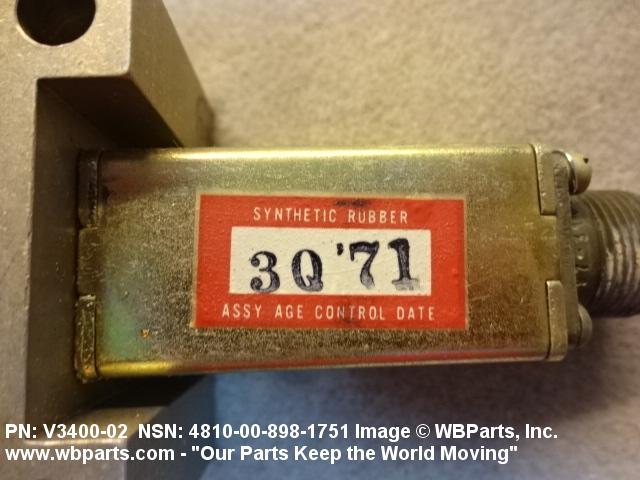

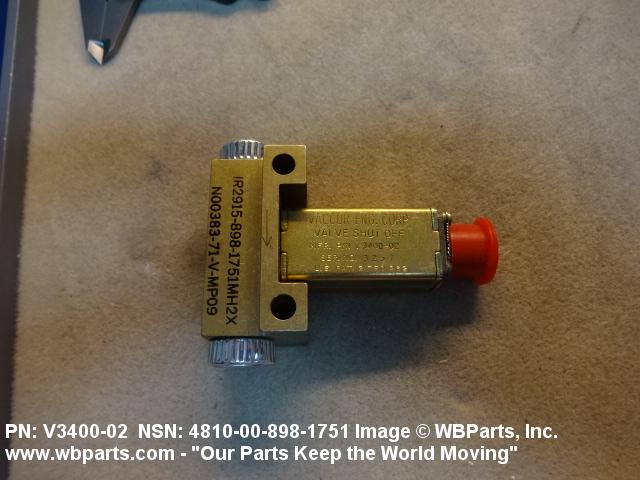

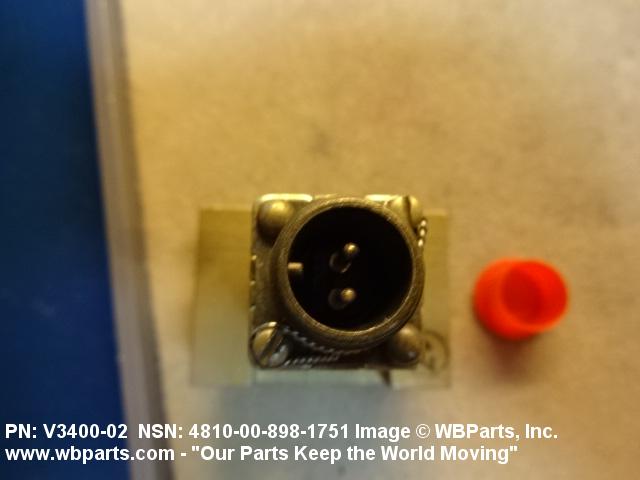

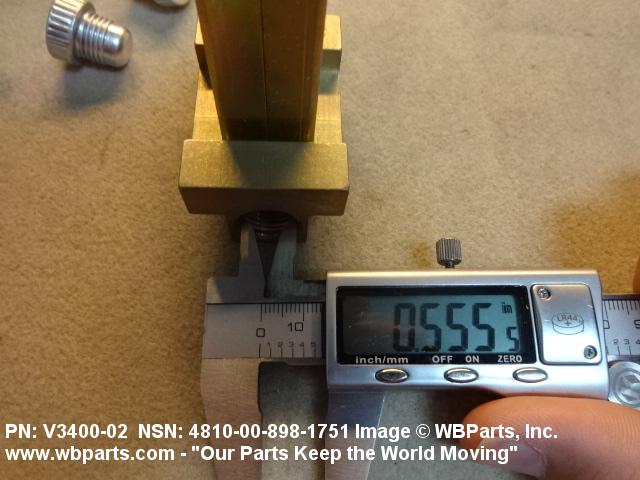

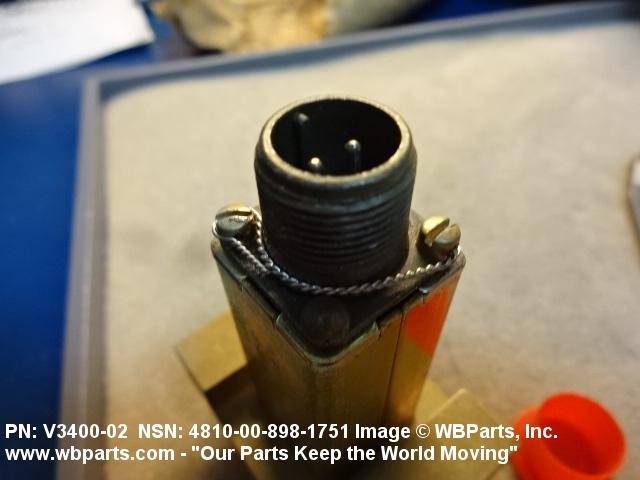

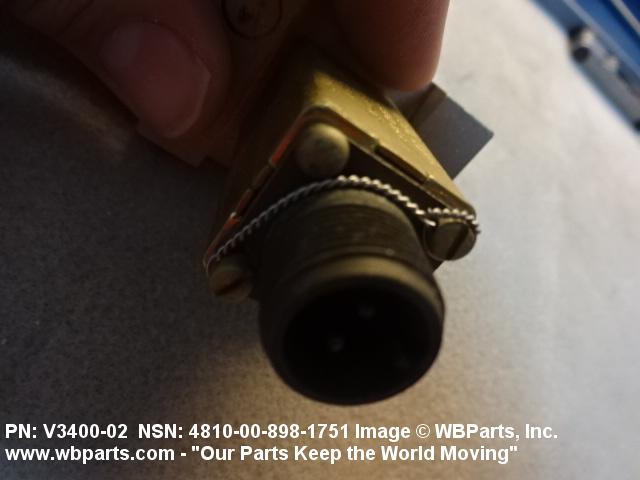

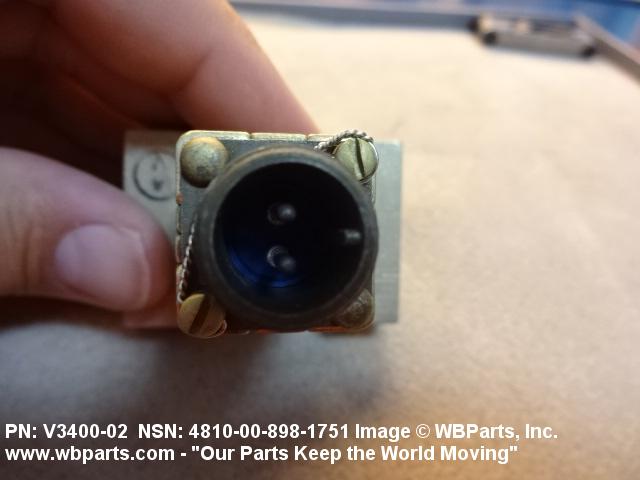

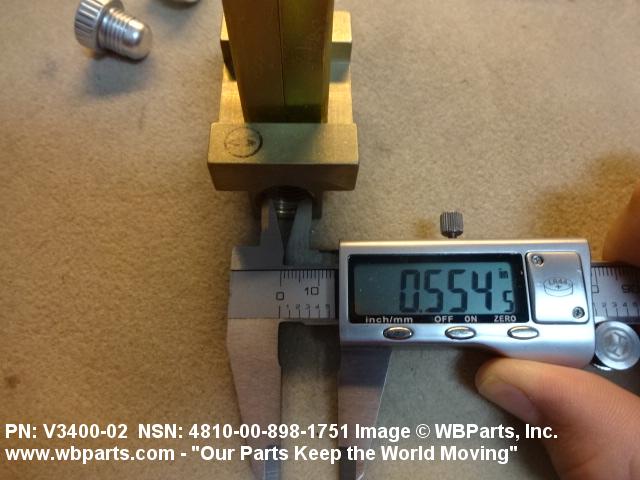

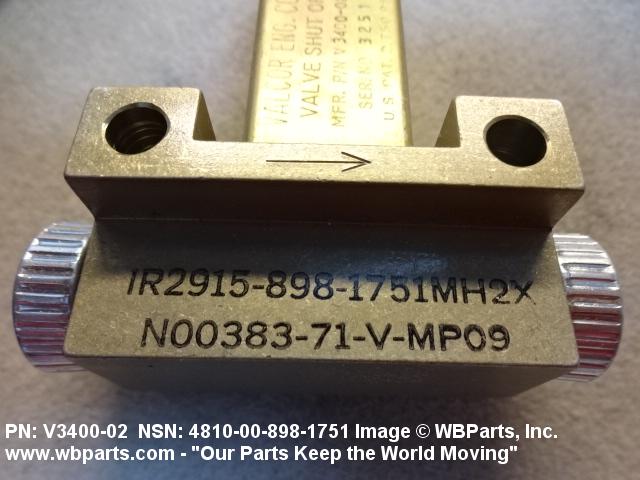

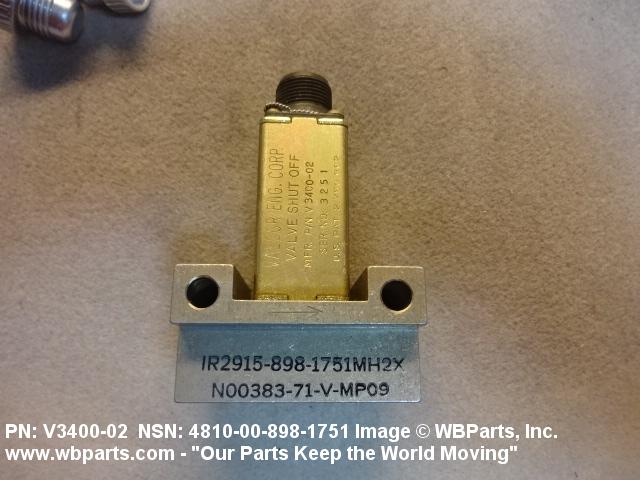

Drawings & Photos | NSN 4810-00-898-1751
Demand History | NSN 4810-00-898-1751
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| V3400-02 | 2024-05-130 | 13 | DIBBS |
| V3400-02 | 2024-05-123 | 8 | DIBBS |
| V3400-02 | 2023-06-159 | 6 | DIBBS |
| V3400-02 | 2023-04-99 | 10 | DIBBS |
| V3400-02 | 2023-01-05 | 4 | DIBBS |
| V3400-02 | 2020-10-282 | 6 | DIBBS |
| V3400-02 | 2020-09-254 | 2 | DIBBS |
| V3400-02 | 2020-07-203 | 2 | DIBBS |
| V3400-02 | 2020-06-176 | 10 | DIBBS |
| V3400-02 | 2020-03-72 | 5 | DIBBS |
| V3400-02 | 2020-01-02 | 6 | DIBBS |
| V3400-02 | 2019-03-87 | 12 | DIBBS |
| 4810-00-898-1751 | 2018-12-338 | 10 | United States |
| 4810-00-898-1751 | 2018-10-297 | 21 | DIBBS |
| 4810-00-898-1751 | 2018-10-275 | 14 | DIBBS |
| 4810-00-898-1751 | 2018-08-229 | 1 | United States |
| 4810-00-898-1751 | 2018-08-218 | 7 | DIBBS |
| V340002 | 2018-07-197 | 1 | United States |
| 4810-00-898-1751 | 2018-04-107 | 14 | DIBBS |
| 4810-00-898-1751 | 2018-02-39 | 3 | DIBBS |
| 4810-00-898-1751 | 2017-05-141 | 7 | DIBBS |
| 4810-00-898-1751 | 2017-04-97 | 1 | United States |
| 4810-00-898-1751 | 2017-02-59 | 14 | DIBBS |
| 4810-00-898-1751 | 2016-05-147 | 7 | DIBBS |
| 4810-00-898-1751 | 2016-03-68 | 6 | DIBBS |
| 4810-00-898-1751 | 2015-02-57 | 13 | DIBBS |
| 4810-00-898-1751 | 2014-05-142 | 4 | DIBBS |
| 4810-00-898-1751 | 2013-12-357 | 7 | DIBBS |
| 4810-00-898-1751 | 2013-10-294 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-898-1751
Related Products | NSN 4810-00-898-1751
Technical Data | NSN 4810-00-898-1751
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY STEEL FLOW CONTROL DEVICE STEEL SEAT |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK OR STEM |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 60.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 165.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 17.0 DC AND 30.0 DC |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | CLOSED |

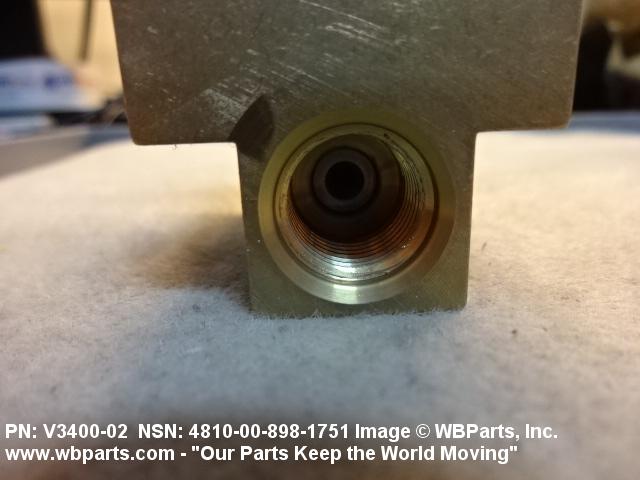

| CONNECTION TYPE | THREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | G5A FLARE ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |

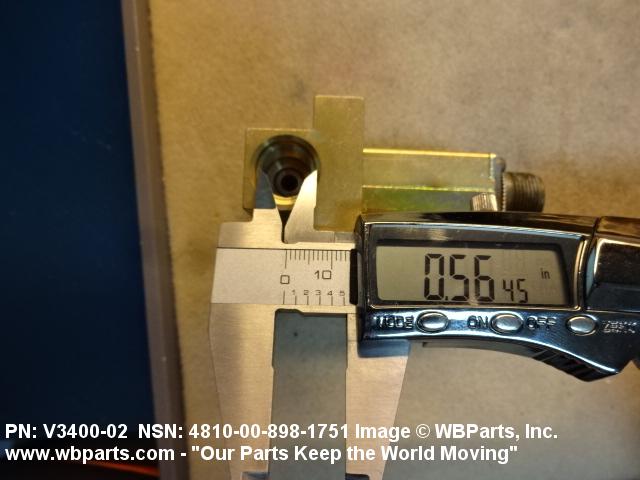

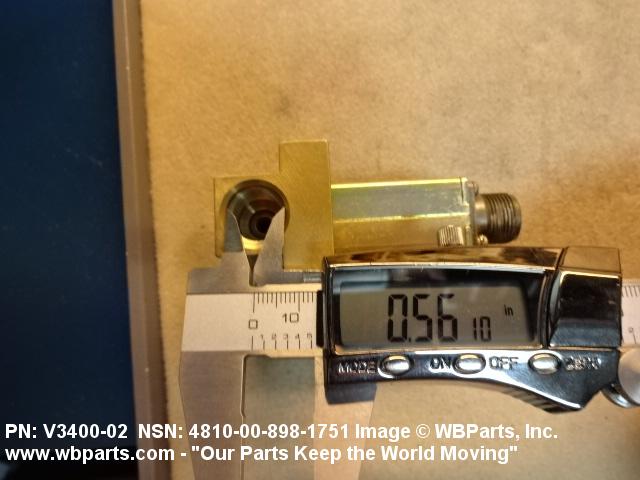

| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 2B ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| APERTURE DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| SPECIAL FEATURES | FLIGHT SAFETY CRITICAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| MANUFACTURERS CODE | 96487 |
| DESIGN CONTROL REFERENCE | V3400-02 |
Restrictions/Controls & Freight Information | NSN 4810-00-898-1751
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-898-1751
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
