Product Details | SOLENOID VALVE
4810-00-803-3857 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 1319576846, 1319-576846, 4810-00-803-3857, 00-803-3857, 4810008033857, 008033857
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
48 | 01 JAN 1962 | 00-803-3857 | 10998 ( VALVE, SOLENOID ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-803-3857
Related Products | NSN 4810-00-803-3857
Technical Data | NSN 4810-00-803-3857
Characteristic | Specifications |
---|---|

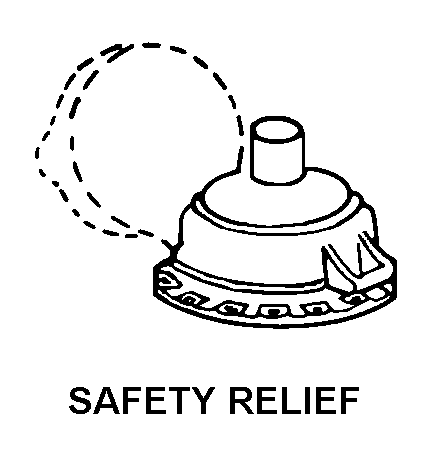

STYLE DESIGNATOR | C9 SAFETY RELIEF |
FLOW CONTROL DEVICE | DISK |
MAXIMUM OPERATING PRESSURE | 20.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
VALVE OPERATION METHOD | SOLENOID |
VOLTAGE IN VOLTS AND CURRENT TYPE | 18.0 DC AND 30.0 DC |
CURRENT RATING IN AMPS | 6.000 |
FLOW CONTROL DEVICE NORMAL OPERATION POSITION | CLOSED |
CONNECTION TYPE | FLANGE 1ST END |
FLANGE SHAPE | ROUND WITH HOLES 1ST END |
NOMINAL OUTSIDE DIAMETER | 5.500 INCHES 1ST END |
BOLT HOLE QUANTITY | 9 1ST END |
BOLT HOLE NOMINAL DIAMETER | 0.250 INCHES 1ST END |
BOLT CIRCLE NOMINAL DIAMETER | 4.400 INCHES 1ST END |
FLANGE FACE DESIGN | PLAIN 1ST END |
MANUFACTURERS CODE | 92003 |
DESIGN CONTROL REFERENCE | 1319-576846 |
