NSN 4810-00-761-0678 AV24B1116B, 00-761-0678, 007610678
Product Details | BALL VALVE
4810-00-761-0678 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: AV24B1116B, 4810-00-761-0678, 00-761-0678, 4810007610678, 007610678
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1960 | 00-761-0678 | 20962 ( VALVE, BALL ) |

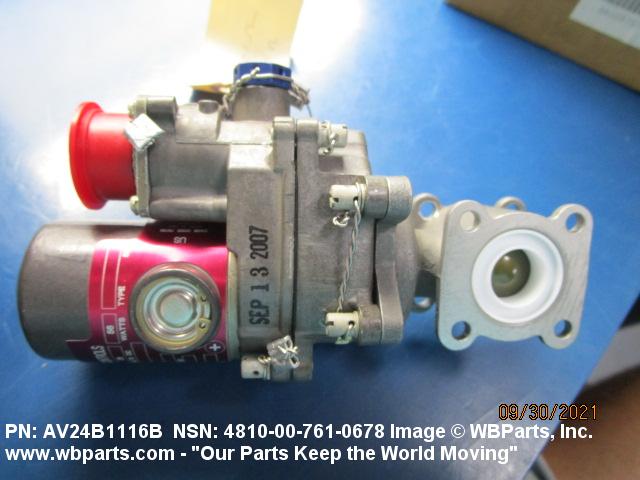

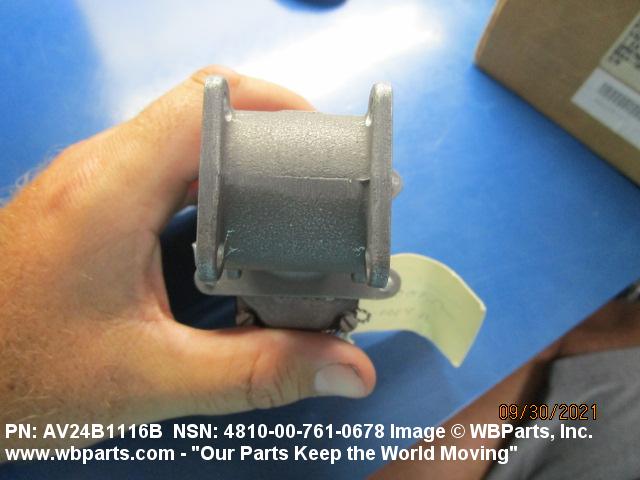

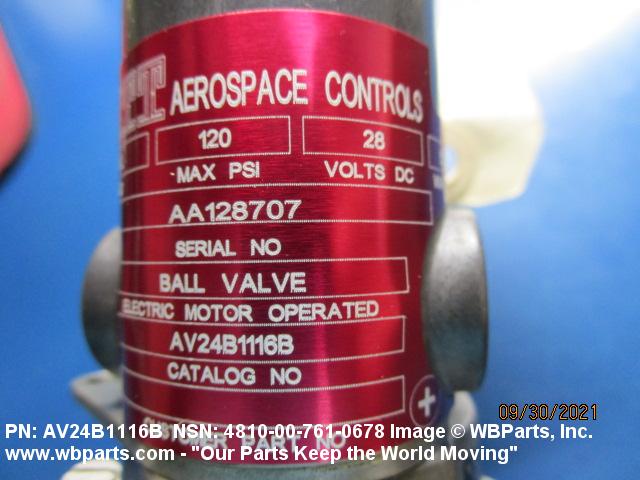

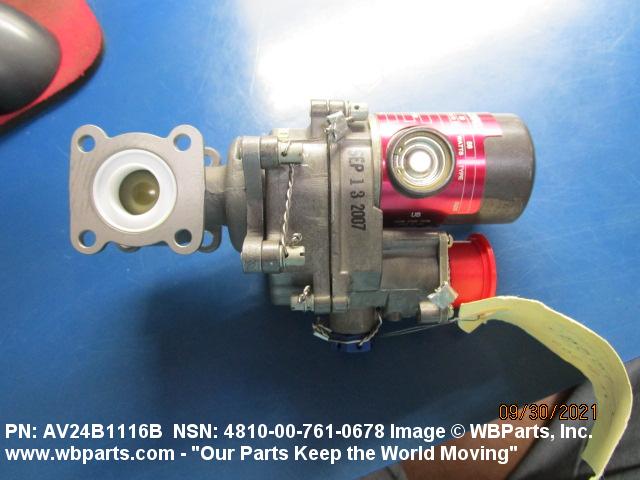

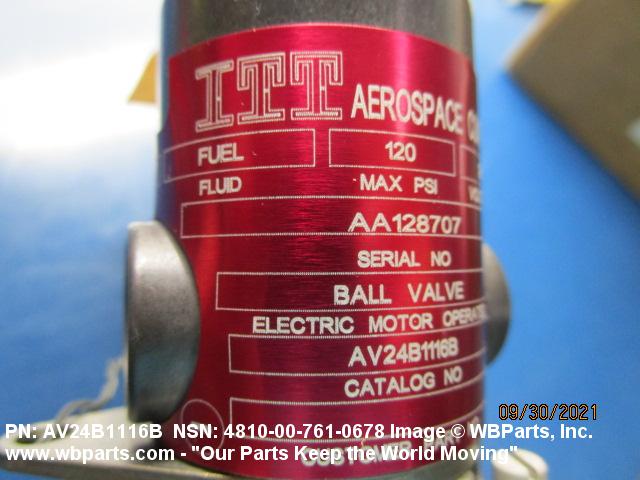

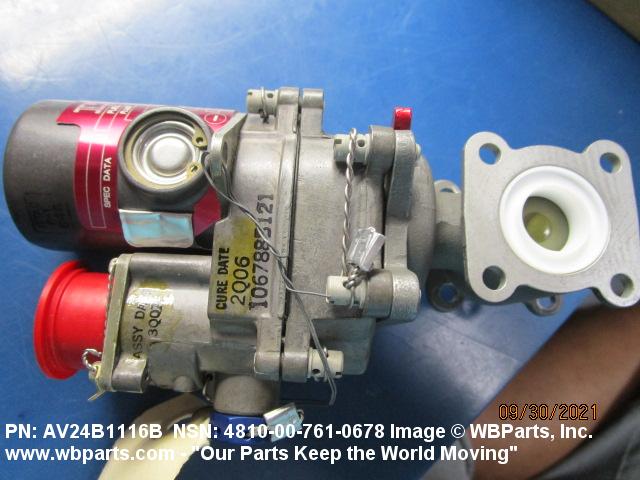

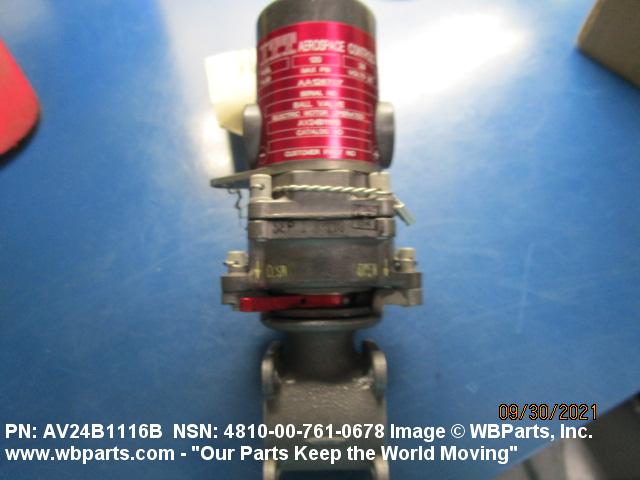

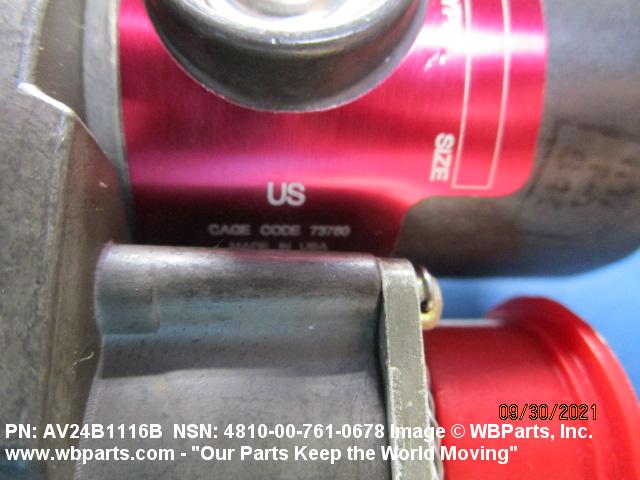

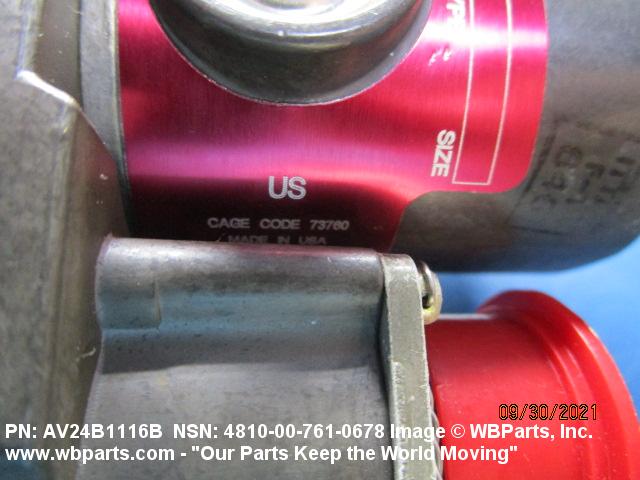

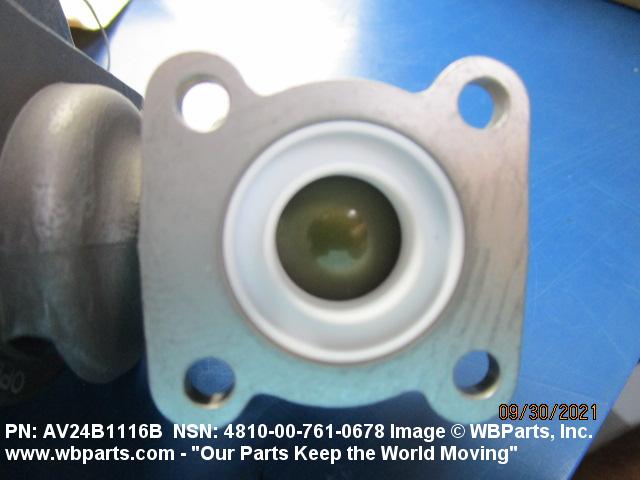

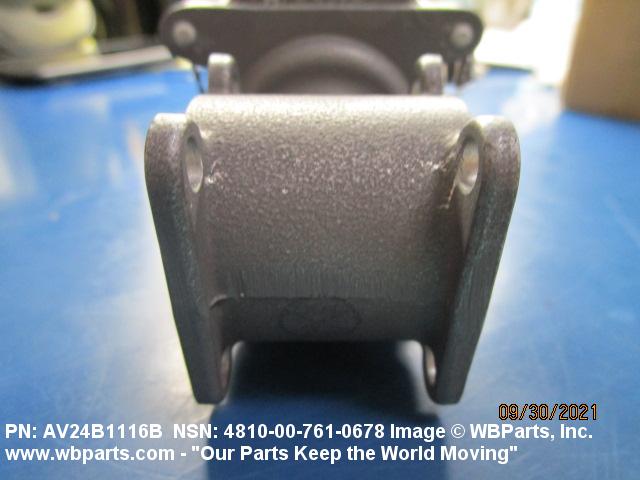

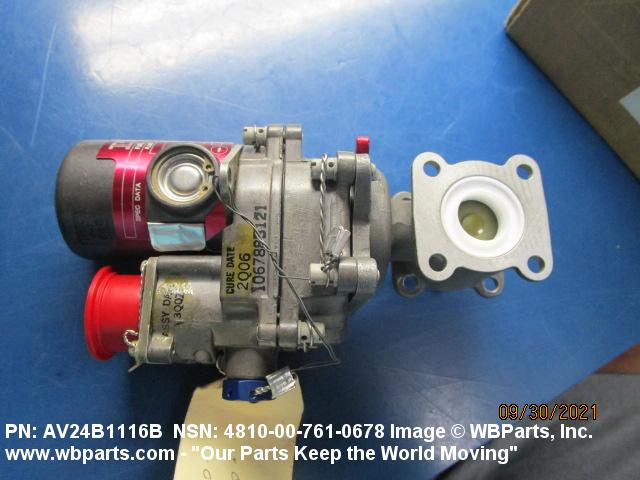

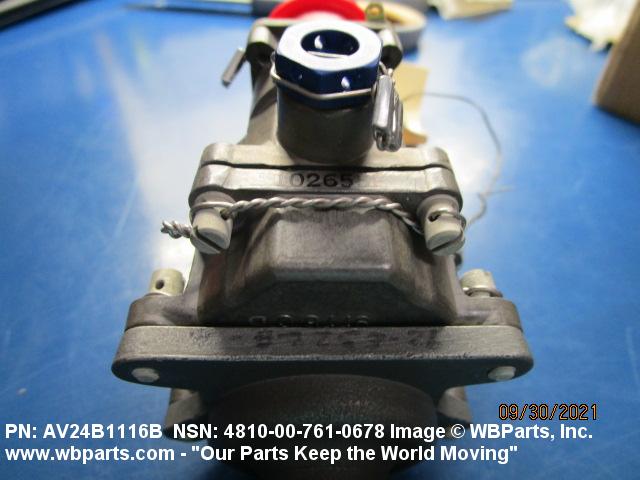

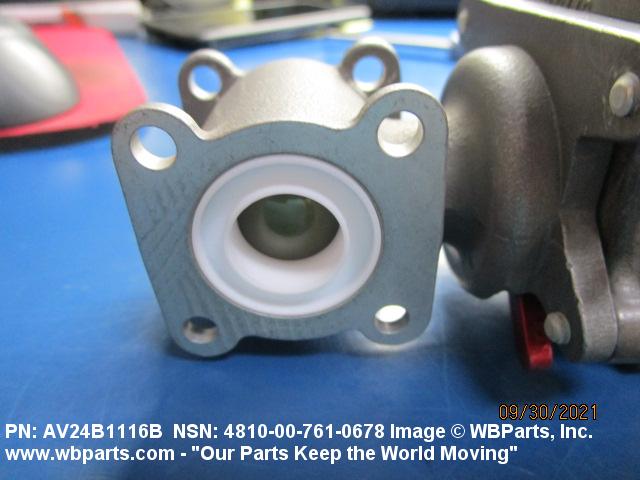

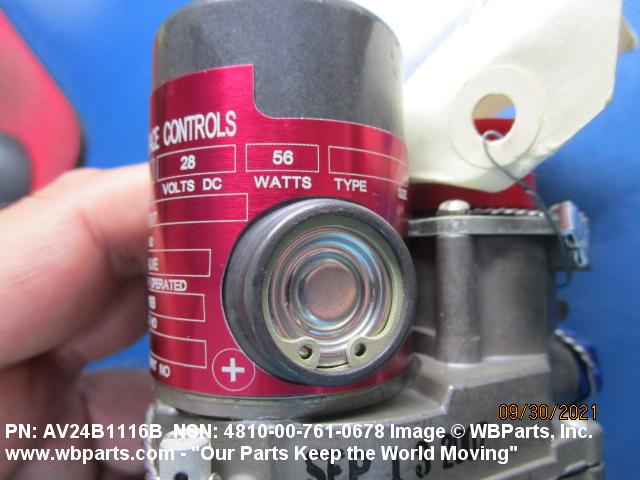

Drawings & Photos | NSN 4810-00-761-0678
Demand History | NSN 4810-00-761-0678
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-00-761-0678 | 2021-09-267 | 1 | United States |
| AV24B1116B | 2021-07-197 | 1 | DIBBS |
| AV24B1116B | 2021-07-186 | 1 | DIBBS |
| 4810-00-761-0678 | 2018-05-151 | 3 | DIBBS |
Cross Reference | NSN 4810-00-761-0678
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AV24B1116B | 73760 | ITT CORPORATION DBA ITT AEROSPACE CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-761-0678
Related Products | NSN 4810-00-761-0678
Technical Data | NSN 4810-00-761-0678
| Characteristic | Specifications |
|---|---|

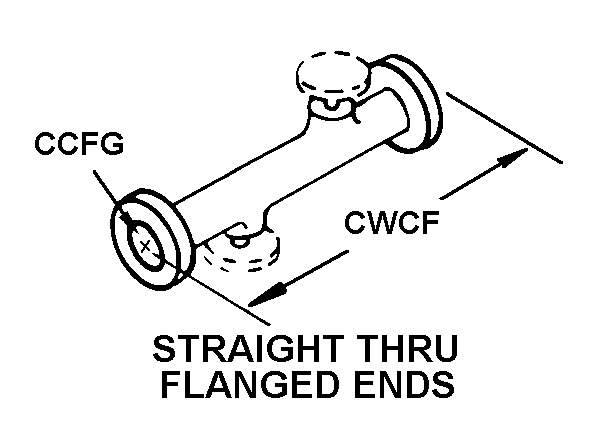

| STYLE DESIGNATOR | A32A STRAIGHT THRU FLANGED ENDS |
| FACE TO FACE DISTANCE | 2.400 INCHES |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 120.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | ELECTRIC MOTOR |
| POWER DRIVE OPERATING PRESSURE | 80.0 POUNDS PER SQUARE INCH NOMINAL |
| (NON-CORE DATA) OPERATING TIME IN SECONDS | 10.000 NOMINAL |
| CONNECTION TYPE | UNTHREADED EXTERNAL TUBE 1ST END FLANGE 2ND END |
| CONNECTION STYLE | G60A PLAIN 1ST END |
| BOLT HOLE QUANTITY | 4 2ND END |
| FLANGE FACE DESIGN | PLAIN 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| RENEWABLE SEAT RING TYPE | PRESSED-IN |
| MANUFACTURERS CODE | 73760 |
| DESIGN CONTROL REFERENCE | AV24B1116B |
Restrictions/Controls & Freight Information | NSN 4810-00-761-0678
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-761-0678
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | JY | SX:MISCELLANEOUS AIRCRAFT ACCESSORIES AND SYSTEMS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
