NSN 4810-00-736-5181 31048839, 310488-39, 31900240
Product Details | SOLENOID VALVE
4810-00-736-5181 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 31048839, 310488-39, 31900240, 319002-40, 4810-00-736-5181, 00-736-5181, 4810007365181, 007365181
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 00-736-5181 | 10998 ( VALVE, SOLENOID ) |
Drawings & Photos | NSN 4810-00-736-5181
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-00-736-5181
Technical Data | NSN 4810-00-736-5181
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | A12 ANGLE |
| FLOW CONTROL DEVICE | NEEDLE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 30.0 DC |
| CURRENT RATING IN AMPS | 65.000 |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | OPEN |
| CONNECTION TYPE | THREADED EXTERNAL HOSE 1ST END |

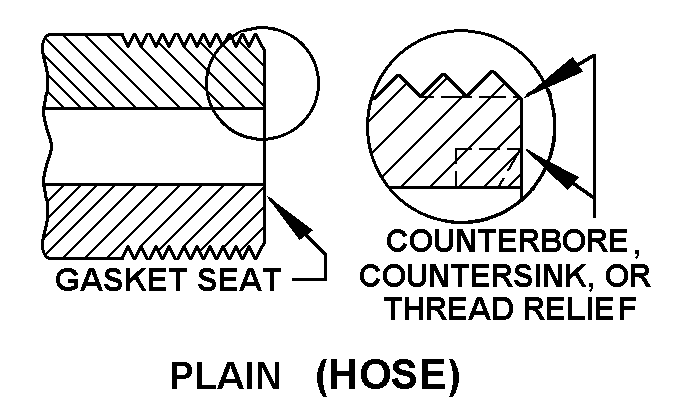

| CONNECTION STYLE | G46C PLAIN 1ST END |
| THREAD SERIES DESIGNATOR | UNEF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD CLASS | 2A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| APERTURE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
Restrictions/Controls & Freight Information | NSN 4810-00-736-5181
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
