NSN 4810-00-732-1321 V850019, V8500-19, 00-732-1321
Product Details | SOLENOID VALVE
4810-00-732-1321 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: V850019, V8500-19, 4810-00-732-1321, 00-732-1321, 4810007321321, 007321321
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1961 | 00-732-1321 | 10998 ( VALVE, SOLENOID ) |

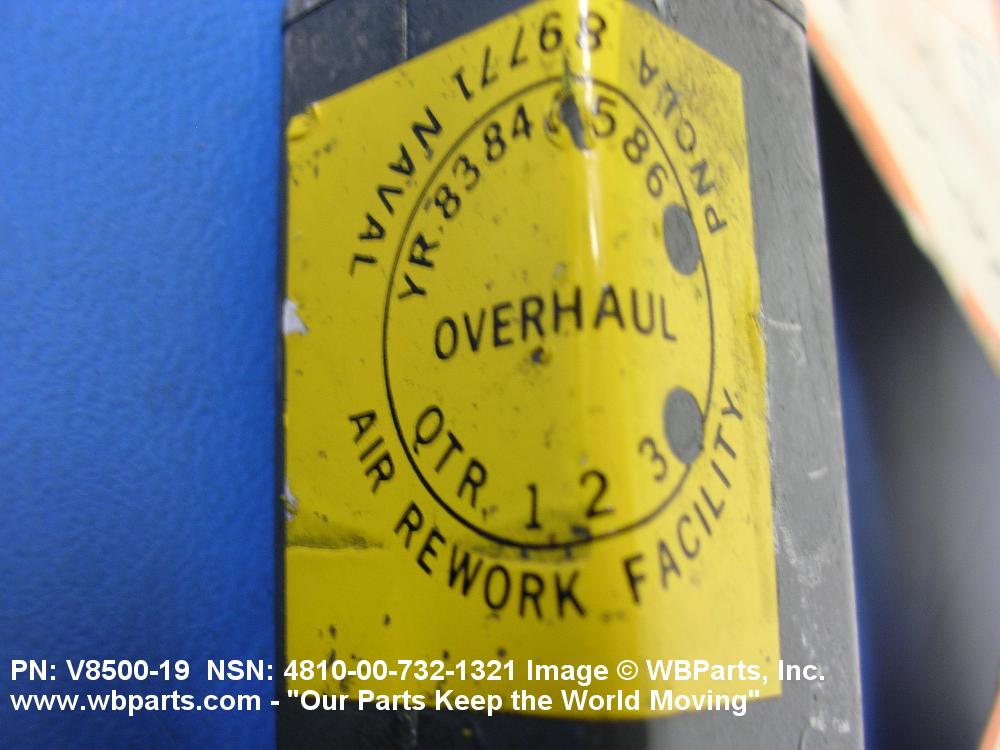

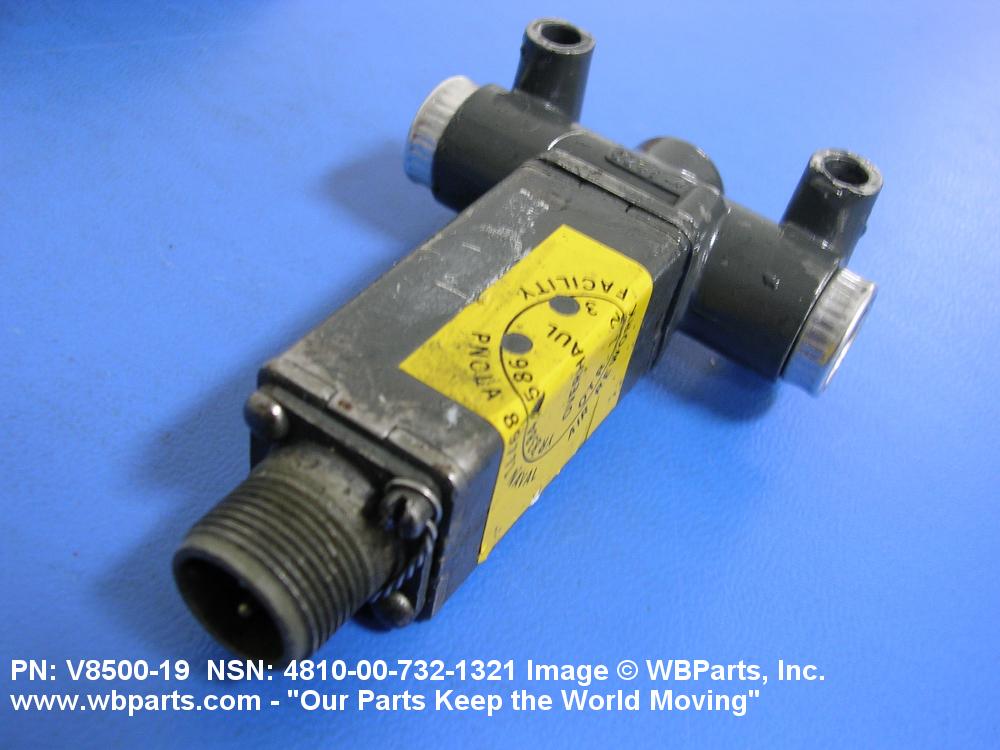

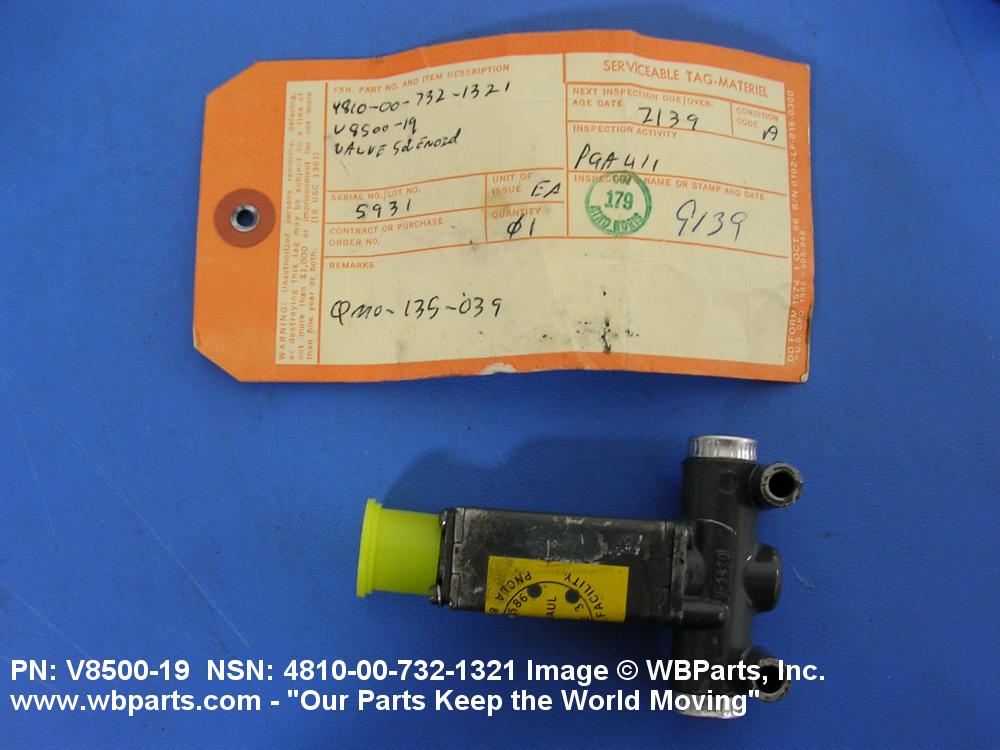

Drawings & Photos | NSN 4810-00-732-1321
Demand History | NSN 4810-00-732-1321
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-00-732-1321 | 2012-07-190 | 7 | UA |
| V8500-19 | 2012-07-184 | 1 | United States |
| 4810-00-732-1321 | 2012-02-32 | 7 | TR |
| V8500-19 | 2011-05-139 | 1 | |
| 4810-00-732-1321 | 2011-05-138 | 1 | NECO |
| V850019 | 2008-05-128 | 1 | Malaysia |
| V850019 | 2008-03-67 | 2 | Malaysia |
| 4810-00-732-1321 | 2006-03-88 | 2 | US |
Cross Reference | NSN 4810-00-732-1321
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| V8500-19 | 96487 | VALCOR ENGINEERING CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-732-1321
Related Products | NSN 4810-00-732-1321
Technical Data | NSN 4810-00-732-1321
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY ALUMINUM ALLOY FLOW CONTROL DEVICE ALUMINUM ALLOY SEAT |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | PISTON |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, PHOSPHATE-ESTER BASE SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 600.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 12.0 DC |
| CURRENT RATING IN AMPS | 5.500 |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | OPEN |
| CONNECTION TYPE | THREADED INTERNAL BOSS 1ST END |
| CONNECTION STYLE | G4 GASKET SEAL 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.437 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 20 1ST END |
| THREAD CLASS | 3B 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| MANUFACTURERS CODE | 96487 |
| DESIGN CONTROL REFERENCE | V8500-19 |
Restrictions/Controls & Freight Information | NSN 4810-00-732-1321
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-732-1321
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | DH | HELICOPTERS(H3) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
