NSN 4810-00-580-6176 X90001, X9000-1, 18876
Product Details | SOLENOID VALVE
4810-00-580-6176 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: X90001, X9000-1, 18876, 230R12S7M, 230RAGS6721, 230-RA-GS672-1, 240RAGS7421, 240RA-GS742-1, M344, 4810-00-580-6176, 00-580-6176, 4810005806176, 005806176
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-580-6176 | 10998 ( VALVE, SOLENOID ) |
Drawings & Photos | NSN 4810-00-580-6176
Demand History | NSN 4810-00-580-6176
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 18876 | 2009-08-219 | 8 | us |
| 18876 | 2009-08-219 | 8 | us |
| 18876 | 2009-08-219 | 8 | us |
| 4810-00-580-6176 | 2008-11-322 | 3 | DIBBS |
Cross Reference | NSN 4810-00-580-6176
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18876 | 33654 | HOWDEN FLUID SYSTEMS |
| 18876 | 58163 | MEGGITT (NORTH HOLLYWOOD), INC. DBA MEGGITT CONTROL SYSTEMS |
| 230-RA-GS672-1 | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| 230R12S7M | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| 240RA-GS742-1 | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| M344 | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| X9000-1 | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-00-580-6176
Technical Data | NSN 4810-00-580-6176
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

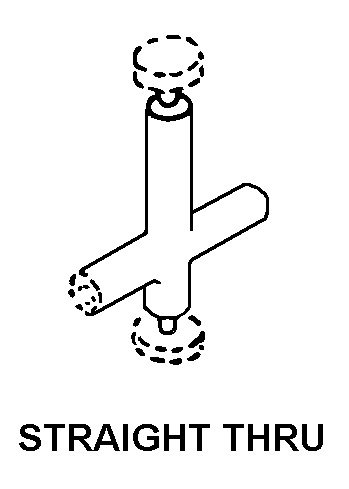

| STYLE DESIGNATOR | A44 STRAIGHT THRU |
| FLOW CONTROL DEVICE | PISTON |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 400.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 77.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | CLOSED |
| INLET/OUTLET OPERATING PRESSURE DIFFERENTIAL | 250.0 POUNDS PER SQUARE INCH NOMINAL |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | G20A SOCKET ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.125 INCHES ALL ENDS |
| APERTURE DIAMETER | 0.750 INCHES NOMINAL |
| MOUNTING POSITION | HORIZONTAL |
| SPECIAL FEATURES | AS DIFFERENTIATED BY VOLTAGE DATA |
Restrictions/Controls & Freight Information | NSN 4810-00-580-6176
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-580-6176
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
