Product Details | FLUID PRESSURE REGULATING VALVE
4810-00-524-8549 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1781500, 178-1500, 17815001000, 178-1500-1000, 17815001200, 178-1500-1200, 4810-00-524-8549, 00-524-8549, 4810005248549, 005248549
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-524-8549 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4810-00-524-8549
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-524-8549
Related Products | NSN 4810-00-524-8549
Technical Data | NSN 4810-00-524-8549
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY |
| SEAT MATERIAL | STEEL |
| STEM MATERIAL | STEEL |
| PACKING MATERIAL | RUBBER, SYNTHETIC |
| FLOW CONTROL DEVICE | POPPET |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| OUTSIDE SURFACE TREATMENT | ANODIZED |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL BOSS |

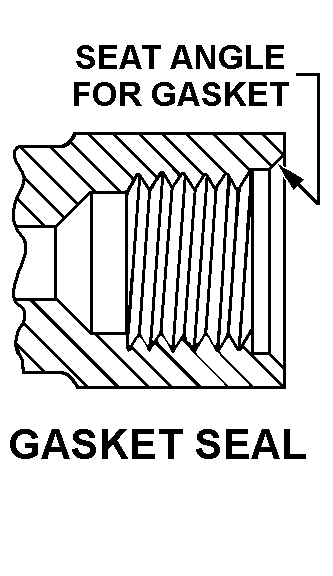

| FIRST END STYLE DESIGNATOR | B6 GASKET SEAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 3/4-16 UNF |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | B6 GASKET SEAL |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9/16-18 UNF |
| SECOND END THREAD CLASS | 3B |
| SECOND END THREAD DIRECTION | RIGHT-HAND |

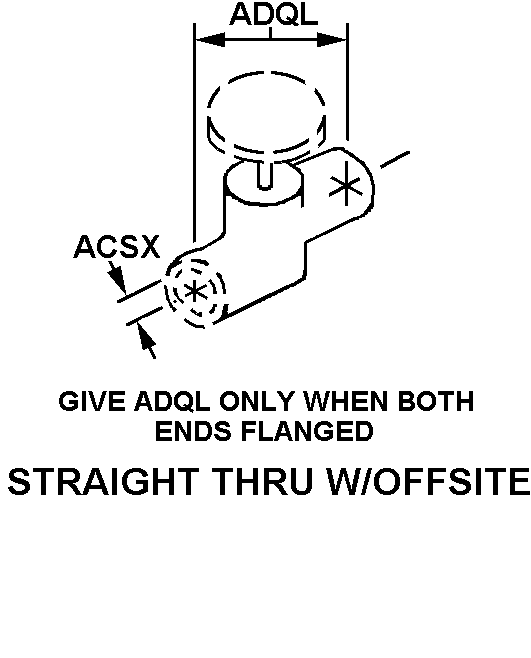

| BODY STYLE | A6 STRAIGHT THRU W/OFFSET |
| MEDIA FOR WHICH DESIGNED | AIR |
| MOUNTING FACILITY | BOLTS |
| RENEWABLE SEAT RING TYPE | PRESSED-IN |
| REGULATION TYPE | AUTOMATIC DOUBLE STAGE |
| VALVE LOADING METHOD | SPRING |
| MAXIMUM INLET PRESSURE RATING | 1500.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 800.0 TO 1500.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
