NSN 4810-00-497-1321 V3000600, V3000-600, 00-497-1321

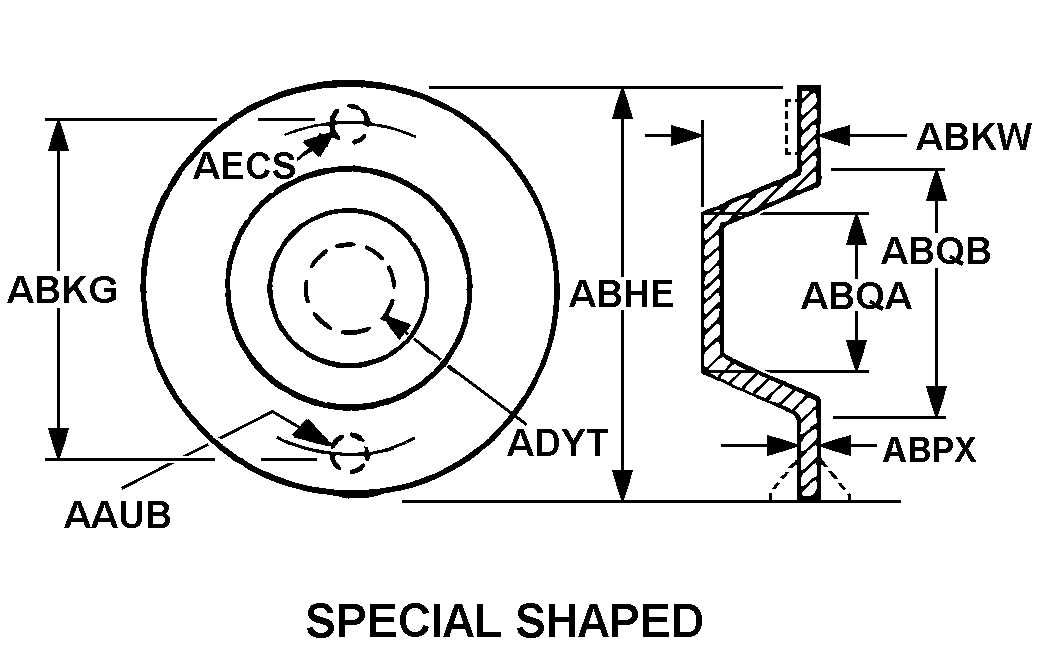

Product Details | SPECIAL SHAPED VALVE DIAPHRAGM
4810-00-497-1321 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.20529100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers42200038Marine Lifesaving and Diving Equipment48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: V3000600, V3000-600, 4810-00-497-1321, 00-497-1321, 4810004971321, 004971321
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 03 FEB 1971 | 00-497-1321 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |
Drawings & Photos | NSN 4810-00-497-1321
Cross Reference | NSN 4810-00-497-1321
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| V3000-600 | 31626 | JOHNSON CONTROLS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-00-497-1321
Technical Data | NSN 4810-00-497-1321
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| STYLE DESIGNATOR | 52 SPECIAL SHAPED |
| HOLE DIAMETER | 0.200 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.390 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 4.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.656 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.092 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 3.100 INCHES NOMINAL |
| TAPER MAJOR DIAMETER | 3.530 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 3 |
