NSN 4810-00-285-4323 L31370, 9034083, 244586
Product Details | VALVE SEAT
4810-00-285-4323 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: L31370, 9034083, 244586, 393572C1, 4810-00-285-4323, 00-285-4323, 4810002854323, 002854323
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 05 SEP 1973 | 00-285-4323 | 22113 ( SEAT, VALVE ) |

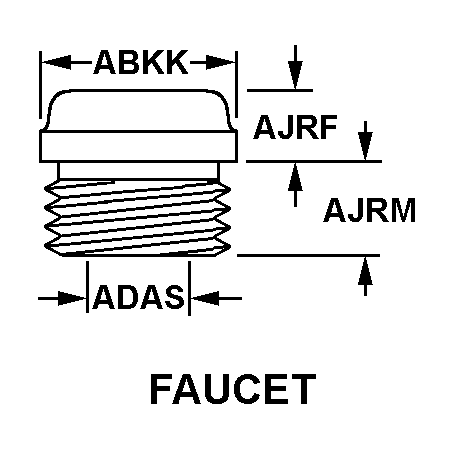

Drawings & Photos | NSN 4810-00-285-4323
Demand History | NSN 4810-00-285-4323
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4810-00-285-4323 | 2011-01-08 | 3 | DIBBS |
Cross Reference | NSN 4810-00-285-4323
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 244586 | 06853 | BENDIX COMMERCIAL VEHICLE SYSTEMS LLC |
| 393572C1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 9034083 | 53HT7 | TOLEDO COMMUTATOR COMPANY DIV TOLEDO COMMUTATOR |
| 9034083 | 97097 | TOLEDO COMMUNICATOR DIV OF ELECTRONIC TECHNOLOGIES INC |
| L31370 | 10988 | CNH INDUSTRIAL AMERICA LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-285-4323
Related Products | NSN 4810-00-285-4323
Technical Data | NSN 4810-00-285-4323
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A9 FAUCET |
| FLANGE DIAMETER | 1.617 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.141 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.751 INCHES NOMINAL |
| FLANGE SEAT TO DISK END HEIGHT | 0.110 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 1.234 INCHES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | FLAT |
| III END ITEM IDENTIFICATION | 3805-01-030-2816 |
Restrictions/Controls & Freight Information | NSN 4810-00-285-4323
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-285-4323
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
