NSN 4730-01-633-0835 AS4406W0404 , 01-633-0835, 016330835
Product Details | TUBE UNION
4730-01-633-0835 A straight tube fitting capable of being taken apart and reassembled. It permits disconnection and connection of tubing or tube fittings without disturbing the end connections or the rest of the line.
Part Alternates: AS4406W0404 , 4730-01-633-0835, 01-633-0835, 4730016330835, 016330835
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 2014310 | 01-633-0835 | 03788 ( UNION, TUBE ) |

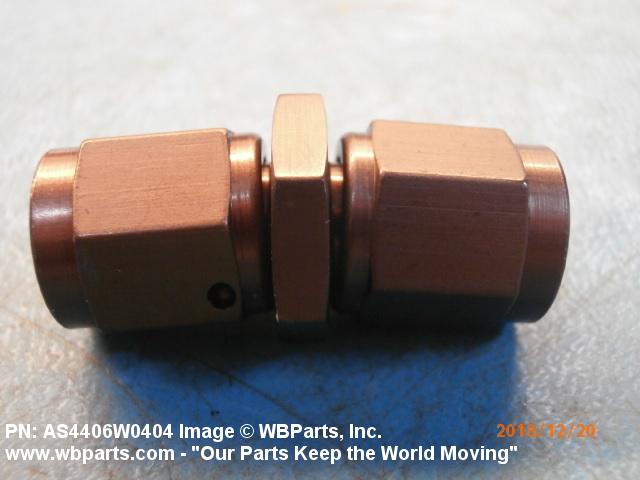

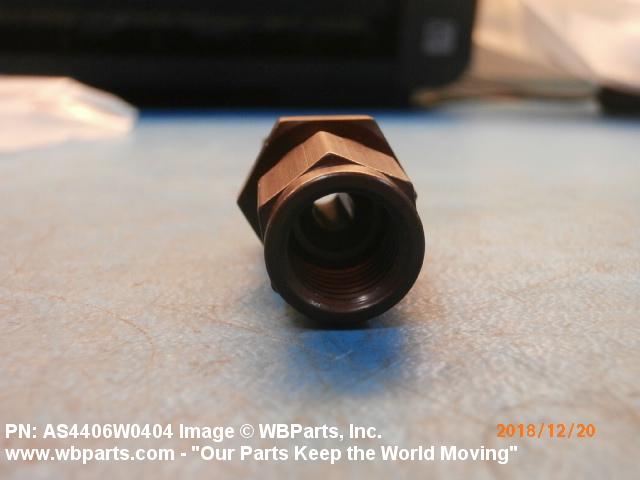

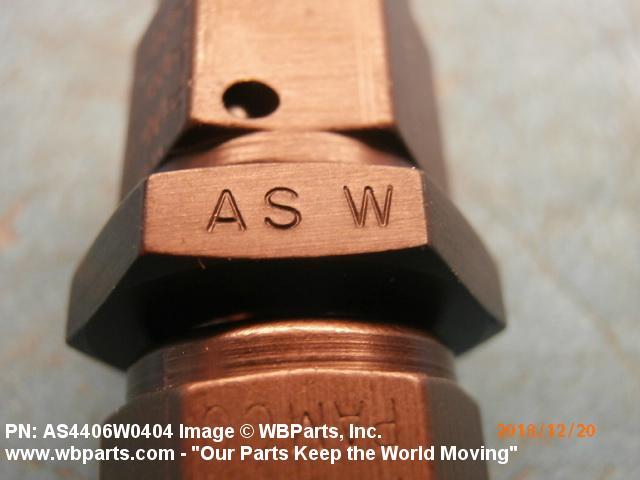

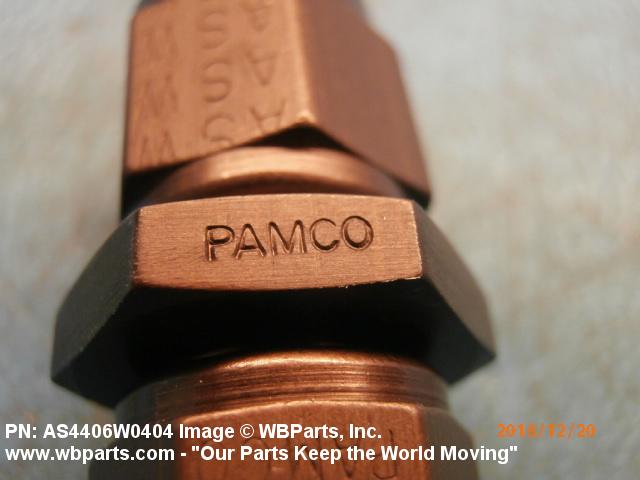

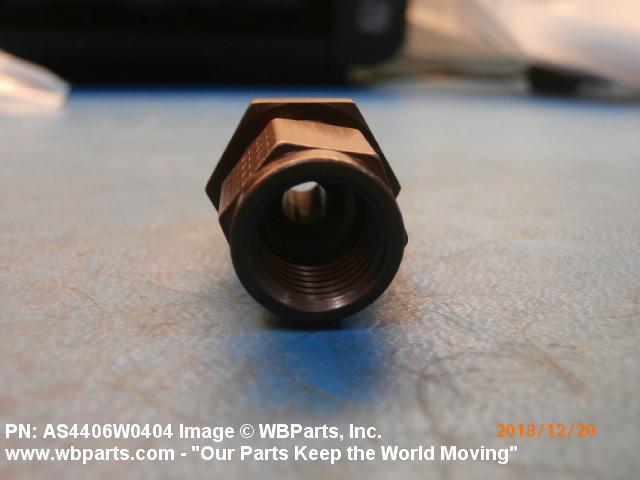

Drawings & Photos | NSN 4730-01-633-0835
Demand History | NSN 4730-01-633-0835
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS4406W0404 | 2018-11-313 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-633-0835
Technical Data | NSN 4730-01-633-0835
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4124 ASSN STD SINGLE MATERIAL RESPONSE OR |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2488 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | SWIVEL NUT, FLARE (TUBE) STYLE 3 OPTIONAL END ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| NOMINAL THREAD SIZE | 0.4375 INCHES ALL ENDS |

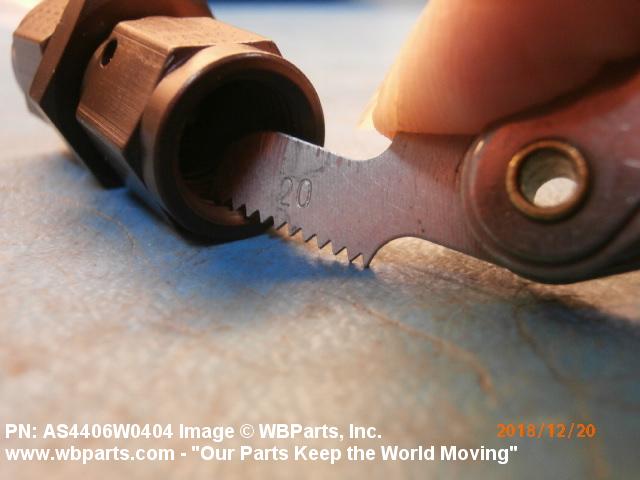

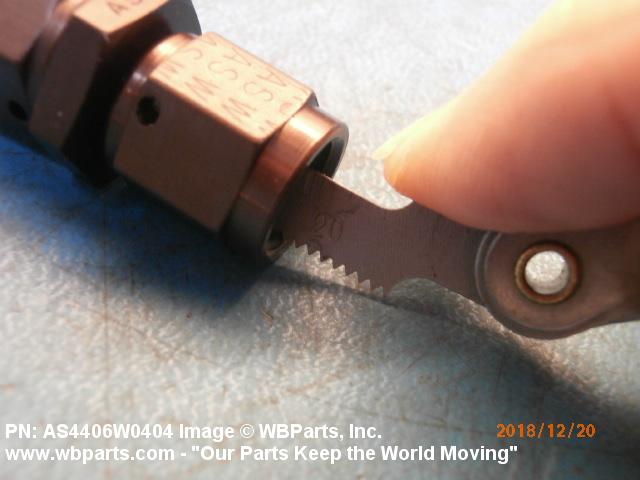

| THREAD QUANTITY PER INCH | 20 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| END ITEM IDENTIFICATION | F-35 |
Restrictions/Controls & Freight Information | NSN 4730-01-633-0835
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052130 | PIPE R TUBING NICKEL/COPPER |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
