NSN 4730-01-630-1319 MS21915K168, MS21915K16-8 , 01-630-1319
Product Details | BOSS REDUCER
4730-01-630-1319 A straight fitting having a boss connection of a different size at each end. Both connections have external or internal machine threads (straight threads other than pipe or hose series) and are designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. Excludes BUSHING (as modified).
Part Alternates: MS21915K168, MS21915K16-8 , 4730-01-630-1319, 01-630-1319, 4730016301319, 016301319
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 2014206 | 01-630-1319 | 23541 ( REDUCER, BOSS ) |

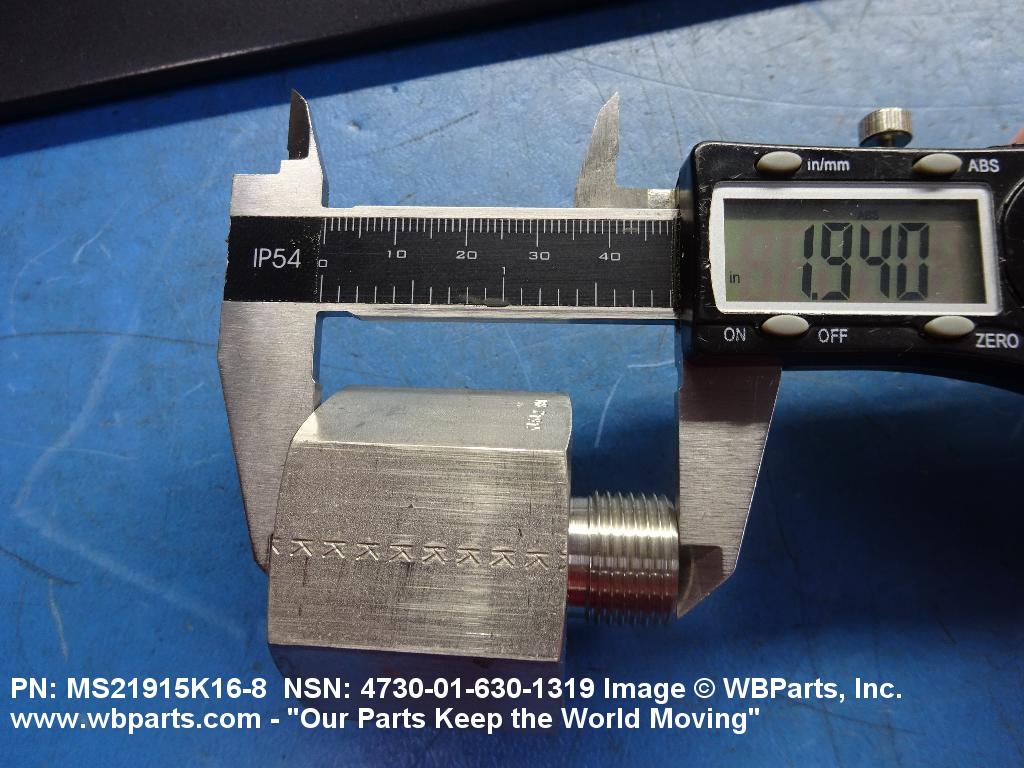

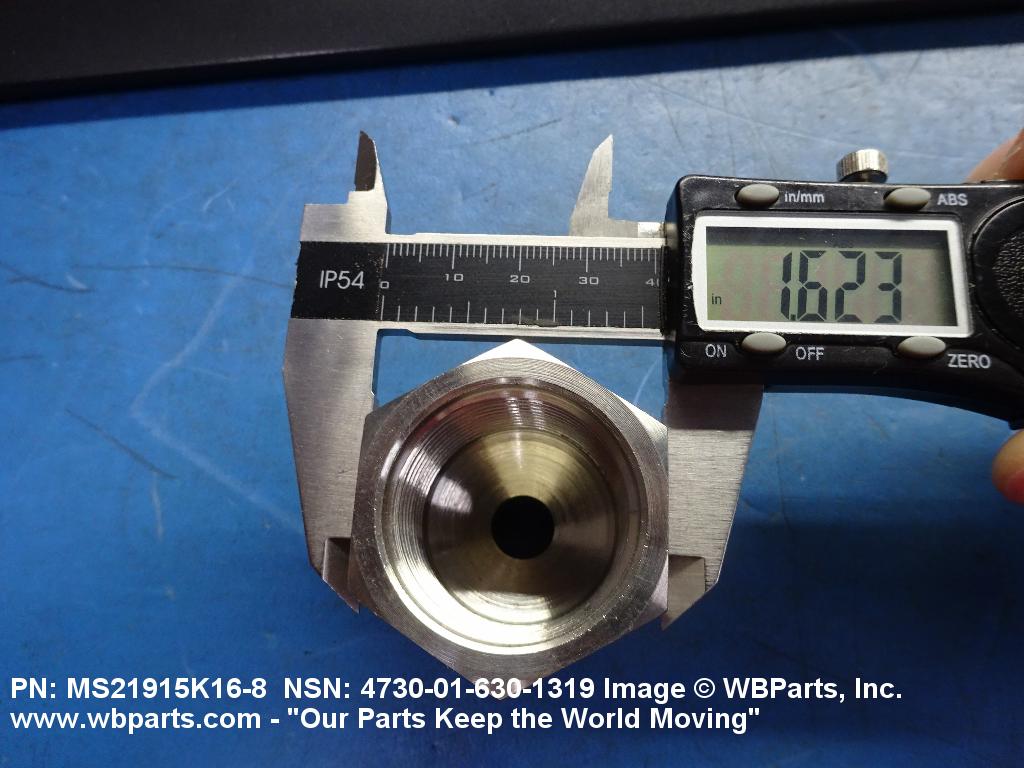

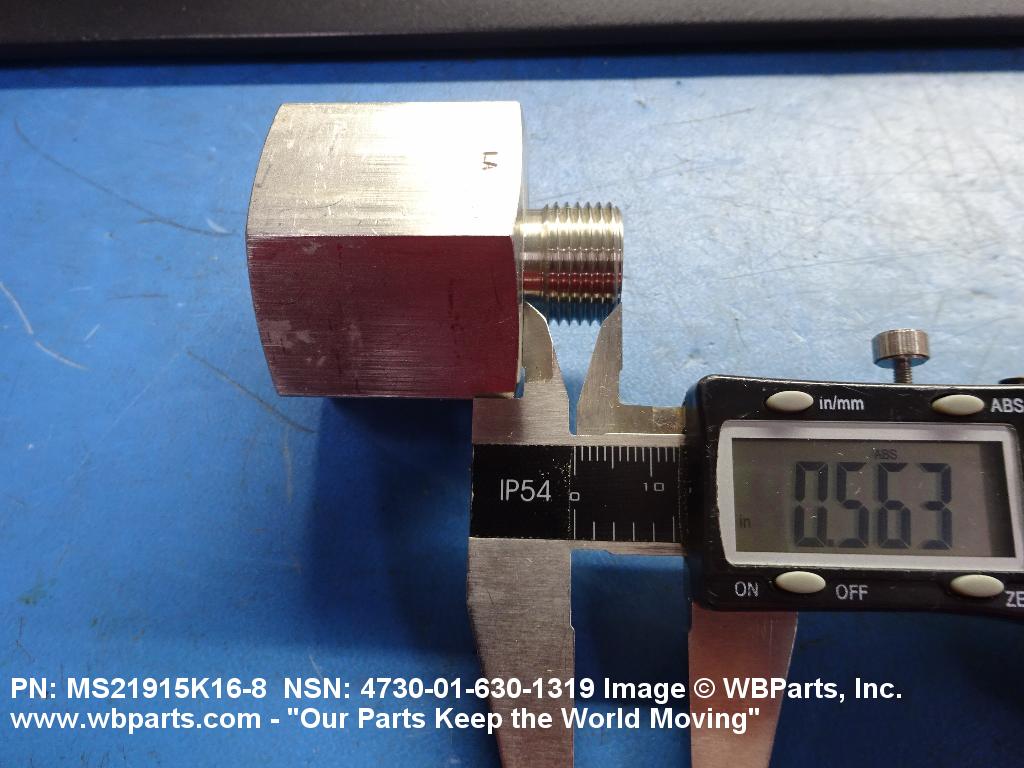

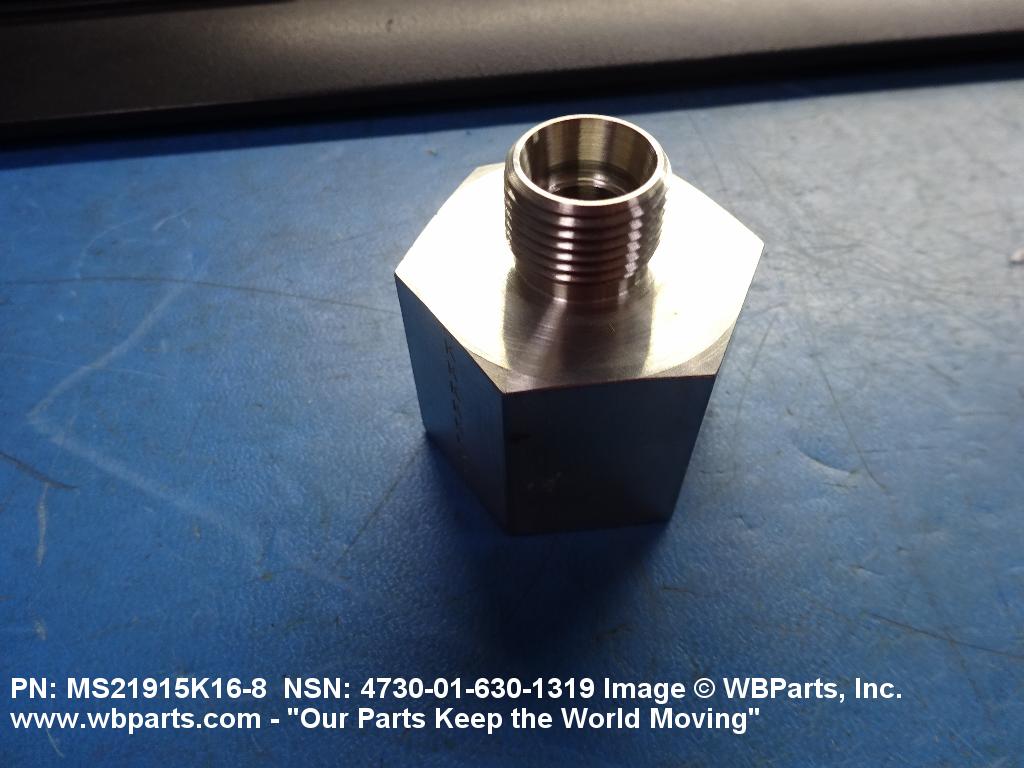

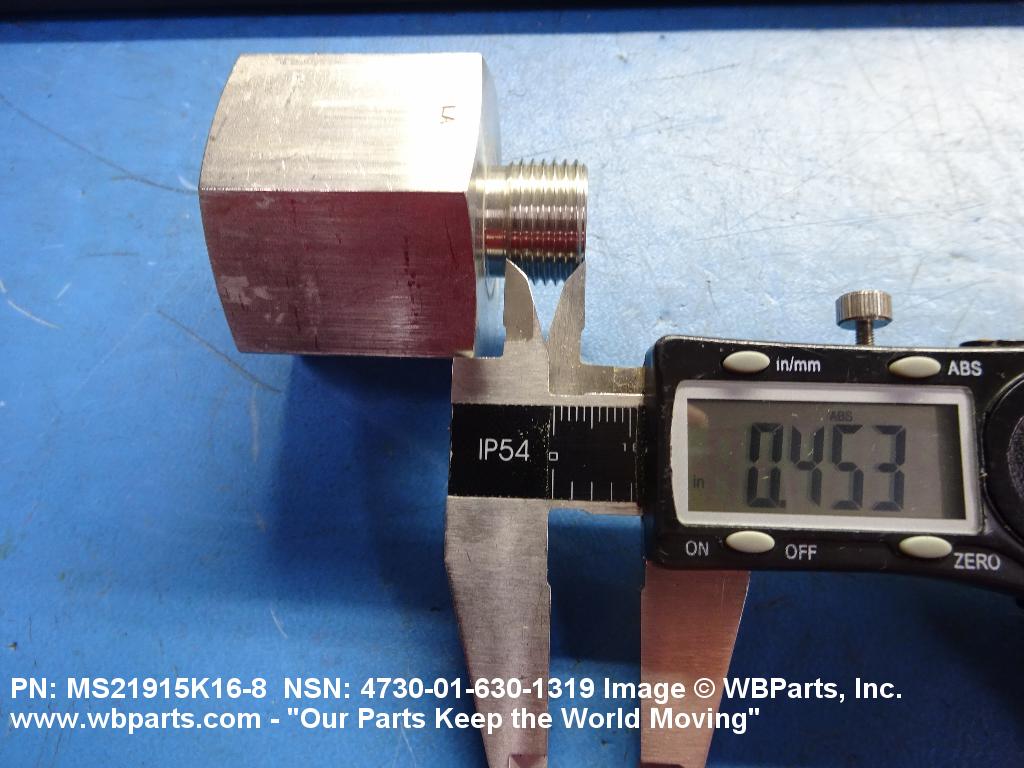

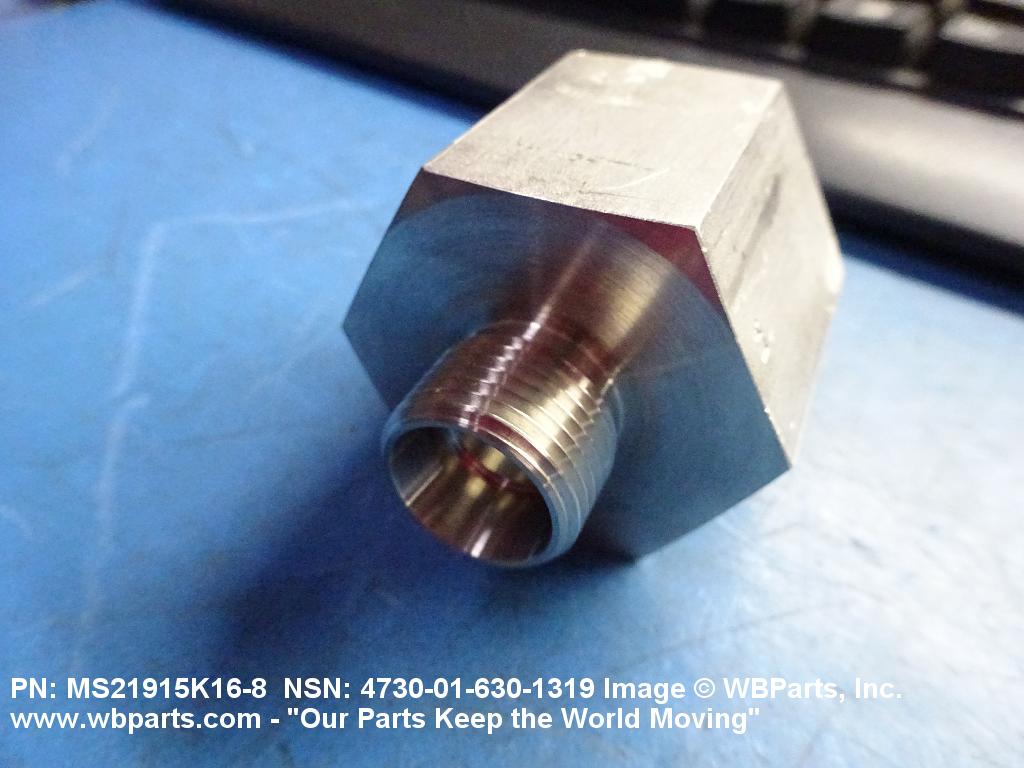

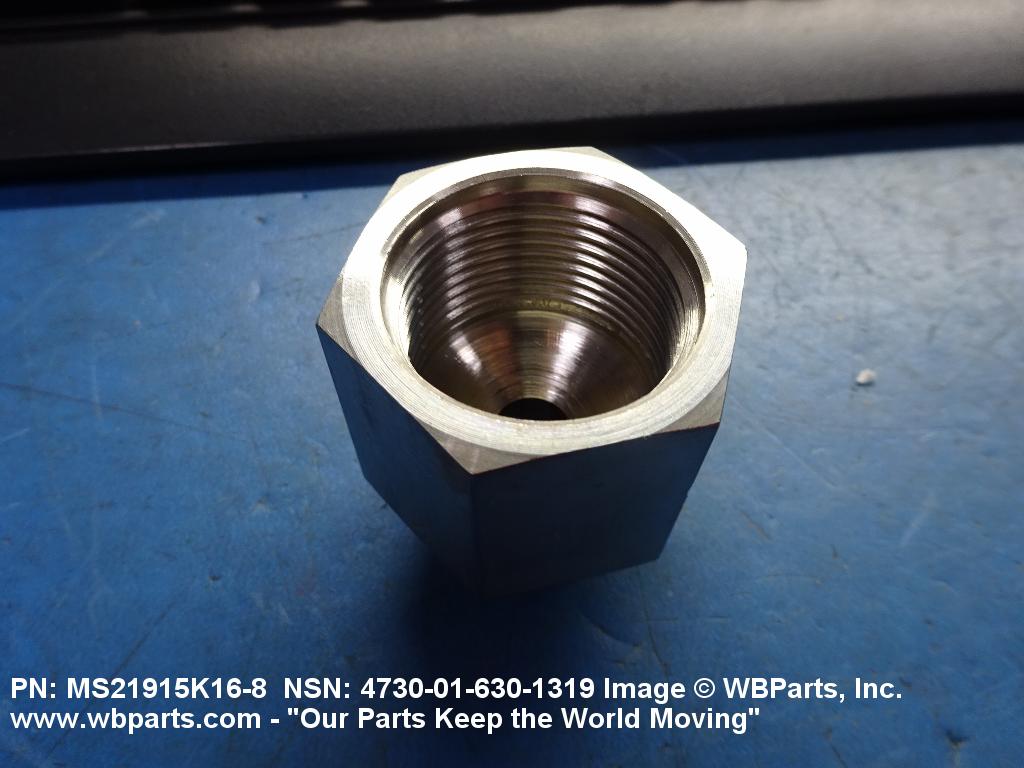

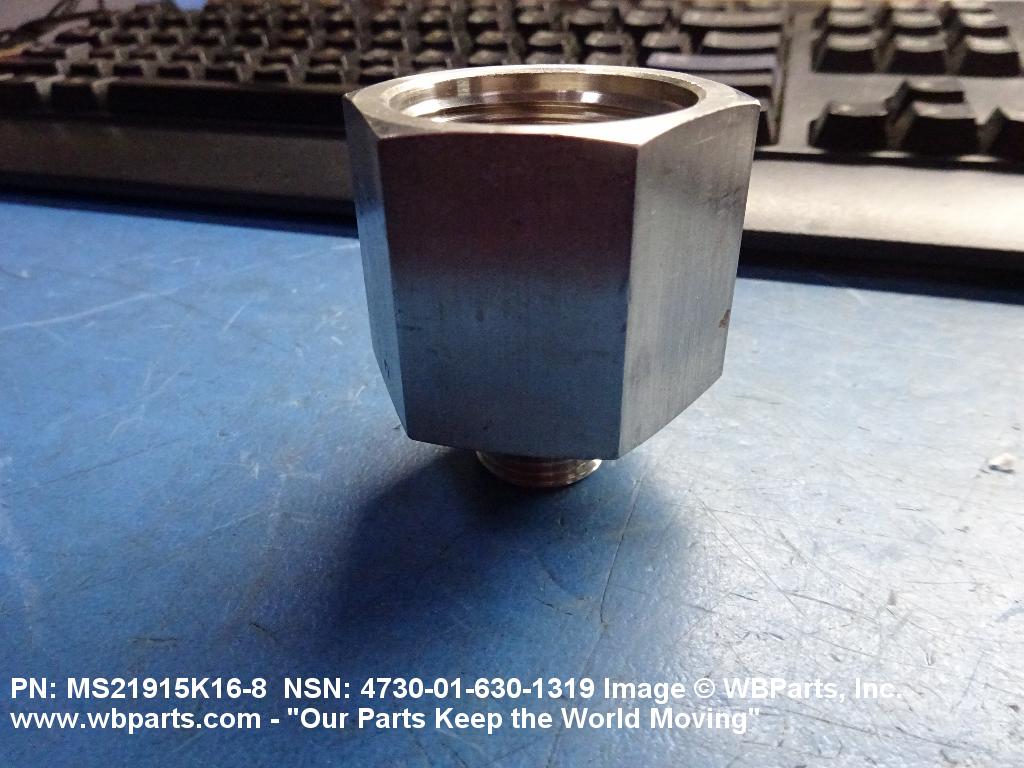

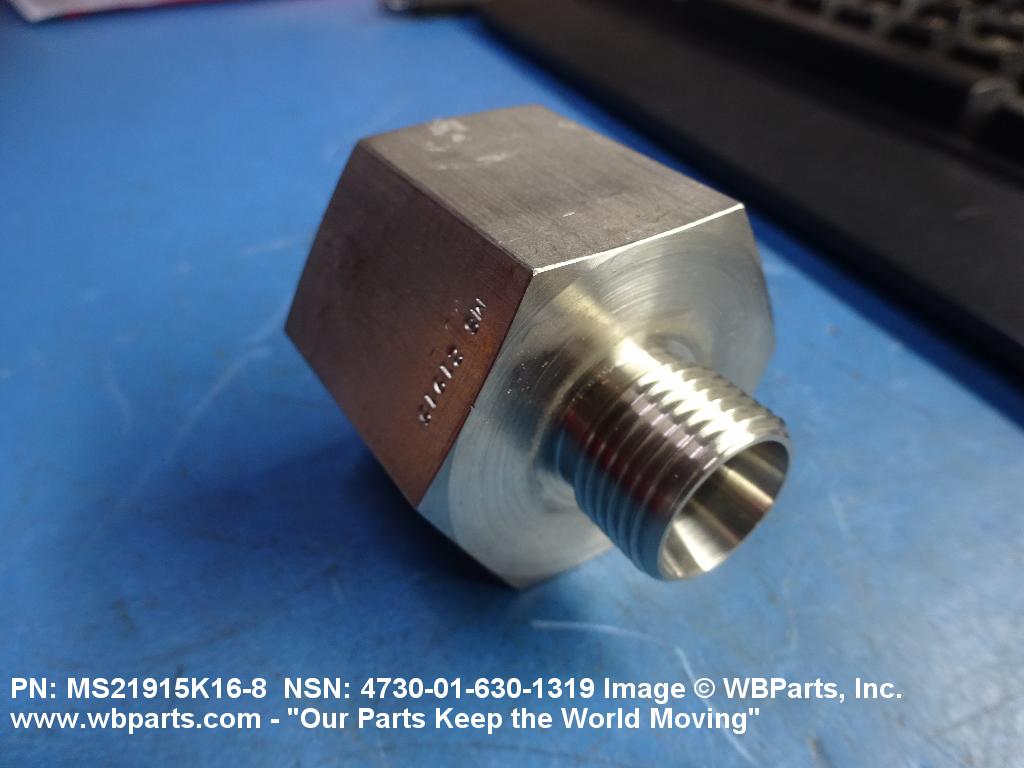

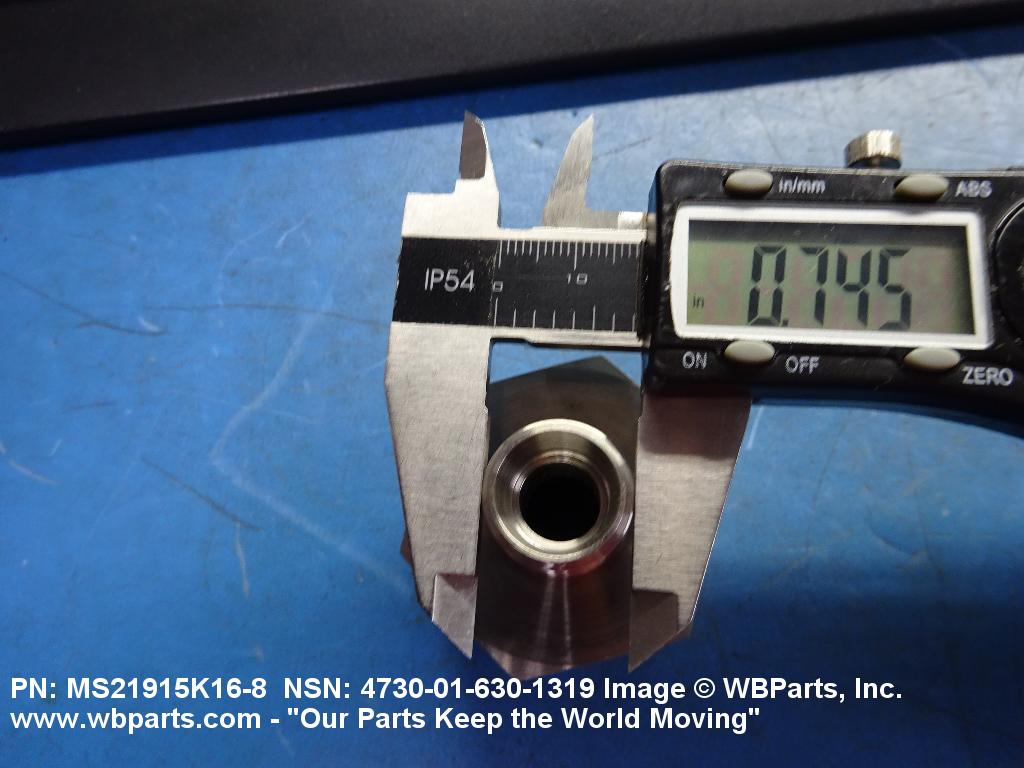

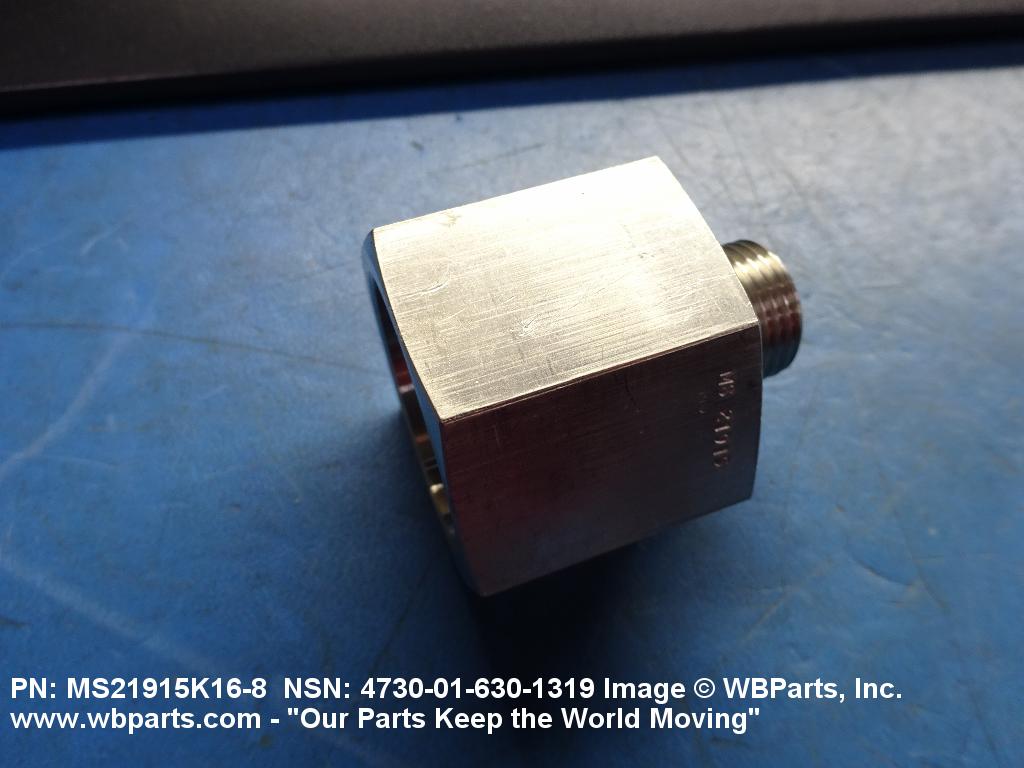

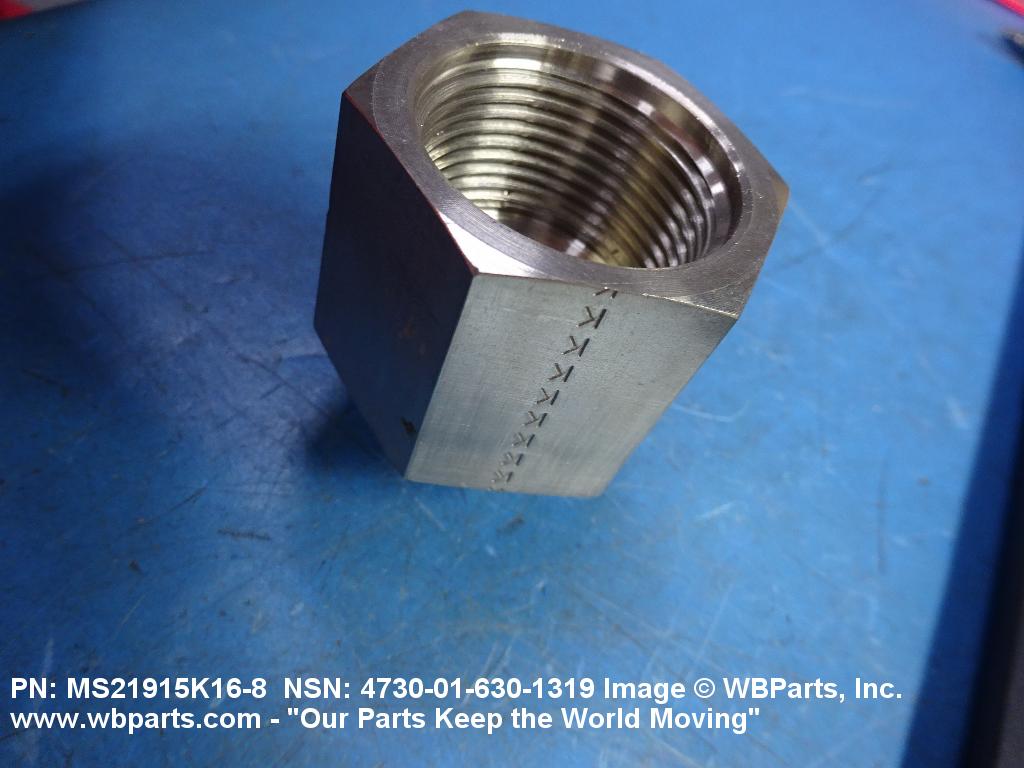

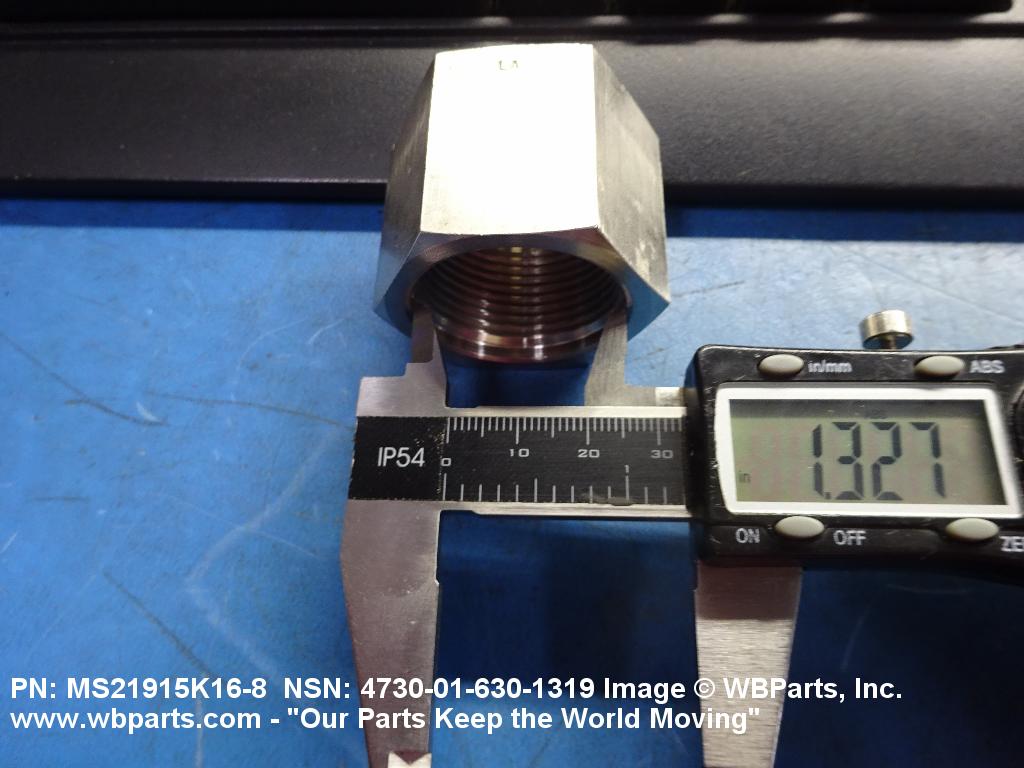

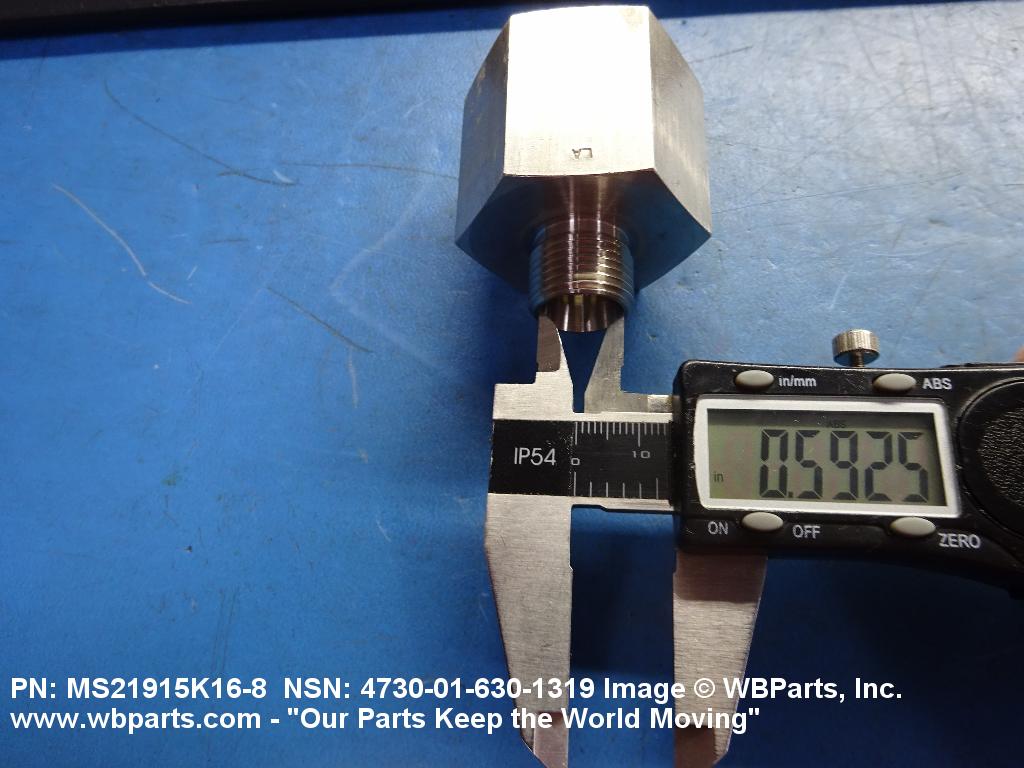

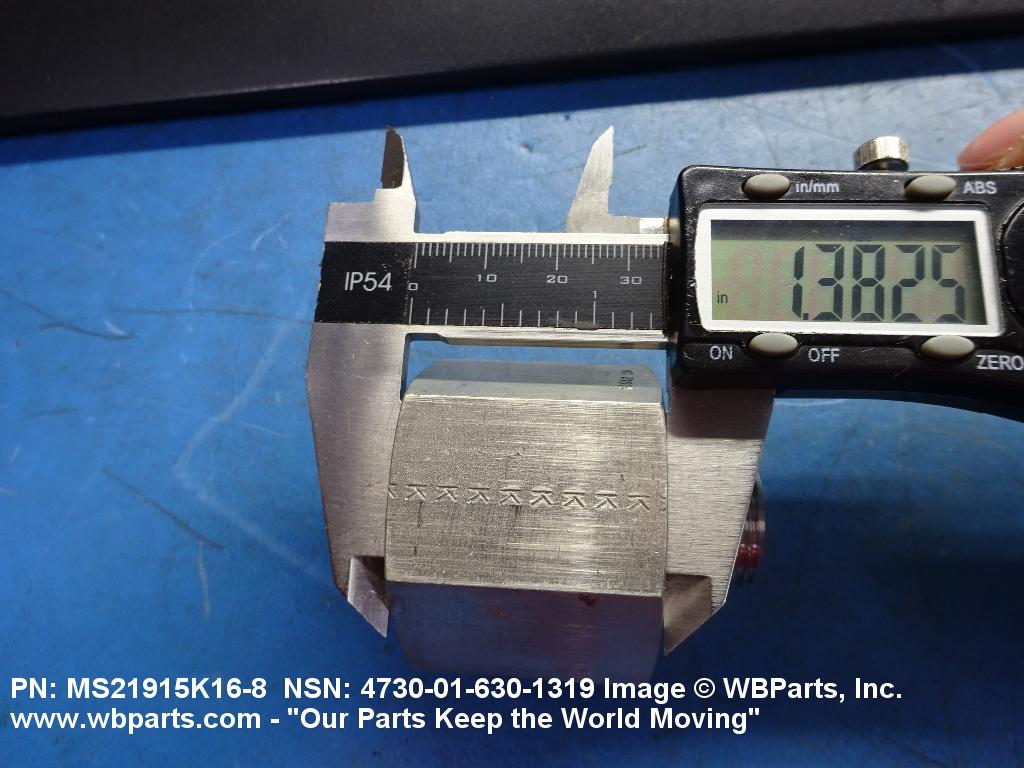

Drawings & Photos | NSN 4730-01-630-1319
Demand History | NSN 4730-01-630-1319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-630-1319 | 2024-09-266 | 38 | DIBBS |
| MS21915K168 | 2024-07-199 | 4 | United States |
| MS21915K168 | 2024-04-121 | 10 | United States |
| MS21915K168 | 2024-02-32 | 3 | US |
| MS21915K168 | 2022-10-301 | 1 | Germany |
| MS21915K168 | 2022-08-215 | 2 | United States |
| 4730-01-630-1319 | 2019-01-22 | 9 | DIBBS |
| 4730-01-630-1319 | 2019-01-10 | 9 | DIBBS |
| 4730-01-630-1319 | 2018-12-360 | 1 | DIBBS |
| 4730-01-630-1319 | 2017-10-289 | 6 | DIBBS |
| 4730-01-630-1319 | 2017-10-277 | 6 | DIBBS |
Cross Reference | NSN 4730-01-630-1319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21915K16-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-630-1319
Technical Data | NSN 4730-01-630-1319
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OR |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL BOSS 1ST END |
| CONNECTION STYLE | GASKET SEAL (BOSS) 1ST END |
| THREAD SERIES DESIGNATOR | UNJ 1ST END |
| NOMINAL THREAD SIZE | 1.312 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3B 1ST END |
| NOMINAL OVERALL LENGTH | 1.938 INCHES |
| REDUCER TYPE | CONCENTRIC |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21915K16-8 |
Restrictions/Controls & Freight Information | NSN 4730-01-630-1319
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-630-1319
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
