NSN 4730-01-620-2270 AS5175R06 , 01-620-2270, 016202270

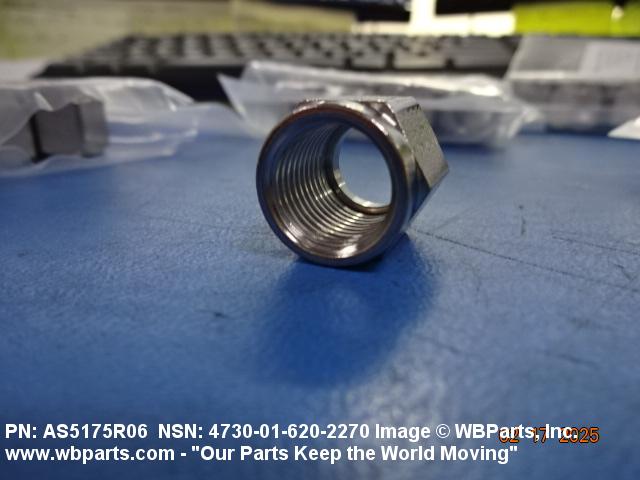

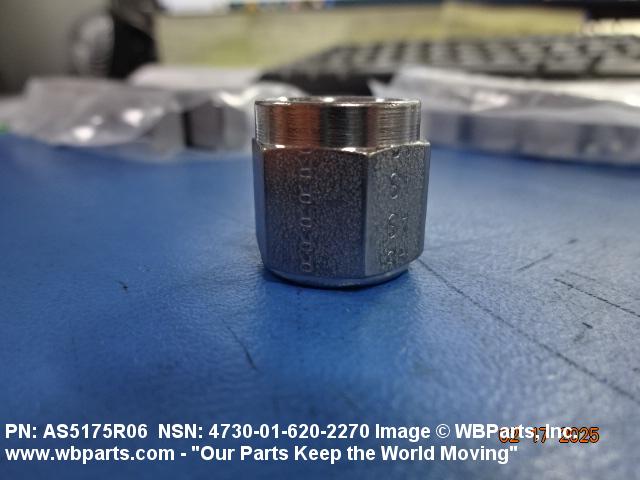

Product Details | REDUCING TUBE COUPLING NUT
4730-01-620-2270 A tube coupling nut with the shank end accommodating a smaller tube size than is accommodated by the tube fitting which connects to the threaded end.
Part Alternates: AS5175R06 , 4730-01-620-2270, 01-620-2270, 4730016202270, 016202270
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 2013191 | 01-620-2270 | 03860 ( NUT, TUBE COUPLING, REDUCING ) |
Cross Reference | NSN 4730-01-620-2270
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS5175R06 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-620-2270
Technical Data | NSN 4730-01-620-2270
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD SIZE | 0.5625 INCHES |

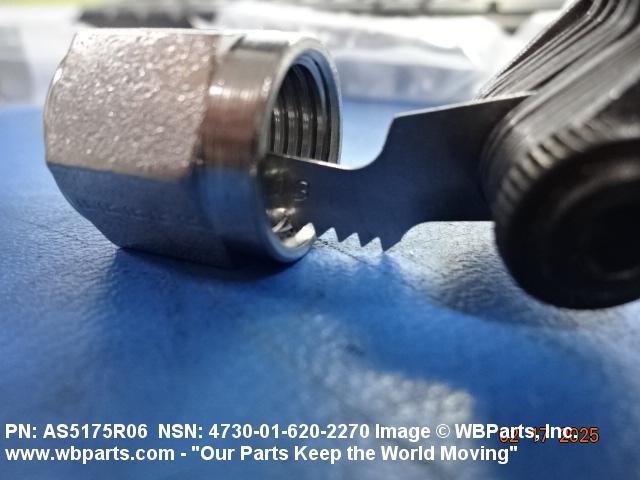

| THREAD QUANTITY PER INCH | 13 |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | TUBE COUPLING |

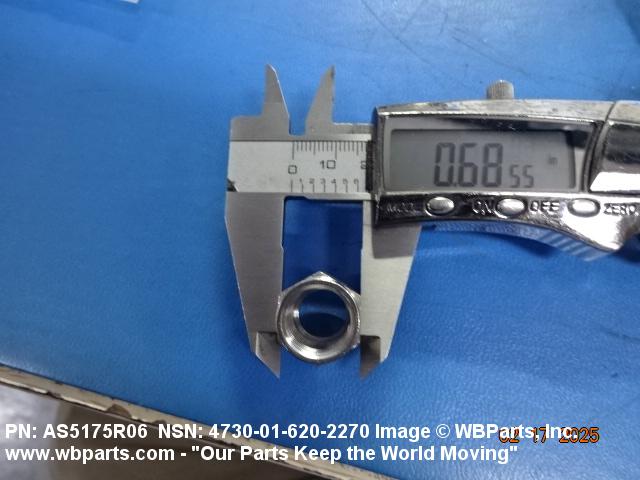

| WIDTH ACROSS FLATS | 0.678 INCHES MINIMUM AND |

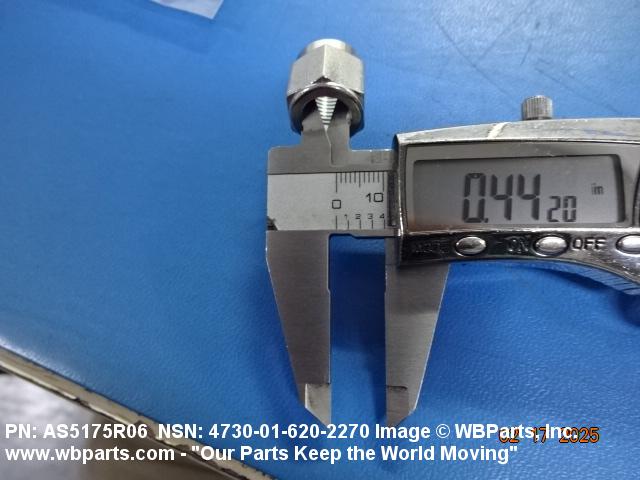

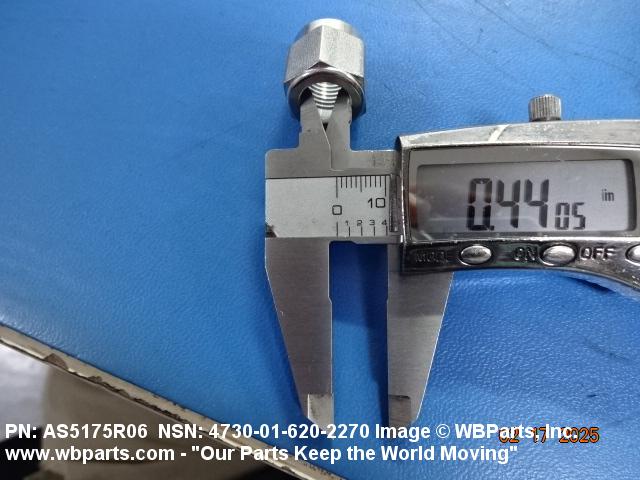

| SMALLEST INSIDE DIAMETER | 0.440 INCHES MINIMUM AND |
| III END ITEM IDENTIFICATION | F-35 AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING,UNION AND REDUCER,FLARED |
Restrictions/Controls & Freight Information | NSN 4730-01-620-2270
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-620-2270
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
