NSN 4730-01-537-9088 365655, 36-5655, 36-5655-802
Product Details | PIPE FLANGE
4730-01-537-9088 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 365655, 36-5655, 36-5655-802, 4730-01-537-9088, 01-537-9088, 4730015379088, 015379088, 365655802
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 02 MAR 2006 | 01-537-9088 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-537-9088
Demand History | NSN 4730-01-537-9088
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-537-9088 | 2017-12-338 | 9 | DIBBS |
| 4730-01-537-9088 | 2017-07-198 | 17 | DIBBS |
| 4730-01-537-9088 | 2017-07-198 | 6 | DIBBS |
| 4730-01-537-9088 | 2017-04-93 | 6 | DIBBS |
| 4730-01-537-9088 | 2017-03-66 | 17 | DIBBS |
| 4730-01-537-9088 | 2016-07-189 | 17 | DIBBS |
| 4730-01-537-9088 | 2016-06-172 | 17 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-537-9088
Related Products | NSN 4730-01-537-9088
Technical Data | NSN 4730-01-537-9088
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 AISI 321 COND A CLASS 321 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 10 ROUND, NO BOLT HOLES |
| FLANGE DIAMETER | 2.190 INCHES NOMINAL |

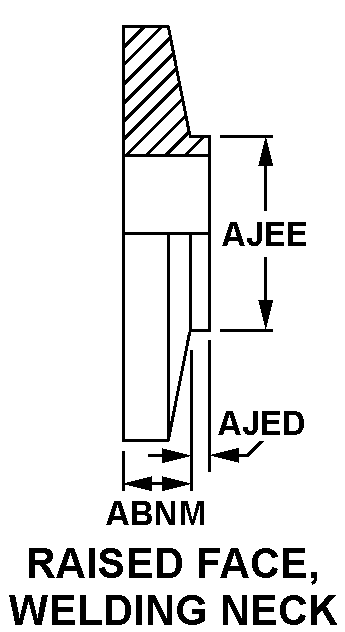

| FLANGE SECTION STYLE | 11 RAISED FACE, WELDING NECK |
| THICKNESS | 0.550 INCHES NOMINAL |
| RAISED FACE HEIGHT | 0.250 INCHES NOMINAL |
| RAISED FACE DIAMETER | 1.820 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 1.820 INCHES |
| NOMINAL THREAD SIZE | 1.437 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIAL FEATURES PURPO | ITEM ALSO KNOWN AS FLANGE - ANTI-ICING LINE SE,ELECTRICAL |
Restrictions/Controls & Freight Information | NSN 4730-01-537-9088
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-537-9088
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
