NSN 4730-01-530-1846 25920711616, 259-2071-16-16, 01-530-1846
Product Details | TUBE ELBOW
4730-01-530-1846 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 25920711616, 259-2071-16-16, 4730-01-530-1846, 01-530-1846, 4730015301846, 015301846
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 MAY 2005 | 01-530-1846 | 03771 ( ELBOW, TUBE ) |

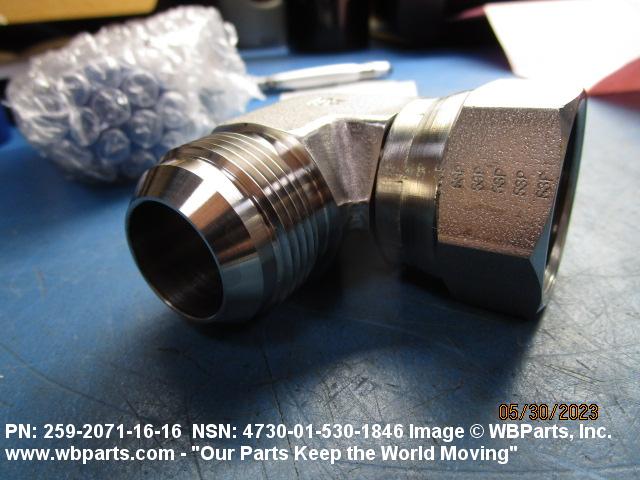

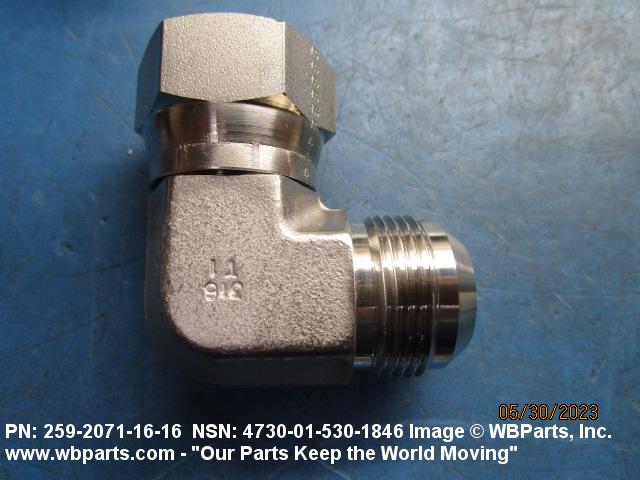

Drawings & Photos | NSN 4730-01-530-1846
Demand History | NSN 4730-01-530-1846
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-530-1846 | 2023-05-130 | 2 | United States |
| 4730-01-530-1846 | 2011-04-109 | 2 | US |
| 4730-01-530-1846 | 2011-01-26 | 2 | US |
Cross Reference | NSN 4730-01-530-1846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 259-2071-16-16 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-530-1846
Technical Data | NSN 4730-01-530-1846
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.840 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 2B 1ST END 2A 2ND END |

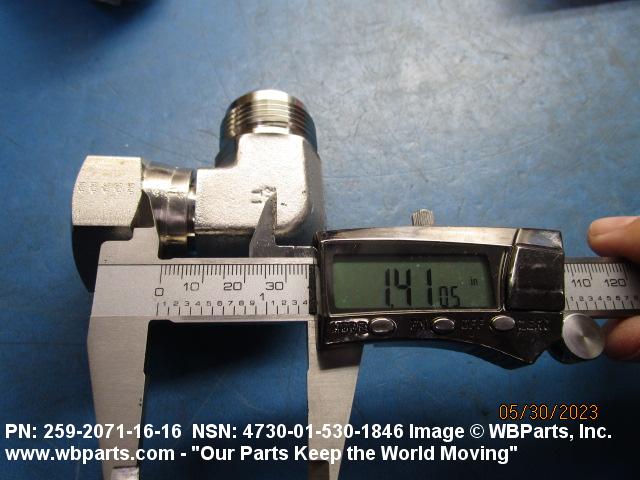

| LEG LENGTH | 1.410 INCHES NOMINAL 1ST END 1.810 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4730-01-530-1846
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
