NSN 4730-01-528-2928 7052606, 01-528-2928, 015282928
Product Details | QUICK DISCONNECT COUPLING ASSEMBLY
4730-01-528-2928 A multipiece fluid line fitting consisting of two COUPLING HALF, QUICK DISCONNECT fittings.
Part Alternates: 7052606, 4730-01-528-2928, 01-528-2928, 4730015282928, 015282928
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 MAR 2005 | 01-528-2928 | 20671 ( COUPLING ASSEMBLY, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-528-2928
Demand History | NSN 4730-01-528-2928
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7052606 | 2019-04-11 | 14 | DIBBS |
| 4730-01-528-2928 | 2014-10-02 | 8 | DIBBS |
| 4730-01-528-2928 | 2013-12-29 | 2 | DIBBS |
| 4730-01-528-2928 | 2009-04-03 | 4 | DIBBS |
| 4730-01-528-2928 | 2008-11-07 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-528-2928
Related Products | NSN 4730-01-528-2928
Technical Data | NSN 4730-01-528-2928
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 COUPLING ASSEMBLY |
| CONNECTION TYPE | UNTHREADED EXTERNAL TUBE FIRST FLUID END CONNECTION |

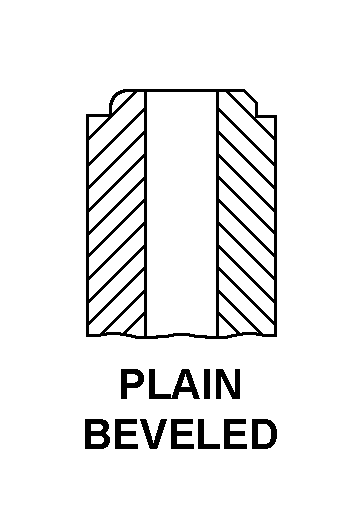

| CONNECTION STYLE | E8 PLAIN BEVELED FIRST FLUID END CONNECTION |
| QUICK DISCONNECT METHOD | TWIST-LOCK ALL ENDS |
| SPECIAL FEATURES | CRTITICAL TECHNOLOGY; EXPORT CONTROL; O'RING INCLUDED; .375 INCH FLUID CONNECTIONS |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | EQUIPMENT N TOOL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | TEST ADAPTER ASSEMBLY |
| (NON-CORE DATA) SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| (NON-CORE DATA) SECOND FLUID END CONNECTION TYPE | THREADED EXTERNAL BOSS |
Restrictions/Controls & Freight Information | NSN 4730-01-528-2928
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-528-2928
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
