NSN 4730-01-521-4633 MODEL 17 3/4 INCH, MODEL1734INCH, 01-521-4633
Product Details | SEDIMENT STRAINER
4730-01-521-4633 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: MODEL 17 3/4 INCH, MODEL1734INCH, 4730-01-521-4633, 01-521-4633, 4730015214633, 015214633
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 JUN 2004 | 01-521-4633 | 04200 ( STRAINER, SEDIMENT ) |

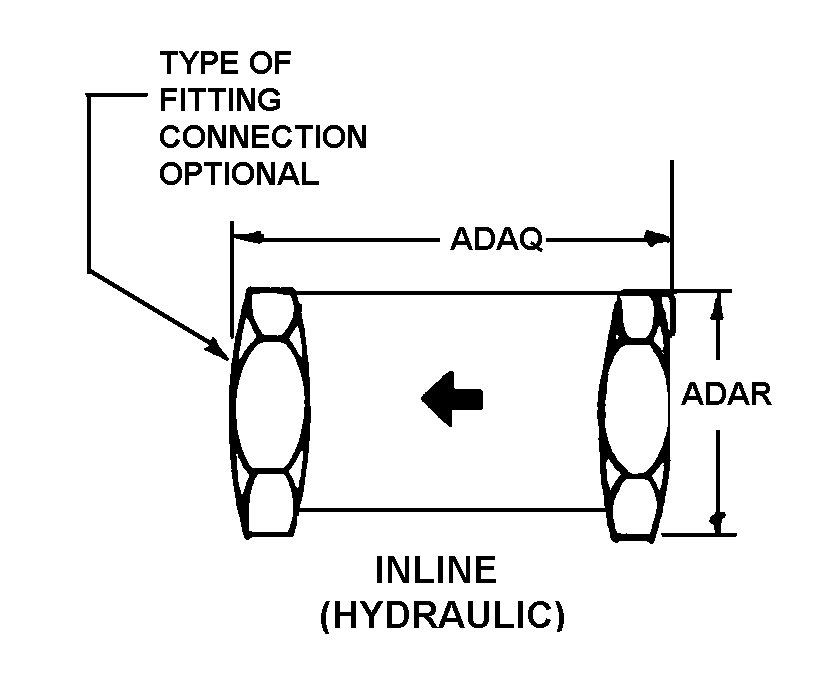

Drawings & Photos | NSN 4730-01-521-4633
Demand History | NSN 4730-01-521-4633
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-521-4633 | 2008-11-311 | 4 | DIBBS |
Cross Reference | NSN 4730-01-521-4633
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MODEL 17 3/4 INCH | 79227 | WATTS REGULATOR CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-521-4633
Related Products | NSN 4730-01-521-4633
Technical Data | NSN 4730-01-521-4633
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C27 INLINE |
| BODY LENGTH | 4.375 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.375 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY STEEL CORROSION RESISTING SCREENING RUBBER BUNA N SEAL |
| FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
| MESH SIZE | 40.0 |
| WIRE DIAMETER | 0.010 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE | 250.0 POUNDS PER SQUARE INCH |
| TEMP RATING | 180.0 DEG FAHRENHEIT MAXIMUM |
| FIRST INTAKE CONNECTION TYPE | THREADED INTERNAL PIPE END |
| FIRST INTAKE THREAD SERIES DESIGNATOR | NPT |
| FIRST INTAKE NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST INTAKE THREAD DIRECTION | RIGHT-HAND |
| MOUNTING TYPE | INLET CONNECTION AND OUTLET CONNECTION END |
| SPECIAL FEATURES | USED IN COMMERCIAL COOLANT PROCESSING UNIT, BOTTOM FRONT |
Restrictions/Controls & Freight Information | NSN 4730-01-521-4633
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052440 | STRAINERS PIPE LINE I/S BODY |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-521-4633
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
