NSN 4730-01-513-9572 AN929, AN9296, AN929-6
Product Details | TUBE CAP
4730-01-513-9572 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: AN929, AN9296, AN929-6, AS4841, 4730-01-513-9572, 01-513-9572, 4730015139572, 015139572
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 OCT 2003 | 01-513-9572 | 06074 ( CAP, TUBE ) |

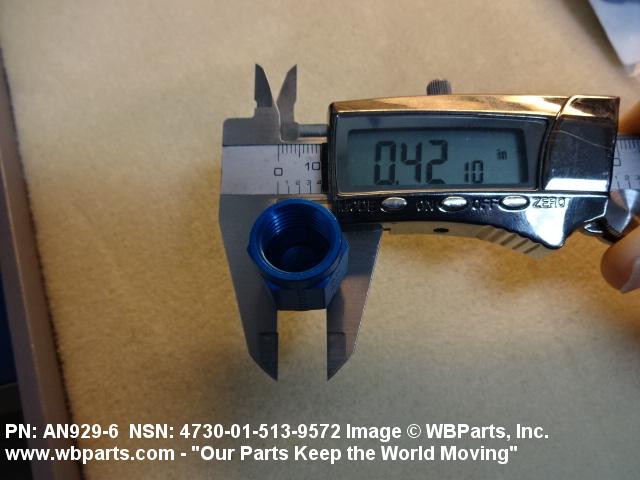

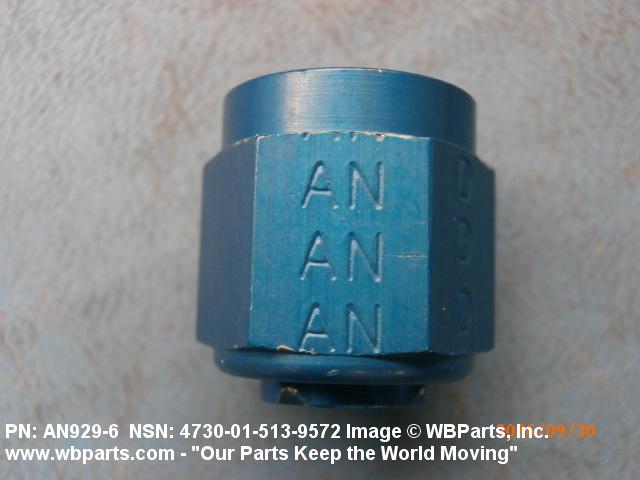

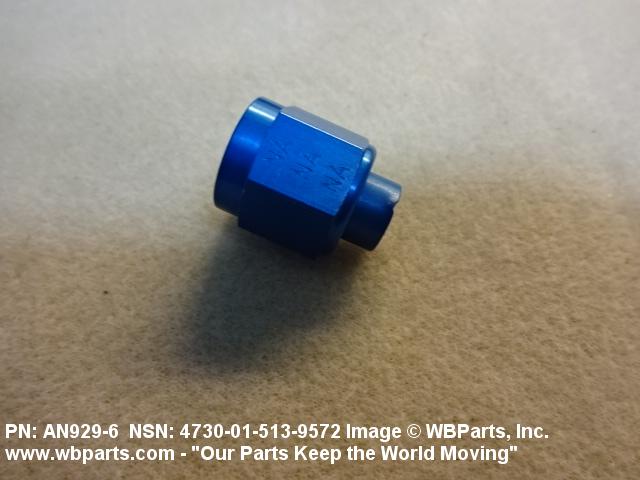

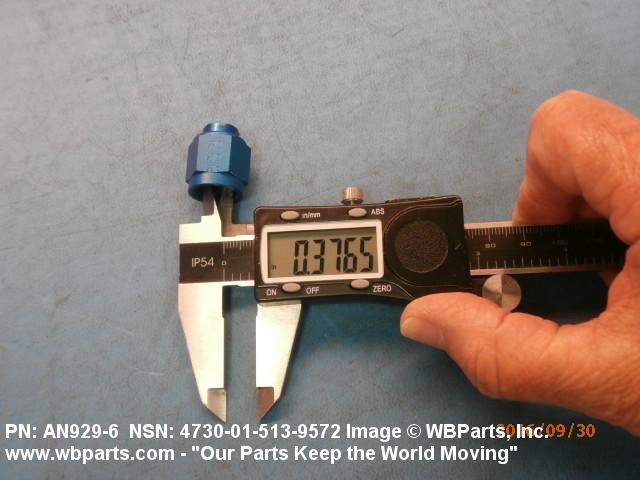

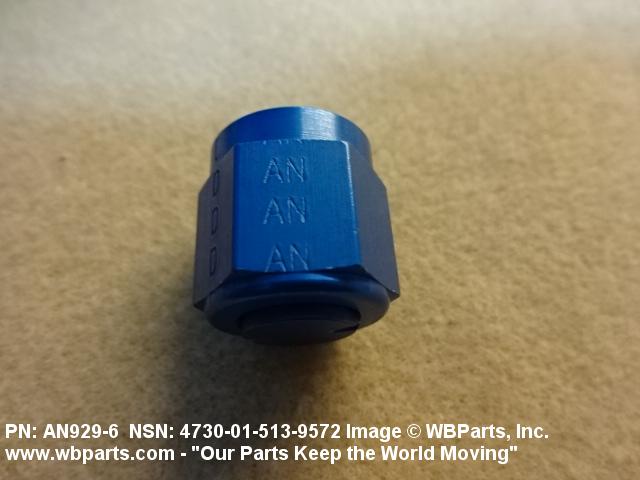

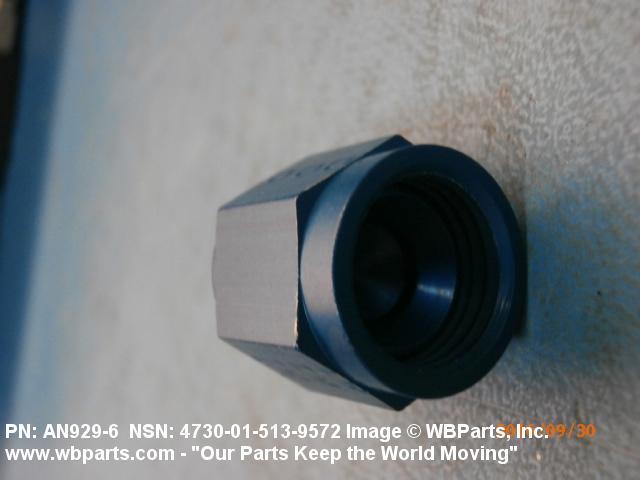

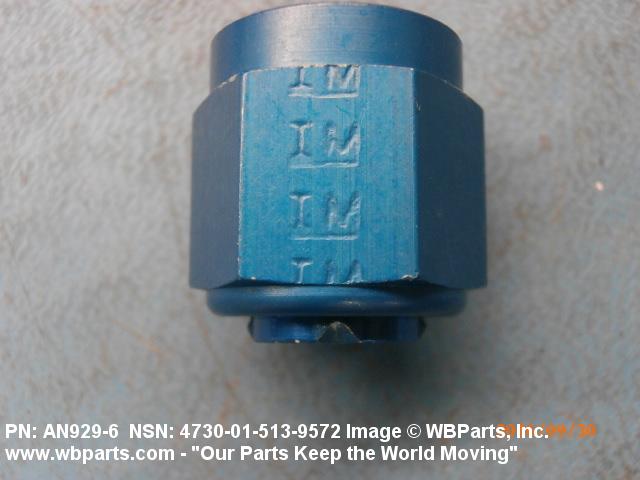

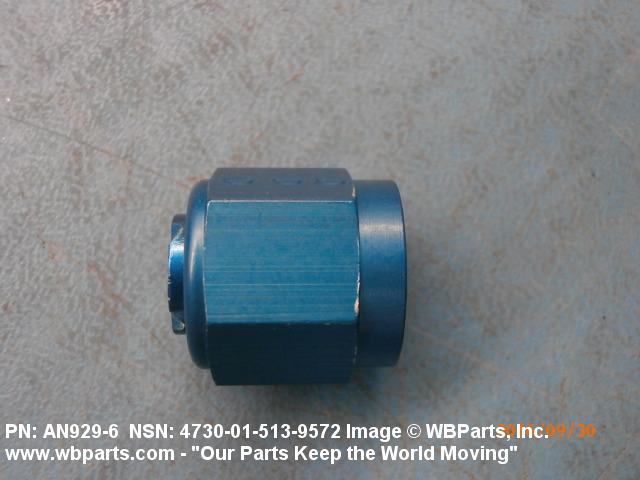

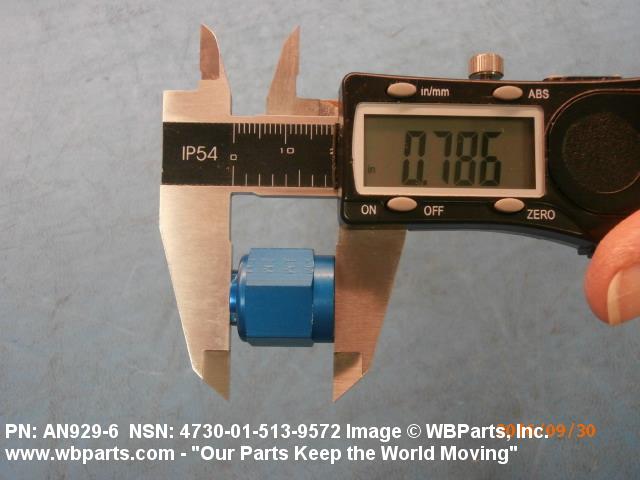

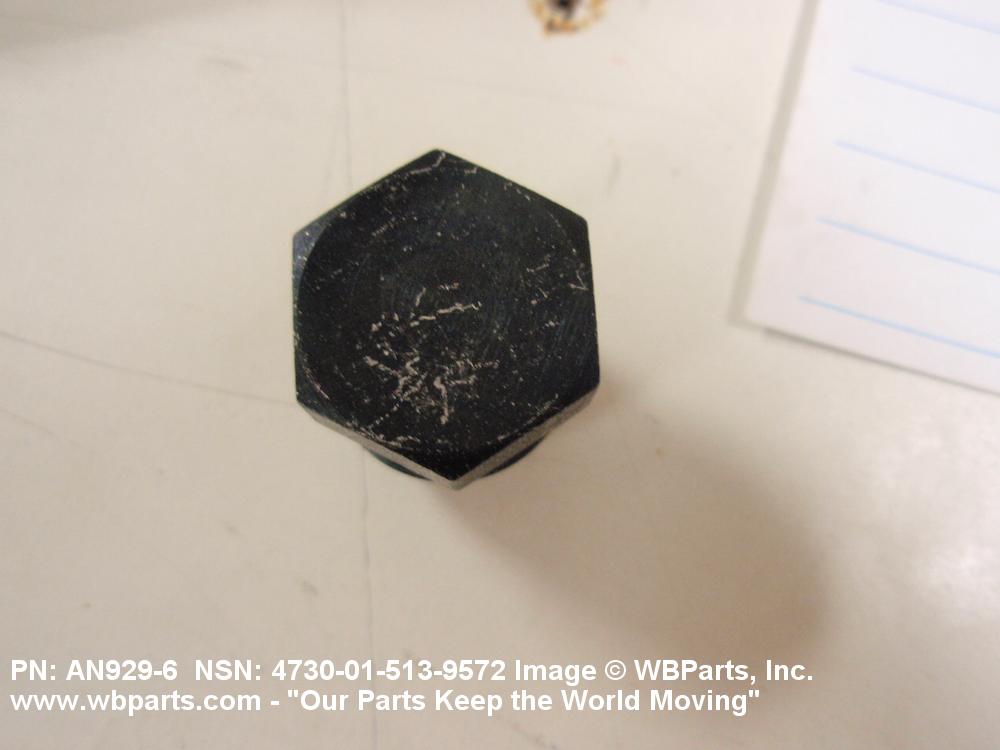

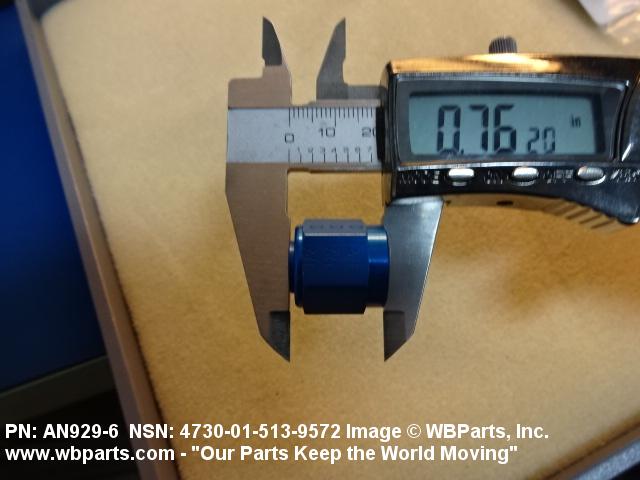

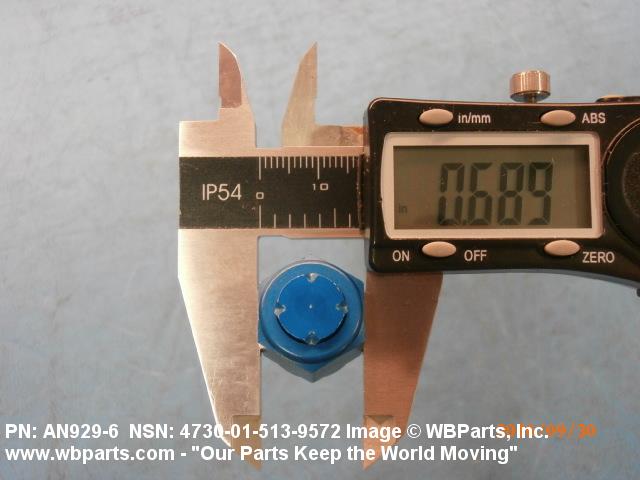

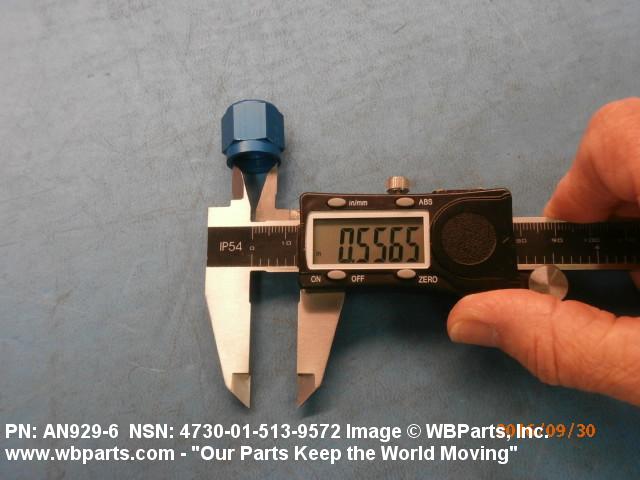

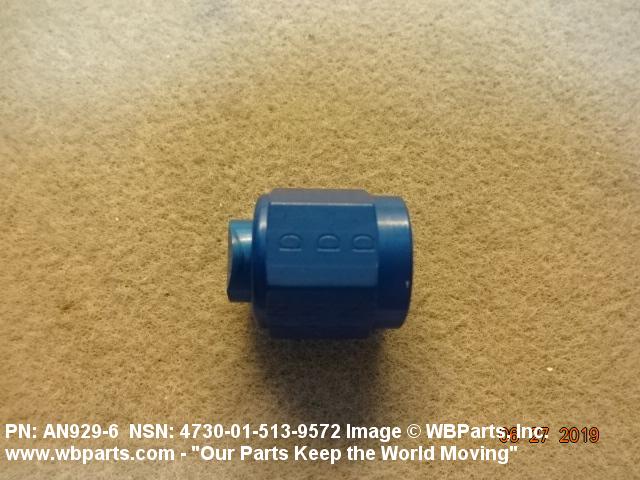

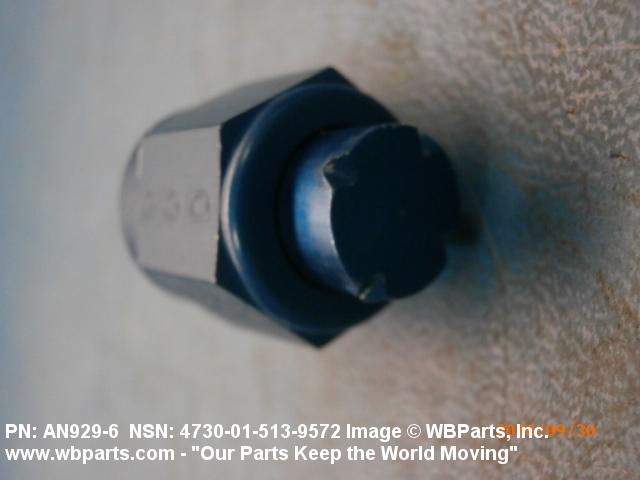

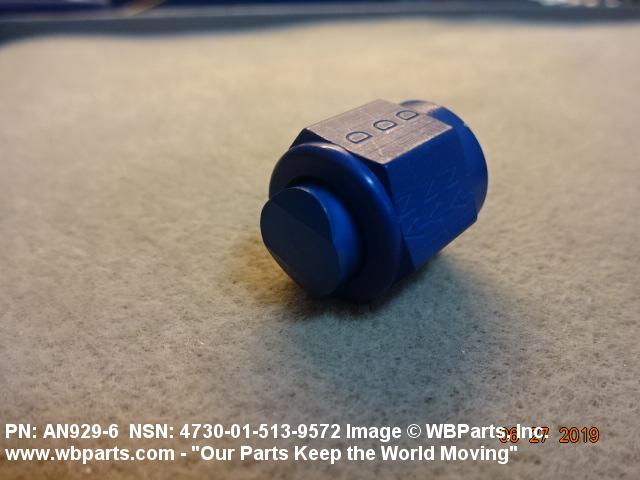

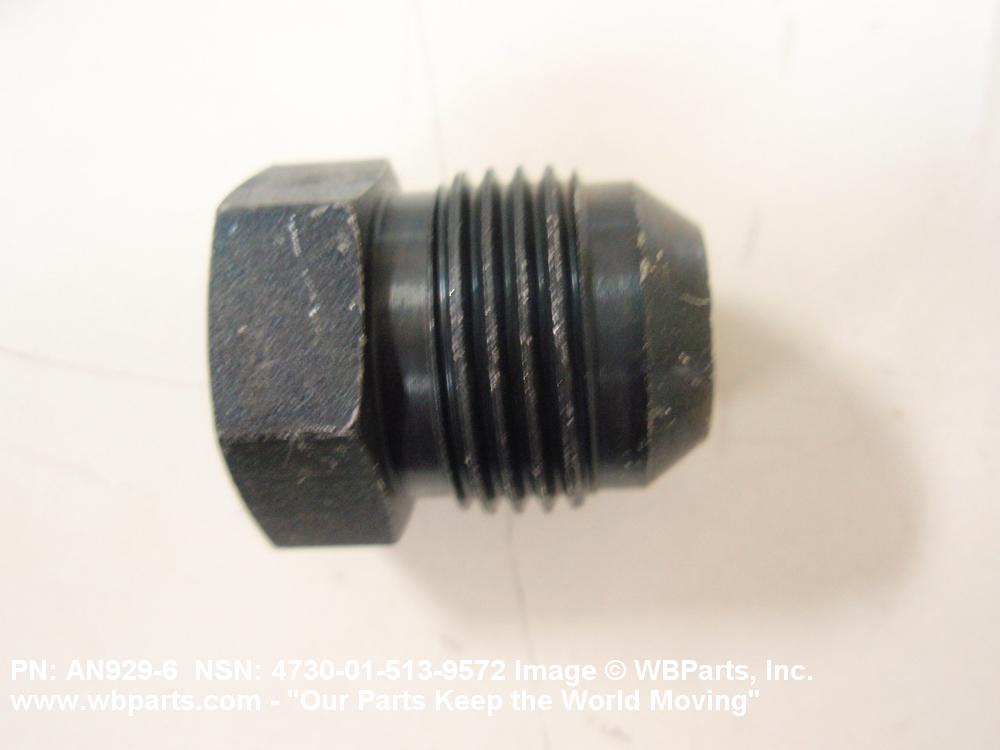

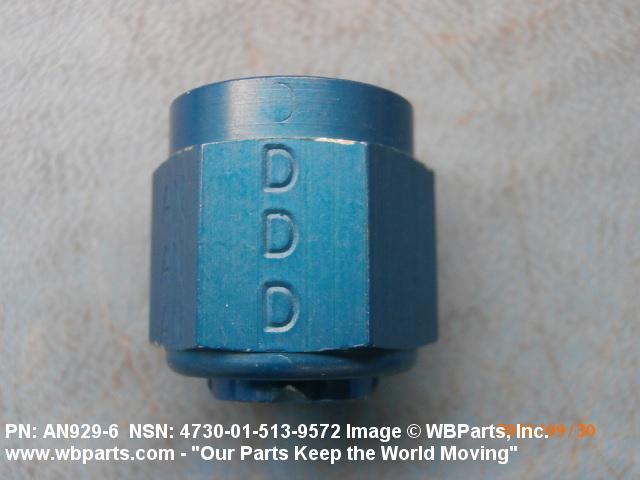

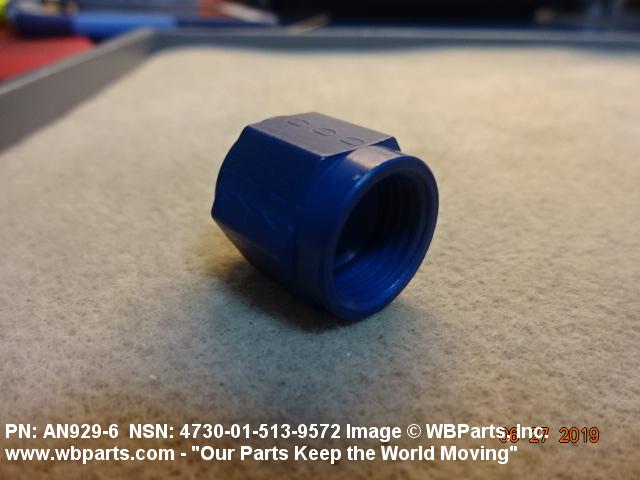

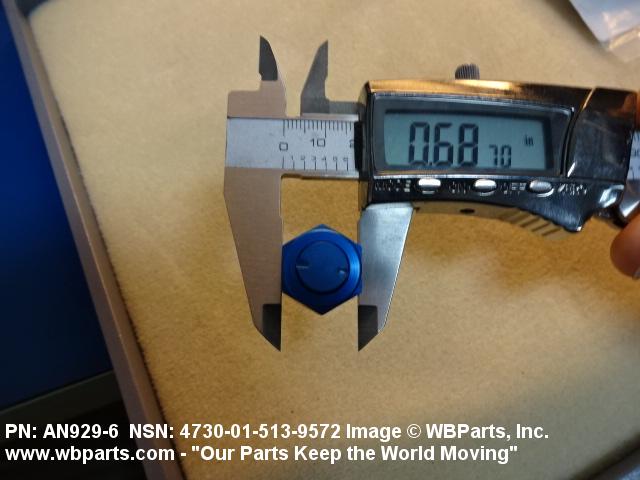

Drawings & Photos | NSN 4730-01-513-9572
Demand History | NSN 4730-01-513-9572
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-513-9572 | 2024-10-281 | 60 | us |
| 4730-01-513-9572 | 2024-10-277 | 36 | us |
| 4730-01-513-9572 | 2023-10-298 | 1 | US |
| 4730-01-513-9572 | 2023-05-125 | 41 | MANUAL |
| AN929 | 2023-05-125 | 41 | Saudi Arabia |
| 4730-01-513-9572 | 2023-05-124 | 100 | Saudi Arabia |
| AN9296 | 2023-05-122 | 20 | US |
| 4730-01-513-9572 | 2022-07-188 | 3 | US |
| 4730-01-513-9572 | 2022-02-45 | 10 | United States |
| AN9296 | 2021-06-154 | 4 | United States |
| AN9296 | 2020-08-219 | 10 | US |
| AN9296 | 2020-07-210 | 10 | United Arab Emirates |
| AN9296 | 2020-07-210 | 10 | United Arab Emirates |
| AN9296 | 2019-11-309 | 10 | United States |
| AN9296 | 2019-11-309 | 100 | United States |
| AN9296 | 2019-06-171 | 1 | United States |
| 4730-01-513-9572 | 2019-06-171 | 1 | United States |
| 4730-01-513-9572 | 2018-09-263 | 100 | United Kingdom |
| AN9296 | 2018-02-57 | 16 | United States |
| AN9296 | 2016-10-291 | 1 | United States |
| AN9296 | 2016-07-201 | 10 | US |
| 4730-01-513-9572 | 2015-06-176 | 10 | US |
| AN929 | 2013-11-324 | 50 | Thailand |
| AN929-6 | 2012-03-88 | 1 | MY |
| AN929-6 | 2012-03-88 | 1 | United States |
| AN9296 | 2011-06-158 | 80 | United States |
| 4730-01-513-9572 | 2011-06-153 | 20 | United States |
| AS4841 | 2011-03-69 | 8 | |
| AN9296 | 2010-05-140 | 40 | Singapore |
| 4730-01-513-9572 | 2010-02-48 | 1 | United States |
| 4730-01-513-9572 | 2008-06-178 | 20 | Colombia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-513-9572
Related Products | NSN 4730-01-513-9572
Technical Data | NSN 4730-01-513-9572
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| STYLE DESIGNATOR | A12 CAP, TUBE, FLARED |
| CONNECTION STYLE | G5 PRESSURE SEAL FLARED |
| THREAD SERIES DESIGNATOR | UNJF INTERNAL |
| NOMINAL THREAD SIZE | 0.562 INCHES INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 88044-AN929 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | RQ-4A |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CAP ASSEMBLY,PRESSURE SEAL FLAREDTUBE FITTING |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN929-6 |
Restrictions/Controls & Freight Information | NSN 4730-01-513-9572
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-513-9572
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
