NSN 4730-01-494-9237 12438480, 12438480-3, 512433
Product Details | QUICK-DISCONNECT NIPPLE

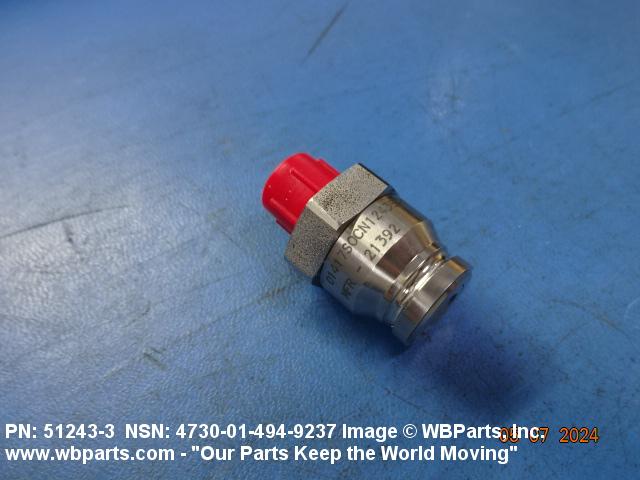

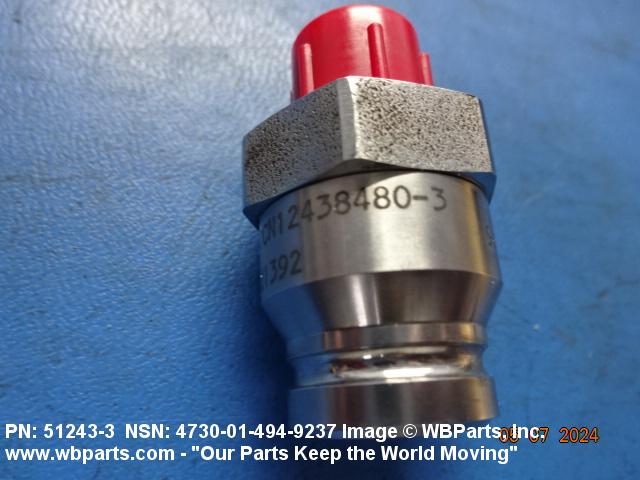

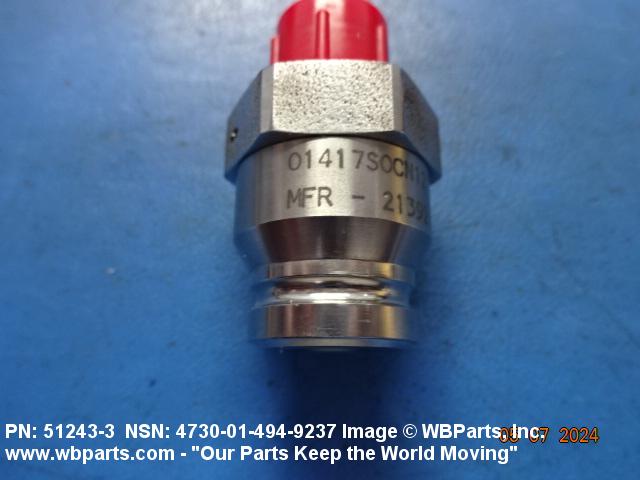

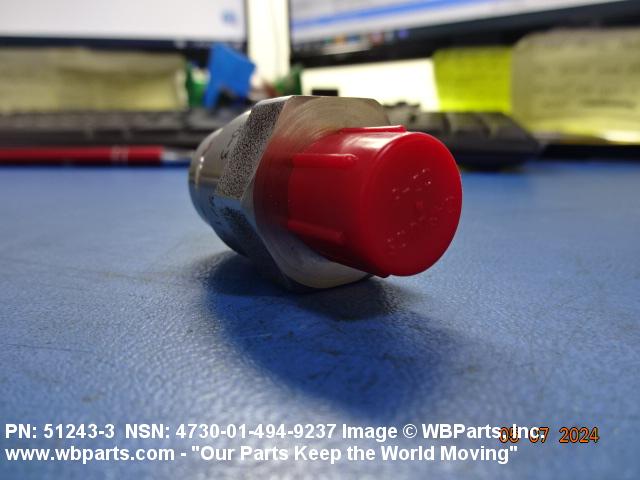

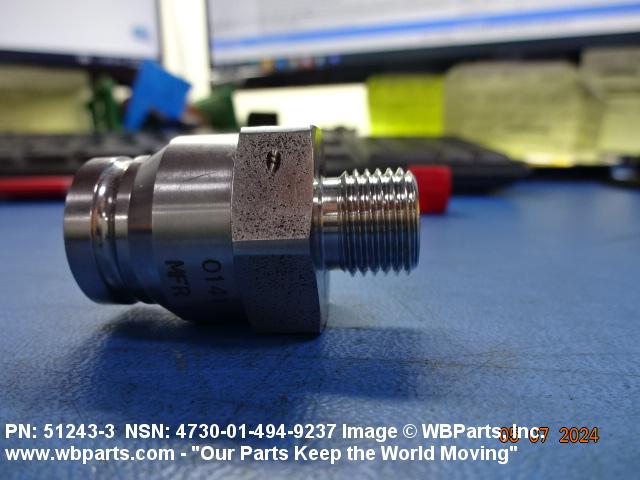

4730-01-494-9237 A fluid line fitting having external quick-disconnect features of the same size on both ends, designed to couple mating internal quick-disconnect fittings.
Part Alternates: 12438480, 12438480-3, 512433, 51243-3, 4730-01-494-9237, 01-494-9237, 4730014949237, 014949237, 124384803
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 FEB 2002 | 01-494-9237 | 33081 ( NIPPLE, QUICK-DISCONNECT ) |

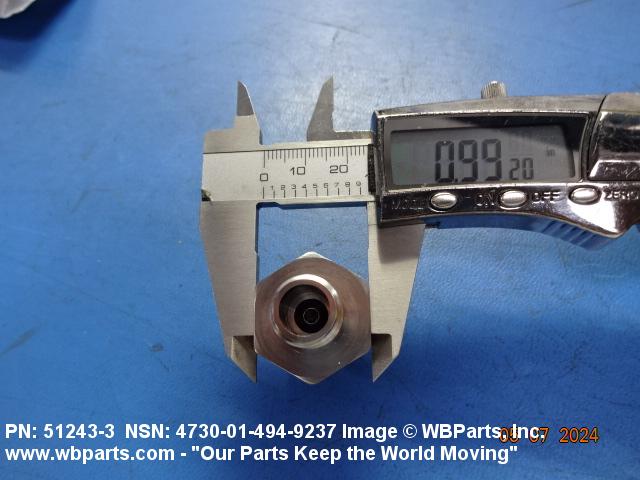

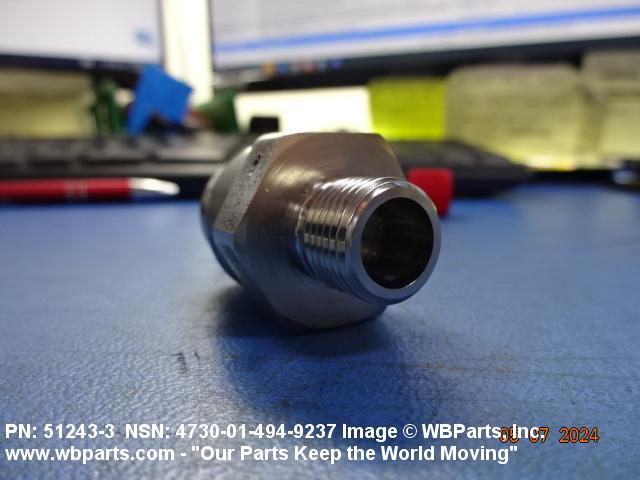

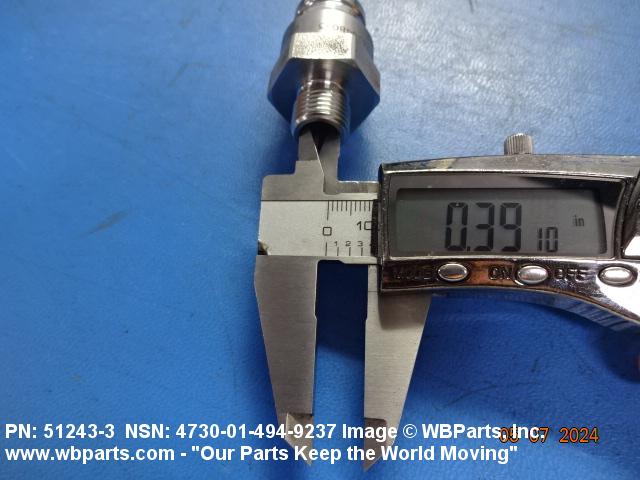

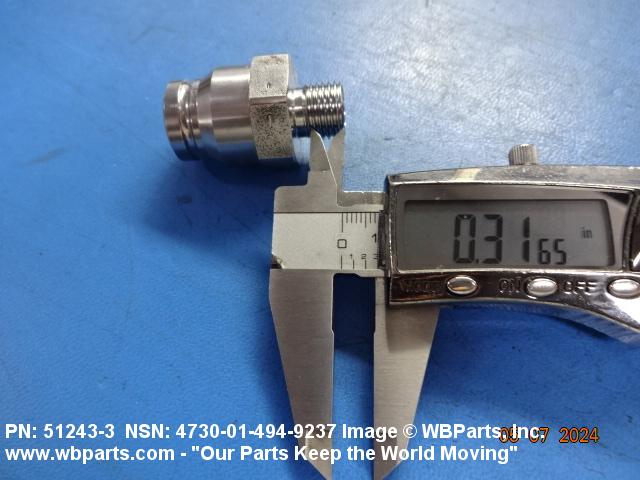

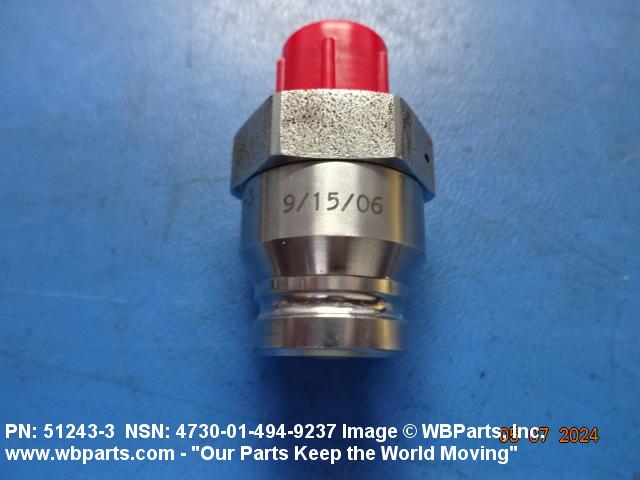

Drawings & Photos | NSN 4730-01-494-9237
Demand History | NSN 4730-01-494-9237
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 512433 | 2024-04-102 | 2 | us |
| 4730-01-494-9237 | 2024-04-94 | 2 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-494-9237
Related Products | NSN 4730-01-494-9237
Technical Data | NSN 4730-01-494-9237
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, SYNTHETIC HYDROCARBON BASE |
| MAXIMUM OPERATING PRESSURE | 1650.0 POUNDS PER SQUARE INCH |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT |

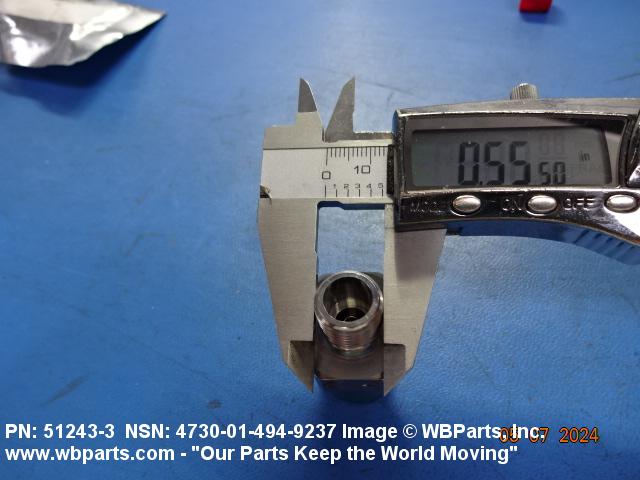

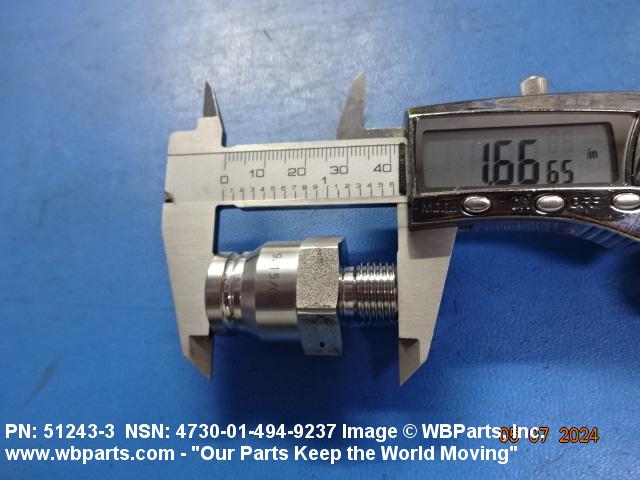

| OVERALL LENGTH | 1.570 INCHES NOMINAL |
| CONNECTION TYPE | INTERNAL QUICK DISCONNECT |
| QUICK DISCONNECT METHOD | PUSH-PULL |

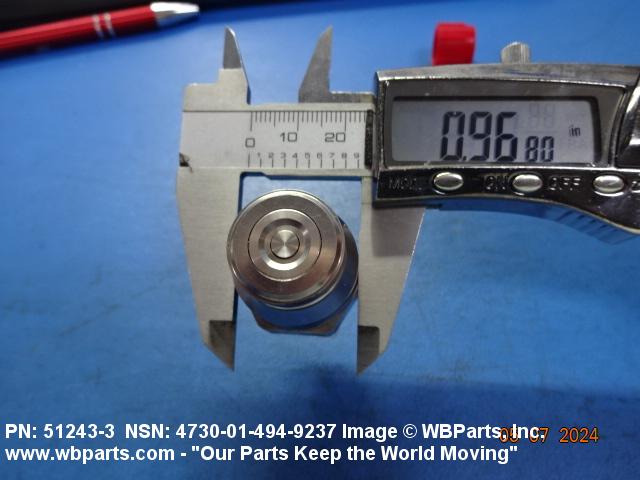

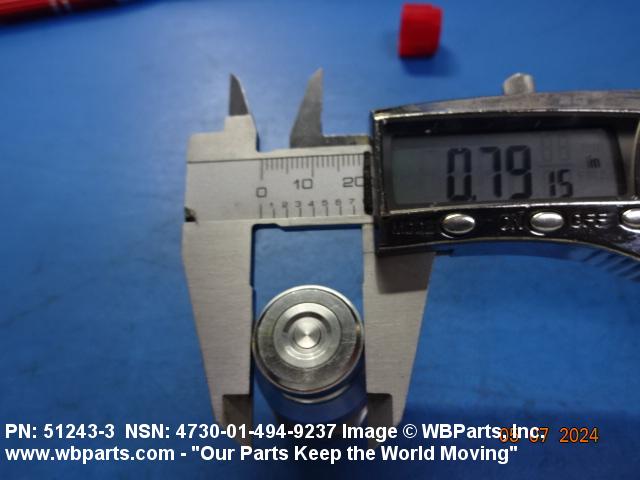

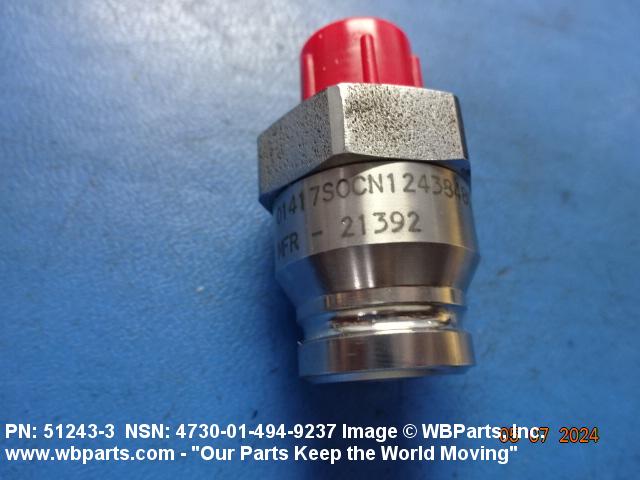

| QUICK DISCONNECT NOMINAL SIZE | 0.970 INCHES |
| SPECIAL FEATURES | NIPPLE CONNECTS TO COUPLING ON NIIN 4730-01-463-1722; INCORPORATES A RELIEF VALVE THAT RELIEVES PRESSURE IN THE DISCONNECTED POSITION AT 25 - 75 PSI; FLOW PERFORMANCE IS .15 PSID @ 1.5 GPM; PROOF PRESSURE IS 2600 PSIG @ ROOM TEMP; BURST PRESSURE IS 4400 PSIG @ ROOM TEMP |
| STORAGE TEMP RANGE | -60.0 TO 160.0 DEG FAHRENHEIT |
| END ITEM IDENTIFICATION | TANK ABRAMS, M-1 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | QUICK DISCONNECT NIPPLE - 06 SIZE |
| MANUFACTURERS CODE | 01417 |
| MFR SOURCE CONTROLLING REFERENCE | 12438480-3 |
