NSN 4730-01-491-7408 MS5181537, MS51815-37, 01-491-7408
Product Details | PIPE TO TUBE ELBOW
4730-01-491-7408 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS5181537, MS51815-37, 4730-01-491-7408, 01-491-7408, 4730014917408, 014917408
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 OCT 2001 | 01-491-7408 | 03770 ( ELBOW, PIPE TO TUBE ) |

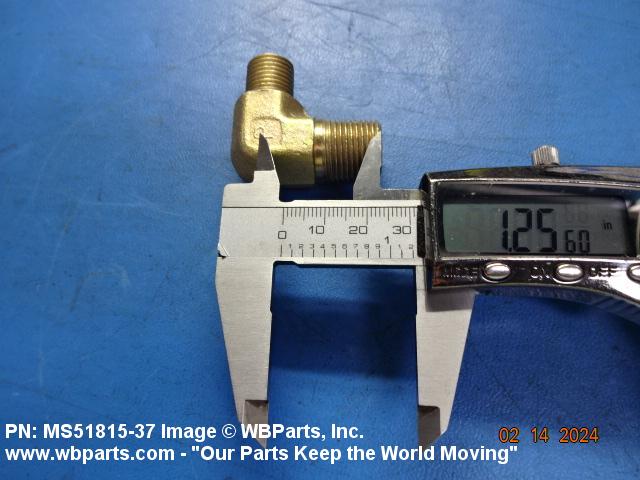

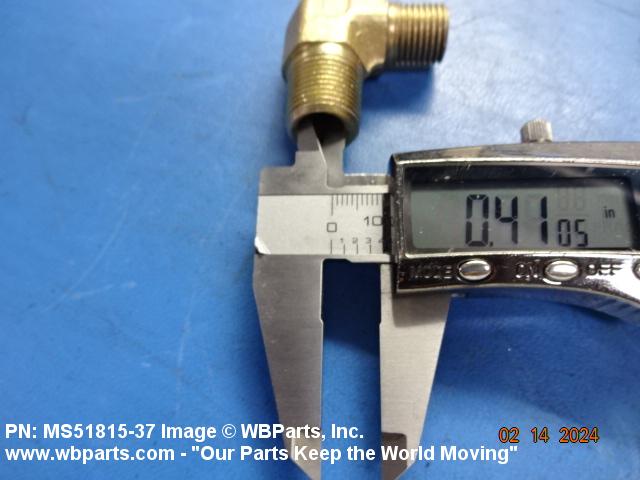

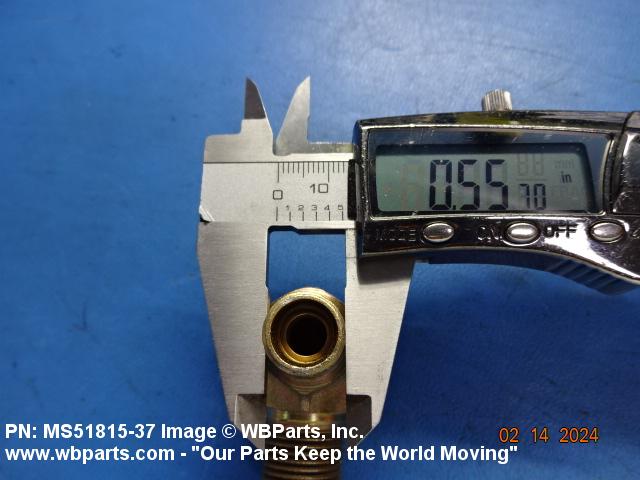

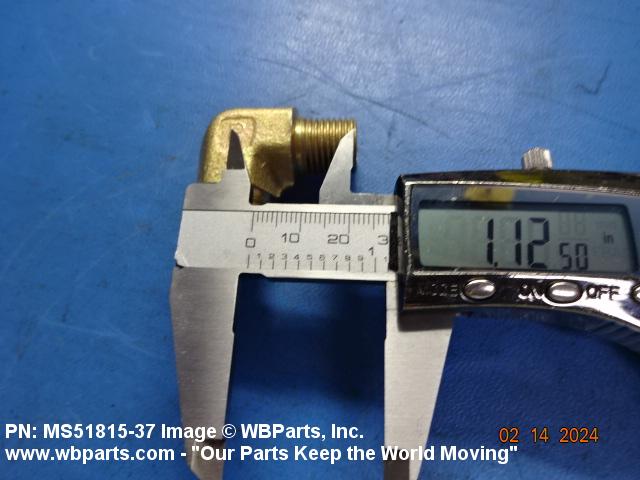

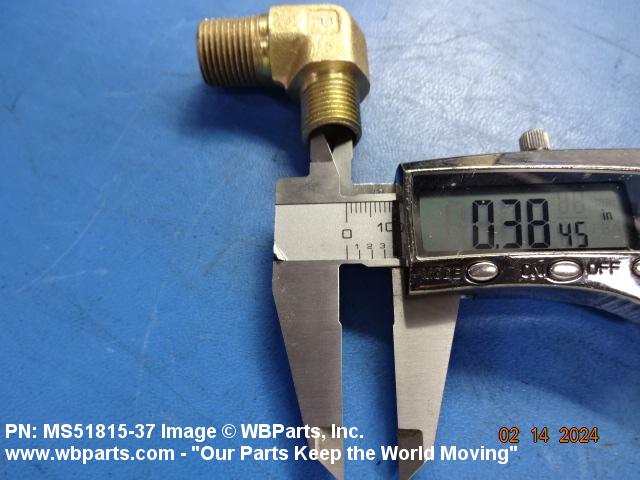

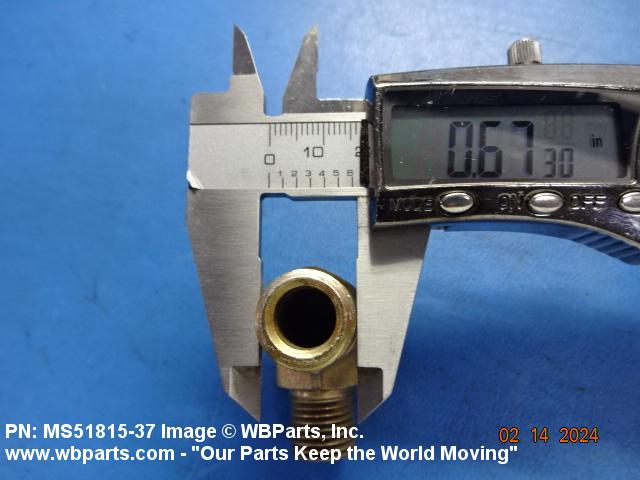

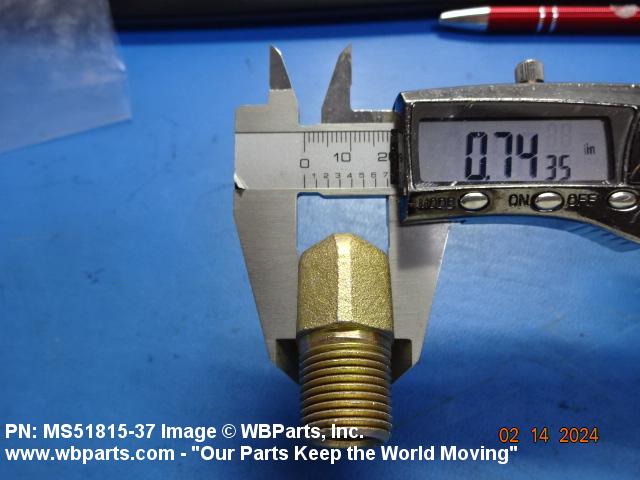

Drawings & Photos | NSN 4730-01-491-7408
Demand History | NSN 4730-01-491-7408
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS5181537 | 2024-01-23 | 1 | United States |
Cross Reference | NSN 4730-01-491-7408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51815-37 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-491-7408
Technical Data | NSN 4730-01-491-7408
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END UNTHREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B67B PLAIN 1ST END B105B PLAIN BEVELED 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | NPTF 1ST END |
| NOMINAL THREAD SIZE | 0.375 INCHES 1ST END |
| LEG LENGTH | 1.190 INCHES MINIMUM AND 1.250 INCHES MAXIMUM 1ST END |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIAL FEATURES | MALE PIPE END; FLARELESS TYPE; HYDRAULIC |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ELBOW, PIPE TO TUBE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51815-37 |
Restrictions/Controls & Freight Information | NSN 4730-01-491-7408
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
