NSN 4730-01-483-5248 MS24401, MS24401W4, AS1034
Product Details | TUBE ELBOW

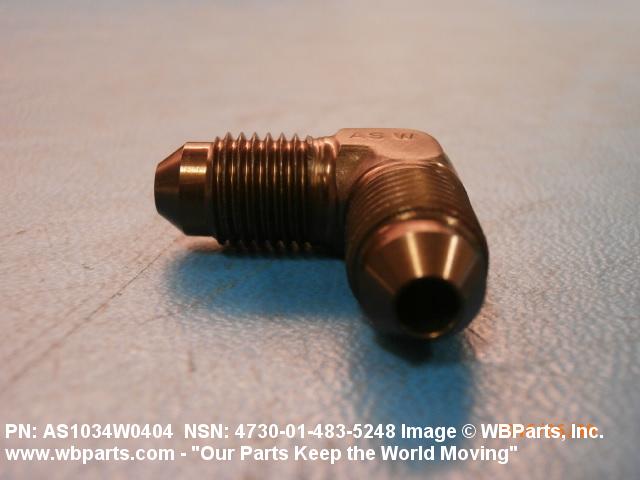

4730-01-483-5248 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS24401, MS24401W4, AS1034, AS1034W0404, AS4841, 4730-01-483-5248, 01-483-5248, 4730014835248, 014835248
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 MAR 2001 | 01-483-5248 | 03771 ( ELBOW, TUBE ) |

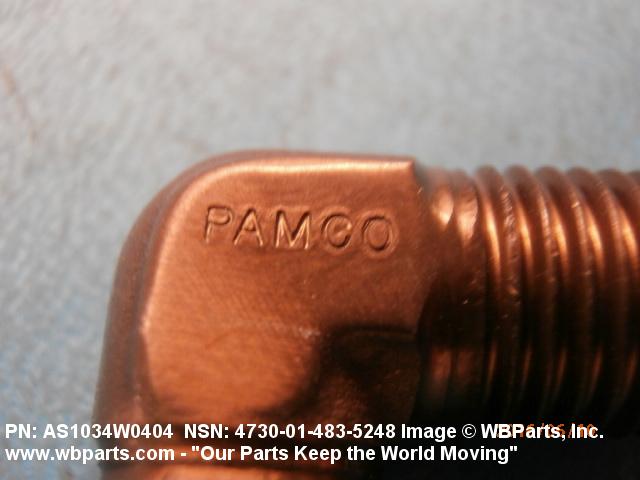

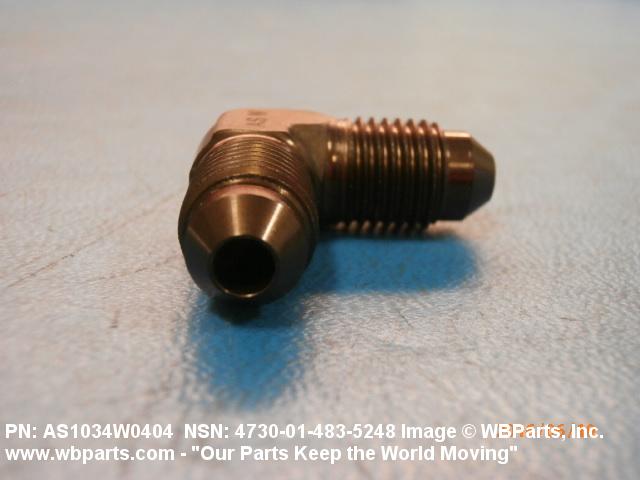

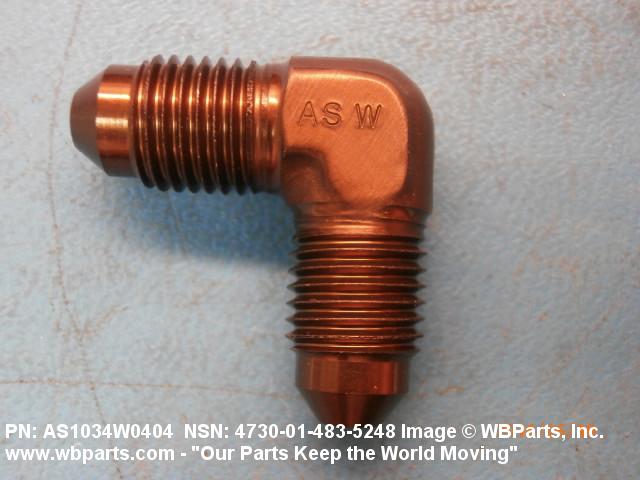

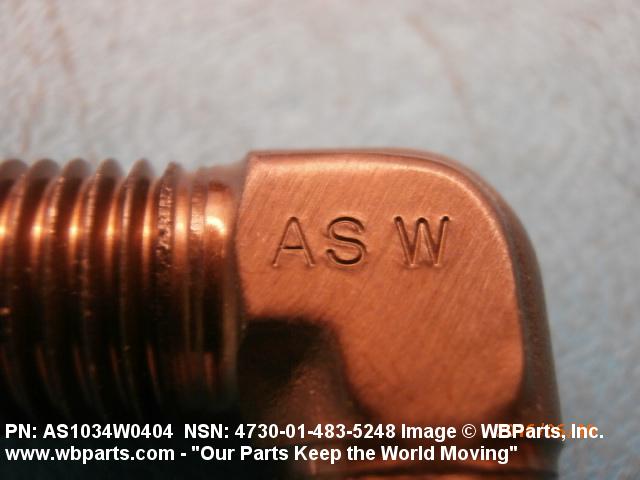

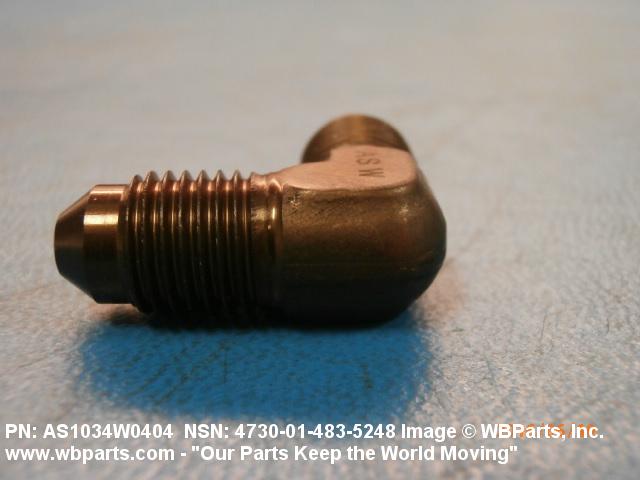

Drawings & Photos | NSN 4730-01-483-5248
Demand History | NSN 4730-01-483-5248
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-483-5248 | 2024-09-12 | 49 | DIBBS |
| 4730-01-483-5248 | 2023-04-24 | 31 | DIBBS |
| 4730-01-483-5248 | 2023-04-13 | 31 | DIBBS |
| 4730-01-483-5248 | 2018-04-13 | 690 | US |
| 4730-01-483-5248 | 2018-04-11 | 690 | US |
| 4730-01-483-5248 | 2016-07-31 | 22 | DIBBS |
| 4730-01-483-5248 | 2016-06-16 | 3 | DIBBS |
| 4730-01-483-5248 | 2016-05-31 | 4 | United States |
| 4730-01-483-5248 | 2016-05-03 | 4 | DIBBS |
| 4730-01-483-5248 | 2016-03-15 | 2 | DIBBS |
| AS1034W0404 | 2015-09-10 | 5 | US |
| 4730-01-483-5248 | 2014-03-07 | 1 | DIBBS |
| 4730-01-483-5248 | 2013-10-23 | 1 | DIBBS |
| 4730-01-483-5248 | 2011-05-13 | 6 | DIBBS |
| AS4841 | 2011-03-10 | 8 | |
| 4730-01-483-5248 | 2010-09-10 | 1 | DIBBS |
| 4730-01-483-5248 | 2010-08-16 | 6 | DIBBS |
| 4730-01-483-5248 | 2010-03-25 | 9 | DIBBS |
| 4730-01-483-5248 | 2009-03-23 | 2 | DIBBS |
Cross Reference | NSN 4730-01-483-5248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS1034 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS1034W0404 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24401 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24401W4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-483-5248
Related Products | NSN 4730-01-483-5248
Technical Data | NSN 4730-01-483-5248
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MEDIA FOR WHICH DESIGNED | FLUID SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |

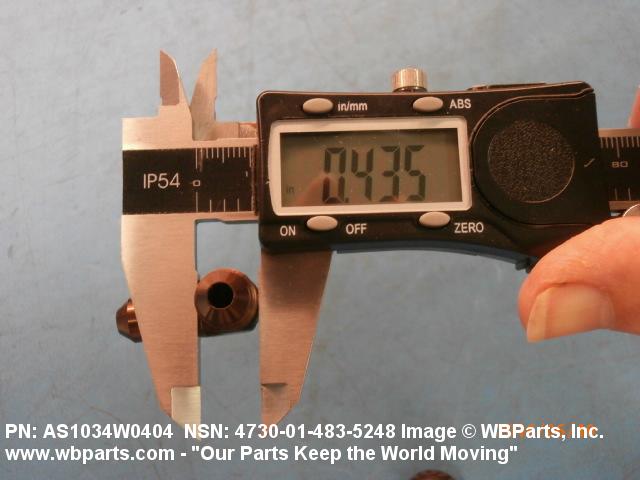

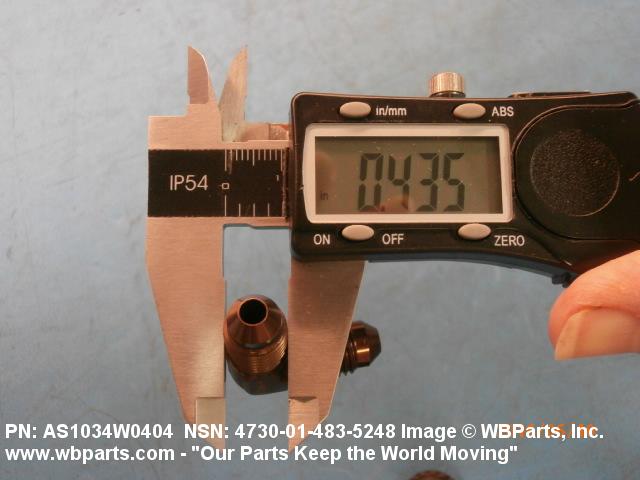

| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

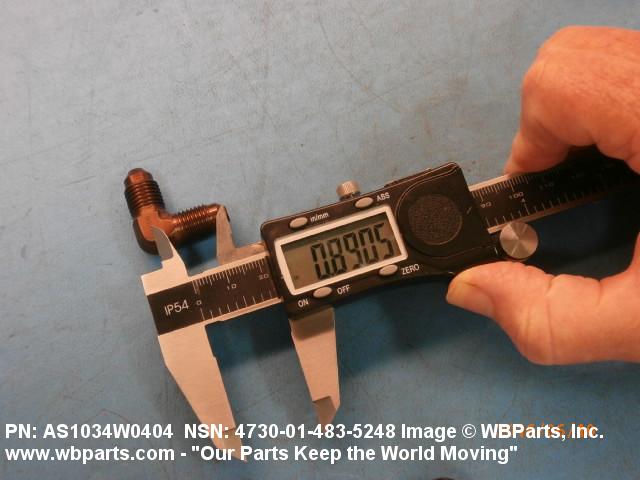

| LEG LENGTH | 0.891 INCHES NOMINAL ALL ENDS |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 81343-AS1034 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 96906-MS24401 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | AIRCRAFT HERCULES C130, FY95 ARC |
Restrictions/Controls & Freight Information | NSN 4730-01-483-5248
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-483-5248
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
