NSN 4730-01-483-3844 AS4409D0808, 01-483-3844, 014833844
Product Details | TUBE ELBOW
4730-01-483-3844 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AS4409D0808, 4730-01-483-3844, 01-483-3844, 4730014833844, 014833844
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 MAR 2001 | 01-483-3844 | 03771 ( ELBOW, TUBE ) |

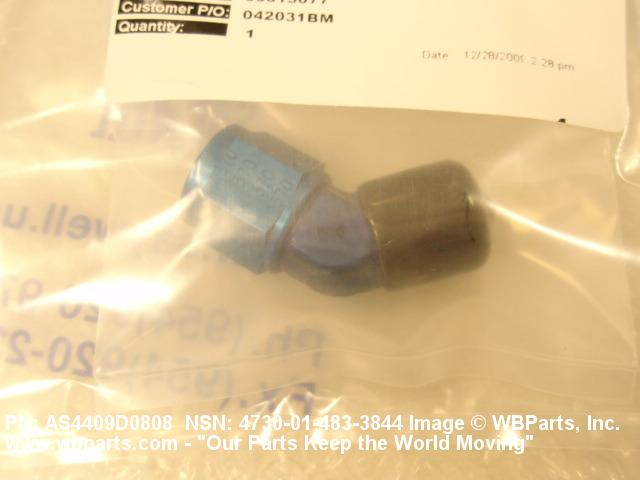

Drawings & Photos | NSN 4730-01-483-3844
Demand History | NSN 4730-01-483-3844
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-483-3844 | 2022-09-12 | 12 | TR |
| AS4409D0808 | 2009-12-09 | 1 | United States |
Cross Reference | NSN 4730-01-483-3844
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS4409D0808 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-483-3844
Technical Data | NSN 4730-01-483-3844
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL BOSS 1ST END UNTHREADED INTERNAL TUBE 2ND END |
| CONNECTION STYLE | B71A EXTERNAL SEAT FOR GASKET SEAL 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 16 1ST END |
| THREAD CLASS | 3A 1ST END |
| LEG LENGTH | 0.749 INCHES NOMINAL 1ST END 0.992 INCHES NOMINAL 2ND END |
Restrictions/Controls & Freight Information | NSN 4730-01-483-3844
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
