NSN 4730-01-478-2036 SM-50 ITEM NO. 19, SM50ITEMNO19, 56655
Product Details | SEDIMENT STRAINER ELEMENT
4730-01-478-2036 A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.
Part Alternates: SM-50 ITEM NO. 19, SM50ITEMNO19, 56655, 4730-01-478-2036, 01-478-2036, 4730014782036, 014782036
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 AUG 2000 | 01-478-2036 | 18347 ( STRAINER ELEMENT, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-478-2036
Demand History | NSN 4730-01-478-2036
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 56655 | 2019-11-317 | 1205 | DIBBS |
| SM-50 ITEM NO. 19 | 2019-11-317 | 1205 | DIBBS |
| 4730-01-478-2036 | 2018-06-165 | 745 | DIBBS |
| 4730-01-478-2036 | 2016-11-319 | 493 | DIBBS |
| 4730-01-478-2036 | 2016-11-308 | 493 | DIBBS |
| 4730-01-478-2036 | 2015-03-60 | 172 | DIBBS |
| 4730-01-478-2036 | 2014-06-152 | 101 | DIBBS |
| 4730-01-478-2036 | 2011-12-341 | 192 | DIBBS |
| 4730-01-478-2036 | 2011-08-235 | 72 | DIBBS |
| 4730-01-478-2036 | 2011-08-230 | 72 | DIBBS |
| 4730-01-478-2036 | 2011-02-55 | 69 | DIBBS |
| 4730-01-478-2036 | 2009-06-163 | 67 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-478-2036
Technical Data | NSN 4730-01-478-2036
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| FILTERING MEDIA DESIGN | PERFORATED |

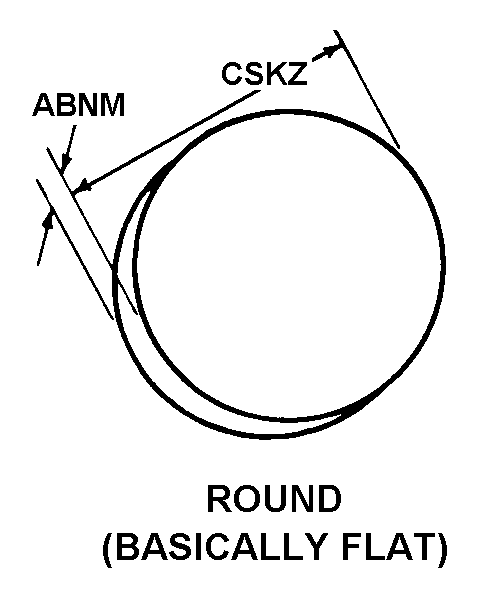

| STYLE DESIGNATOR | A7 ROUND |
| STRAINER MODEL NUMBER FOR WHICH DESIGNED | SM-50 |
| SPECIAL FEATURES | REMOVEABLE SCREEN THAT UTILIZES 2 CLIPS FOR SECURING SCREEN TO DRAIN HOLE |
| III END ITEM IDENTIFICATION | HOT FOOD WELL FOR VARIOUS NAVAL APPLICATIONS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | DRAIN STRAINER |
Restrictions/Controls & Freight Information | NSN 4730-01-478-2036
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052440 | STRAINERS PIPE LINE I/S BODY |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-478-2036
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
