NSN 4730-01-476-7356 R51AF30250M0, R51AF3-0250M0, 01-476-7356
Product Details | PIPE FLANGE
4730-01-476-7356 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: R51AF30250M0, R51AF3-0250M0, 4730-01-476-7356, 01-476-7356, 4730014767356, 014767356
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JUL 2000 | 01-476-7356 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-476-7356
Cross Reference | NSN 4730-01-476-7356
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R51AF3-0250M0 | 15284 | EATON CORPORATION DBA FLUID CONVEYANCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-476-7356
Technical Data | NSN 4730-01-476-7356
| Characteristic | Specifications |
|---|---|

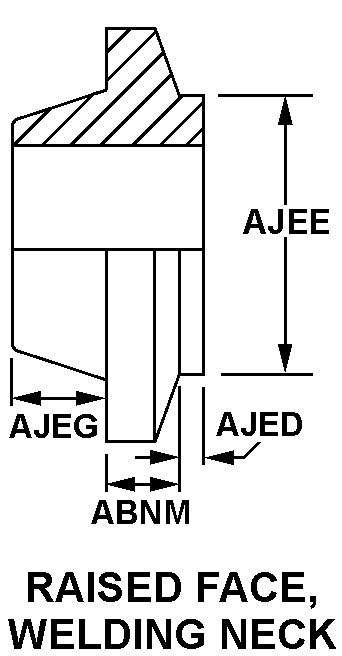

| FLANGE SECTION STYLE | 13 RAISED FACE, WELDING NECK |
| RAISED FACE DIAMETER | 0.621 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.500 INCHES NOMINAL |
| SPECIAL FEATURES | INTEGRAL FILLER; MEDIUM DUTY; INCONEL 625 MATL; MALE; W/POSITIONING FEATURE; LOW PROFILE |
Restrictions/Controls & Freight Information | NSN 4730-01-476-7356
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
