NSN 4730-01-470-6269 MS272245, MS27224-5, 01-470-6269

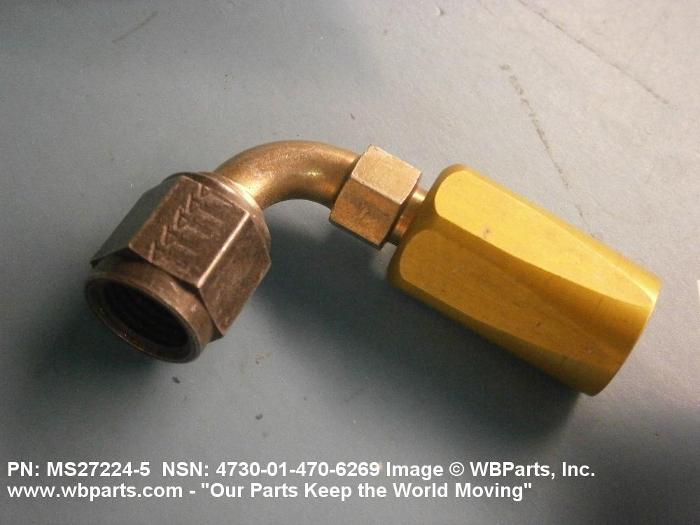

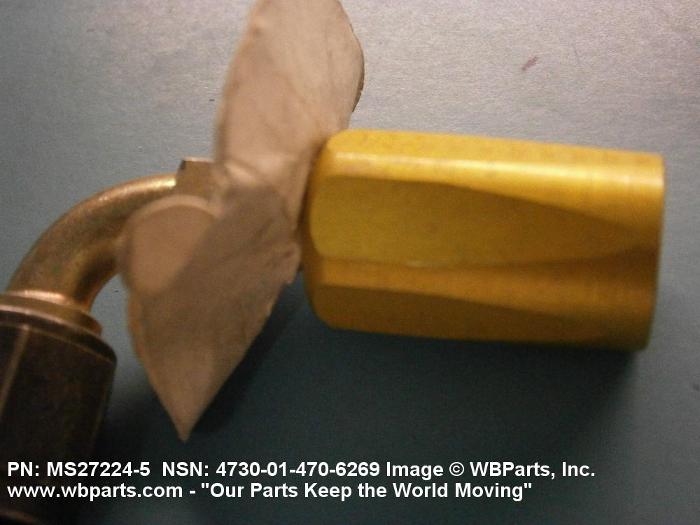

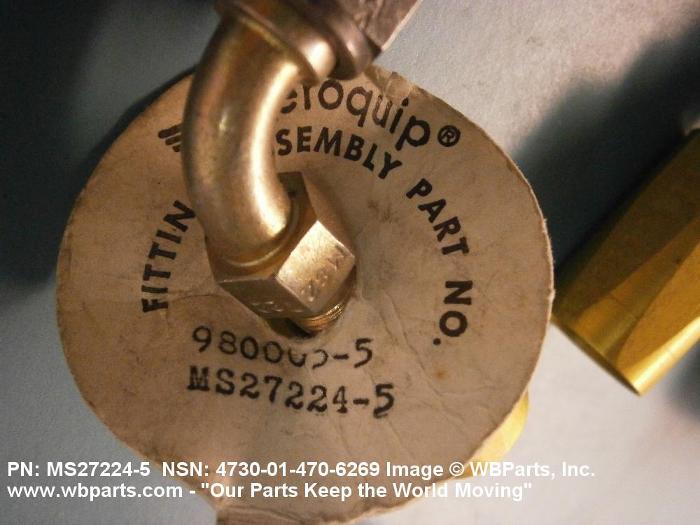

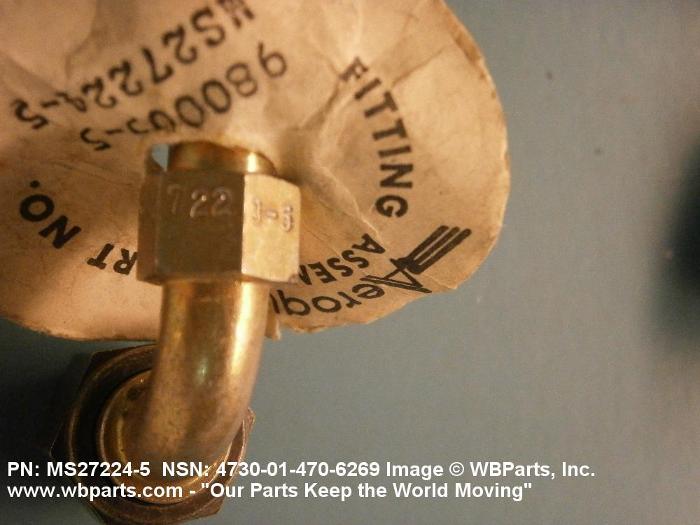

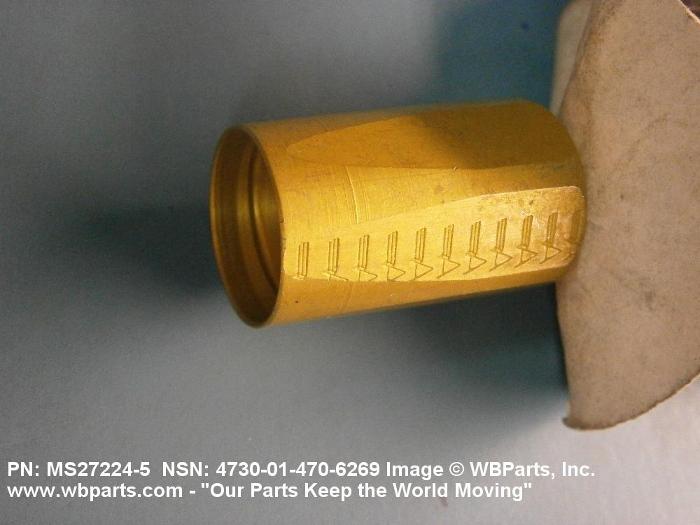

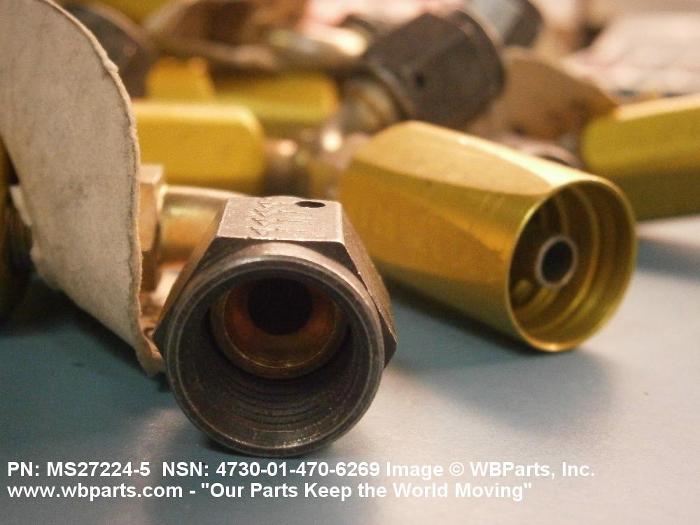

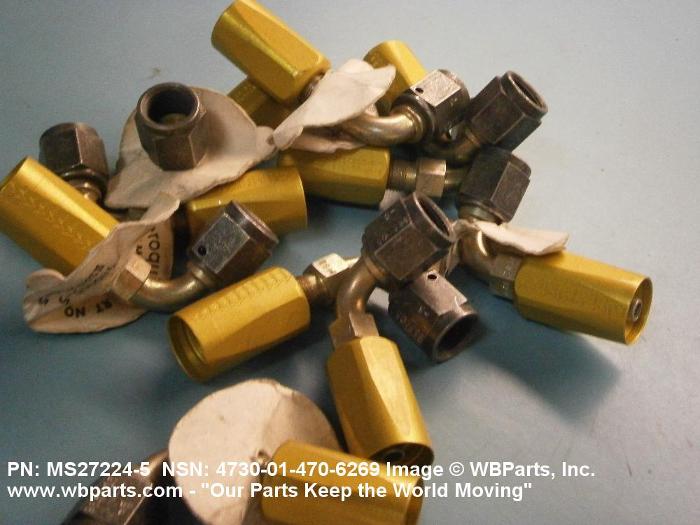

Product Details | PIPE TO HOSE ELBOW
4730-01-470-6269 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. One connecting end has standard pipe threads or is unthreaded and designed to accommodate a pipe. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, HOSE; ELBOW, PIPE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS272245, MS27224-5, 4730-01-470-6269, 01-470-6269, 4730014706269, 014706269
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 DEC 1999 | 01-470-6269 | 03769 ( ELBOW, PIPE TO HOSE ) |

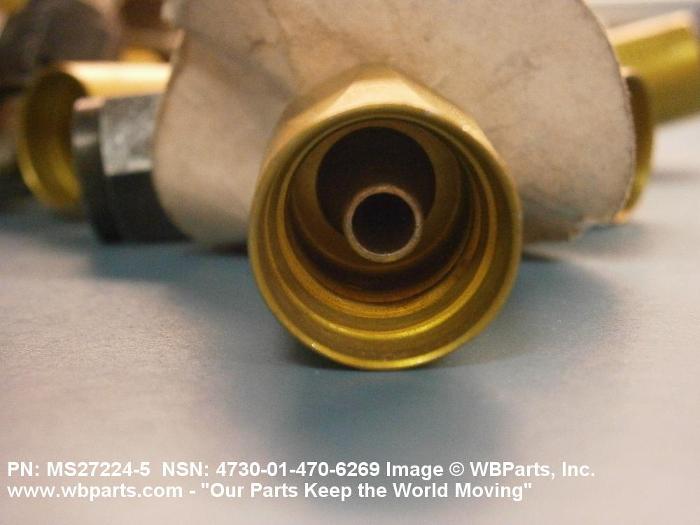

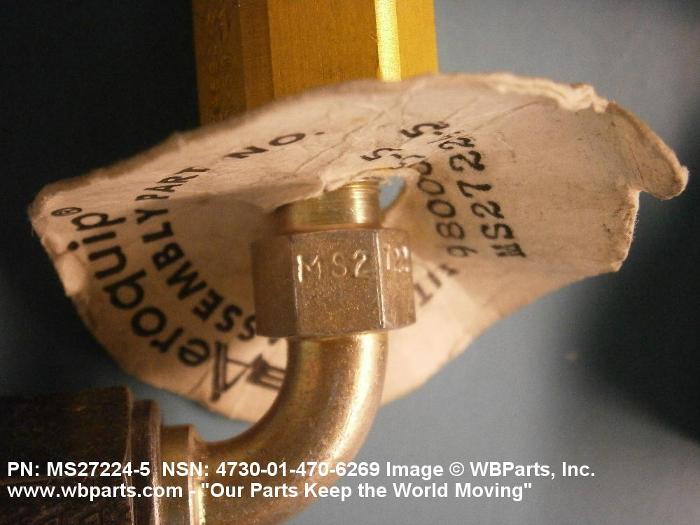

Drawings & Photos | NSN 4730-01-470-6269
Demand History | NSN 4730-01-470-6269
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS272245 | 2020-06-160 | 2 | US |
| 4730-01-470-6269 | 2012-04-116 | 10 | United States |
Cross Reference | NSN 4730-01-470-6269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27224-5 | 35351 | GE AVIATION SYSTEMS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-470-6269
Technical Data | NSN 4730-01-470-6269
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL NIPPLE ALUMINUM ALLOY SOCKET |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC 2ND MATERIAL RESPONSE NIPPLE QQ-A-268 FED SPEC 1ST MATERIAL RESPONSE SOCKET |
| SURFACE TREATMENT | ALUMINUM AND ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | FUEL SINGLE RESPONSE HYDRAULIC FLUID 1ST RESPONSE OIL 2ND RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B1 SWIVEL NUT WITH COMPRESSION SLEEVE 1ST END B10A FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 45.0 DEGREES 2ND END |
| THREAD SERIES DESIGNATOR | UNS 2ND END |
| NOMINAL THREAD SIZE | 0.365 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 28 2ND END |
| THREAD CLASS | 2A 2ND END |
| THREAD PITCH DIAMETERS | 0.3418 TO 0.3451 INCHES 2ND END |
| LEG LENGTH | 1.224 INCHES NOMINAL 1ST END 1.955 INCHES MINIMUM AND 1.975 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4730-01-470-6269
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
