NSN 4730-01-465-8970 0152SHS0801212, 0152SH-S0801212, 015SH1211
Product Details | SEDIMENT STRAINER
4730-01-465-8970 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: 0152SHS0801212, 0152SH-S0801212, 015SH1211, 015SH1-211, 4730-01-465-8970, 01-465-8970, 4730014658970, 014658970
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 JUN 1999 | 01-465-8970 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-465-8970
Demand History | NSN 4730-01-465-8970
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0152SH-S0801212 | 2020-04-100 | 1 | DIBBS |
| 4730-01-465-8970 | 2017-08-243 | 1 | DIBBS |
| 4730-01-465-8970 | 2015-04-111 | 2 | DIBBS |
| 4730-01-465-8970 | 2010-08-226 | 1 | DIBBS |
Cross Reference | NSN 4730-01-465-8970
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-465-8970
Related Products | NSN 4730-01-465-8970
Technical Data | NSN 4730-01-465-8970
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C11 DIVERTED FLOW PLUG STRAINER W/THREADED COVER |
| BODY LENGTH | 16.500 INCHES NOMINAL |
| BODY HEIGHT | 10.620 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 6.000 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY NICKEL ALLOY SCREENING |
| MATERIAL DOCUMENT AND CLASSIFICATION | C95800 ASSN STD ALL MATERIAL RESPONSES BODY |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| PERFORATION DIAMETER | 0.125 INCHES NOMINAL |
| PERFORATION QUANTITY | 32.000 PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | WATER |
| MAXIMUM OPERATING PRESSURE | 250.000 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |
| FIRST INTAKE CONNECTION TYPE | PLAIN FACE FLANGE SIDE |

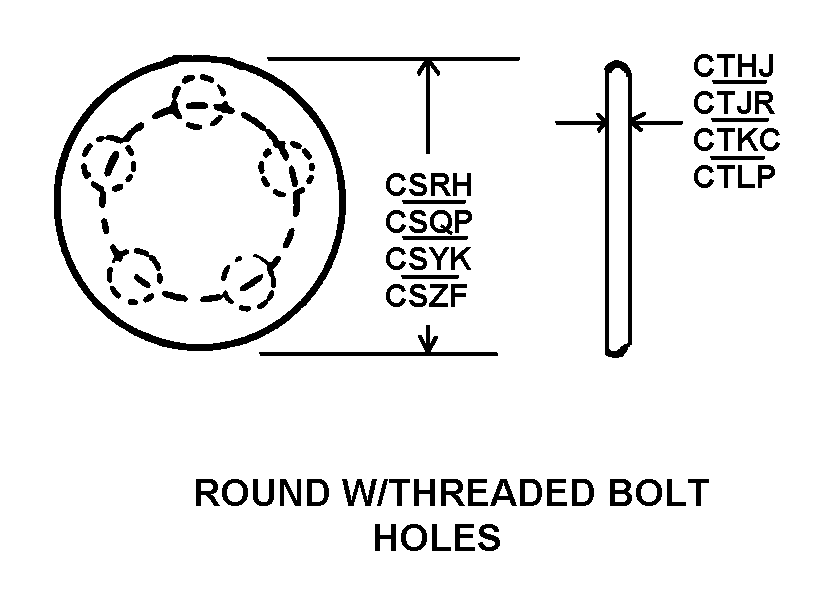

| FIRST INTAKE FLANGE SHAPE STYLE | 8 ROUND W/THREADED BOLT HOLES |
| FIRST INTAKE FLANGE OUTSIDE DIAMETER | 5.560 INCHES NOMINAL |
| FIRST INTAKE FLANGE FACE STYLE | 1 PLAIN |
| SECOND INTAKE FLANGE OUTSIDE DIAMETER | 5.560 INCHES NOMINAL |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| FIRST DISCHARGE FLANGE OUTSIDE DIAMETER | 4.250 INCHES NOMINAL |
| SECOND DISCHARGE FLANGE OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| MOUNTING TYPE | THREADED HOLE SIDE |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL THREAD SIZE | 0.500 INCHES |
| SPECIAL FEATURES | BOLT CIRCLE DIAMETER 3.940, THREAD 1/2-13UNC2B 0.880 DEEP;WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | OLIVER PERRY CLASS FFG;ARLEIGH BURKE CLASS DDG;FORRESTAL CLASS CV;TICONDEROGA CLASS CG (47); TARAWA CLASS LHA;WHIDBEY ISLAND CLASS LSD;NIMITZ CLASS CVN |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SIZE 1 1/2 INCH SELF CLEANING TYPE SH, HELLAN FLUID STRAINER, SERIES 212 |
Restrictions/Controls & Freight Information | NSN 4730-01-465-8970
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052440 | STRAINERS PIPE LINE I/S BODY |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-465-8970
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
