NSN 4730-01-465-6763 EC002, EC-002, 9325C011025
Product Details | SEDIMENT STRAINER
4730-01-465-6763 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: EC002, EC-002, 9325C011025, 9325C01-1025, 9325C01102501, 9325C01-1025-01, 4730-01-465-6763, 01-465-6763, 4730014656763, 014656763
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 JUN 1999 | 01-465-6763 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-465-6763
Demand History | NSN 4730-01-465-6763
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-465-6763 | 2014-07-191 | 8 | DIBBS |
| 4730-01-465-6763 | 2007-08-214 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-465-6763
Related Products | NSN 4730-01-465-6763
Technical Data | NSN 4730-01-465-6763
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A6 CYLINDRICAL W/OUT CONTAINER |
| BODY DIAMETER | 2.500 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.500 INCHES NOMINAL |
| BODY OVERALL LENGTH | 6.000 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING BODY |
| FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
| MESH SIZE | 8.0 |
| WIRE DIAMETER | 0.041 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | WATER |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| TEMP RATING | NOT RATED |
| FIRST INTAKE CONNECTION TYPE | PLAIN FACE FLANGE TOP |
| FIRST INTAKE FLANGE SHAPE STYLE | 2 ROUND W/UNTHREADED BOLT HOLES |
| FIRST INTAKE FLANGE OUTSIDE DIAMETER | 0.0625 INCHES NOMINAL |
| FIRST INTAKE FLANGE THICKNESS | 0.0625 INCHES NOMINAL |

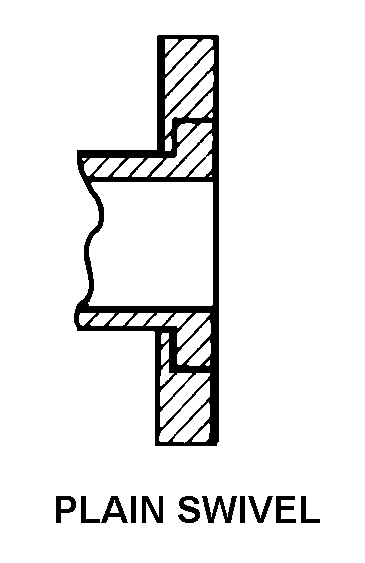

| FIRST INTAKE FLANGE FACE STYLE | 2 PLAIN SWIVEL |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| FIRST DISCHARGE FLANGE OUTSIDE DIAMETER | 5.810 INCHES NOMINAL |
| FIRST DISCHARGE FLANGE THICKNESS | 0.625 INCHES NOMINAL |
| MOUNTING TYPE | UNTHREADED HOLE TOP |
| MOUNTING HOLE QUANTITY | 4 |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.500 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | USED ON FIRE FIGHTING EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 4730-01-465-6763
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-465-6763
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
