NSN 4730-01-465-3779 12 110162C, 12110162C, J518
Product Details | PIPE FLANGE
4730-01-465-3779 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 12 110162C, 12110162C, J518, 4730-01-465-3779, 01-465-3779, 4730014653779, 014653779
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 JUN 1999 | 01-465-3779 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-465-3779
Demand History | NSN 4730-01-465-3779
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-465-3779 | 2017-09-271 | 84 | DIBBS |
| 4730-01-465-3779 | 2015-09-247 | 38 | DIBBS |
| 4730-01-465-3779 | 2015-08-236 | 38 | DIBBS |
| 4730-01-465-3779 | 2009-05-139 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-465-3779
Technical Data | NSN 4730-01-465-3779
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

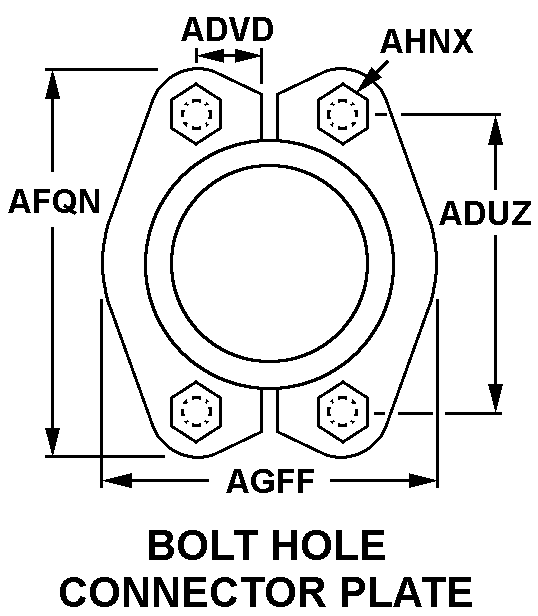

| STYLE DESIGNATOR | 17 BOLT HOLE CONNECTOR PLATE |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 2.000 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.469 INCHES NOMINAL |
| FLANGE LENGTH | 2.840 INCHES MINIMUM |
| FLANGE WIDTH | 1.140 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.406 INCHES NOMINAL |

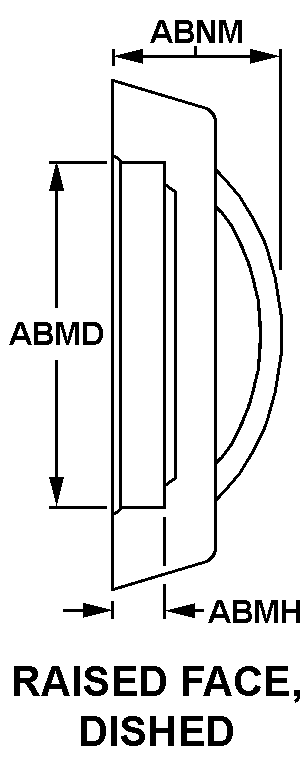

| FLANGE SECTION STYLE | 45 RAISED FACE, DISHED |
| RECESS DIAMETER | 1.656 INCHES NOMINAL |
| RECESS DEPTH | 0.560 INCHES NOMINAL |
| THICKNESS | 1.120 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.750 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 5000.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| FACE SEATING SURFACE CONDITION | MACHINED |
| FURNISHED ITEMS | BOLT |
| SPECIAL FEATURES | SPLIT FLANGE CLAMP HALF; THIS ITEM CAN BE REFERENCE IN NSN 4730-01-382-2053 |
| SPECIFICATION/STANDARD DATA | 81343-J518 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 4 FIGURE |
| III END ITEM IDENTIFICATION | USED ON FIRE FIGHTING |
