NSN 4730-01-424-3673 C7856121D, C7856-12-1D, 01-424-3673
Product Details | TUBE COUPLING
4730-01-424-3673 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: C7856121D, C7856-12-1D, 4730-01-424-3673, 01-424-3673, 4730014243673, 014243673
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 JAN 1996 | 01-424-3673 | 06078 ( COUPLING, TUBE ) |

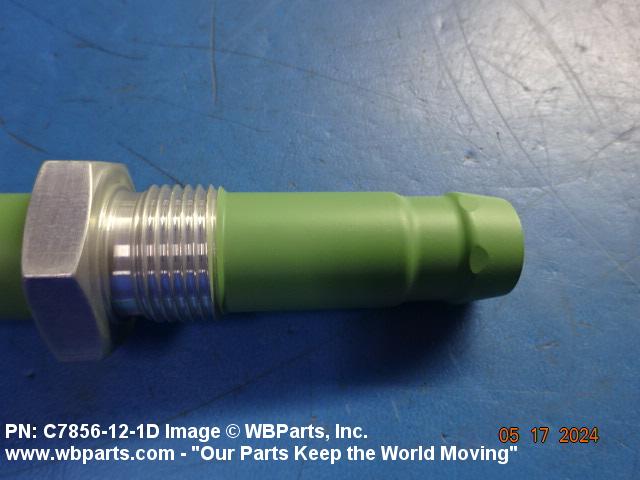

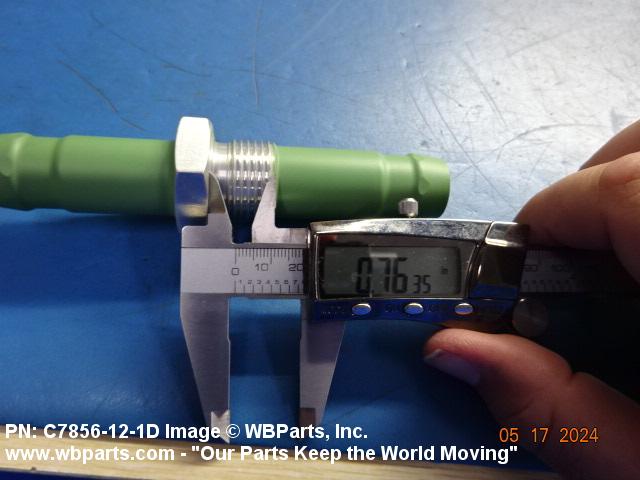

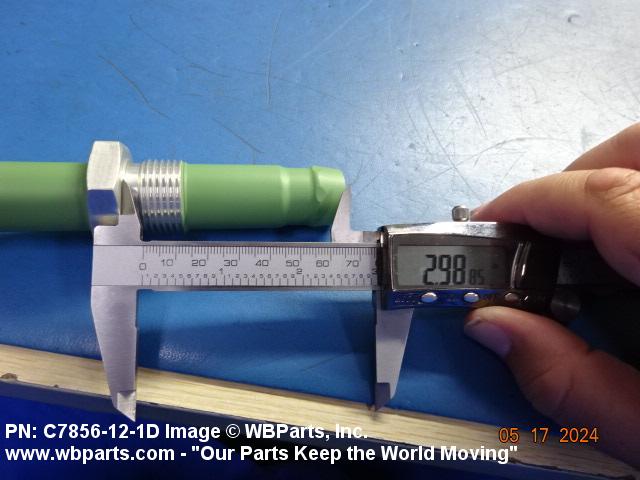

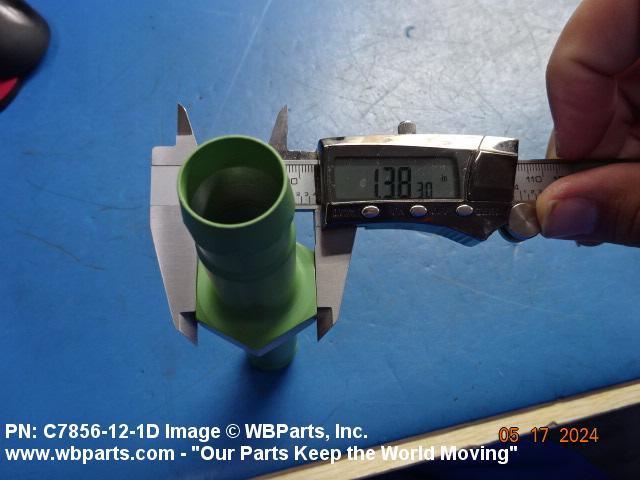

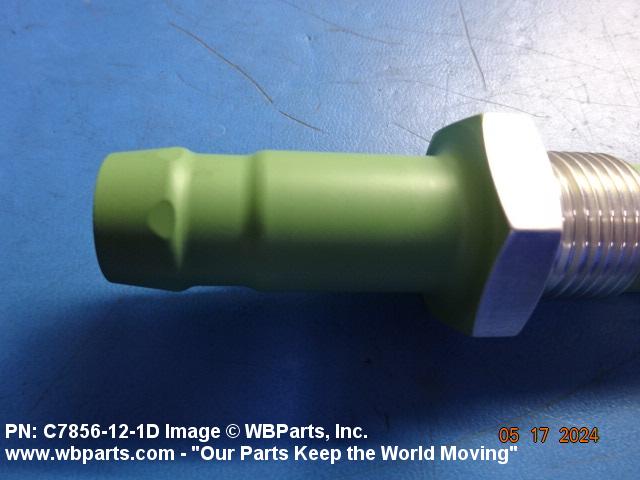

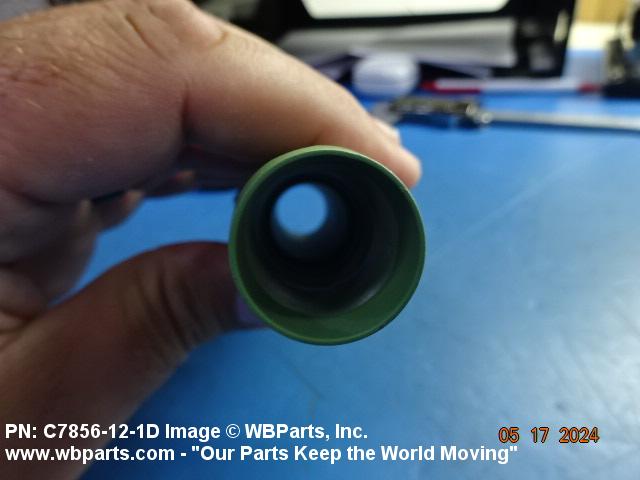

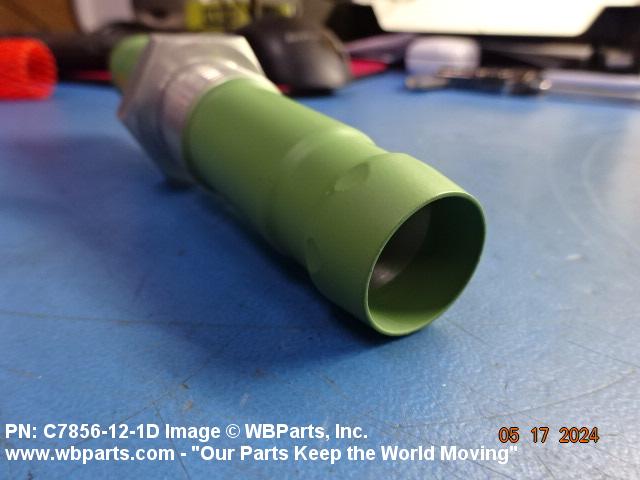

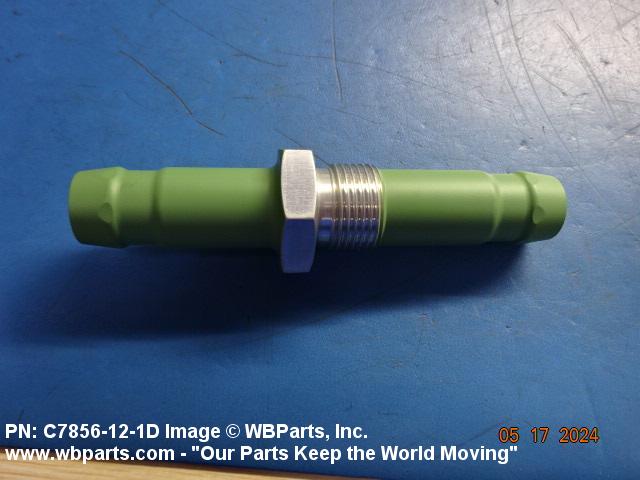

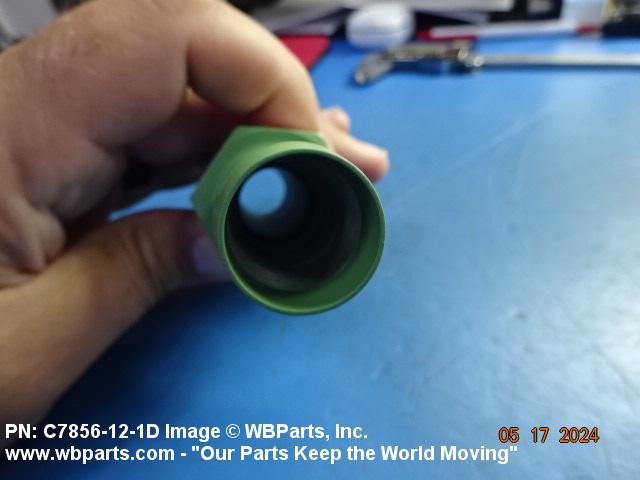

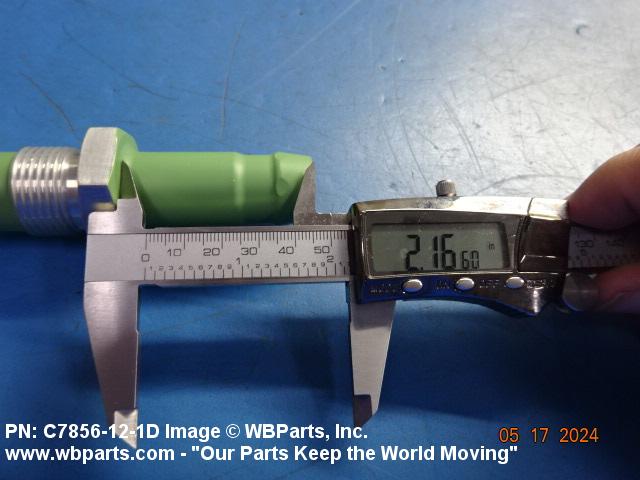

Drawings & Photos | NSN 4730-01-424-3673
Demand History | NSN 4730-01-424-3673
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C7856121D | 2024-07-191 | 3 | United States |
| 4730-01-424-3673 | 2024-04-94 | 40 | United States |
Cross Reference | NSN 4730-01-424-3673
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C7856-12-1D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-424-3673
Technical Data | NSN 4730-01-424-3673
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| SURFACE TREATMENT | PLASTIC POLYTETRAFLUOROETHYLENE INSIDE |
| STYLE DESIGNATOR | A35 SWAGED ENDS W/BULKHEAD |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS THREADED EXTERNAL TUBE 1ST END BULKHEAD |
| CONNECTION STYLE | B48 SWAGED W/GROOVES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ 1ST END BULKHEAD |
Restrictions/Controls & Freight Information | NSN 4730-01-424-3673
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
