NSN 4730-01-395-7405 7016776767, 701-6776767, 701-6776767 PAR
Product Details | FLUID PASSAGE BOLT
4730-01-395-7405 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 7016776767, 701-6776767, 701-6776767 PAR, 701-6776767 PART N0. 10, 7016776767PAR, 7016776767PARTN010, 4730-01-395-7405, 01-395-7405, 4730013957405, 013957405
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
47 | 02 SEP 1994 | 01-395-7405 | 18683 ( BOLT, FLUID PASSAGE ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 4730-01-395-7405
Technical Data | NSN 4730-01-395-7405
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-1222,TY 1,GR-B7 MIL SPEC SINGLE MATERIAL RESPONSE |
BODY STYLE | 8 SHOULDER |
OVERALL LENGTH | 4.813 INCHES NOMINAL |
FIRST DIAMETER FROM WRENCHING FEATURE | 1.750 INCHES NOMINAL |
LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 3.313 INCHES NOMINAL |
FIRST RADIAL FLUID HOLE DIAMETER | 0.125 INCHES NOMINAL |
DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 2.407 INCHES NOMINAL |
LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 4.063 INCHES NOMINAL |
WRENCHING FEATURE HEIGHT | 0.750 INCHES NOMINAL |
FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
FIRST END STYLE DESIGNATOR | C6 PLAIN |
FIRST END THREAD SERIES DESIGNATOR | UNC |
FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
FIRST END THREAD CLASS | 3A |
FIRST END THREAD DIRECTION | RIGHT-HAND |
FIRST END THREAD LENGTH | 0.750 INCHES NOMINAL |
SECOND END CONNECTION TYPE | THREADED INTERNAL PIPE |

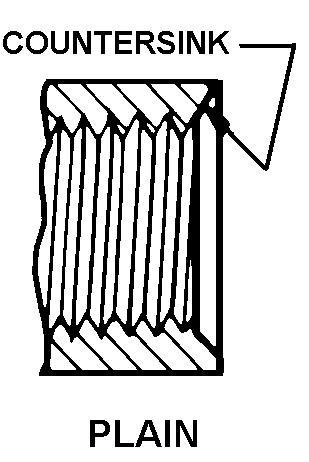

SECOND END STYLE DESIGNATOR | C11 PLAIN |
SECOND END THREAD SERIES DESIGNATOR | NPT |
SECOND END NOMINAL THREAD SIZE | 0.125 INCHES |
SECOND END THREAD DIRECTION | RIGHT-HAND |
WRENCHING FEATURE STYLE | 1 HEXAGON |
WIDTH ACROSS FLATS | 2.250 INCHES NOMINAL |
III END ITEM IDENTIFICATION | AIRCRAFT CARRIER CVN 73 CLASS |
Restrictions/Controls & Freight Information | NSN 4730-01-395-7405
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-395-7405
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
