NSN 4730-01-393-2765 201201210S, 20120-12-10S, 4121210S
Product Details | PIPE TO HOSE STRAIGHT ADAPTER
4730-01-393-2765 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a pipe or pipe fitting to a hose or hose fitting in a straight line.
Part Alternates: 201201210S, 20120-12-10S, 4121210S, 412-12-10S, 4730-01-393-2765, 01-393-2765, 4730013932765, 013932765
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 JUL 1994 | 01-393-2765 | 03775 ( ADAPTER, STRAIGHT, PIPE TO HOSE ) |

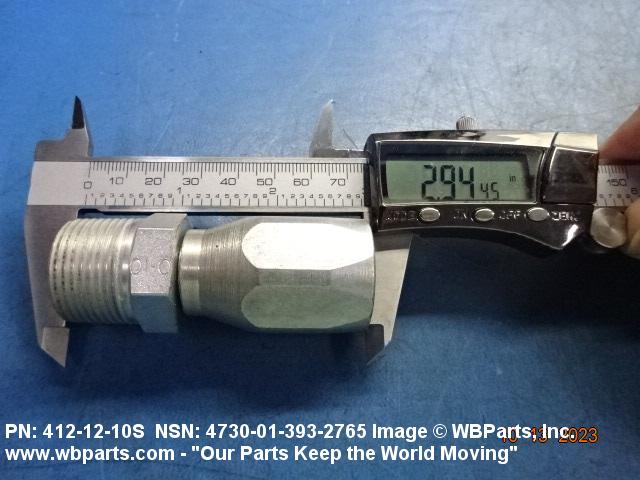

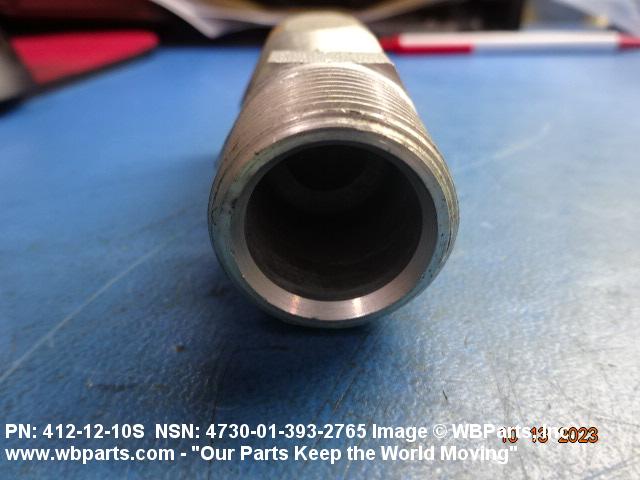

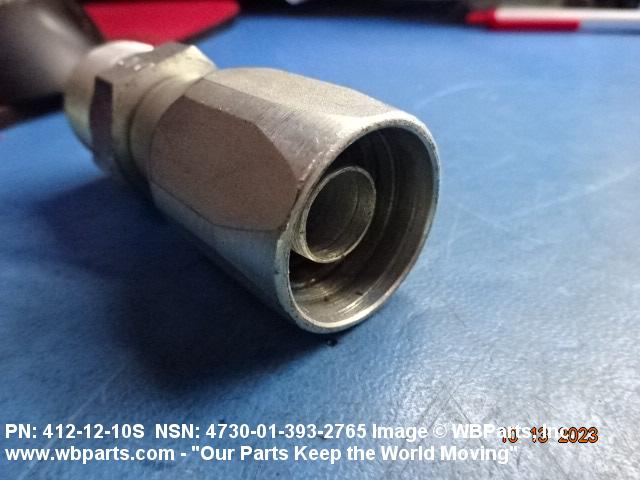

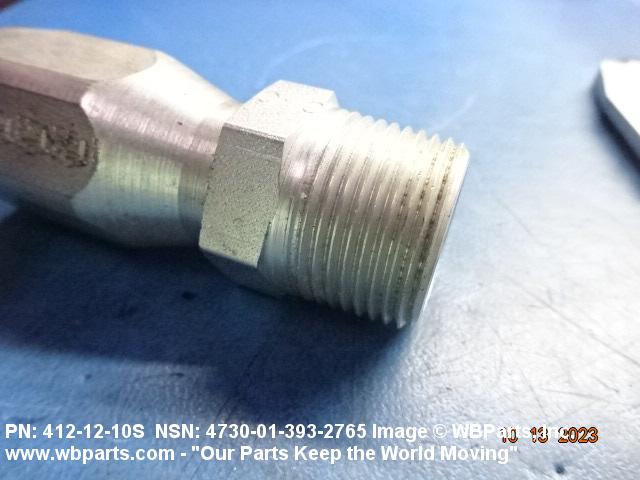

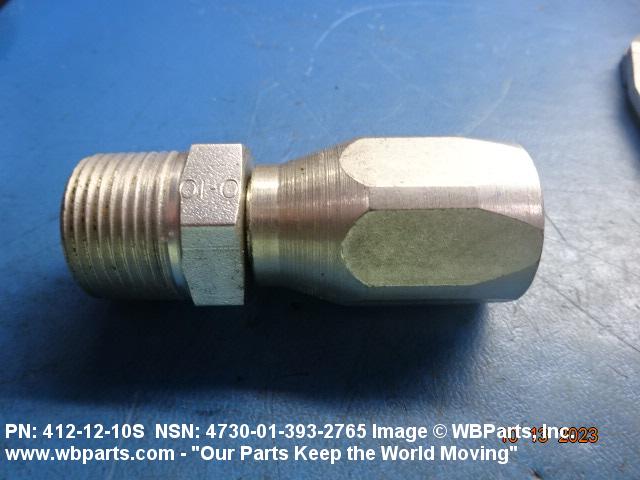

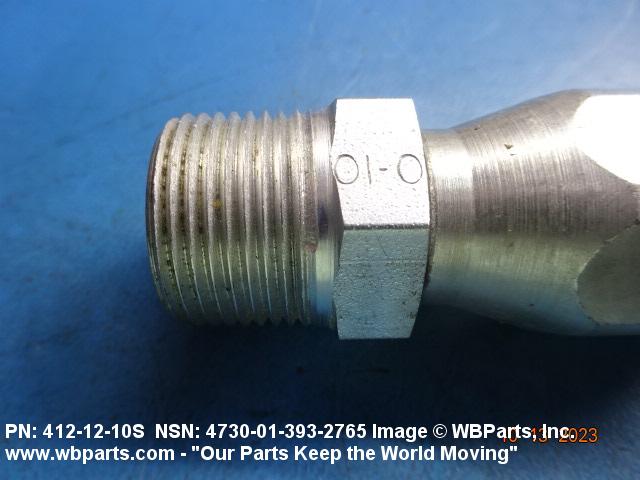

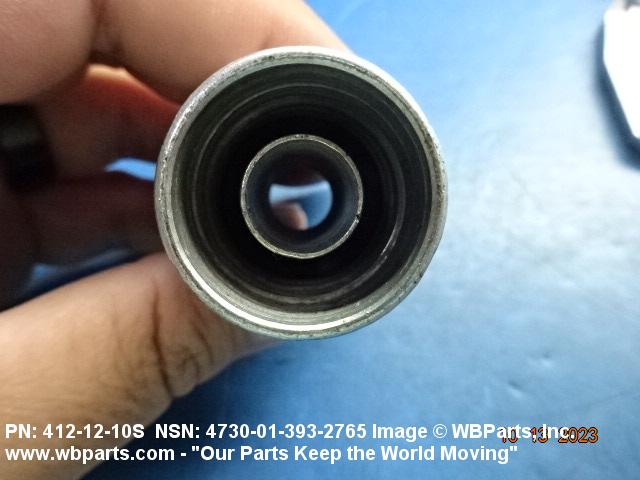

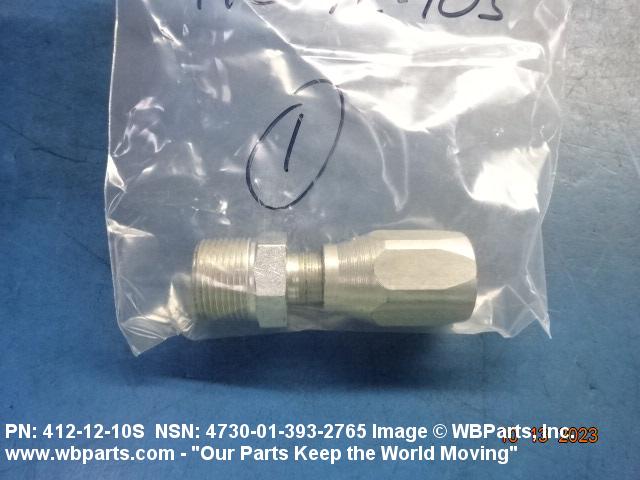

Drawings & Photos | NSN 4730-01-393-2765
Demand History | NSN 4730-01-393-2765
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20120-12-10S | 2023-12-346 | 30 | DIBBS |
| 412-12-10S | 2023-12-346 | 30 | DIBBS |
| 4730-01-393-2765 | 2023-10-279 | 1 | United States |
| 20120-12-10S | 2023-04-102 | 8 | DIBBS |
| 412-12-10S | 2023-04-102 | 8 | DIBBS |
| 20120-12-10S | 2020-07-183 | 10 | DIBBS |
| 412-12-10S | 2020-07-183 | 10 | DIBBS |
| 4730-01-393-2765 | 2009-06-167 | 29 | DIBBS |
Cross Reference | NSN 4730-01-393-2765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20120-12-10S | 87373 | PARKER-HANNIFIN CORPORATION DBA HOSE PRODUCTS DIV |
| 20120-12-10S | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 412-12-10S | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 412-12-10S | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-393-2765
Related Products | NSN 4730-01-393-2765
Technical Data | NSN 4730-01-393-2765
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MAXIMUM OPERATING PRESSURE | 800.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL HOSE GRIPPING 2ND END |
| CONNECTION STYLE | B63B INVERTED FLARE 1ST END B61 GRIPPING NIPPLE 2ND END |
| SEAT ANGLE | 30.0 DEGREES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.500 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.940 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | NPTF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| NOMINAL OVERALL LENGTH | 2.940 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-393-2765
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-393-2765
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
