NSN 4730-01-389-0319 125B1IN, 125-B-1IN, 01-389-0319
Product Details | SEDIMENT STRAINER
4730-01-389-0319 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: 125B1IN, 125-B-1IN, 4730-01-389-0319, 01-389-0319, 4730013890319, 013890319
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 APR 1994 | 01-389-0319 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-389-0319
Cross Reference | NSN 4730-01-389-0319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 125-B-1IN | 76588 | CORE INDUSTRIES INC. DBA MUELLER STEAM SPECIALTY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-389-0319
Related Products | NSN 4730-01-389-0319
Technical Data | NSN 4730-01-389-0319
| Characteristic | Specifications |
|---|---|

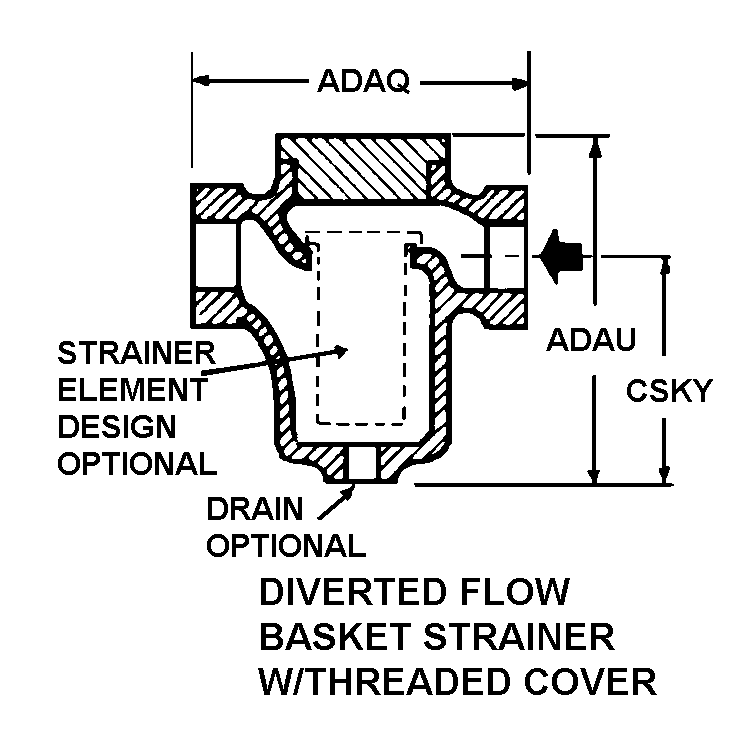

| STYLE DESIGNATOR | C9 DIVERTED FLOW BASKET STRAINER W/THREADED COVER |
| BODY LENGTH | 5.312 INCHES NOMINAL |
| BODY HEIGHT | 7.350 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 4.600 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY FILTERING MEDIUM |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| PERFORATION DIAMETER | 0.156 INCHES NOMINAL |
| PERFORATION QUANTITY | 33.0 PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | WATER |
| MAXIMUM OPERATING PRESSURE | 65.0 POUNDS PER SQUARE INCH |
| TEMP RATING | 128.0 DEG FAHRENHEIT NOMINAL |
| FIRST INTAKE CONNECTION TYPE | THREADED INTERNAL PIPE LINE |
| FIRST INTAKE THREAD SERIES DESIGNATOR | NPT |
| FIRST INTAKE NOMINAL THREAD SIZE | 2.000 INCHES |
| FIRST INTAKE THREAD DIRECTION | RIGHT-HAND |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | INLET CONNECTION AND OUTLET CONNECTION LINE |
Restrictions/Controls & Freight Information | NSN 4730-01-389-0319
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052430 | STRAINERS PIPE LINE BBC BODY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-389-0319
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
