NSN 4730-01-377-2980 MS209136J, MS20913-6J, AS4863
Product Details | PIPE PLUG
4730-01-377-2980 A pipe fitting primarily designed for permanent installation during piping systems operations to fit into another pipe or pipe fitting for sealing. It usually is threaded.
Part Alternates: MS209136J, MS20913-6J, AS4863, AS4863J06, 01-435-0212-5 PC 117, 0143502125PC117, 4730-01-377-2980, 01-377-2980, 4730013772980, 013772980
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 JUL 1993 | 01-377-2980 | 06077 ( PLUG, PIPE ) |

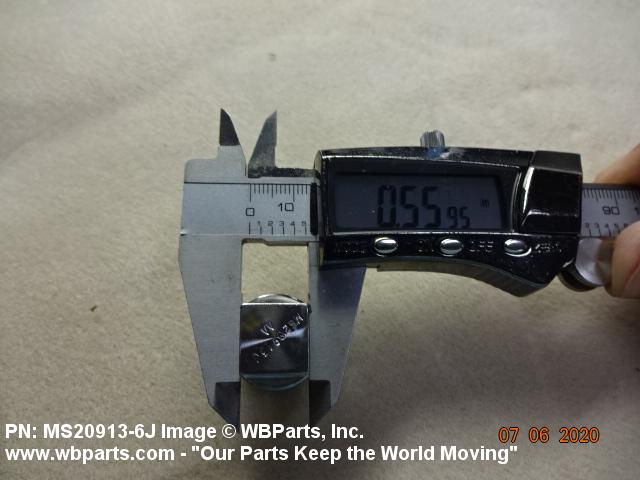

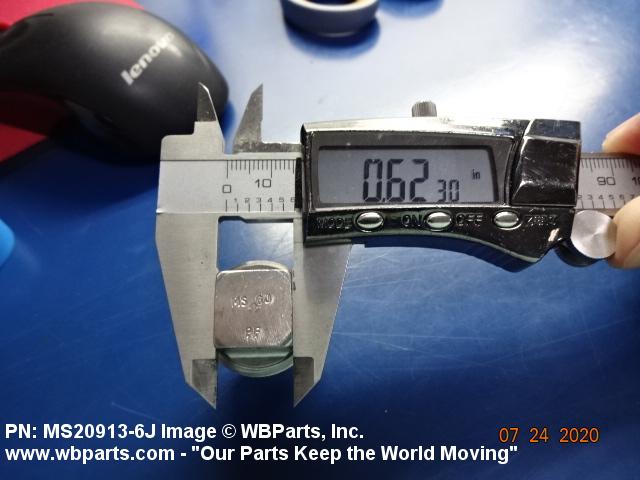

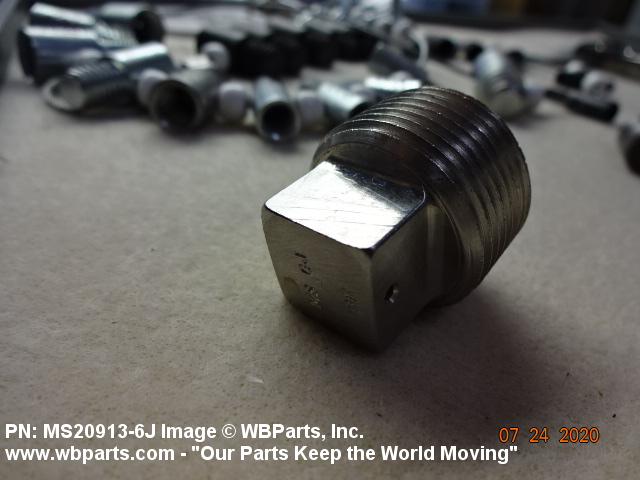

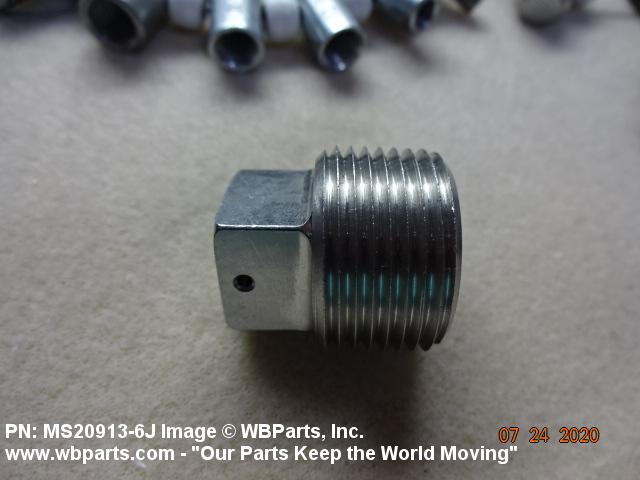

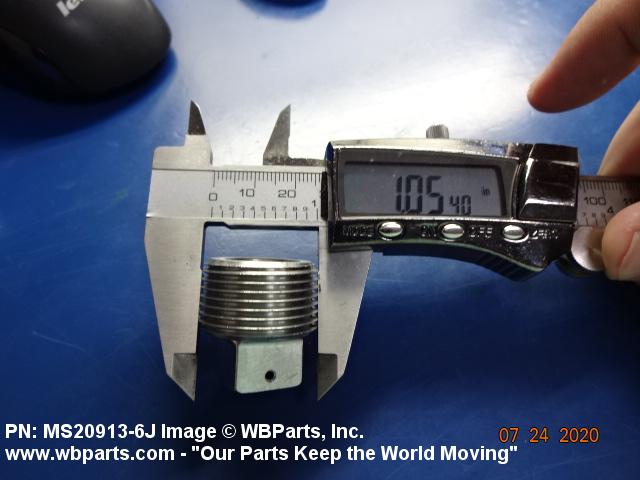

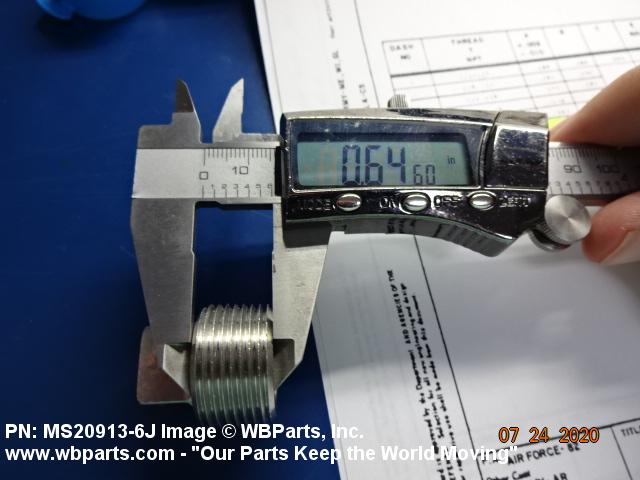

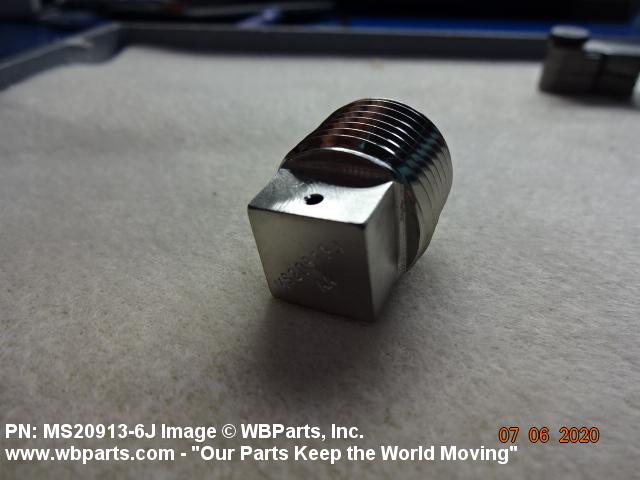

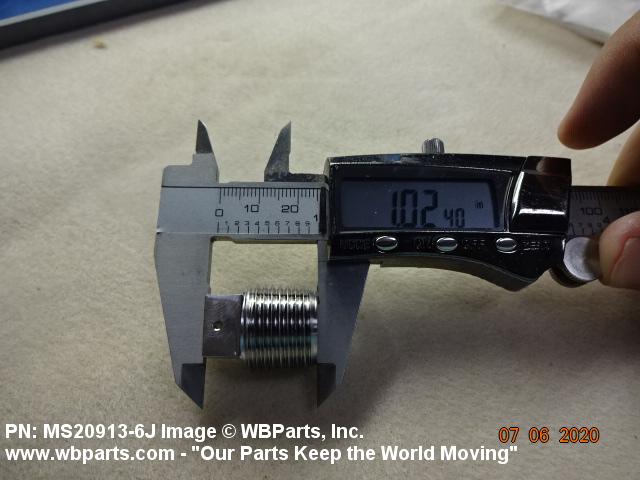

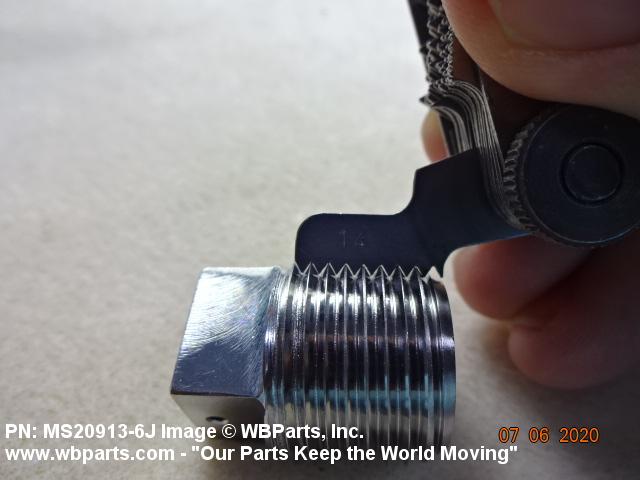

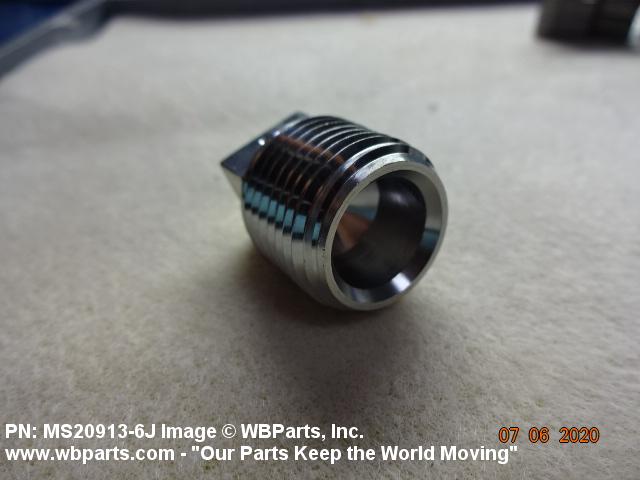

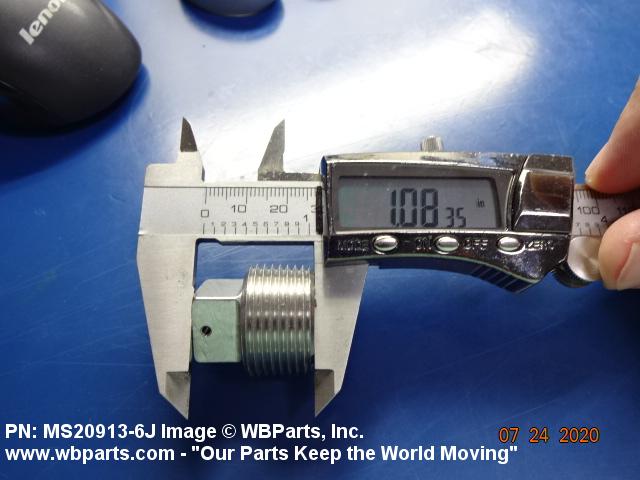

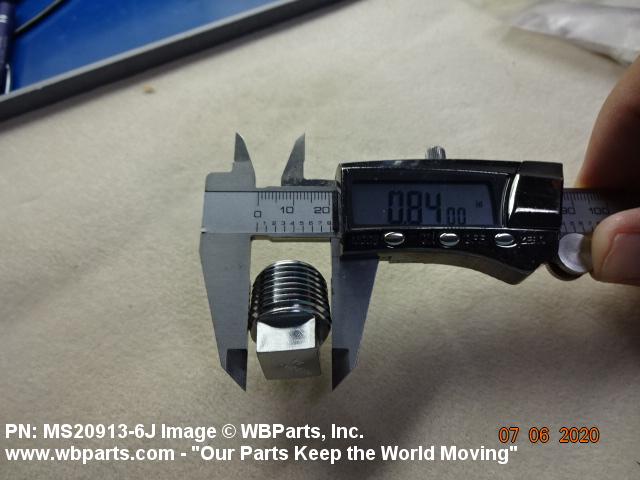

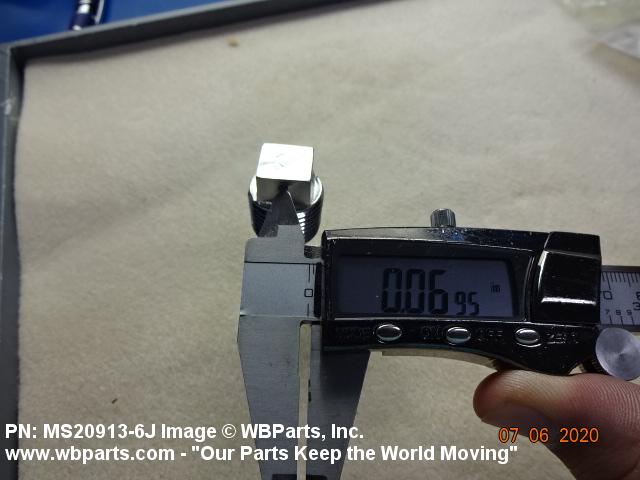

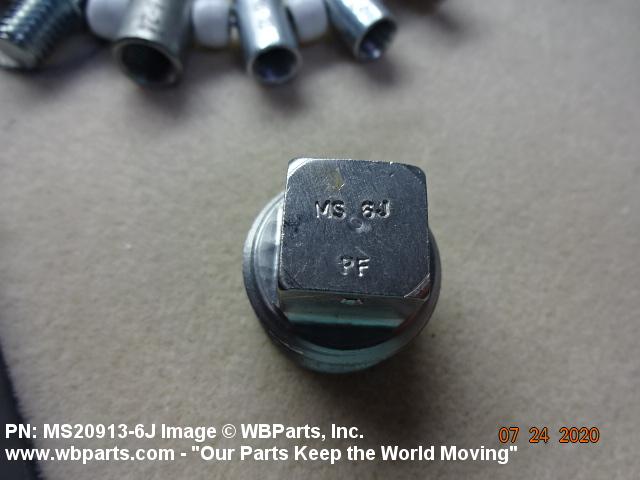

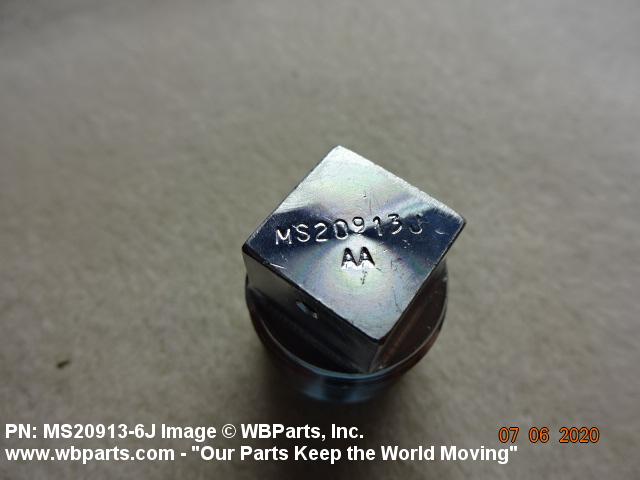

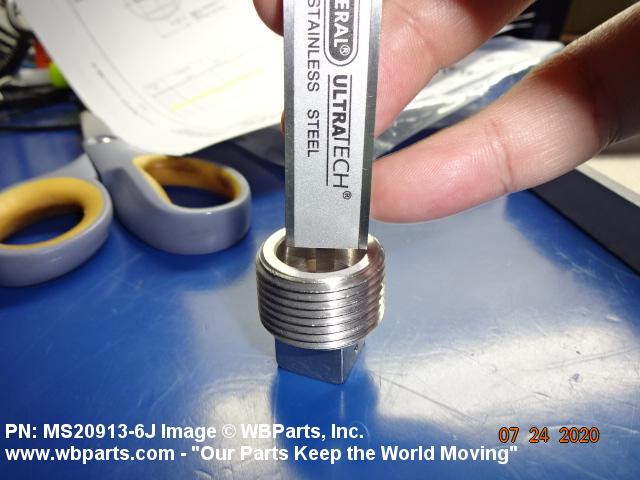

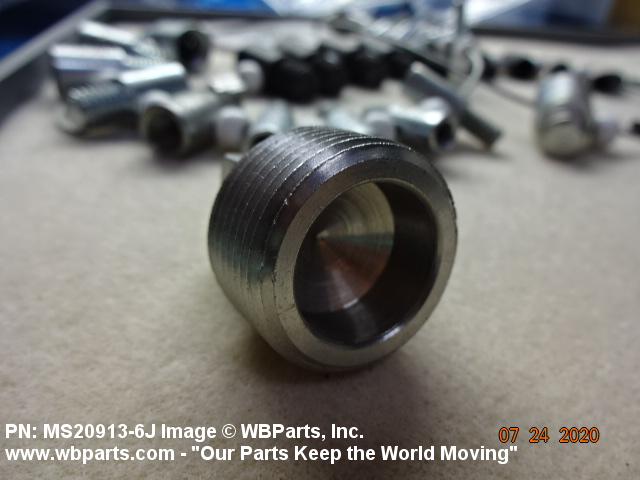

Drawings & Photos | NSN 4730-01-377-2980
Demand History | NSN 4730-01-377-2980
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS209136J | 2024-10-295 | 22 | US |
| MS209136J | 2024-08-214 | 10 | United States |
| MS209136J | 2024-04-113 | 5 | United States |
| 4730-01-377-2980 | 2023-10-284 | 150 | US |
| 4730-01-377-2980 | 2023-08-220 | 32 | US |
| 4730-01-377-2980 | 2023-07-201 | 5 | United States |
| 4730-01-377-2980 | 2022-11-318 | 23 | US |
| MS209136J | 2022-06-154 | 100 | US |
| AS4863J06 | 2021-01-25 | 153 | United States |
| 4730-01-377-2980 | 2020-11-310 | 20 | United States |
| 4730-01-377-2980 | 2020-10-296 | 3 | United States |
| 4730-01-377-2980 | 2019-03-65 | 5 | DE |
| 4730-01-377-2980 | 2017-07-206 | 10 | US |
| 4730-01-377-2980 | 2016-10-278 | 234 | DIBBS |
| 4730-01-377-2980 | 2016-06-181 | 40 | DIBBS |
| 4730-01-377-2980 | 2016-06-161 | 45 | US |
| MS209136J | 2016-06-159 | 5 | United States |
| 4730-01-377-2980 | 2015-04-120 | 50 | DIBBS |
| 4730-01-377-2980 | 2015-03-67 | 20 | DIBBS |
| 4730-01-377-2980 | 2015-02-42 | 10 | DIBBS |
| 4730-01-377-2980 | 2014-08-233 | 10 | DIBBS |
| 4730-01-377-2980 | 2014-02-34 | 45 | United States |
| 4730-01-377-2980 | 2014-01-28 | 45 | United States |
| 4730-01-377-2980 | 2013-12-340 | 1 | United States |
| 4730-01-377-2980 | 2013-12-340 | 125 | United States |
| AS4863J06 | 2012-07-194 | 50 | US |
| AS4863J06 | 2012-03-75 | 200 | United States |
| 4730-01-377-2980 | 2009-06-167 | 4 | United States |
| 4730-01-377-2980 | 2008-09-259 | 33 | DIBBS |
| MS209136J | 2007-09-255 | 84 | US |
Cross Reference | NSN 4730-01-377-2980
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-377-2980
Related Products | NSN 4730-01-377-2980
Technical Data | NSN 4730-01-377-2980
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| DRIVE END STYLE | 1 RAISED SQUARE |
| CONNECTION STYLE | J4 FLARED |
| THREAD SERIES DESIGNATOR | NPT EXTERNAL |
| NOMINAL THREAD SIZE | 0.750 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.750 INCHES |
| HEAD TYPE | SOLID |
| BODY TYPE | CORED |
| BODY CORE DIAMETER | 0.719 INCHES NOMINAL |
| CORE DEPTH | 0.500 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 96906-MS20913 GOVERNMENT STANDARD |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 1 |
Restrictions/Controls & Freight Information | NSN 4730-01-377-2980
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-377-2980
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
