Product Details | TUBE ELBOW

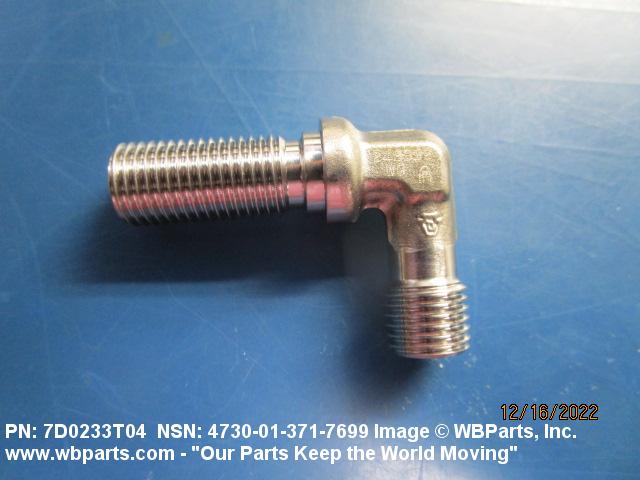

4730-01-371-7699 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AFP1647T0404, AP3220, AP3220T04, 7D0233T04, 4730-01-371-7699, 01-371-7699, 4730013717699, 013717699
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 FEB 1993 | 01-371-7699 | 03771 ( ELBOW, TUBE ) |
Drawings & Photos | NSN 4730-01-371-7699
Demand History | NSN 4730-01-371-7699
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-371-7699 | 2022-11-17 | 2 | United States |
| AFP1647T0404 | 2022-08-23 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-371-7699
Technical Data | NSN 4730-01-371-7699
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R54520 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4928 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE FLUORIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2486 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B66 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |

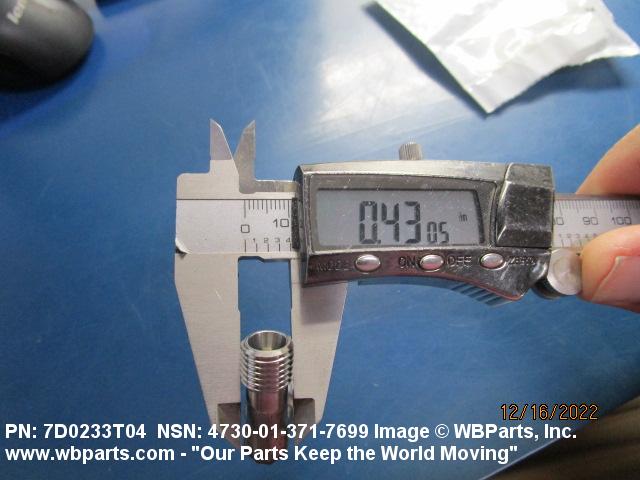

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF 1ST END BULKHEAD |

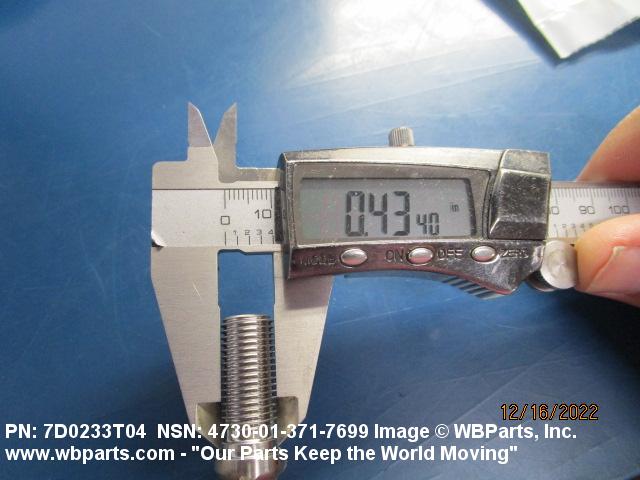

| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS 0.438 INCHES 1ST END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 1ST END BULKHEAD |

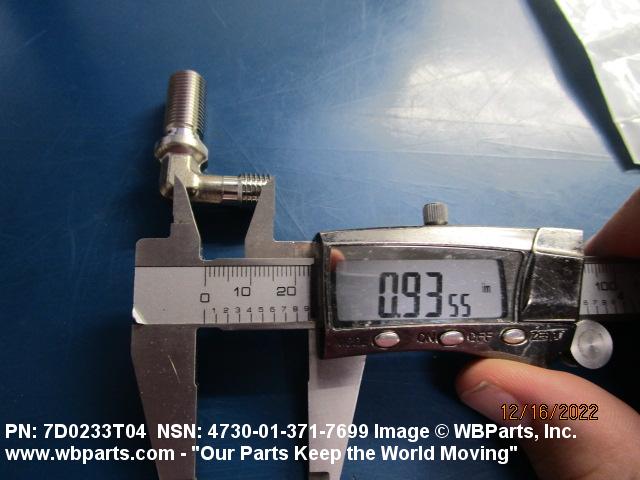

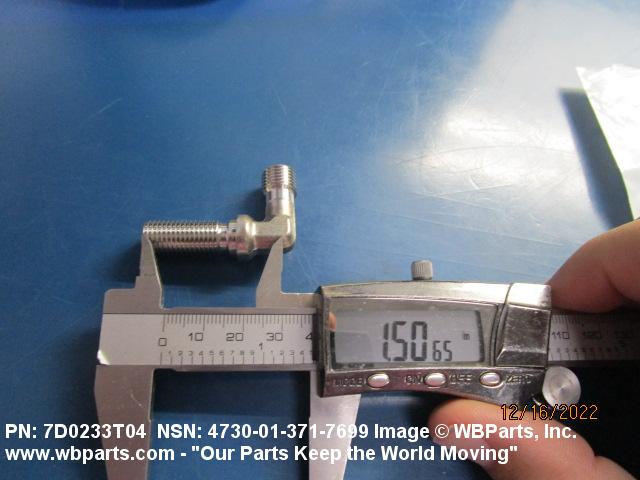

| LEG LENGTH | 1.500 INCHES NOMINAL 1ST END 0.938 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4730-01-371-7699
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-371-7699
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
