NSN 4730-01-364-8698 AP10327D16, D10021AD16, 01-364-8698

Product Details | TUBE ELBOW

4730-01-364-8698 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: AP10327D16, D10021AD16, 4730-01-364-8698, 01-364-8698, 4730013648698, 013648698

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	27 SEP 1992	01-364-8698	03771 ( ELBOW, TUBE )

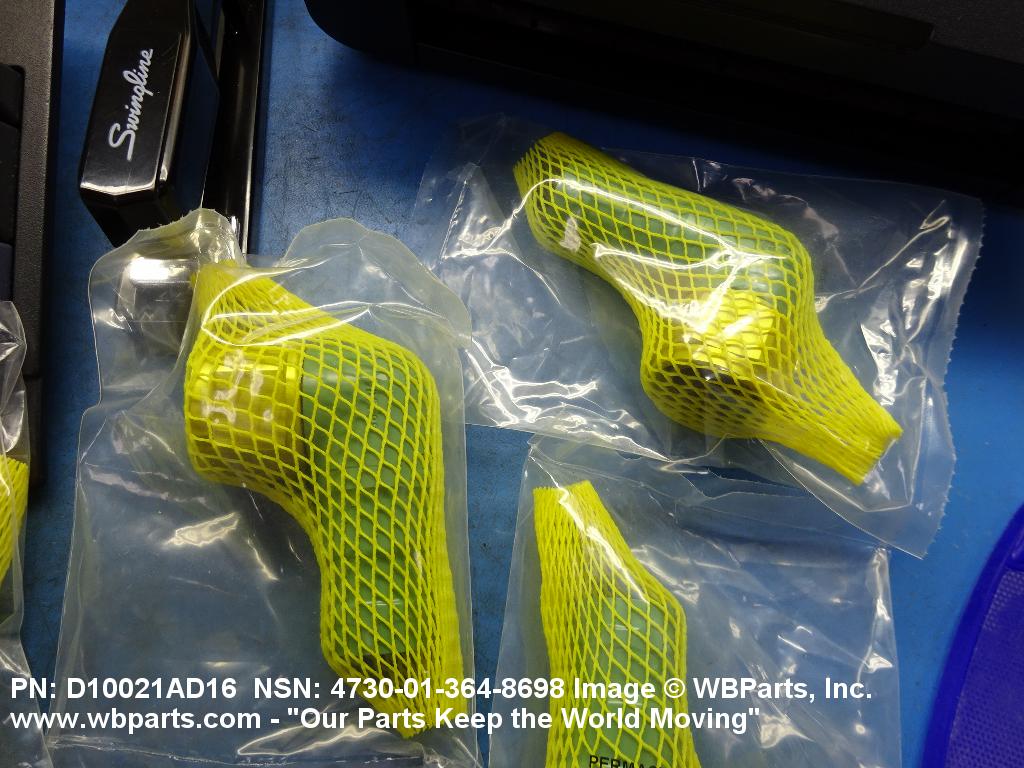

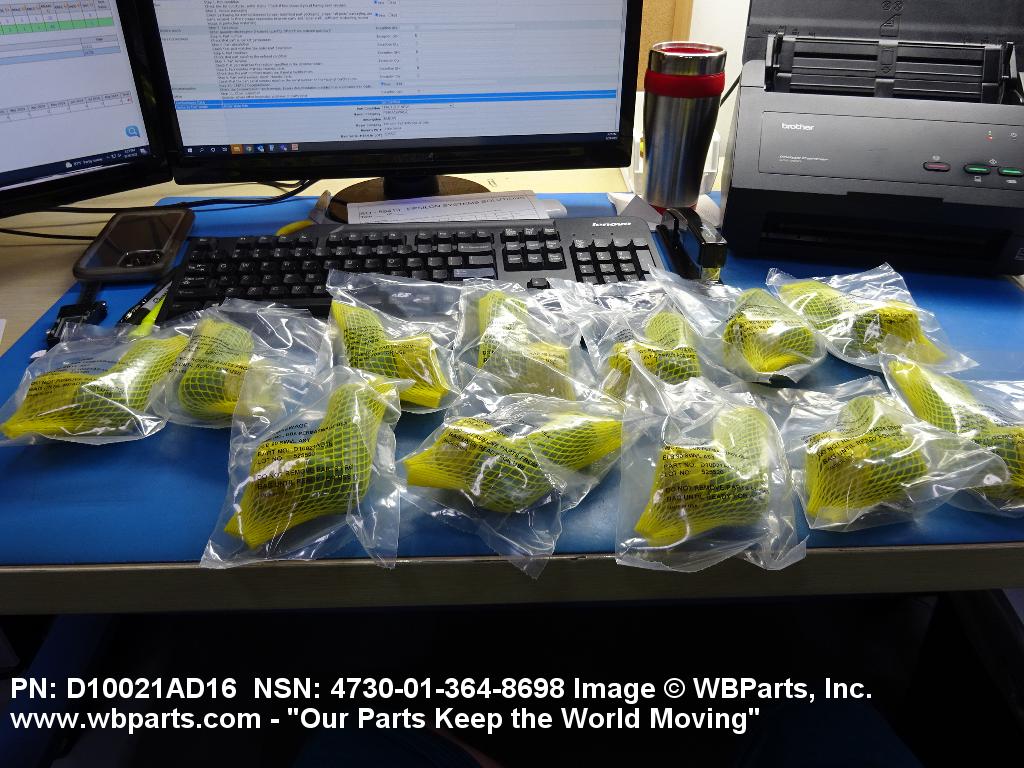

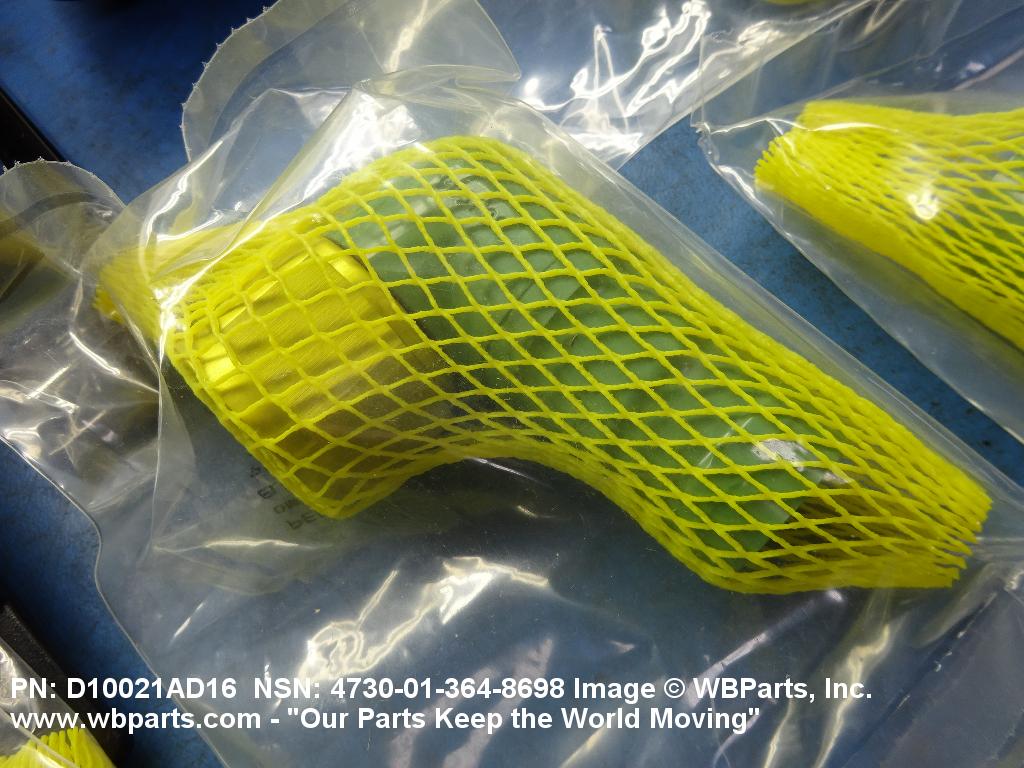

Drawings & Photos | NSN 4730-01-364-8698

Part Number	Request Date	QTY	Origin
AP10327D16	2023-04-109	51	DIBBS
D10021AD16	2023-04-109	51	DIBBS
AP10327D16	2023-01-05	54	DIBBS
D10021AD16	2023-01-05	54	DIBBS
013648698	2022-08-228	12	United States
AP10327D16	2021-10-304	17	DIBBS
D10021AD16	2021-10-304	17	DIBBS
AP10327D16	2021-02-46	19	DIBBS
D10021AD16	2021-02-46	19	DIBBS
4730-01-364-8698	2017-02-37	95	DIBBS
4730-01-364-8698	2016-09-251	66	DIBBS
4730-01-364-8698	2015-02-49	53	DIBBS
4730-01-364-8698	2012-01-11	22	DIBBS
4730-01-364-8698	2011-10-297	0	DIBBS
4730-01-364-8698	2011-09-256	26	DIBBS
4730-01-364-8698	2010-11-323	21	DIBBS
4730-01-364-8698	2009-01-02	26	DIBBS
4730-01-364-8698	2008-12-339	48	DIBBS

Cross Reference | NSN 4730-01-364-8698

Part Number	Cage Code	Manufacturer
AP10327D16	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
D10021AD16	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-364-8698

Compare

Related Products | NSN 4730-01-364-8698

4730-01-364-8700, 4730-01-364-8701, 4730-01-364-8702, 4730-01-364-8703, 4730-01-364-8704

Technical Data | NSN 4730-01-364-8698

Characteristic	Specifications
MATERIAL	ALUMINUM OVERALL
CONNECTION TYPE	THREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 2ND END
CONNECTION STYLE	B12 SWIVEL NUT, FLARELESS 1ST END B48 SWAGED W/GROOVES 2ND END
SEAT ANGLE	12.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	1.000 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNJ 1ST END
NOMINAL THREAD SIZE	1.312 INCHES 1ST END
THREAD QUANTITY PER INCH	12 1ST END
THREAD CLASS	3B 1ST END
LEG LENGTH	2.101 INCHES NOMINAL 1ST END 2.750 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES

Restrictions/Controls & Freight Information | NSN 4730-01-364-8698

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-364-8698

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
